5962-8973101LA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 5962-8973101LA

5962-8973101LA: DescriptionCDIP-24, Tube; Categorylogic logic; File Size201KB，8 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

5962-8973101LA Overview

CDIP-24, Tube

5962-8973101LA Parametric

Parameter Name	Attribute value
Brand Name	Integrated Device Technology
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	CDIP
package instruction	DIP, DIP24,.3
Contacts	24
Manufacturer packaging code	SD24
Reach Compliance Code	_compli
Other features	INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION; PARITY GENERATION A TO B; ERROR DETECTION B TO A
Control type	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL
series	FCT
JESD-30 code	R-GDIP-T24
JESD-609 code	e0
length	32.004 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS TRANSCEIVER
MaximumI(ol)	0.032 A
Humidity sensitivity level	1
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	240
power supply	5 V
Prop。Delay @ Nom-Su	20 ns
propagation delay (tpd)	14 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
translate	N/A
Trigger type	POSITIVE EDGE
width	7.62 mm
Base Number Matches	1

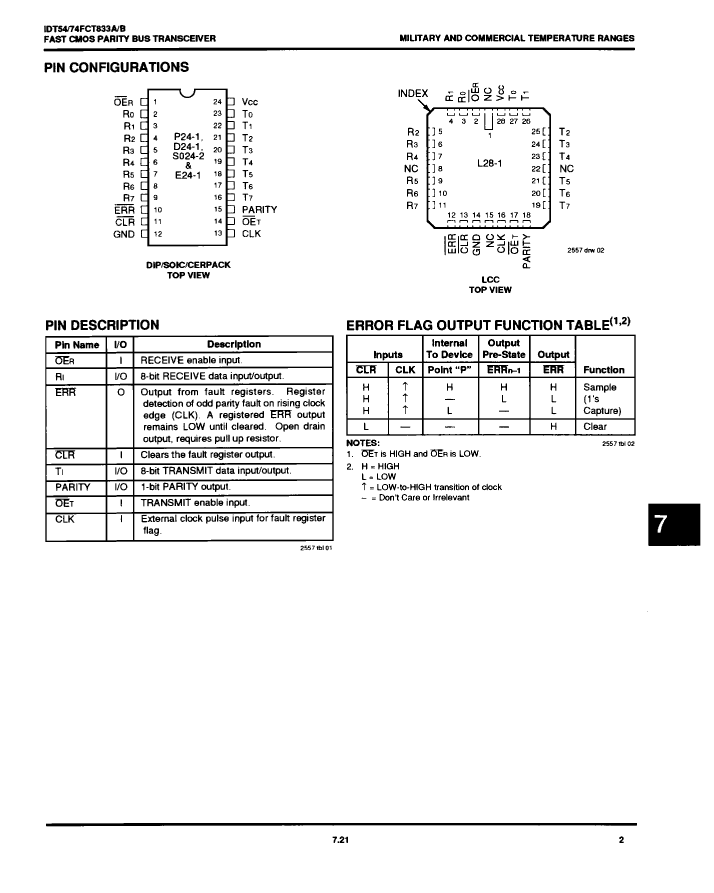

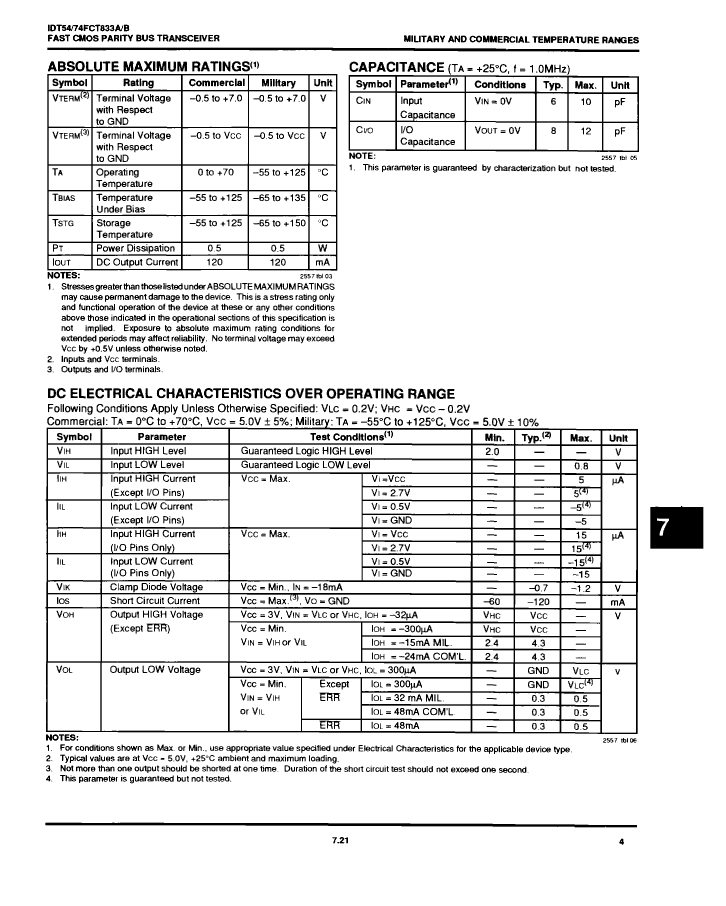

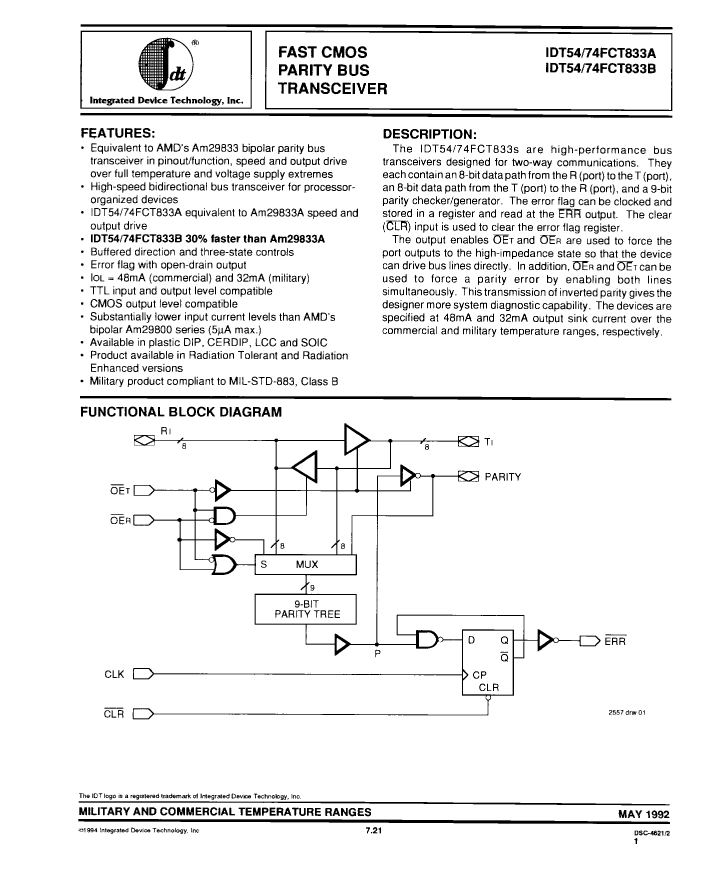

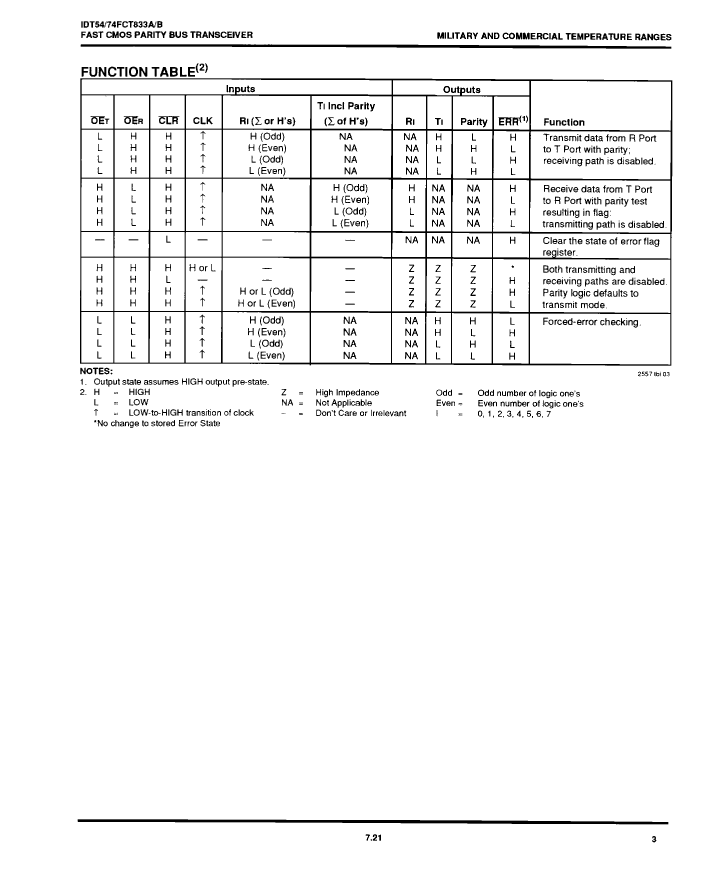

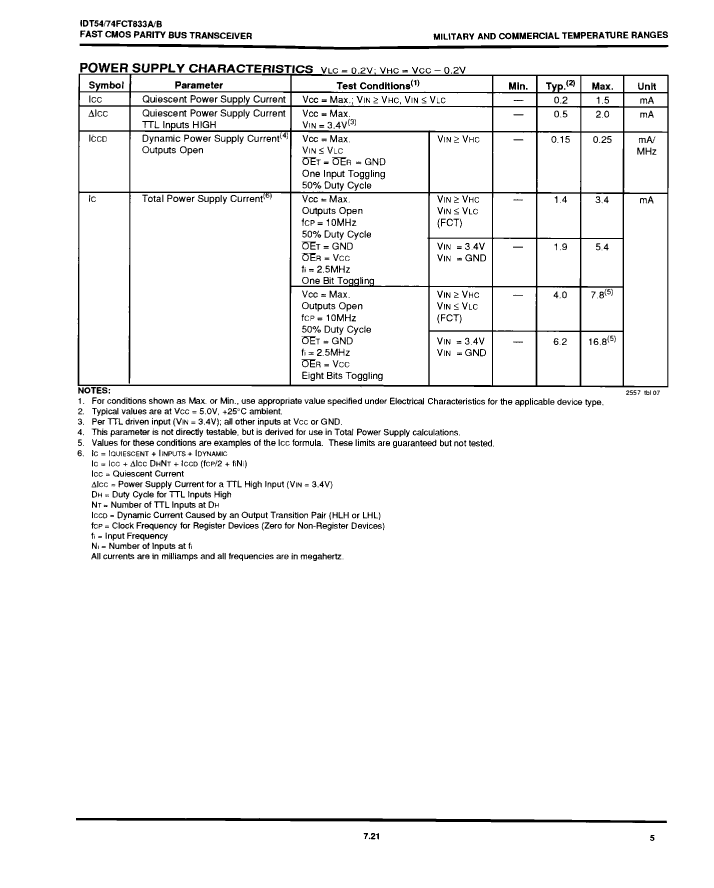

Preview

Download Datasheet

View All

5962-8973101LA Related Products

	5962-8973101LA	5962-8973102KA	5962-8973101KA	5962-89731013A	5962-89731023A	5962-8973102LA
Description	CDIP-24, Tube	Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDFP24, CERPACK-24	Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDFP24, CERPACK-24	LCC-28, Tube	LCC-28, Tube	Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP24, 0.300 INCH, CERDIP-24
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	CDIP	DFP	DFP	LCC	LCC	DIP
package instruction	DIP, DIP24,.3	CERPACK-24	CERPACK-24	LCC-28	QCCN, LCC28,.45SQ	DIP, DIP24,.3
Contacts	24	24	24	28	28	24
Reach Compliance Code	_compli	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
Other features	INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION; PARITY GENERATION A TO B; ERROR DETECTION B TO A	INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION; PARITY GENERATION A TO B; ERROR DETECTION B TO A	INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION; PARITY GENERATION A TO B; ERROR DETECTION B TO A	INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION; PARITY GENERATION A TO B; ERROR DETECTION B TO A	INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION; PARITY GENERATION A TO B; ERROR DETECTION B TO A	INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION; PARITY GENERATION A TO B; ERROR DETECTION B TO A
Control type	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
series	FCT	FCT	FCT	FCT	FCT	FCT
JESD-30 code	R-GDIP-T24	R-GDFP-F24	R-GDFP-F24	S-CQCC-N28	S-CQCC-N28	R-GDIP-T24
JESD-609 code	e0	e0	e0	e0	e0	e0
length	32.004 mm	15.748 mm	15.748 mm	11.4554 mm	11.4554 mm	32.004 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER
MaximumI(ol)	0.032 A	0.032 A	0.032 A	0.032 A	0.032 A	0.032 A
Number of digits	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of ports	2	2	2	2	2	2
Number of terminals	24	24	24	28	28	24
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DFP	DFP	QCCN	QCCN	DIP
Encapsulate equivalent code	DIP24,.3	FL24,.4	FL24,.4	LCC28,.45SQ	LCC28,.45SQ	DIP24,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR
Package form	IN-LINE	FLATPACK	FLATPACK	CHIP CARRIER	CHIP CARRIER	IN-LINE
Peak Reflow Temperature (Celsius)	240	NOT SPECIFIED	NOT SPECIFIED	260	260	225
power supply	5 V	5 V	5 V	5 V	5 V	5 V
propagation delay (tpd)	14 ns	10 ns	14 ns	14 ns	10 ns	10 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Maximum seat height	5.08 mm	2.286 mm	2.286 mm	2.54 mm	2.54 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb) - hot dipped	Tin/Lead (Sn/Pb) - hot dipped	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb) - hot dipped
Terminal form	THROUGH-HOLE	FLAT	FLAT	NO LEAD	NO LEAD	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	QUAD	QUAD	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	20
translate	N/A	N/A	N/A	N/A	N/A	N/A
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
width	7.62 mm	9.144 mm	9.144 mm	11.4554 mm	11.4554 mm	7.62 mm
Base Number Matches	1	1	1	1	1	-
Maker	-	IDT (Integrated Device Technology)	-	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
Prop。Delay @ Nom-Sup	-	18 ns	20 ns	20 ns	18 ns	18 ns
