23130611 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 23130611

23130611: DescriptionBoard Connector, 45 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal,; CategoryThe connector The connector; File Size84KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

23130611 Overview

Board Connector, 45 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal,

23130611 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1443110196
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	6.7
Other features	POLARIZED
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	23130611
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	4 mm
Termination type	SOLDER
Total number of contacts	45

Preview

Download Datasheet

View All

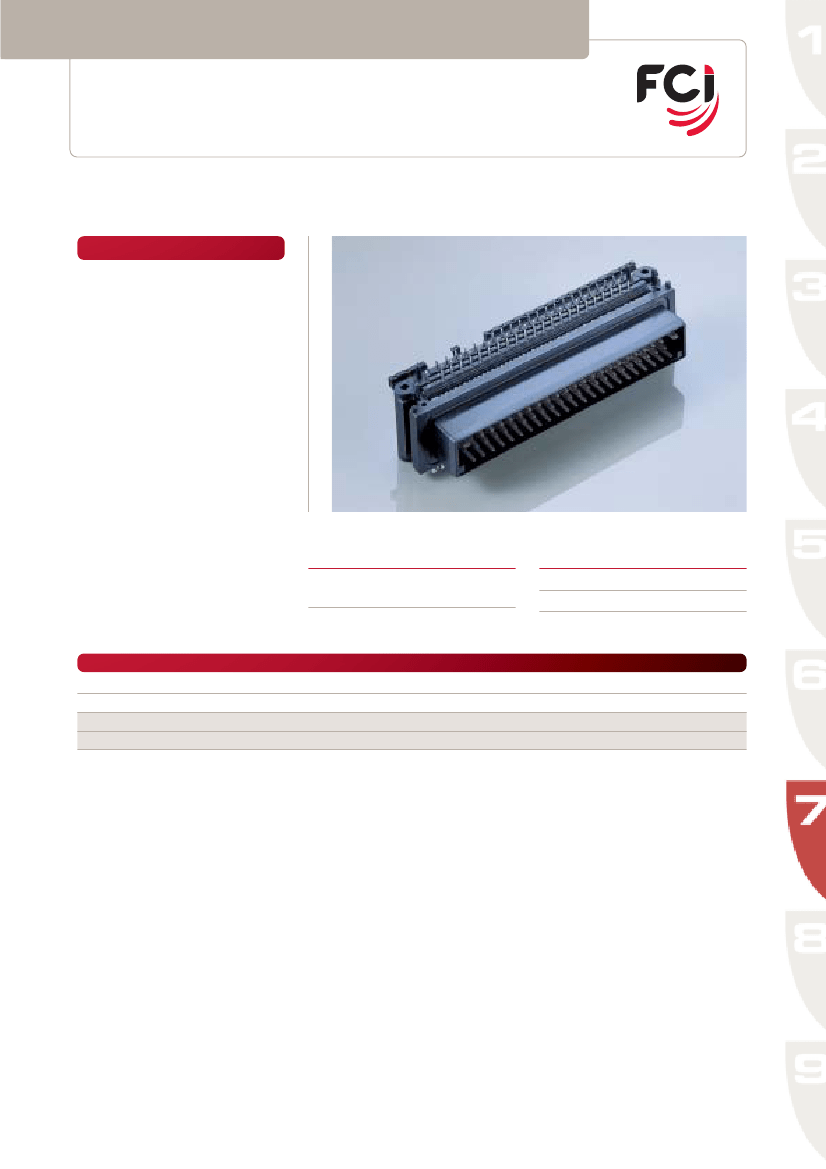

ECU Connectors and Packagings

Pin headers

68 way - 1.5 x 0.6 + 3.0 x 0.8 mm pin headers

Features

•

Version loaded with 45 tabs

•

available

Moulded-in pin headers

Mixed loading

Right angle version for PCB

Bending protector on tab

terminations

Mechanical polarization

Performance characteristics

•

Temperature range:

from -40°C to +120°C

Construction

•

Housing material:

•

Tab material and plating: CuSn/Sn

Part Numbers

2 323 14 00

2 323 03 00

2 313 28 11

2 313 06 11

No. of position

68 (loaded with 45)

Terminal size

66 x [1.6 x 0.6 mm] + 2 x [3.0 x 0.8 mm]

43 x [1.6 x 0.6 mm] + 2 x [3.0 x 0.8 mm]

Type

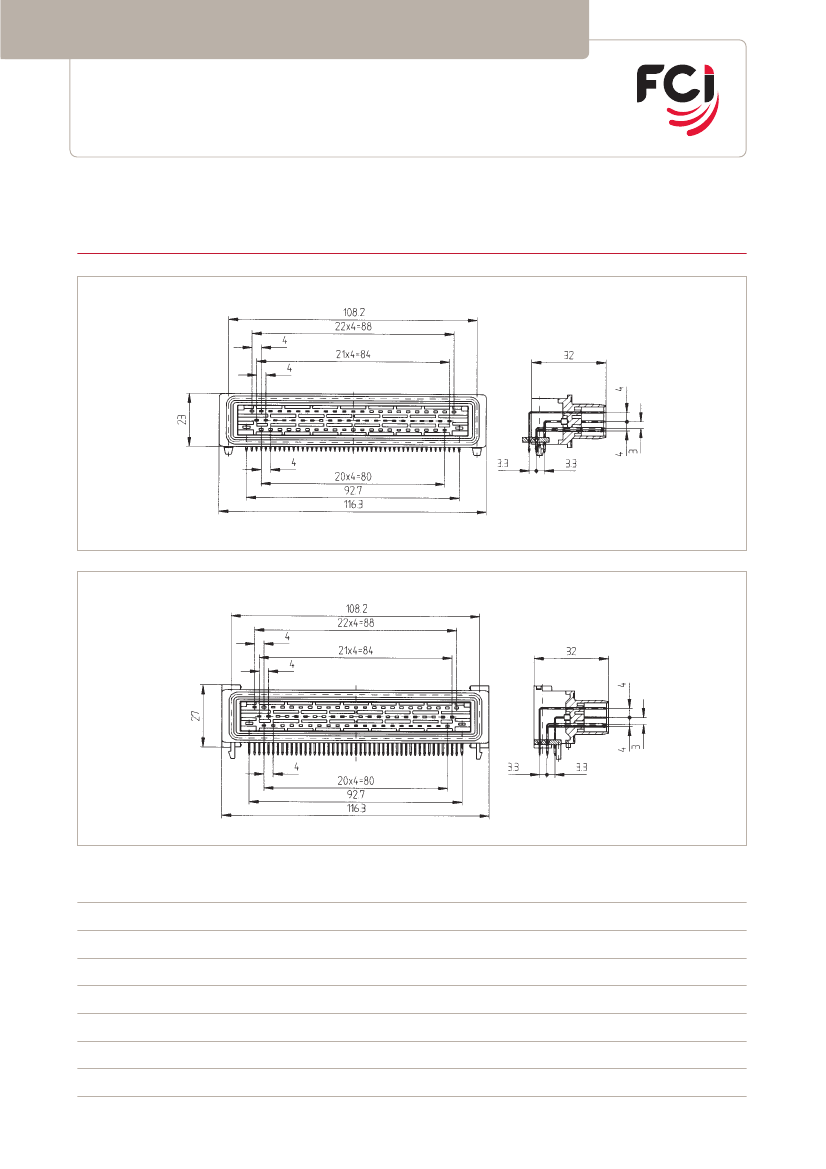

See drawing

Colour

Black

7.21

23130611 Related Products

	23130611	23132811	23231400	23230300
Description	Board Connector, 45 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 45 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 68 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 68 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	compliant	compliant	compliant
Other features	POLARIZED	POLARIZED	POLARIZED	POLARIZED
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	TIN	TIN	TIN	TIN
Contact completed and terminated	TIN	TIN	TIN	TIN
Contact point gender	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	3	3	3	3
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	4 mm	4 mm	4 mm	4 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	45	45	68	68
Objectid	1443110196	-	1443110205	1443110202
ECCN code	EAR99	-	EAR99	EAR99
YTEOL	6.7	-	6.7	6.7
Manufacturer's serial number	23130611	23132811	23231400	-
