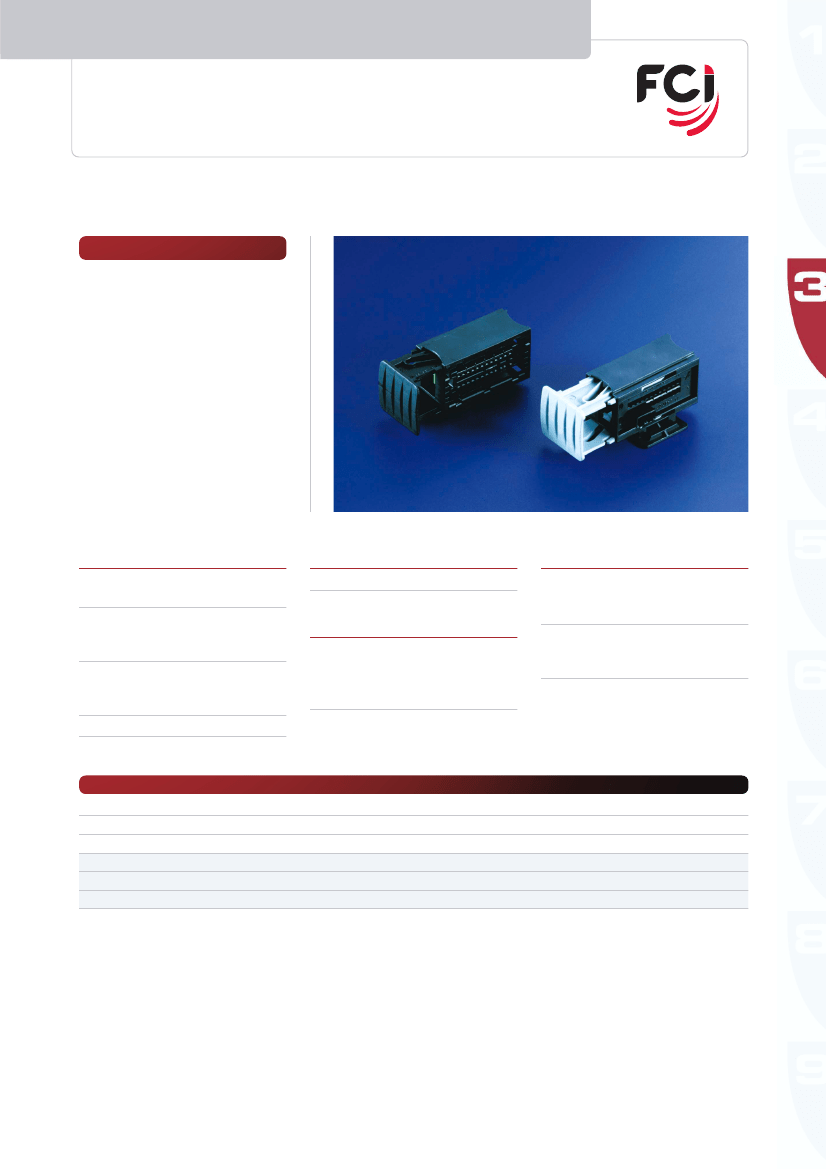

Flex Interconnection System
Modupack
DuoTwin/DCS-2
22 way female connector for 0.64 + 2.8 mm terminals
Features
•
High density connector system
using 0.64 + 2.8 mm terminals
(5.5 mm pitch between rows)
Accomodates 20 x 0.64 mm
terminals + 2 x 2.8 mm terminals
Double row design with 2.54 mm
pitch for 0.64 mm terminals and
5.08 mm pitch for 2.8 mm
terminals
Lateral secondary lock
Several colour codings available
Mechanical polarization
Fastener locking area
•
•
•
•
•
•
Performance characteristics
•
Temperature range:
from -40°C to +85°C
Construction
•
Housing material:
PBT
Connector compatibility
•
Usable terminals:
DuoTwin 0.64 mm female terminals
DCS-2 2.8 mm female terminals
•
Contact retention force:
> 120 N for DCS-2 2.8 mm
> 70 N for DuoTwin 0.64 mm
Tooling
•
Removal tool for:
DCS-2 2.8 mm:
DuoTwin 0.64 mm:
Secondary-lock:
Consult us
211 S 031
210 S 043
•
Matable with:
22 way male connectors for
wire application
•
Contact insertion force:
< 8 N for DCS-2 2.8 mm
< 5 N for DuoTwin 0.64 mm
•
Connector mating force:
< 80 N
Part Numbers
250 PC 22 9 S 0 001
250 PC 22 9 S 1 001
250 PC 22 9 S 6 001
250 PC 22 9 S 0 002
250 PC 22 9 S 1 002
250 PC 22 9 S 6 002
No. of position
22
22
22
22
22
22
Terminal size
20 x 0.64 mm + 2 x 2.8 mm
20 x 0.64 mm + 2 x 2.8 mm
20 x 0.64 mm + 2 x 2.8 mm
20 x 0.635 mm + 2 x 2.8 mm
20 x 0.635 mm + 2 x 2.8 mm
20 x 0.635 mm + 2 x 2.8 mm
Type
Grey Slide
Grey Slide
Grey Slide
Black Slide
Black Slide
Black Slide
Colour
Black
Brown
Blue
Black
Brown
Blue
3.11
Flex Interconnection System
Modupack
DuoTwin/DCS-2
22 way female connector for 0.64 + 2.8 mm terminals

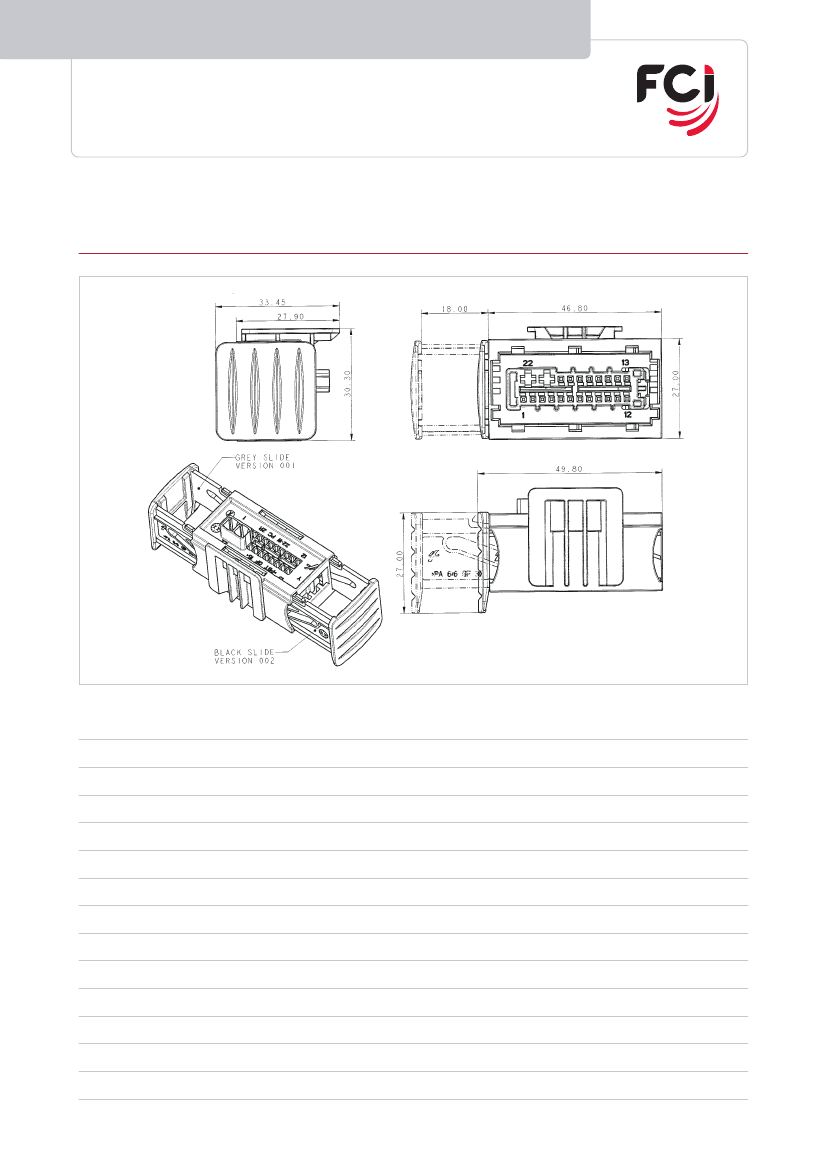

Dimensional characteristics
Notes :
3.12
