425XCX-120VAC: DescriptionPower/Signal Relay, 3PDT, Momentary, 11000mW (Coil), 30A (Contact), 28VDC (Contact), AC Input, AC/DC Output, Panel Mount; CategoryMechanical and electronic products relay; File Size79KB，1 Pages; ManufacturerStruthers-Dunn

Download Datasheet Parametric Compare View All

425XCX-120VAC Overview

Power/Signal Relay, 3PDT, Momentary, 11000mW (Coil), 30A (Contact), 28VDC (Contact), AC Input, AC/DC Output, Panel Mount

425XCX-120VAC Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	COIL OPERATE VOLTAGE(AC): 102 V, COIL RELEASE VOLTAGE(AC): 12 V
body height	59.2 mm
Body length or diameter	82.8 mm
Coil current (AC) maximum value	0.092 A
Coil power	11000 mW
Coil resistance	170 Ω
Maximum coil voltage (AC)	120 V
Coil/Input Power Type	AC
Contact (AC) maximum rated R load	25A@240VAC
Maximum contact current (AC)	25 A
Maximum contact current (DC)	30 A
Contact (DC) maximum rated R load	30A@28VDC
Maximum contact voltage (AC)	240 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
Manufacturer's serial number	425
Installation features	PANEL MOUNT
operating hours	30 ms
Maximum operating temperature	45 °C
Minimum operating temperature	-55 °C
Guideline	CSA; UL
Relay action	MOMENTARY
Relay function	3PDT
Relay type	POWER/SIGNAL RELAY
release time	15 ms
surface mount	NO
Termination type	SCREW
Base Number Matches	1

Preview

Download Datasheet

View All

Struthers-Dunn

407 East Smith Street - Suite B

Timmonsville, SC 29161 US

Phone:

(843) 346-4427 •

Fax:

(843) 346-4465

E-Mail:

info@struthers-dunn.com •

Web site:www.struthers-dunn.com

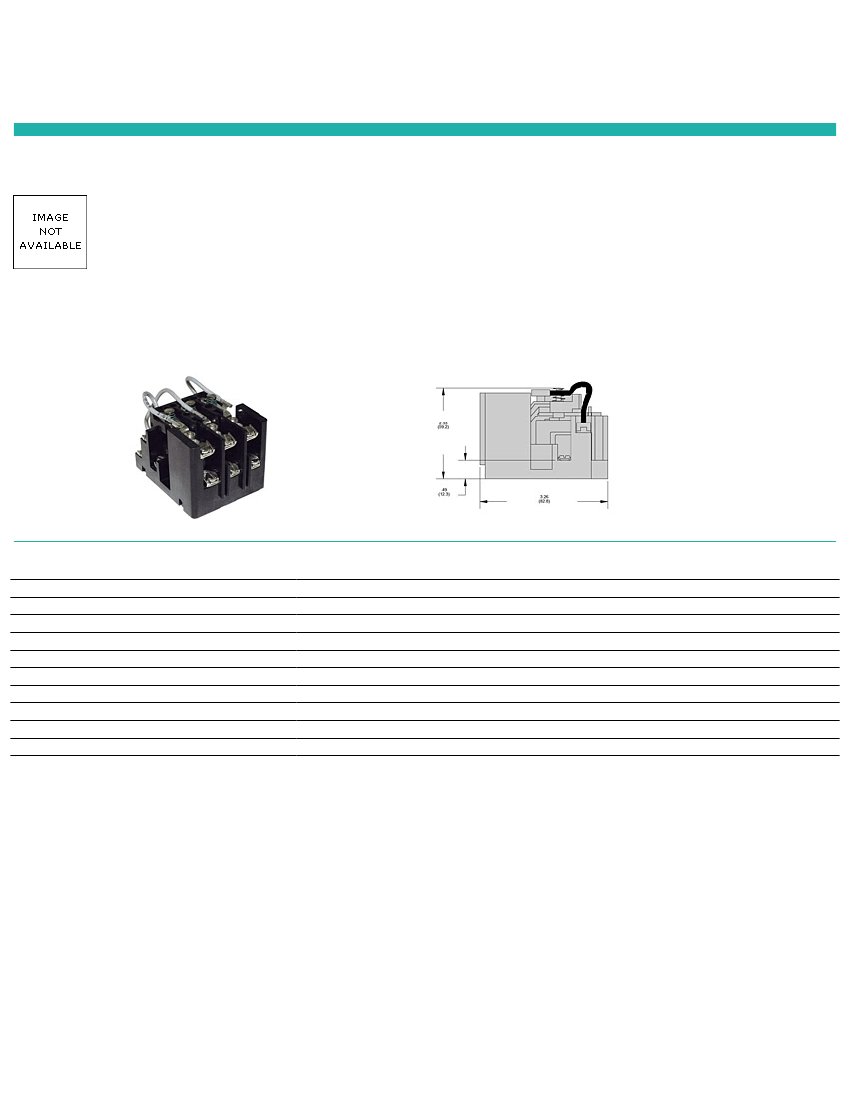

425 Series - Open Style Power Relays

The 425 3 pole relay is capable of handling up to 30 Amp and 1HP loads. The 425 series (3 pole) has sufficient spacing to allow for 600VAC contact rating. The design

features an enclosed coil, screw terminals, and silver alloy contacts as standard. The 425 has a wide choice of options to choose from.

For Additional Configuration please contact the manufacturer.

Results 1 - 10 of 10

Item #

425CXX-120VAC

425CXX-24VDC

425CXX-115-125VDC

425XCX-24VAC

425XCX-120VAC

425XCX-240VAC

425XCX-480VAC

425XCX-24VDC

425XCX-115-125VDC

425XCX-12 VDC

Contact Arrangement

CXX (3PST - N.O.)

XCX (3PDT)

Coil Voltage

120 VAC

24 VDC

115-125 VDC

24 VAC

120 VAC

240 VAC

480 VAC

24 VDC

115-125 VDC

12 VDC

Results 1 - 10 of 10

1/12/2012 | Page 1 of 1

425XCX-120VAC Related Products

	425XCX-120VAC	425XCX-115-125VDC	425XCX-240VAC	425CXX-120VAC	425XCX-24VAC	425CXX-24VDC	425XCX-24VDC	425CXX-115-125VDC	425XCX-12VDC	425XCX-480VAC
Description	Power/Signal Relay, 3PDT, Momentary, 11000mW (Coil), 30A (Contact), 28VDC (Contact), AC Input, AC/DC Output, Panel Mount	Power/Signal Relay, 3PDT, Momentary, 0.032A (Coil), 125VDC (Coil), 4000mW (Coil), 30A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Panel Mount,	Power/Signal Relay, 3PDT, Momentary, 11000mW (Coil), 30A (Contact), 28VDC (Contact), AC Input, AC/DC Output, Panel Mount	Power/Signal Relay, 3PDT, Momentary, 11000mW (Coil), 30A (Contact), 28VDC (Contact), AC Input, AC/DC Output, Panel Mount	Power/Signal Relay, 3PDT, Momentary, 9350mW (Coil), 30A (Contact), 28VDC (Contact), AC Input, AC/DC Output, Panel Mount	Power/Signal Relay, 3PDT, Momentary, 0.167A (Coil), 24VDC (Coil), 4000mW (Coil), 30A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Panel Mount,	Power/Signal Relay, 3PDT, Momentary, 0.167A (Coil), 24VDC (Coil), 4000mW (Coil), 30A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Panel Mount,	Power/Signal Relay, 3PDT, Momentary, 0.032A (Coil), 125VDC (Coil), 4000mW (Coil), 30A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Panel Mount,	Power/Signal Relay, 3PDT, Momentary, 0.33A (Coil), 12VDC (Coil), 4000mW (Coil), 30A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Panel Mount,	Power/Signal Relay, 3PDT, Momentary, 9350mW (Coil), 30A (Contact), 28VDC (Contact), AC Input, AC/DC Output, Panel Mount
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body height	59.2 mm	59.2 mm	59.2 mm	59.2 mm	59.2 mm	59.2 mm	59.2 mm	59.2 mm	59.2 mm	59.2 mm
Body length or diameter	82.8 mm	82.8 mm	82.8 mm	82.8 mm	82.8 mm	82.8 mm	82.8 mm	82.8 mm	82.8 mm	82.8 mm
Coil power	11000 mW	4000 mW	11000 mW	11000 mW	9350 mW	4000 mW	4000 mW	4000 mW	4000 mW	9350 mW
Coil/Input Power Type	AC	DC	AC	AC	AC	DC	DC	DC	DC	AC
Contact (AC) maximum rated R load	25A@240VAC	25A@240VAC	25A@240VAC	25A@240VAC	25A@240VAC	25A@240VAC	25A@240VAC	25A@240VAC	25A@240VAC	25A@240VAC
Maximum contact current (AC)	25 A	25 A	25 A	25 A	25 A	25 A	25 A	25 A	25 A	25 A
Maximum contact current (DC)	30 A	30 A	30 A	30 A	30 A	30 A	30 A	30 A	30 A	30 A
Contact (DC) maximum rated R load	30A@28VDC	30A@28VDC	30A@28VDC	30A@28VDC	30A@28VDC	30A@28VDC	30A@28VDC	30A@28VDC	30A@28VDC	30A@28VDC
Maximum contact voltage (AC)	240 V	240 V	240 V	240 V	240 V	240 V	240 V	240 V	240 V	240 V
Maximum contact voltage (DC)	28 V	28 V	28 V	28 V	28 V	28 V	28 V	28 V	28 V	28 V
Contact/Output Power Type	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC
Electrical life	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
operating hours	30 ms	30 ms	30 ms	30 ms	30 ms	30 ms	30 ms	30 ms	30 ms	30 ms
Maximum operating temperature	45 °C	45 °C	45 °C	45 °C	45 °C	45 °C	45 °C	45 °C	45 °C	45 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Relay action	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY
Relay function	3PDT	3PDT	3PDT	3PDT	3PDT	3PDT	3PDT	3PDT	3PDT	3PDT
Relay type	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY
release time	15 ms	15 ms	15 ms	15 ms	15 ms	15 ms	15 ms	15 ms	15 ms	15 ms
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Termination type	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW
Base Number Matches	1	1	1	1	1	1	1	1	1	1
Coil resistance	170 Ω	3906.25 Ω	680 Ω	170 Ω	6.7 Ω	143.71 Ω	143.71 Ω	3906.3 Ω	36 Ω	-
Guideline	CSA; UL	CSA; UL	CSA; UL	CSA; UL	CSA; UL	CSA; UL	CSA; UL	CSA; UL	CSA; UL	-
Maker	-	Struthers-Dunn	Struthers-Dunn	Struthers-Dunn	Struthers-Dunn	Struthers-Dunn	Struthers-Dunn	-	Struthers-Dunn	Struthers-Dunn
