Intelligent Frequency Synthesizers

Preliminary Data Sheet

FEATURES:

∗

DESCRIPTION:

PNP-3050-L22

The PNP-3050-L22 is a complete low noise frequency syn-

thesizer, comprised of VCO, PLL, loop filter and data inter-

face. The PNP family of RF signal sources is the world’s

first truly configurable frequency synthesizer module. PNP

technology offers the designer the ability to configure all of

the synthesizer’s vital functions ‘on the fly’ with simple

strings of code that contain the commands of START,

STOP, STEP, CHANNEL and REF. When new data is re-

ceived, the PNP module optimizes its internal settings for

best overall integrated phase noise, switching speed and

spurious suppression, all automatically and in less than 100

µS.

Therefore, if the system requires 100 kHz steps in

mode #1 and 1 MHz step size in mode #2, these smart syn-

thesizers can make quick adjustments with amazing accu-

racy, speed and performance.

Control of the internal registers is accomplished through a

serial data interface. Many industry standard protocols are

supported, including I

C, SPI, and MICROWIRE Serial In-

terfaces. The PNP-3050-L22 is powered from a +3V and

+5V supply while dissipating less than 175 mW.

3000-3100 MHz Frequency

Range

∗

Programmable Step Size

∗

Low Integrated Phase Noise

∗

Simplified Programming

APPLICATIONS:

∗

Wireless Infrastructure

Test Equipment

Wireless LAN

MICROWIRE is a trademark of National Semiconductor Corp.

SPI is a trademark of Motorola, Inc.

C is a trademark of Philips Corp.

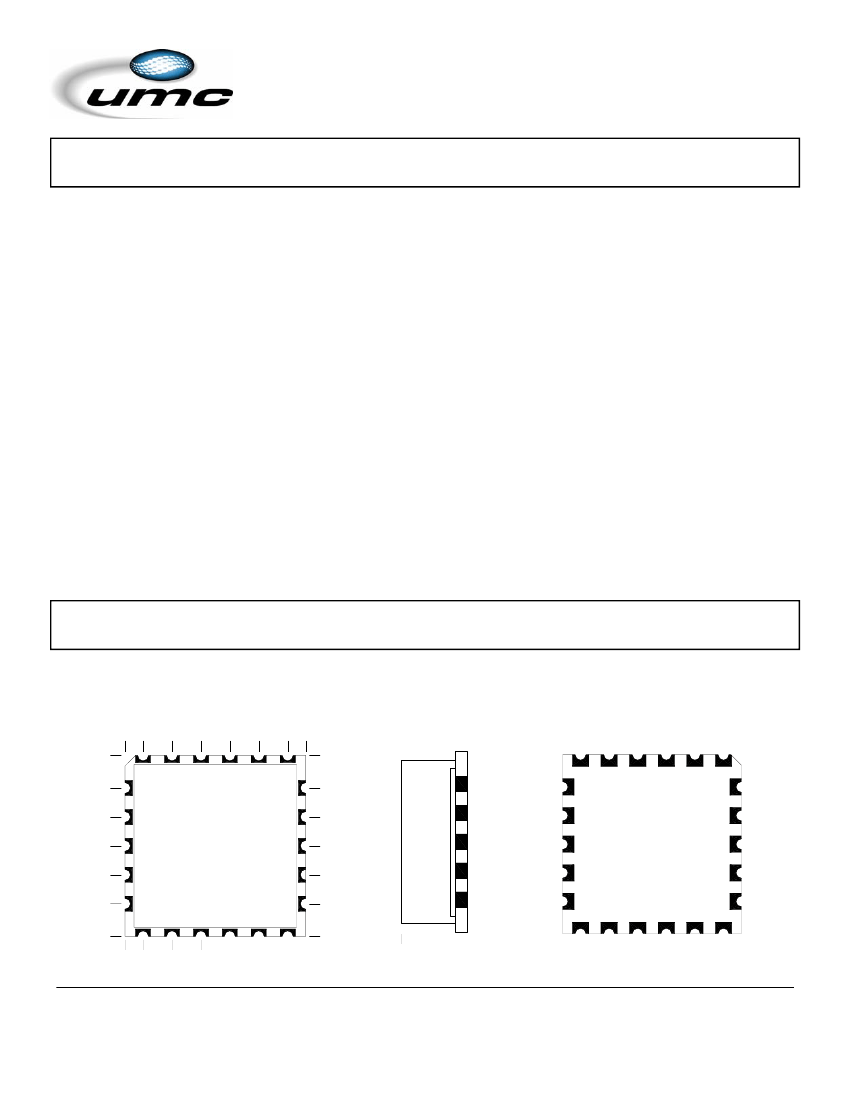

Package Drawing

TOP

0.000

0.050

0.130

0.210

0.290

0.370

0.450

0.500

all dimensions in inches

SIDE

GND

BOTTOM

GND

DA0

DA1

DA2

N/C

GND

0.500

0.410

0.330

0.250

0.170

0.090

0.000

0.050

0.130

0.210

0.290

0.450

0.500

0.370

0.500

UMC

0.410

0.330

GND

REF

PNP-3050-L22

3000-3100 MHz

0.250

0.170

3505

0.090

0.000

0.180

GND

Universal Microwave Corporation, 2339 Destiny Way, Odessa, FL 33556

UMC Worldwide Customer Support Center: 4703 S. Lakeshore Drive, Suite 2, Tempe, AZ 85282

1.877.UMC.Xtreme / Fax 480.756.6026

GND

PNP-3050-L22 Specifications

Parameter

RF OUT Characteristics

Frequency Range

Output Power

Harmonics

Noise Characteristics

1 kHz offset

∅

Noise

10 kHz offset

∅

Noise

100 kHz offset

∅

Noise

1 MHz offset

∅

Noise

Spurious Signals

STEP = 25 kHz

-70

-87

-102

-124

-144

3000

-2

-18

V1 = +5.0, V2 = +3.0V, REF = 20 MHz, -40 to +85C

Min

Typ

Max

3100

-12

Units

MHz

dBm

dBc

-82

-97

-119

-139

dBc/Hz

-60

dBc

STEP = 10 MHz

REF Feed-through

REF IN Characteristics

REF Input Frequency

REF Input Sensitivity

REF Input Current

Logic Inputs

INH

, Input High Voltage

INL

, Input Low Voltage

INH

, I

INL

, Input Current

, Input Capacitance

Logic Outputs

, Output High Voltage

, Output Low Voltage

, I

, Output Current

Power Supplies

Supply Voltage, V

Supply Current, I

NOTES:

-80

-70

dBc

-5

250

+/-100

MHz

dBm

µA

1.35

0.6

+/- 1

Vdc

µA

- 0.4

0.4

500

Vdc

µA

4.9

2.7

5.0

3.0

5.1

3.3

Vdc

1. Max STEP spurious are degraded by an additional 10 dB at integer multiples of the Reference Frequency

within a +/-100 kHz bandwidth

2. AC coupled. For DC coupled, 0 - V

max.

Pin Descriptions

Mnemonic

REF

PNP-3050-L22

FUNCTION

RF Output. This pin is AC coupled and should be connected to a non-reflective 50 ohm load.

Supply Input. Decoupling capacitors to the ground plane should be placed as close as possi-

ble to this pin.

Supply Input. Decoupling capacitors to the ground plane should be placed as close as possi-

ble to this pin.

Reference Input. This is a CMOS input with a nominal threshold of V

/2 and a dc equivalent

input resistance of 100K ohms. This input can be driven from a CMOS or TTL crystal clock

oscillator or it can be ac coupled.

Digital, Analog and RF Ground.

Serial Interface. This input functions as

in MICROWIRE/SPI Bus mode. This input func-

tions as

SDA

in I

C BUS mode.

Serial Interface. This input functions as

DATA

in MICROWIRE/SPI BUS mode. This input

functions as

SCL

in I

C BUS mode.

Serial Interface. This input functions as

CLOCK

in MICROWIRE/SPI BUS mode. This input

must be connected to the

GROUND

in I

C BUS mode.

Lock Detect. This output is active high and provides a continuous digital lock status.

GND

DA0

DA1

DA2

Absolute Maximum Ratings

V1 to Ground

V2 to Ground

REF IN to Ground

RF OUT to Ground

Digital I/O to Ground

-0.3 to +5.5 V

-0.3 to +3.6 V

-0.3 to (D

vdd

+ 0.3) V

+/- 25 V

-0.3 to V

+ 0.3 V

Stress above those listed under “Absolute Maximum Ratings”

may cause permanent damage to the device. This is a stress

rating only. Operation of the device above the conditions listed

in the operational sections of this specification is not implied.

Operating Temperature

Storage Temperature

-40

to +85

-55

to +100

Ordering Guide

Model

PNP-3050-L22

PNP-3050A-L22

PNP-3050B-L22

PNP-3050C-L22

CAUTION!

PNP-3050-L22

C Address

Default

Default + 1

Default + 2

Default + 3

Type Code

P001

ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as

4000V readily accumulate on the human body and test equipment and can dis-

charge without detection. Although the PNP family of synthesizers feature ESD

protection circuitry, permanent damage may occur on devices subjected to high-

energy electrostatic discharges. Therefore, proper ESD precautions are recom-

mended to avoid performance degradation or loss of functionality

Digital Interface

PNP-3050-L22

Bus for control of the PNP synthesizer module, the DA2

line (see Package Drawing, Page 1) must be tied to Digi-

tal Ground. Additionally, the SDA and SCL lines must be

pulled up to D

vdd

using external resistors.

Multiple PNP devices can reside on the same two wire

Bus without the danger of corrupted data or data colli-

sions. Device selection is accomplished by sending a

slave address preceding each string of data. If only one

PNP device will be used on the I

C Bus, then the factory

pre-set base address will operate properly. If more than

one PNP device will reside on the same I

C Bus, then

modules with unique address locations must be used.

This should be specified when ordering (see Ordering

Guide on page 3). For additional information refer to the

C Bus specification (copyright Philips Corp).

Overview

The PNP family of intelligent Frequency Synthesizers can

be controlled through the use of a microprocessor inter-

face or Bus. Several protocols are supported by PNP

devices, although this specification will focus on SPI Bus,

MICROWIRE-Interface and I

C Bus implementations.

For SPI and MICROWIRE applications, PNP devices re-

quire a single 32 bit string of serial data to set frequency

or to change its internal settings (Figure 1). I

C Bus util-

izes some unique control bits and requires the addition of

an ADDRESS byte, increasing the serial bit-stream for

this protocol to 47 bits per command (Figure 2).

The PNP device is programmed at the factory with pre-

sets for the START, STOP, STEP and REFERENCE

registers. It is not necessary to re-load any of these reg-

isters if the factory values are acceptable. If the applica-

tion requires different values than the factory pre-sets,

then the PNP device must first be initialized by loading

data into each of the affected registers. It is not neces-

sary to re-load any registers that are already set properly

for the application. START defines the lowest desired

frequency of operation. STOP defines the highest de-

sired frequency of operation. STEP is used to channelize

the band and REFERENCE defines the frequency of the

external reference. Once the PNP device is initialized, a

fixed number channels are available. Loading the CHAN-

NEL register sets the operating frequency of the PNP

device. The formula for calculating the operating fre-

quency is:

START(Hz) + (CHANNEL * STEP(Hz)) = Frequency(Hz)

C Implementation

Transferring data to PNP synthesizers using I

C protocol

varies significantly from that of SPI or MICROWIRE.

PNP modules operate as slaves on the I

C Bus and do

not write to the Bus. However, due to the fact that many

devices might reside on the same Bus, addressing must

be used to direct the flow of data traffic. So, within the bit

stream sent to the PNP device, there is a block of data

that comprises the ADDRESS byte. Within this address

byte there are 7 bits that are used for the address loca-

tion and the eighth is used as a read/write (R/W) bit.

Since PNPs are slaves and will never write to the I

Bus, this bit will always be set to 0 (logic low).

Each data string is sent using a series of five single byte

blocks. I

C protocol requires that each string of data be-

gin with a master generated START (S). Each byte

within the string must end with a slave generated AC-

KNOWLEDGE (A). Finally, after all five bytes are gener-

ated, the transfer is concluded with a master generated

STOP (P). The master generated STOP must be exe-

cuted following each data string for the values to be ac-

cepted by the PNP device. If this condition is not satis-

fied and a new master generated START occurs, the

PNP device will purge the previous data without updating

the desired attribute. REPEATED START (S

) operation

is not allowed when sending data to the PNP device.

The flow of data bytes to the PNP device is outlined in

Figure 2. Since FUNCTION SELECT and MULTIPLIER

are 4 bits each, these blocks of data are combined into

one byte. Additionally, since the FREQUENCY/

CHANNEL block of data is 24 bits long, it must be frag-

mented into three individual bytes as shown.

MICROWIRE Interface and SPI Bus

MICROWIRE-Interface and SPI Bus are extremely similar

protocols (Figures 6 & 7). DATA bits are clocked into

the PNP device on the rising edge of the CLOCK input.

CS, or chip select not, must be in a low state for the in-

coming DATA bits to be accepted. After all 32 bits have

been clocked in, the CS line must transition high for the

DATA string to be latched. After the string is latched, the

information in the FUNCTION block (Figure 5) deter-

mines where the data will be routed internally.

C Bus

The I

C Bus is a high-speed method of communicating

over a two wire interface. PNP modules are configured

as “slaves” or receive-only devices and can only listen for

commands from the “master” which is typically a micro-

processor. The I

C two wire Bus consists of SDA (serial

data) and SCL (serial clock) lines. In order to use the I

Attribute Definitions

PNP-3050-L22

FIGURE 2:

FREQUENCY/CHANNEL

(DB0 - DB23) This is a 24 bit string used to set the synthesizer’s

START Frequency, STOP Frequency, STEP Frequency, REF Frequency or CHANNEL number.

DB23 DBn

FC23

FCn

DB3

FC3

DB2

FC2

DB1

FC1

DB0

FC0

FREQUENCY/CHANNEL

FIGURE 3:

MULTIPLIER

(DB24 - DB27) The data in

FREQUENCY/CHANNEL

(DB0-DB23) is multiplied

by 10

where the value of n is determined by the contents of

MULTIPLIER

(DB24-DB27) as shown below.

DB27 DB26 DB25 DB24

X contents of DB0-DB23

MULTIPLIER

FIGURE 4:

FUNCTION SELECT

(DB28 - DB31). After the data in

FREQUENCY/CHANNEL

(DB0 - DB23)

is multiplied by 10

where the value of n is determined by the contents of

MULTIPLIER

(Figure 3), it is then

routed internally to the START, STOP, STEP, REF or CHANNEL registers based on the contents of

FUNC-

TION SELECT

as shown below.

DB31

FS3

DB30

FS2

DB29

FS1

DB28

FS0

FUNCTION SELECT

CHANNEL. Routes data from DB0-DB23 to the

CHANNEL REGISTER.

START. Routes data from DB0-DB23 to the

START REGISTER.

STOP. Routes data from DB0-DB23 to the

STOP REGISTER.

STEP. Routes data from DB0-DB23 to the

STEP REGISTER.

REFERENCE. Routes data from DB0-DB23 to the

REFERENCE REGISTER

All FUNCTION SELECT values not shown above are reserved for factory use.

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Field output circuit diagram composed of uPC1378H

TLE2024 precision temperature measurement circuit

Control circuit when the cargo crane changes from low speed to medium speed and then to high speed

4-digit control panel display circuit

CTX-C2 dual-band high-resolution color display power circuit

Digital pressure measurement circuit

EEWORLD University - How to design a single-phase shunt meter using an independent metering ADC: How to design a single-phase shunt meter using a standalone metrology ADC : https://training.eeworld.com.cn/course/5294This module provides details on the characteristics of shunts and current transfo...; hi5 Talking

How to implement automatic cleanup (WINCE as server): When a program runs for a period of time, the memory occupied will continue to increase. After minimizing, the window will automatically clean up. Is there a programming method to achieve automatic cl...; wgmdsf Embedded System

Rectification circuit filtering: In the LC filter of the rectifier circuit, since two component parameters need to be selected, there are two degrees of freedom. One equation can be established based on the resonant frequency, but ho...; 大寒虫 Analog electronics

STC52+DS1302 reads data as FF, help: Dear kind brothers and sisters, please help me. This is part of my code. void InputByte(unsigned char byte1) //After being tortured by FF for a whole day, I suddenly thought of using SBUF to read the ...; yan1994 51mcu

Problems with Tim5: I want to use TIM5 as an encoder interface, but I enabled the clock of TIM5 and used the firmware library to set it as an encoder interface. After enabling TIM5, I did not get any data. In addition, i...; zxqwork stm32/stm8

How to modify the official firmware of micropython esp8266: When studying the wifi probe, I found that the official api document of Espressif requires calling the Sniffer interface, but I am not sure if there are related functions of this interface in the offi...; grey27 MicroPython Open Source section

Shortcut: E0 E1 E2 E3 E4 E5 E6 E7 E8 E9 EA EB EC ED EE EF EG EH EI EJ EK EL EM EN EO EP EQ ER ES ET EU EV EW EX EY EZ F0 F1 F2 F3 F4 F5 F6 F7 F8 F9 FA FB FC FD FE FF FG FH FI FJ FK FL FM FN FO FP FQ FR FS FT FU FV FW FX FY FZ G0 G1 G2 G3 G4 G5 G6 G7 G8 G9 GA GB GC GD GE GF GG GH GI GJ GK GL GM GN GO GP GQ GR GS GT GU GV GW GX GZ H0 H1 H2 H3 H4 H5 H6 H7 H8 HA HB HC HD HE HF HG HH HI HJ HK HL HM HN HO HP HQ HR HS HT HU HV HW HX HY HZ I1 I2 I3 I4 I5 I6 I7 IA IB IC ID IE IF IG IH II IK IL IM IN IO IP IQ IR IS IT IU IV IW IX J0 J1 J2 J6 J7 JA JB JC JD JE JF JG JH JJ JK JL JM JN JP JQ JR JS JT JV JW JX JZ K0 K1 K2 K3 K4 K5 K6 K7 K8 K9 KA KB KC KD KE KF KG KH KI KJ KK KL KM KN KO KP KQ KR KS KT KU KV KW KX KY KZ

Popular Components
