VCXO
HCMOS, 9X14,J-LEAD, VCXO
(SEE PART NUMBERING SYSTEM FOR PART NUMBER)
****ROHS COMPLIANT***
DESCRIPTION: A crystal controlled, HCMOS, highly stable oscillator, The output can be Tri-stated to facilitate
testing or combined multiple clocks. The device is contained in a sub-miniature, very low profile, leadless ceramic
SMD package with 6 or 4 gold J lead contacts. This miniature oscillator is ideal for today's automated assembly
environments.
APPLICATIONS AND FEATURES:
"
"
"
"
"
"
$
DSL; Network Processors; Test instruments; Switches; WAN Interfaces
Common Frequencies: 27 MHz; 35.328 MHz; 19.44 MHz; 77.76MHz; 16.384 MHz;
+5 VDC or +3.3Vdc HCMOS
Frequency Range from 1 to 77.760 MHz
Miniature Ceramic SMD Package Available on Tape and Reel
Lead Free
MECHANICAL SPECIFICATION
OUTLINE TOLERANCE:
±0.015” / 0.4mm
(unless otherwise specified)
6 PIN FUNCTIONS:
[1] CONTROL VOLTAGE
[2] N/C or ENABLE / DISABLE
[3] CASE/GROUND
[4] OUTPUT
[5] NO CONNECT
[6] SUPPLY VOLTAGE
4 PIN FUNCTIONS:
[1] CONTROL COLTAGE
[2] CASE/GROUND
[3] OUTPUT
[4] SUPPLY VOLTAGE
MARKING, EXAMPLE:
VC8450A-LZ
-100-FREQ.-T-4
RALTRON D/C
.550
13.96
.550
.385 MAX.
9.77 MAX.
.350
8.88
.185 MAX.
4.70 MAX.
.185 MAX.
4.70 MAX.
.350
8.88
.030
.76
.030
.76
.385
9.77
.018 TYP.
.46 TYP.
.100 TYP.
2.54 TYP.
.300 ±.008
7.61 ±.20
.018 TYP.
.46 TYP.
.200 TYP.
5.08 TYP.
.300 ±008
7.61 ±.20
$
ELECTRICAL SPECIFICATION
PARAMETER
Frequency, nom
Supply voltage, nom.
Supply current, max.
HCMOS/TTL compatible output
Duty cycle
Rise- / fall time, max.
Overall freq. stability, max.
Control voltage range
Pullability
Linearity, max.
Input impedance, min.
Modulation freq. bandwidth, min.
Enable option (pin 2)
Disable option (pin 2)
Operating temperature range
Storage temperature range
Absolute voltage range
SYMBOL
fo
Vcc
Is
VOH / VOL
DC
tr / tf
∆f/fc
Vc
∆f/fc(vc)
∆f/V
Zin
MBW (-3dB)
En
Dis
Ta
T(stg)
Vcc(abs)
CONDITIONS
-
Vcc±5%
Vcc=+3.3/+5.0VDC, Ta=+25°C, load=15pF
Vcc=+3.3/+5.0VDC, load=15pF
load=15pF / @50%Vcc, Ta=+25°C
20%~80% Vout, 80%~20% Vout
Including operating temperature,
±
5% load & supply
variations, 10 year aging, and calibration @+25°C (note 2)
DC
Vcc=+3.3V/Vc=0…3.3 OR +5.0V/Vc=+0.5…4.5V
,15pF load
-
-
Vcc=+3.3V/Vc=+1.65V OR +5.0V/Vc=+2.5V
Ta=+25°C, 15pF load
High or open (min.)
Ground (output pin high impedance) (max.)
-
-
Non-destructive, DC
VALUE
1.000-77.760
+3.3
+5.0
25.0…35.0
2.97 / 0.33
4.5 / 0.5
40…60 OR 45…55
3.0…10.0
±
25.0…±100.0
0…+3.3
+0.5…+4.5
SEE PART NUMBER
GENERATION TABLE
10
10.0
10.0
+2.4
+0.4
0…+70 TO -40…+85
-55…+125
-0.5…+7.0
UNIT
MHz
V
mA
V
%
ns
ppm
V
PPM
%
KΩ
KHz
V
V
°C
°C
V
RALTRON ELECTRONICS CORP.
!
10651 N.W . 19
th
St
!
Miami, Florida 33172
!
U.S.A.
phone: +001(305) 593-6033
!
fax: +001(305)594-3973
!
e-mail: sales@raltron.com
!
internet: http://www.raltron.com
Version X1; 9/28/04
VCXO
PART NUMBERING SYSTEM:
SERIES
VC82: 5.0V HCMOS, NO E/D
VC84: 3.3V HCMOS, NO E/D
VE82: 5.0V HCMOS, E/D
VE84: 3.3V HCMOS, E/D
OVERALL
STABILITY
25;±25
(
note 2
)
50:
±50ppm
00:
±100ppm
REV
A
TEMP.
RANGE (°C)
°
LV: 0…50
LZ: 0…+70
HZ: -20…+70
D3: -40…+85
PULLABILITY Min
(PPM)(Note 3)
50:±50 ppm
80:±80 ppm
100:±100 ppm
150:±150 ppm
FREQUENCY
(MHz)
1.000…77.76
0
OPTIONS
4: 4 PADS VERSION
(Note 1)
T: 45…55 DUTY CYCLE
NOTE;
1. Enable/Disable feature is not available with 4 pads version
2. ±25PPM stability option is available at 0~70 only and aging of 3 years max and max pullability of ±100PPM
3. Max pullability is defined as double the Min defined value (Example; ±100PPM min…±200PPM max)
EX.
VC8400A-LZ-100-77.760-T-4
DEVIATIONS FROM STANDARD ARE AVAILABLE, PLEASE CONSULT FACTORY.
$

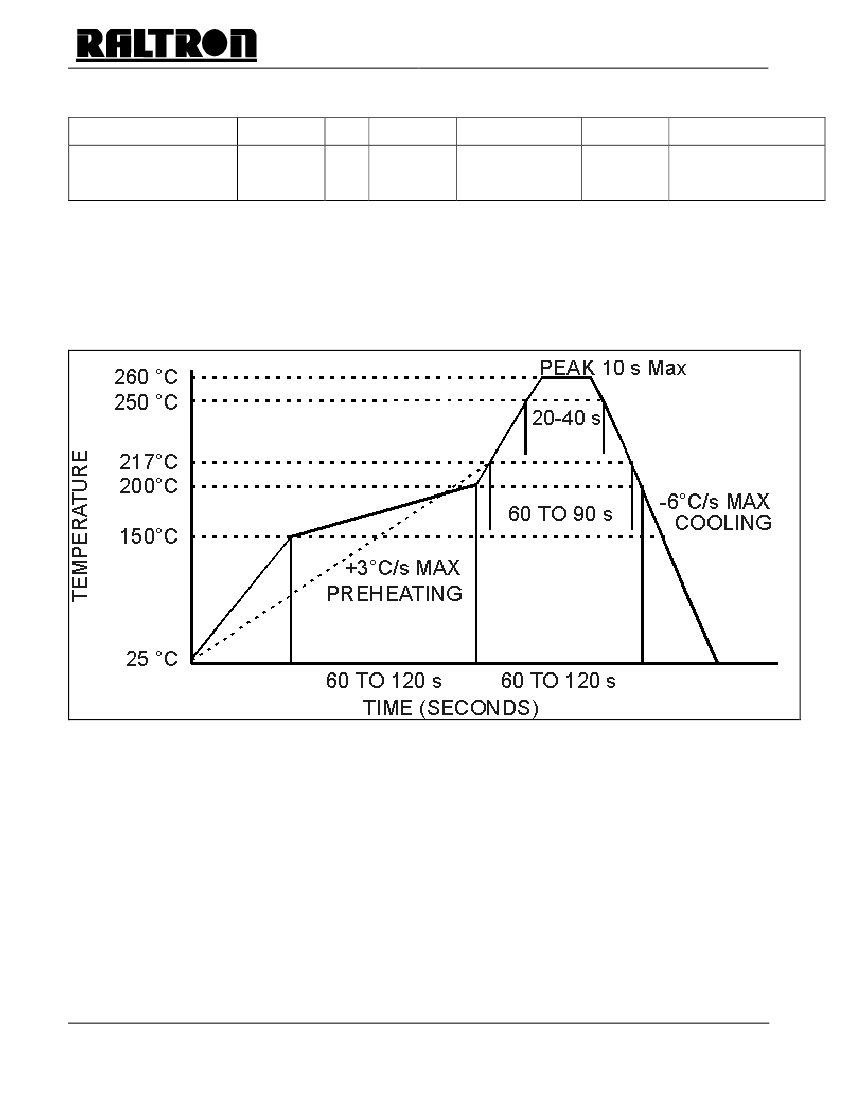

REFLOW SOLDER
