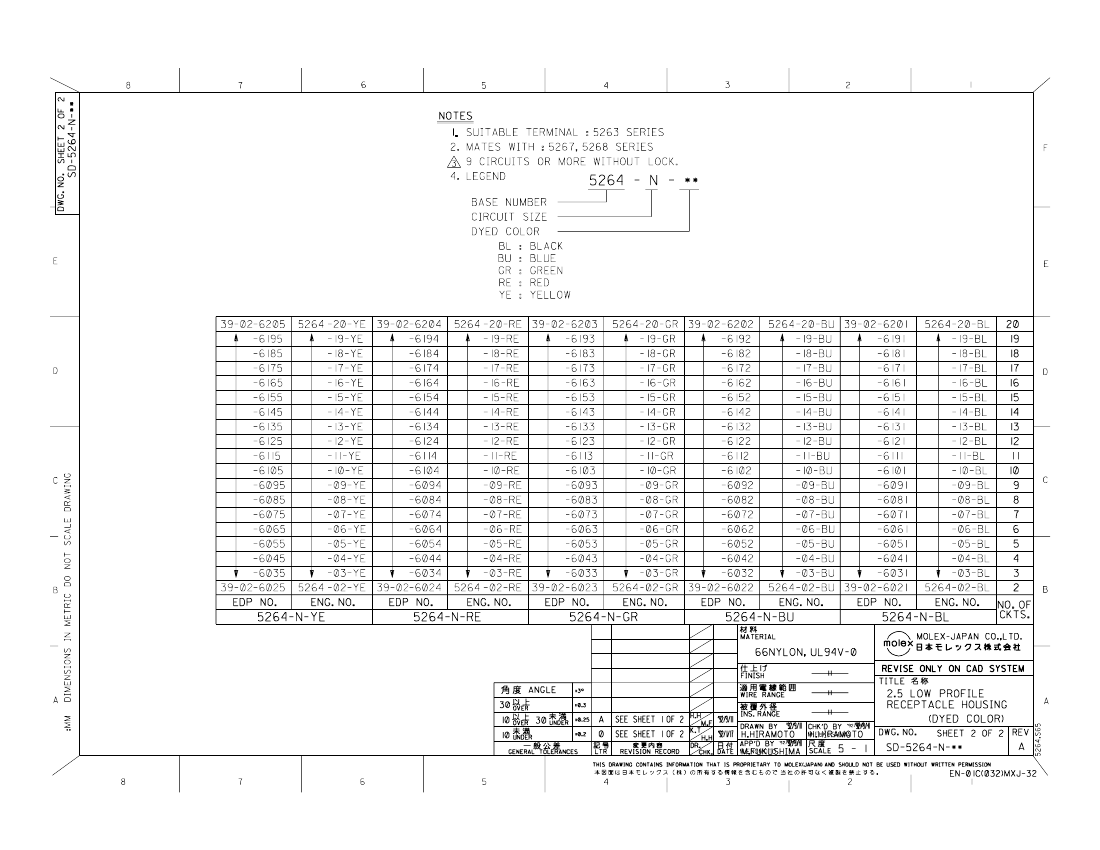

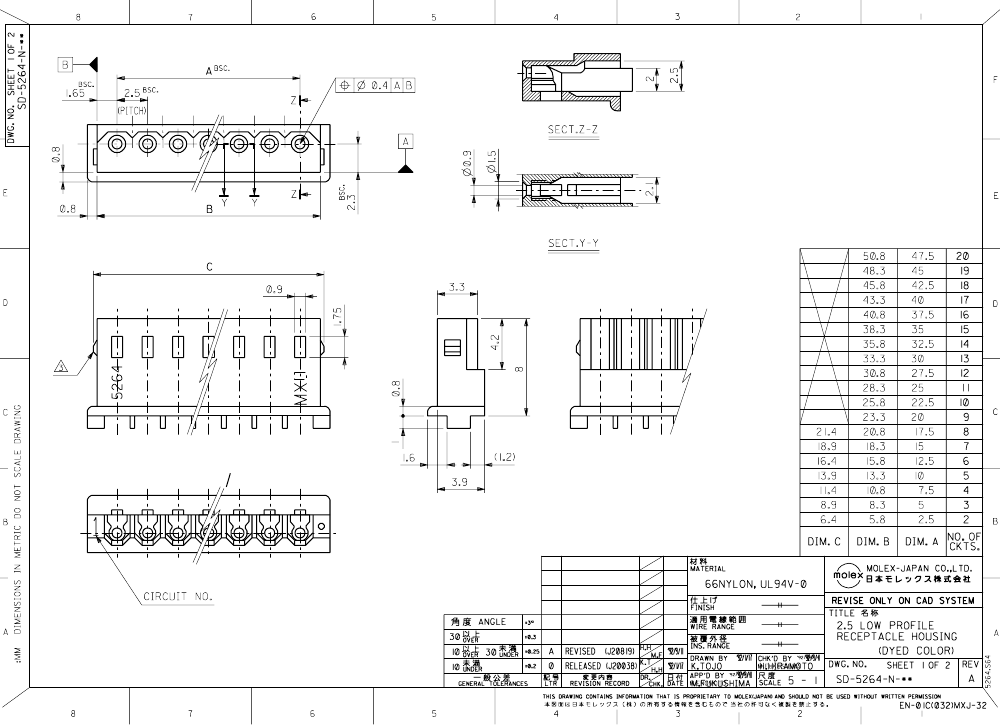

39-02-6114: DescriptionBoard Connector, 11 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size125KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

39-02-6114 Overview

Board Connector, 11 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking, Receptacle

39-02-6114 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
subject depth	0.315 inch
body length	1.177 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact style	RND PIN-SKT
insulator material	NYLON
Manufacturer's serial number	39-02
Plug contact pitch	0.098 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	1
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	11
Base Number Matches	1

Preview

Download Datasheet

View All

39-02-6114 Related Products

	39-02-6114	0039026054	39-02-6124	39-02-6104	39-02-6024	39-02-6134
Description	Board Connector, 11 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking, Receptacle	5264-05 dyed IN red 526405RE	Board Connector, 12 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking, Receptacle	Board Connector, 10 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking, Receptacle	Board Connector, 2 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking, Receptacle,	Board Connector, 13 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking, Receptacle
Reach Compliance Code	unknow	-	unknown	unknown	compliant	unknown
subject depth	0.315 inch	-	0.315 inch	0.315 inch	0.315 inch	0.315 inch
body length	1.177 inch	-	1.276 inch	1.079 inch	0.291 inch	1.374 inch
Body/casing type	RECEPTACLE	-	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	-	FEMALE	FEMALE	FEMALE	FEMALE
contact mode	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	RND PIN-SKT	-	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
insulator material	NYLON	-	NYLON	NYLON	NYLON	NYLON
Manufacturer's serial number	39-02	-	39-02	39-02	39-02	39-02
Plug contact pitch	0.098 inch	-	0.098 inch	0.098 inch	0.098 inch	0.098 inch
Installation option 1	LOCKING	-	LOCKING	LOCKING	LOCKING	LOCKING
Installation type	CABLE	-	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	1	-	1	1	1	1
Guideline	UL	-	UL	UL	UL	UL
reliability	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	CRIMP	-	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	11	-	12	10	2	13
