D8259A-2: DescriptionInterrupt Controller, IAPX 88; IAPX 86; MCS-85; MCS-80 Compatible, NMOS, CDIP28, DIP-28; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，25 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

D8259A-2 Overview

Interrupt Controller, IAPX 88; IAPX 86; MCS-85; MCS-80 Compatible, NMOS, CDIP28, DIP-28

D8259A-2 Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	DIP,
Reach Compliance Code	unknown
Bus compatibility	IAPX 88; IAPX 86; MCS-85; MCS-80
External data bus width	8
JESD-30 code	R-GDIP-T28
length	37.15 mm
Number of external interrupt devices	8
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum seat height	5.72 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	NMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	INTERRUPT CONTROLLER
Base Number Matches	1

Preview

Download Datasheet

View All

REI Datasheet

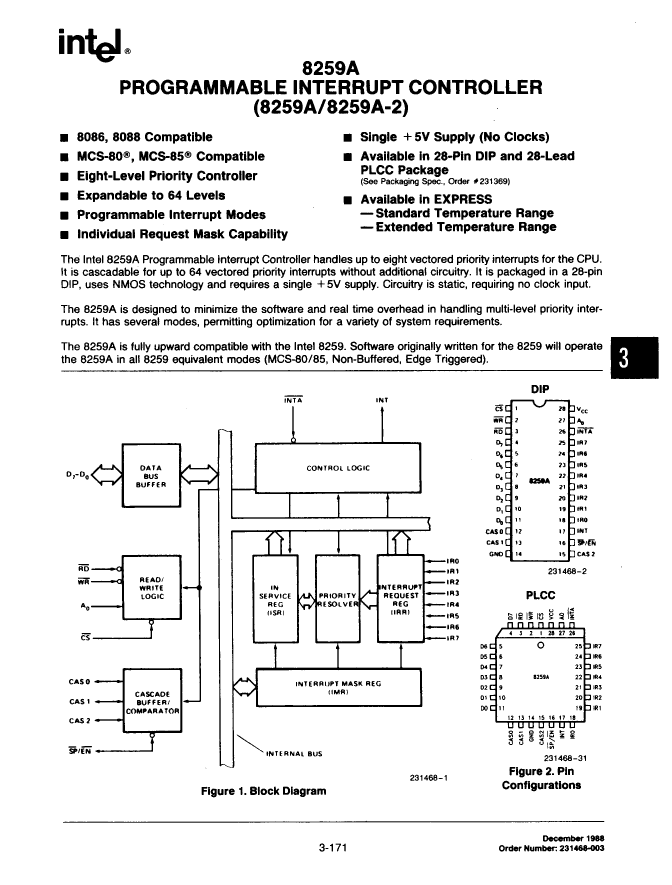

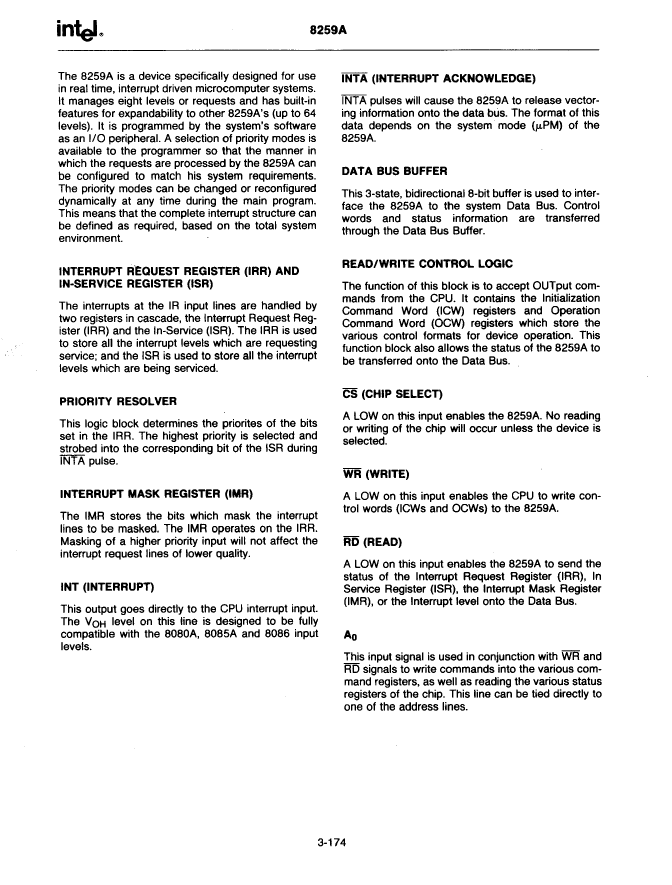

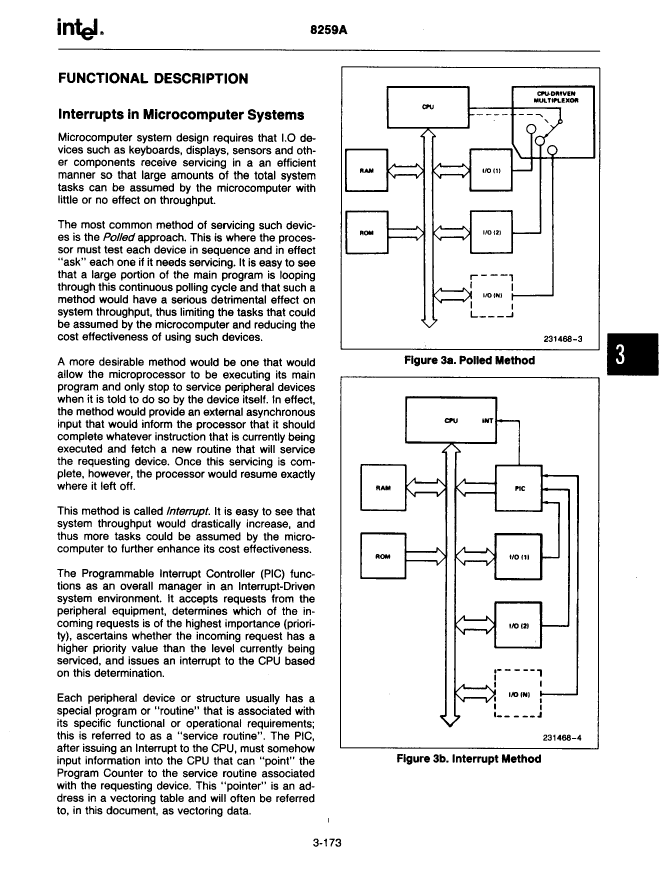

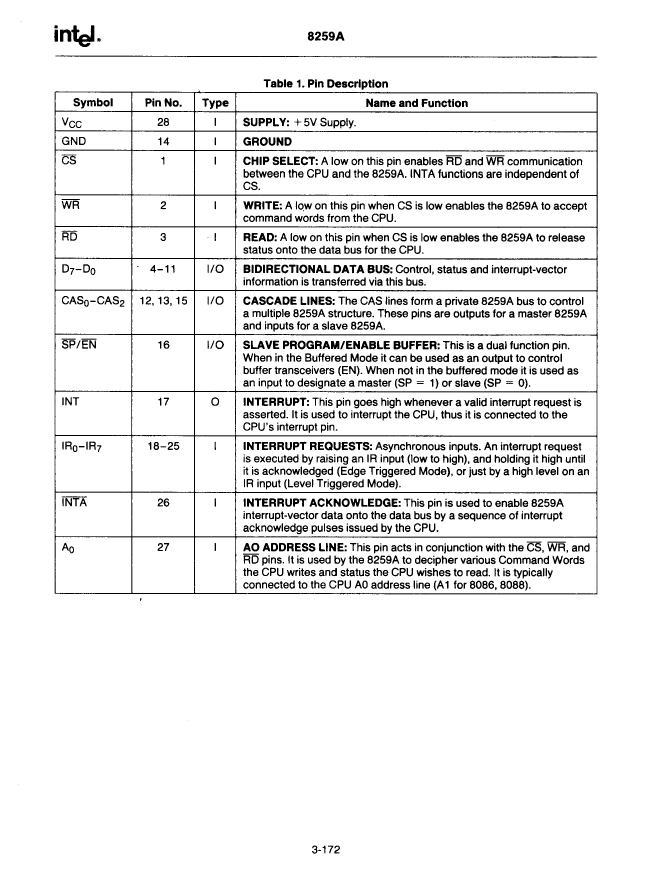

8259A

Programmable Interrupt Controller

The Intel 8259A Programmable Interrupt Controller handles up to eight vectored priority interrupts for

the CPU. It is cascadable for up to 64 vectored priority interrupts without additional circuitry. It uses

NMOS technology and requires a single +5V supply. Circuitry is static, requiring no clock input.

The 8259A is designed to minimize the software and real time overhead in handling multi-level

priority interrupts. It has several modes, permitting optimization for a variety of system requirements.

Rochester Electronics

Manufactured Components

Rochester branded components are

manufactured using either die/wafers

purchased from the original suppliers

or Rochester wafers recreated from the

original IP. All recreations are done with

the approval of the OCM.

Parts are tested using original factory

test programs or Rochester developed

test solutions to guarantee product

meets or exceeds the OCM data sheet.

Quality Overview

•

ISO-9001

AS9120 certification

Qualified Manufacturers List (QML) MIL-PRF-38535

•

Class Q Military

•

Class V Space Level

Qualified Suppliers List of Distributors (QSLD)

•

Rochester is a critical supplier to DLA and

meets all industry and DLA standards.

Rochester Electronics, LLC is committed to supplying

products that satisfy customer expectations for

quality and are equal to those originally supplied by

industry manufacturers.

The original manufacturer’s datasheet accompanying this document reflects the performance

and specifications of the Rochester manufactured version of this device. Rochester Electronics

guarantees the performance of its semiconductor products to the original OEM specifications.

‘Typical’ values are for reference purposes only. Certain minimum or maximum ratings may be

based on product characterization, design, simulation, or sample testing.

To learn more, please visit

www.rocelec.com

D8259A-2 Related Products

	D8259A-2	MD8259A/B	TD8259A	TD8259A-2	D8259A
Description	Interrupt Controller, IAPX 88; IAPX 86; MCS-85; MCS-80 Compatible, NMOS, CDIP28, DIP-28	Interrupt Controller, 8086; 8088; MCS-80; MCS-85 Compatible, NMOS, PDIP28, DIP-28	Interrupt Controller, IAPX 88; IAPX 86; MCS-85; MCS-80 Compatible, NMOS, CDIP28, DIP-28	Interrupt Controller, IAPX 88; IAPX 86; MCS-85; MCS-80 Compatible, NMOS, CDIP28, DIP-28	Interrupt Controller, IAPX 88; IAPX 86; MCS-85; MCS-80 Compatible, NMOS, CDIP28, DIP-28
Maker	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics
package instruction	DIP,	DIP,	DIP,	DIP-28	DIP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Bus compatibility	IAPX 88; IAPX 86; MCS-85; MCS-80	8086; 8088; MCS-80; MCS-85	IAPX 88; IAPX 86; MCS-85; MCS-80	IAPX 88; IAPX 86; MCS-85; MCS-80	IAPX 88; IAPX 86; MCS-85; MCS-80
External data bus width	8	8	8	8	8
JESD-30 code	R-GDIP-T28	R-PDIP-T28	R-GDIP-T28	R-GDIP-T28	R-GDIP-T28
Number of external interrupt devices	8	8	8	8	8
Number of terminals	28	28	28	28	28
Maximum operating temperature	70 °C	70 °C	85 °C	85 °C	70 °C
Package body material	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO
technology	NMOS	NMOS	NMOS	NMOS	NMOS
Temperature level	COMMERCIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
uPs/uCs/peripheral integrated circuit type	INTERRUPT CONTROLLER	INTERRUPT CONTROLLER	INTERRUPT CONTROLLER	INTERRUPT CONTROLLER	INTERRUPT CONTROLLER
Base Number Matches	1	1	1	1	1
length	37.15 mm	-	37.15 mm	37.15 mm	37.15 mm
Maximum seat height	5.72 mm	-	5.72 mm	5.72 mm	5.72 mm
Terminal pitch	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm
width	15.24 mm	-	15.24 mm	15.24 mm	15.24 mm
