52024-1910 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 52024-1910

Preview

52024-1910: DescriptionBoard Connector, 19 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size112KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

52024-1910 Overview

Board Connector, 19 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Receptacle

52024-1910 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	52024
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1.5 mm
Termination type	SOLDER
Total number of contacts	19
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

s

Sizes 4 to 15 circuits

A

0.40 to 1.60mm (.016 to .063") Pitch

Reference Information

Packaging: Tray

Mates With:

53022

Designed In: Millimeters

Electrical

Voltage: 125V

Current: 1.0A

Contact Resistance: 20m

Ω

max.

Dielectric Withstanding Voltage: 500V AC/1 min.

Insulation Resistance: 1000 M

Ω

min.

Physical

Housing: 6/6 nylon, UL 94V-0

Contact: Phosphor Bronze

Plating: Tin

Operating Temperature: -40 to +105˚C

1.50mm (.059") Pitch

Board-to-Board

Receptacle

52024

Vertical

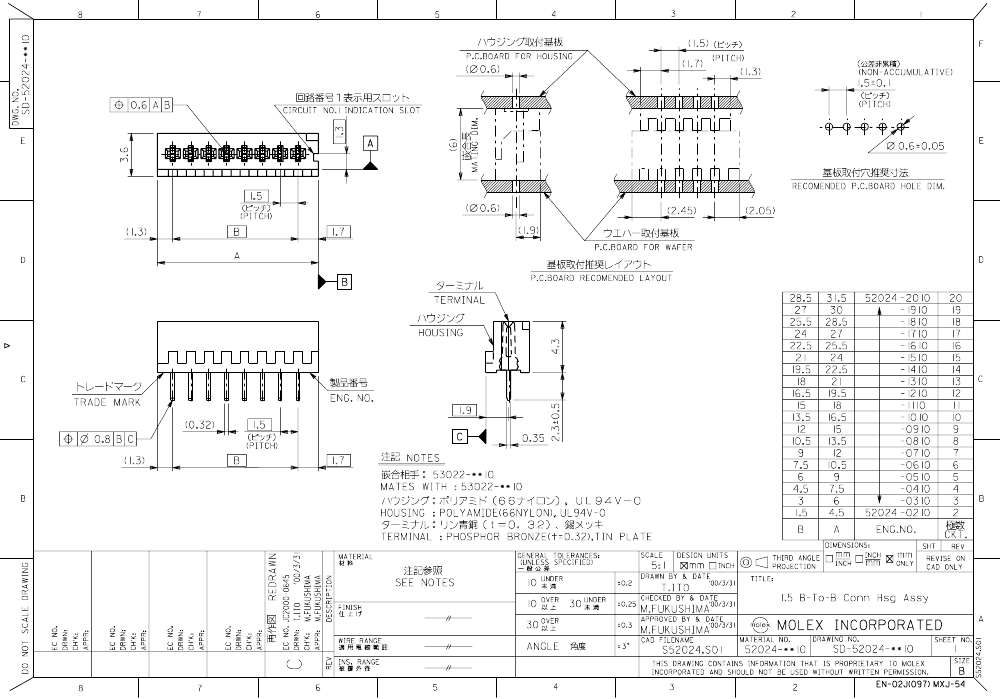

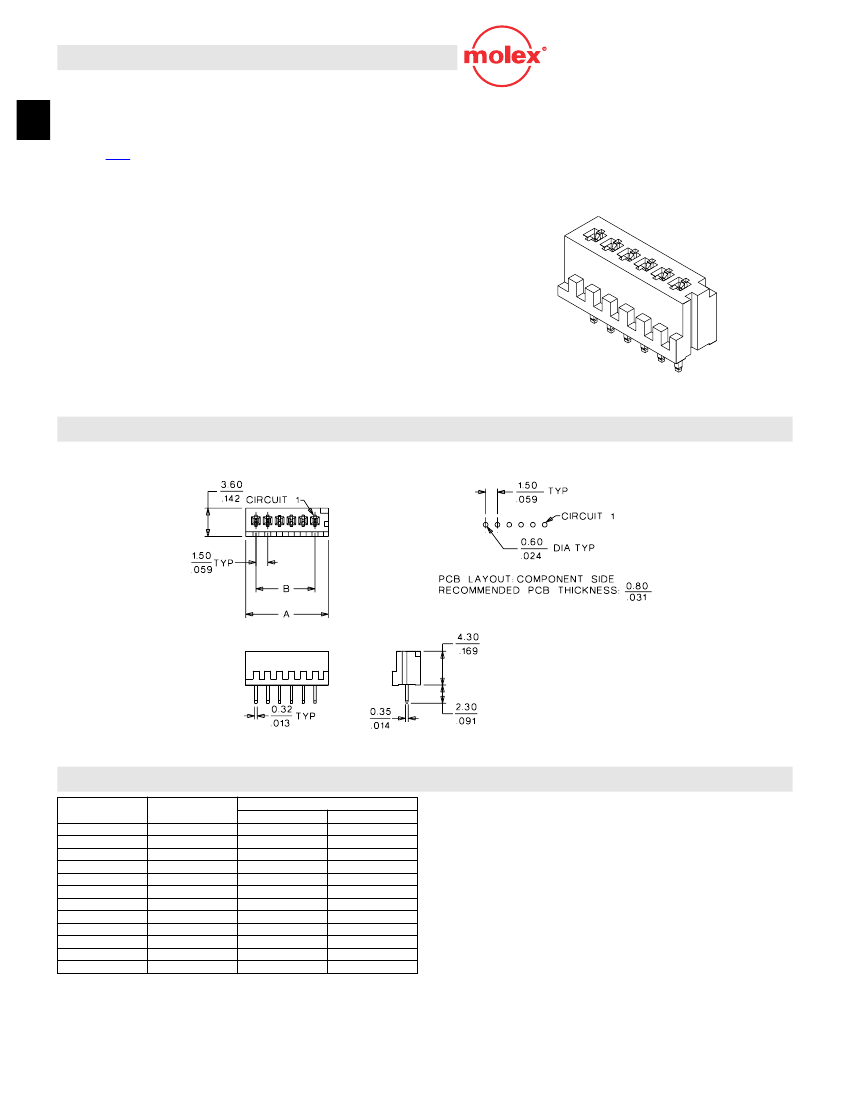

CATALOG DRAWING (FOR REFERENCE ONLY)

ORDERING INFORMATION AND DIMENSIONS

Circuits

4

5

6

7

8

9

10

11

12

13

14

15

Order No.

52024-0410

52024-0510

52024-0610

52024-0710

52024-0810

52024-0910

52024-1010

52024-1110

52024-1210

52024-1310

52024-1410

52024-1510

7.50

9.00

10.50

12.00

13.50

15.00

16.50

18.00

19.50

21.00

22.50

24.00

Dimension

A

(.295)

(.354)

(.413)

(.472)

(.531)

(.591)

(.650)

(.709)

(.768)

(.827)

(.886)

(.945)

4.50

6.00

7.50

9.00

10.50

12.00

13.50

15.00

16.50

18.00

19.50

21.00

B

(.177)

(.236)

(.295)

(.354)

(.413)

(.472)

(.531)

(.590)

(.649)

(.708)

(.767)

(.826)

A-88

MX01

52024-1910 Related Products

	52024-1910	52024-1810	52024-1610	52024-2010	52024-0310	52024-1710	52024-0210
Description	Board Connector, 19 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Receptacle	Board Connector, 18 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Receptacle	Board Connector, 16 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Receptacle	Board Connector, 20 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Receptacle	Board Connector, 3 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Receptacle	Board Connector, 17 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Receptacle	Board Connector, 2 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Receptacle
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown	unknown
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	52024	52024	52024	52024	52024	52024	52024
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1.5 mm	1.5 mm	1.5 mm	1.5 mm	1.5 mm	1.5 mm	1.5 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	19	18	16	20	3	17	2
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1
Maker	Molex	-	Molex	Molex	Molex	Molex	Molex
