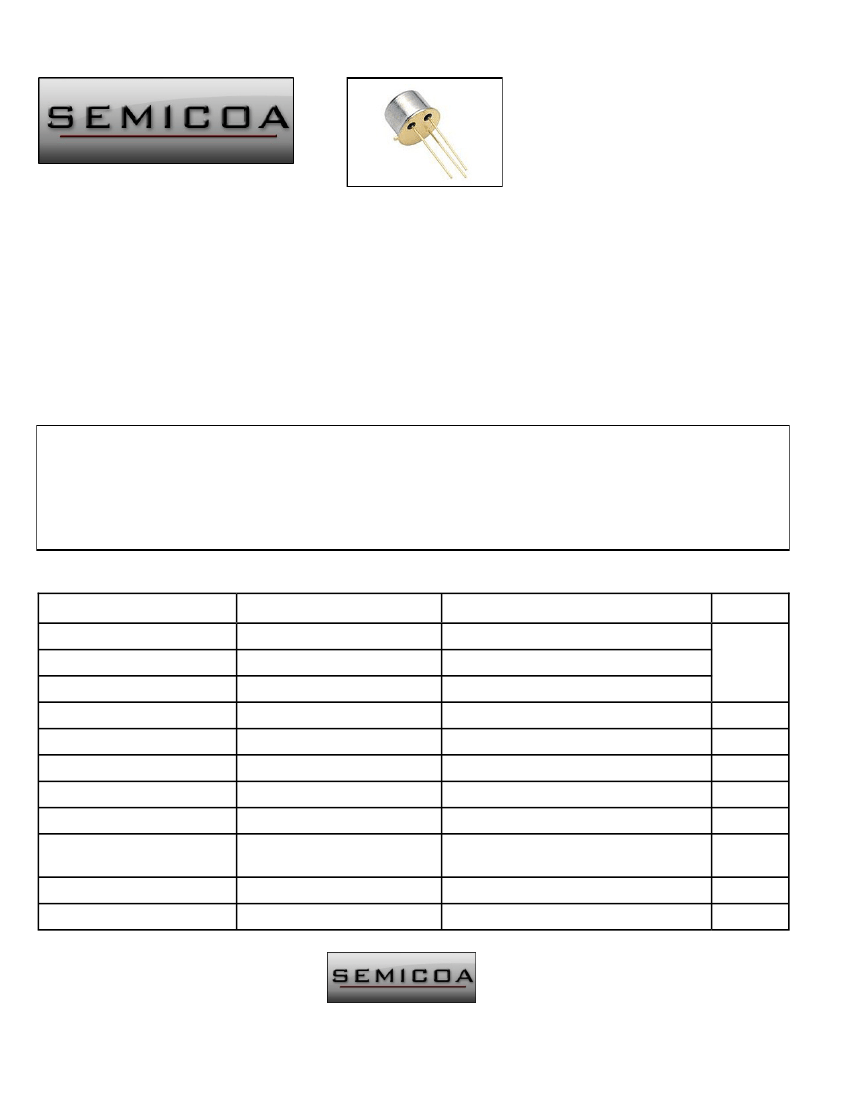

SCF2N6792T2
JANTX2N6792
JANTXV2N6792
REF: MIL-PRF-19500/555
POWER MOSFET
FOR RUGGED ENVIRONMENTS
TO-205AF / TO-39
DESCRIPTION
N-Channel
400 Volt
< 1.8 Ohms
2 Amp
SEMICOA’s MOSFET technology is designed for rugged environments providing excellent long term reliabil-
ity. SEMICOA’s long heritage providing military grade technology and packaging allows these devices to be
used for ground based telecommunications, vehicles, ships, weapon systems and other application where fail-
ure is not an option.
FEATURES
Available in JANTX and JANTXV equivalent levels
RDS
(ON)
< 1800 mΩ
Simple Drive Requirements
Low Gate Charge
Ease of Paralleling
Hermetically Sealed
Die Available
ABSOLUTE MAXIMUM RATINGS
PARAMETER
l
D
@ V
GS
= 10 V, T
C
= 25° C
l
D
@ V
GS
= 10 V, T
C
= 100° C
IDM
PD@ TC = 25° C
Continuous Drain Current
Continuous Drain Current
Pulsed Drain Current
(1)
Max Power Dissipation
Linear Derating Factor
VGS
EAS
IAR
TJ
TSTG
Gate to Source Voltage
Single Pulse Avalanche Energy
(2)
Avalanche Current
(1)
Operating Junction
Storage Temperature Range
Lead Temperature
Weight
For footnotes refer to the last page
2.0
1.25
10
20
0.16
±20
0.242
2.2
-55 to 150
300
O.98 typical
W
W/°C
V
mJ
A
°C
°C
g
A
UNITS
333 McCormick Avenue Costa Mesa, CA 92626 714-979-1900
www.semicoa.com
sales@semicoa.com
Copyright 2012
Rev. 1
SCF2N6792T2
Electrical Characteristics @ T
J
25°C (unless otherwise specific)
PARAMETER
BV
DSS
ΔBV
DSS/
ΔT
J
Drain to Source Breakdown
Voltage
Temperature Coefficient of
Breakdown Voltage
Static Drain to Source On-State
Resistance
Gate Threshold Voltage
Forward Transconductance
Zero Gate Voltage Drain Current
Gate to Source Leakage Forward
Gate to Source Leakage Reverse
Total Gate Charge
Gate to Source Charge
Gate to Drain (Miller) Charge
Turn On Delay Time
Rise Time
Turn Off Delay Time
Fall time
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
MIN
400
-
-
-
2.0
1.0
-
-
TYP
-
0.37
-
-
-
-
-
-
MAX
-
-
1.8
1.9
4.0
-
25
250
100
-100
22
3.0
14
40
35
60
35
-
-
-
UNITS
V
V/°C
TEST CONDITIONS
VGS = 0 V, ID = 1.0 mA
Reference to 25 °C, ID = 1.0 mA
VGS = 10 V, ID = 1.25 A
(4)
VGS = 10 V, ID = 2.0 A
(4)
R
DS(ON)
V
GS(th)
gsf
I
DSS
I
GSSF
I
GSSR
Qg
Qgs
Qgd
Td(on)
Tr
Td(off)
Tf
C
ISS
C
OSS
C
RSS
Ω
V
S(Ʊ)
µA
nA
nA
VDS = VGS, ID = 250 µA
VDS ≥ 15 V, IDS = 1.25 A
(4)
VDS = 320 V, VGS = 0V
VDS = 320 V, VGS = 0 V, Tj = 125 °C
VGS = 20 V
VGS = -20 V
nC
VGS = 10 V, ID = 2.0 A , VDS = 200 V
ns
VDD = 175 V, ID = 2.0 A,
VGS = 10 V, RG = 7.75 Ω
pF
VGS = 0 V, VDS = 25 V, f = 1.0 MHz
Source-Drain Diode Rating and Characteristics
PARMETER
I
S
I
SM
Continuous Source Current (Body Diode)
Pulse Source Current (Body Diode)
MIN
-
-
-
-
TYP
-
-
-
-
MAX
2.0
10
1.4
650
UNITS
A
A
V
nS
TEST CONDITIONS
V
SD
Diode Forward Voltage
Trr
Reverse Recovery Time
Ti = 25 °C, IS = 2.0 A, VGS = 0 V
(4)
Ti = 25 °C, IF = 2.0 A, di/dt ≤ 100 A/
µS, VDD ≤ 50 V
(4)
For Footnotes refer to the last page
333 McCormick Avenue Costa Mesa, CA 92626 714-979-1900
www.semicoa.com
sales@semicoa.com
Copyright 2012
Rev. 1
SCF2N6792T2

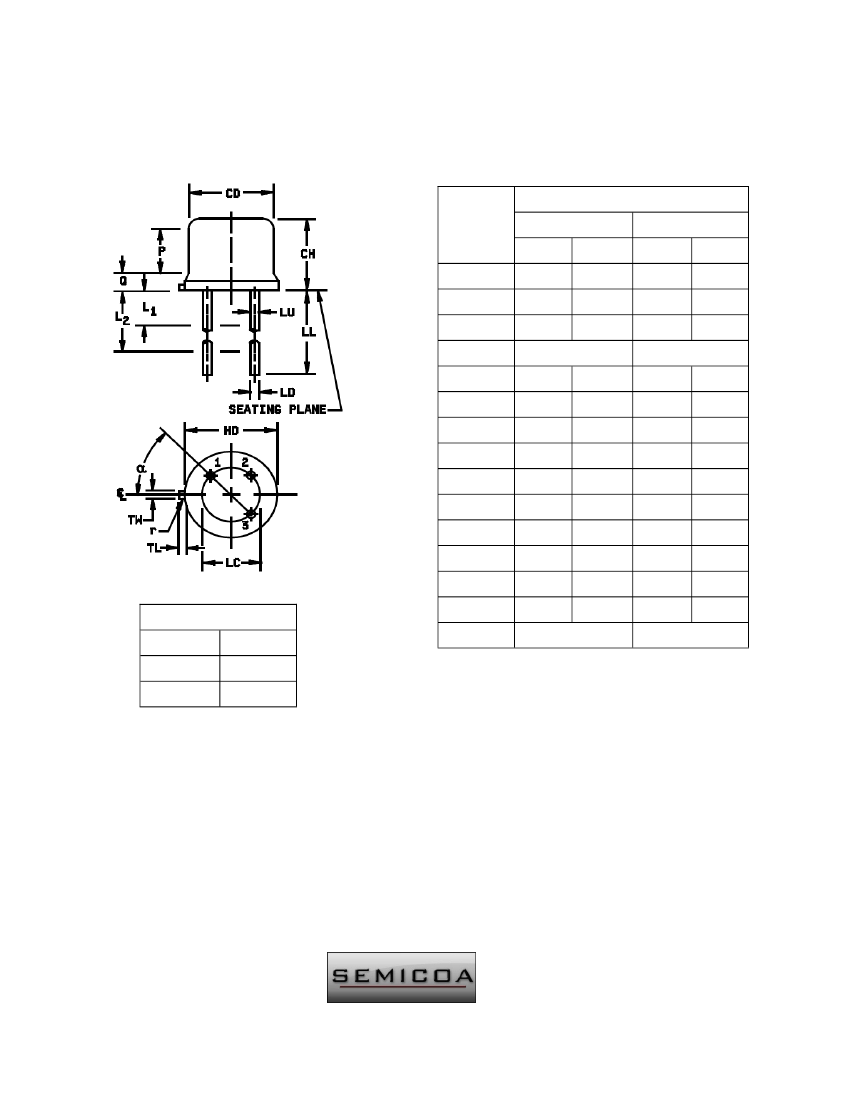

TO-205AF Case Outline and Dimensions
Dimensions
Symbol
Min
CD
CH
HD
LC
LD
LL
LU
L1
L2
P
Q
TL
TW
Pin Assignment
Lead 1
Lead 2
Lead 3
Source
Gate
Drain
r
α
.029
.028
.250
.100
.050
.045
.034
.010
45° TP
0.74
0.71
.305
.160
.335
Inches
Max
.335
.180
.370
Millimeters
Min
7.75
4.07
8.51
Max
8.51
4.57
9.40
.200 typ
.016
.500
.016
.021
.750
.019
.050
5.08 typ
0.41
12.70
0.41
0.53
19.05
0.48
1.27
6.35
2.54
1.27
1.14
0.86
0.25
45° TP
Footnotes:
1.
2.
3.
4.
Repetitive Rating: Pulse width limited by maximum junction temperature
V
DD
= 50 V starting T
J
= 25 °C, Peak I
L
= 2.2 A, L = 100 µH
ISD < 2.0 A, di/dt ≤ 65 A/µS, VDD ≤ 400 V, Tj ≤ 150°C, Rg = 7.5Ω
Pulse width ≤ 300µs; Duty Cycle ≤ 2%
Visit us at www.semicoa.com for sales and contact information.
Data and specification subject to change without notice.
333 McCormick Avenue Costa Mesa, CA 92626 714-979-1900
www.semicoa.com
sales@semicoa.com
Copyright 2012
Rev. 1
