745S201-400L5

Description
RF Connector, Male, Board Mount, Solder Terminal, Plug, ROHS COMPLIANT
CategoryThe connector    The connector
File Size74KB,2 Pages
ManufacturerRosenberger
Websitehttps://www.rosenberger.com/
Download Datasheet Parametric View All

745S201-400L5 Overview

RF Connector, Male, Board Mount, Solder Terminal, Plug, ROHS COMPLIANT

745S201-400L5 Parametric

Parameter NameAttribute value
package instructionROHS COMPLIANT
Reach Compliance Codecompli
ECCN codeEAR99
Other featuresCAPTIVE CENTER CONTACT
Body/casing typePLUG
Characteristic impedance75 Ω
Connector typeRF CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedGOLD
Contact point genderMALE
Coupling typeSNAP
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.06 dB
insulator materialPOLYTETRAFLUORO ETHYLENE
JESD-609 codee4
MIL complianceNO
Manufacturer's serial number745S201-400L5
Installation methodRIGHT ANGLE
Installation typeBOARD
Maximum operating frequency1.5 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typeSOLDER
voltage standing wave ratio1.22
Base Number Matches1

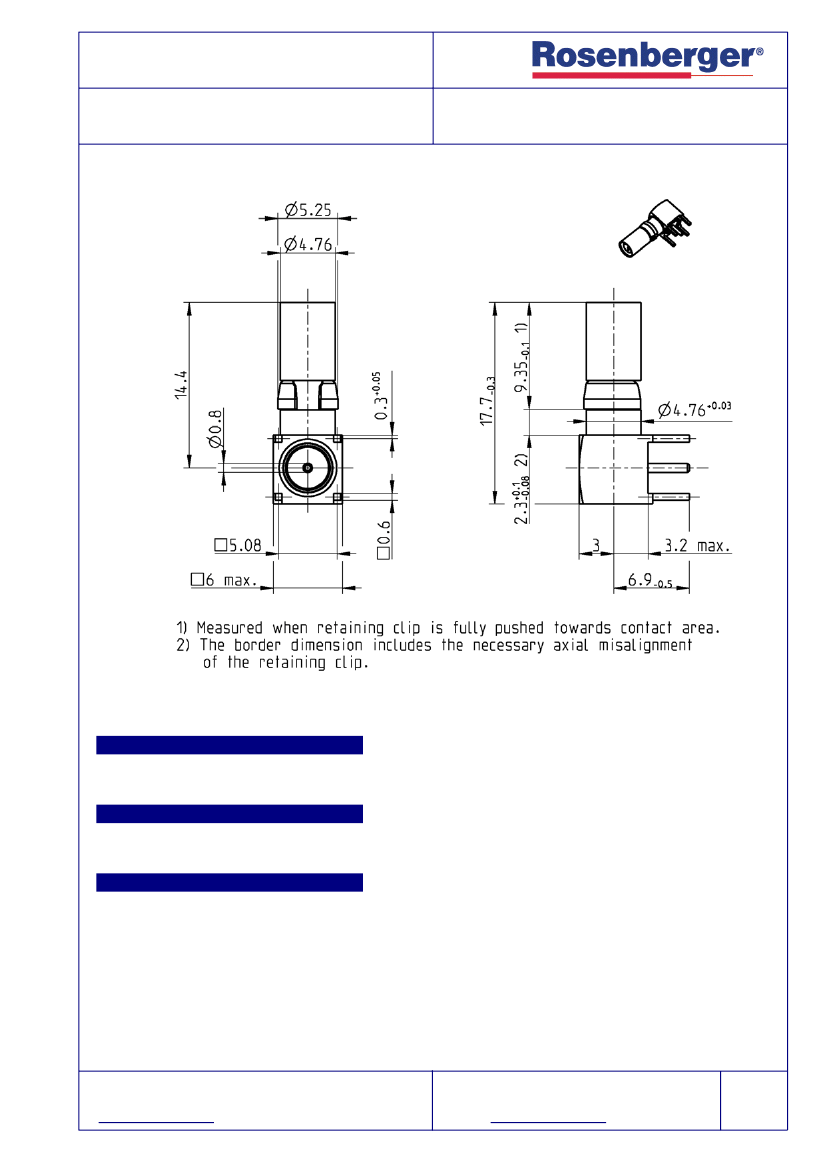

TECHNICAL DATA SHEET
DIN 41626
Coax Insert 75
Ω
RIGHT ANGLE PLUG
PCB
745S201-400L5
All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
Similar to
DIN 41626/2
Documents
PCB layout
B 30c
Material and plating
Connector parts
Center contact
Outer contact
Body
Dielectric
Clip
Material
CuBe
CuBe
Brass
PTFE
CuBe
Plating
AuroDur®, gold plated
AuroDur®, gold plated
AuroDur®, gold plated
Gold, 0.1 µm
RF_35/11.05/3.1
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
