SL-117-T-32: DescriptionBoard Connector, 17 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size527KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

SL-117-T-32 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SL-117-T-32	-	-	View	Buy Now

SL-117-T-32 Overview

Board Connector, 17 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Socket, ROHS COMPLIANT

SL-117-T-32 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1631596579
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	9.1
Other features	LOW PROFILE, LOW INSERTION FORCE
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	SL
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	17

Preview

Download Datasheet

View All

F-211

BBL

(3.89mm)

.153"

(2,54mm) .100"

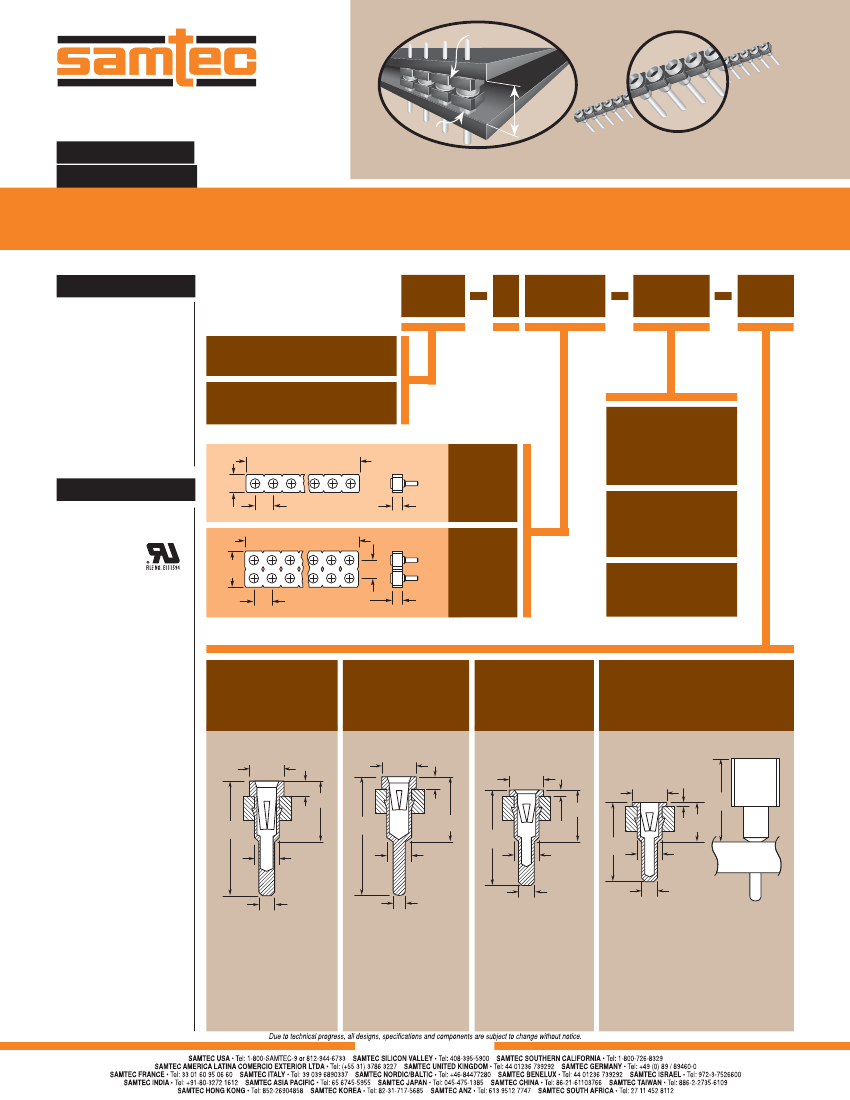

SL, SDL SERIES

SL–120–G–10

LOW PROFILE MACHINED SOCKET STRIPS

FEATURES

•

Achieve low proﬁle

without sacriﬁcing

insertion depth!

•

Choice of four precision

screw machined lead

styles.

•

Exceptionally low proﬁle,

down to (2,11mm) .083"

off of board.

•

Mates with BBL or BDL

for board stacking

spaces down to

(3,89mm) .153"

Mates with:

TS, TD, HTS, BBS, BBD,

BBL, BDL, BHS

TYPE

STRIP

NO. PINS

PER ROW

PLATING

OPTION

LEAD

STYLE

= Single Row Low Proﬁle Socket Strip

= Double Row Low Proﬁle Socket Strip

SDL

–G

thru

= 30µ" (0,76µm)

Gold contact,

10µ" (0,25µm)

Gold shell

(2,54) .100 X No. of Positions

(2,54)

.100

(2,54)

.100

TYP

(1,27)

.050

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?SL or

www.samtec.com?SDL

Insulator Material:

Black Glass Filled

Polyester

Contact/Shell Materials:

BeCu/Brass

Plating:

Au or Sn over 50µ"

(1,27µm) Ni

Operating Temp Range:

-55°C to +125°C with Gold

-55°C to +105°C with Tin

Current Rating:

Contact Resistance:

10 mΩ max

Insertion Force:

(Single contact only)

Standard = 9 oz (2,50N) avg.,

16oz (4,45N) max

((0,43mm) .017" DIA probe)

Low Insertion Force =

2.5oz (0,70N) avg.,

5.5oz (1,53N) max

((0,43mm) .017" DIA probe

except Style 30 (0,46mm)

.018" DIA probe)

Withdrawal Force:

(Single contact only)

Standard = 2.5oz (0,70N)

avg., 1.5oz (0,42N) min

((0,43mm) .017" DIA probe)

Low Insertion Force = 2.0oz

(0,56N) avg., 0.5oz min

((0,43mm) .017" DIA probe

except Style 30 is 2.0oz

(0,56N) avg., .35oz (0,10N)

min (0,46mm) .018"

DIA probe)

RoHS Compliant:

Yes

Lead-Free Solderable:

Wave only

thru

(2,54) .100 X No. of Positions

(5,08)

.200

(2,54)

.100

TYP

(2,54)

.100

(1,27)

.050

= 30µ"(0,76µm)

Gold contact,

Tin shell

–T

= Tin contact and shell

(LIF not available)

–TT

Low Insertion Force (LIF) Available

Low Proﬁle

(Hollow Leg)

–10

Low Proﬁle

(Standard Mount)

For LIF specify –31

–11

Micro-Socket

(Hollow Leg)

–12

Micro-Socket

(Hollow Leg)

For LIF specify –39

–19

(1,83)

.072 DIA

(3,10)

.122

(0,76)

.030

(5,84)

.230

(1,32)

.052

DIA

(1,83)

.072 DIA

(1,83)

.072 DIA

(0,51)

.020

(3,35)

.132

(1,32)

.052

DIA

(2,41)

.095

(0,51)

.020

(1,32)

.052

DIA

(0,76)

.030

DIA

3 2.11)

Only .0 8bo(rd

above p.c.

(1,83)

.072 DIA

(0,25)

.010

(4,45)

.175

(2,11)

.083

(4,19)

.165

(1,32)

.052

DIA

(0,74)

.029

DIA

(6,10)

.240

(4,83)

.190

(0,76)

.030

DIA

Contact Length =

(2,11mm) .083"

Lead DIA Accepted =

(0,38mm) .015" to (0,51mm) .020"

Insertion Depth =

(2,67mm) .105" to (4,32mm) .170"

Style 10 Component Part No. =

SC-3P1

(0,51)

.020

DIA

Micro

Socket

Contact Length =

(1,58mm) .062"

Lead DIA Accepted =

(0,41mm) .016" to (0,51mm) .020"

Insertion Depth =

(1,65mm) .065" to (3,81mm) .150"

Style 12 Component Part No. =

SC-5P1

Contact Length =

(1,58mm) .062"

Lead DIA Accepted =

(0,41mm) .016" to (0,51mm) .020"

Insertion Depth =

(1,65mm) .065" to (3,56mm) .140"

Style 19 Component Part No. =

SC-8P1

Style 39 Component Part No. =

EZ-8P1

Note:

Some lengths,

styles and options are

non-standard, non-returnable.

Contact Length =

(1,58mm) .062"

Lead DIA Accepted =

(0,41mm) .016" to (0,53mm) .021"

Insertion Depth =

(2,03mm) .080" to (2,67mm) .105"

Style 11 Component Part No. =

SC-4P1

Style 31 Component Part No. =

EZ-4P1

Standard

Socket

(Reference

only. Not avail-

able with SL &

SDL)

WWW.SAMTEC.COM
