ZML-120-53-G-D-795-SM datasheet, PDF

Datasheet> All Categories > The connector> The connector> ZML-120-53-G-D-795-SM

ZML-120-53-G-D-795-SM: DescriptionBoard Stacking Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Guide Slot, Black Insulator, ROHS COMPLIANT; CategoryThe connector The connector; File Size169KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

ZML-120-53-G-D-795-SM Overview

Board Stacking Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Guide Slot, Black Insulator, ROHS COMPLIANT

ZML-120-53-G-D-795-SM Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1619265681
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
YTEOL	8.76
Other features	SHROUDED
body width	0.37 inch
subject depth	0.795 inch
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	GUIDE SLOT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	40

Preview

Download Datasheet

View All

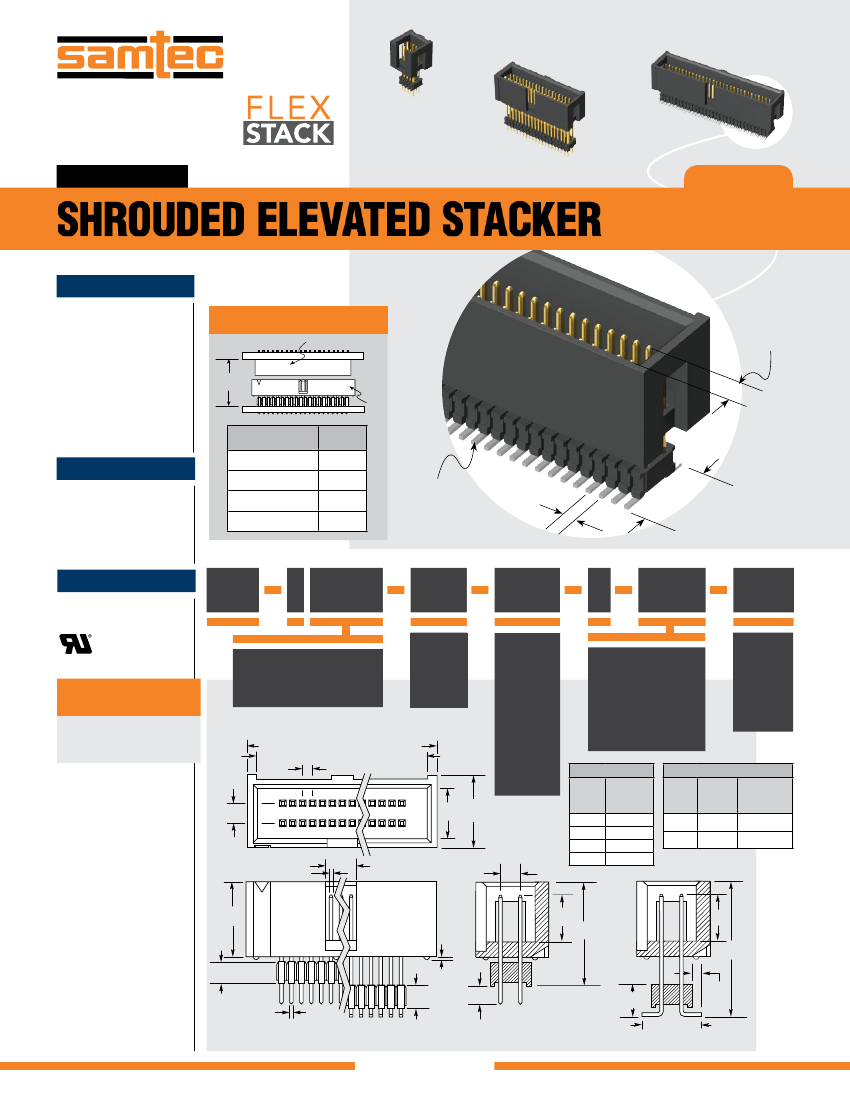

F-218 (Rev 10OCT17)

ZML–132–54–L–D–650–SM

ZML–105–03–G–D

(1.27 mm) .050"

ZML–120–04–G–D

ZML SERIES

SHROUDED ELEVATED STACKER

SPECIFICATIONS

For complete specifications and

recommended PCB layouts

see www.samtec.com?ZML

Insulator Material:

Black LCP

Terminal Material:

Phosphor Bronze

Plating:

Au or Sn over

50 µ" (1.27 µm) Ni

Operating Temp Range:

-55 °C to +105 °C with Tin;

-55 °C to +125 °C with Gold

RoHS Compliant:

Yes

Mates with:

SMS, RSM

APPLICATIONS

SMS

(2.54 mm)

.100"

BOARD

SPACE

ZML

APPLICATIONS

ZML Style -01

mated with SMS

ZML Style -02

mated with SMS

ZML Style -03

mated with SMS

ZML Style -04

mated with SMS

BOARD

SPACE

(13.72)

.540

(15.11)

.595

(17.53)

.690

(20.57)

.810

PROCESSING

Lead-Free Solderable:

Yes

SMT Lead Coplanarity:

(0.10 mm) .004" max (05-20)

(0.15 mm) .006" max (32)*

*(.004" stencil solution

may be available; contact

IPG@samtec.com)

Surface

mount or

through-hole

(1.27 mm)

.050"

(7.62 mm)

.300"

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

ZML

NO. PINS

PER ROW

LEAD

STYLE

Specify

LEAD

STYLE

from

chart

PLATING

OPTION

BODY

HEIGHT

TAIL

STYLE

(Leave

blank for

Through-

hole)

FILE NO. E111594

ALSO AVAILABLE

(MOQ Required)

• Other sizes

• Other platings

Contact Samtec.

(Standard sizes)

05, 08,

10, 20, 32

= 10 µ"

(0.25 µm)

Gold on post,

Matte Tin

on tail

–L

(Leave blank for

Through-hole)

No. of Positions x (1.27) .050 + (3.18) .125

No. of Positions x (1.27) .050 + (0.64) .025

(1.27) .050

= 10 µ"

(0.25 µm)

Gold on post,

Gold flash

on tail

(6.60) (9.40)

.260 .370

–G

= –SM Body Height

(Specify board space “B”

in inches from lead

style charts.)

THROUGH-HOLE

BODY

LEAD

HEIGHT

STYLE

(C)

(12.83) .505

–01

(14.22) .560

–02

(16.64) .655

–03

(19.69) .775

–04

–“XXX”

= Surface

Mount

–SM

SURFACE MOUNT

POST

LEAD HEIGHT

STYLE

(A)

–53

–54

(3.05)

.120

(5.84)

.230

(2.54)

.100

BODY

HEIGHT

(B)

(13.46) (20.19)

.530 to .795

(13.46) (17.40)

.530 to .685

(0.46) .018 SQ TYP

(3.56) .140

(2.54)

.100

(9.65)

.380

(5.84)

.230

Notes:

For added mechanical

stability, Samtec recommends

mechanical board spacers be

used in applications with gold or

selective gold plated connectors.

Contact ipg@samtec.com for

more information.

This Series is non-standard,

non-returnable.

(2.54)

.100

(2.54)

.100

(0.38)

.015

(0.51) .020

DIA TYP

(3.05)

.120

(3.81)

.150

(7.62) .300

THROUGH-

HOLE

(1.25)

.050

TYP

SURFACE MOUNT

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM
