DS1608S datasheet, PDF - EEWORLD Datasheet

DS1608S: DescriptionAnalog Waveform Generation Function, CMOS, PDSO16; CategoryAnalog mixed-signal IC The signal circuit; File Size764KB，26 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

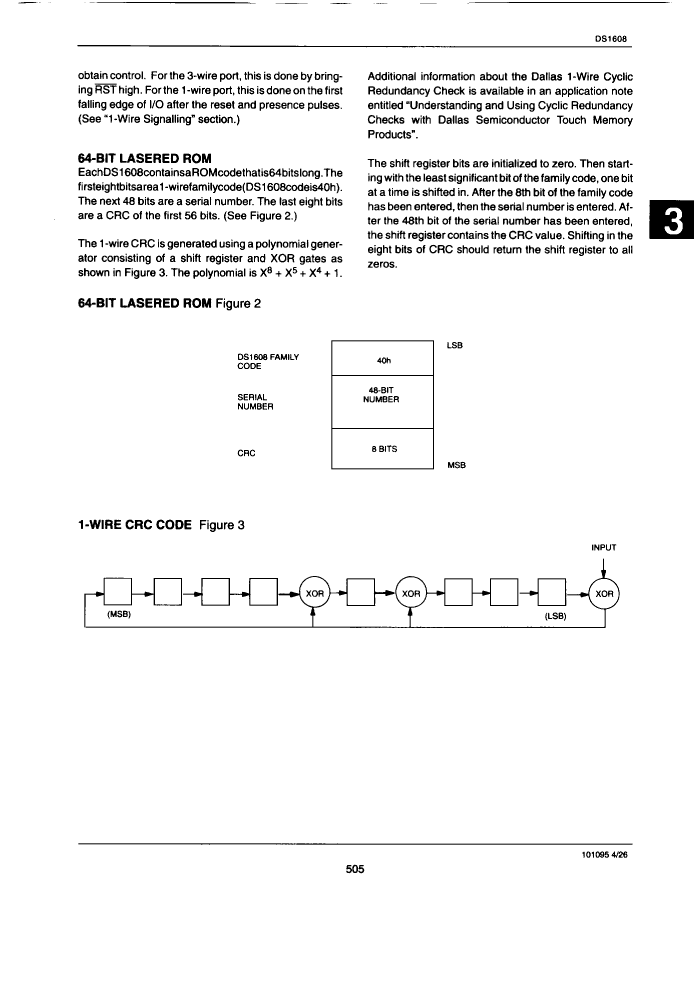

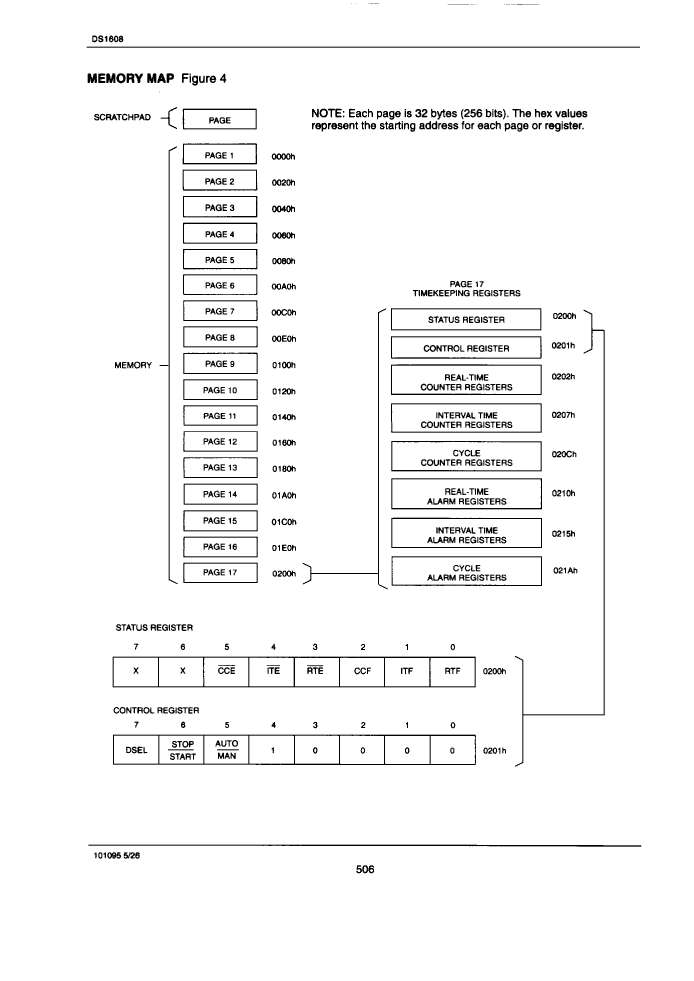

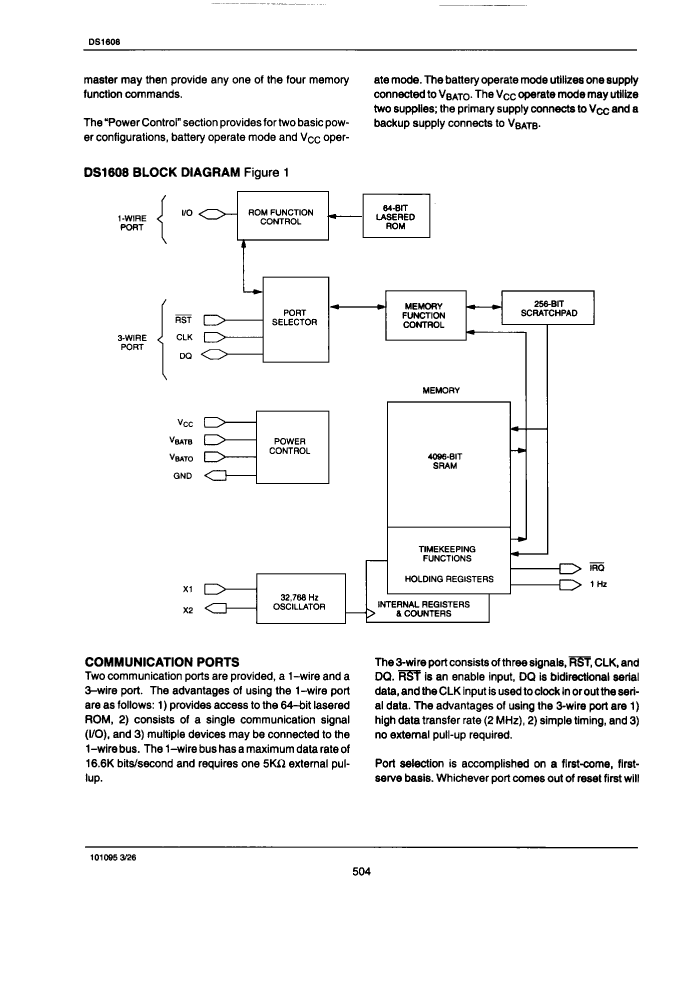

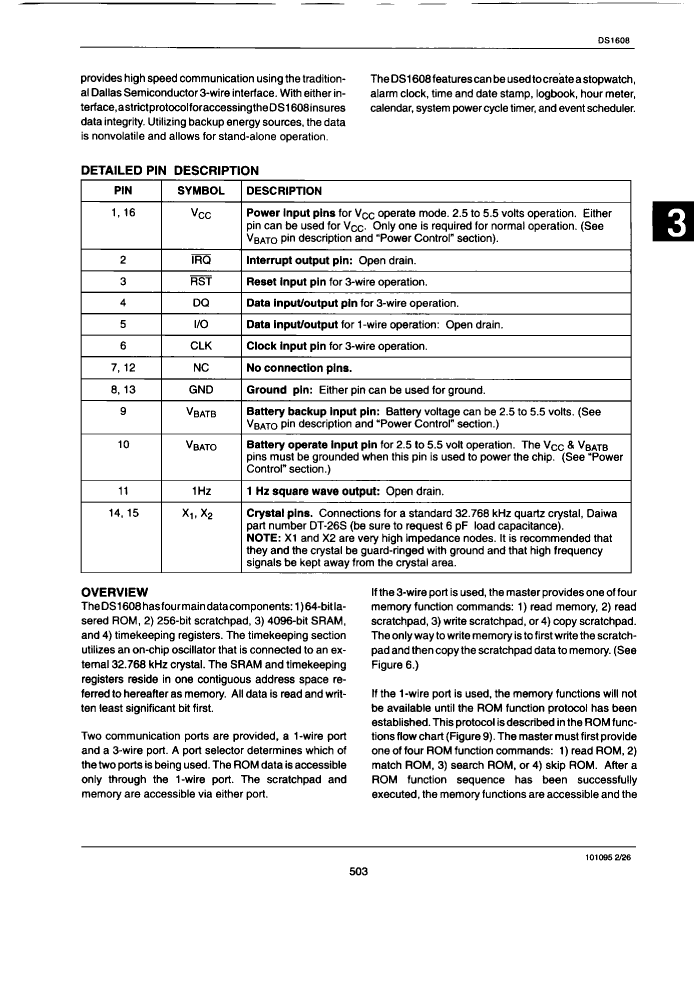

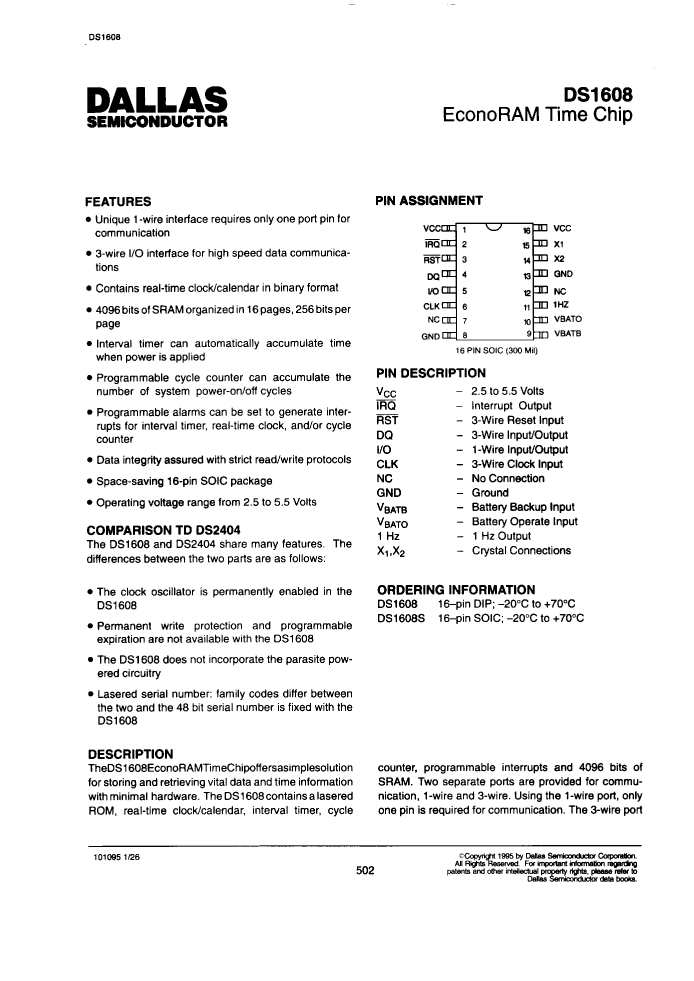

DS1608S Overview

Analog Waveform Generation Function, CMOS, PDSO16

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Maxim
Reach Compliance Code	not_compliant
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	3/5 V
Certification status	Not Qualified
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

	DS1608S	DS1608
Description	Analog Waveform Generation Function, CMOS, PDSO16	Analog Waveform Generation Function, CMOS, PDIP16
Is it Rohs certified?	incompatible	incompatible
Maker	Maxim	Maxim
Reach Compliance Code	not_compliant	not_compliant
JESD-30 code	R-PDSO-G16	R-PDIP-T16
JESD-609 code	e0	e0
Number of terminals	16	16
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP
Encapsulate equivalent code	SOP16,.4	DIP16(UNSPEC)
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
power supply	3/5 V	3/5 V
Certification status	Not Qualified	Not Qualified
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE
Terminal location	DUAL	DUAL
