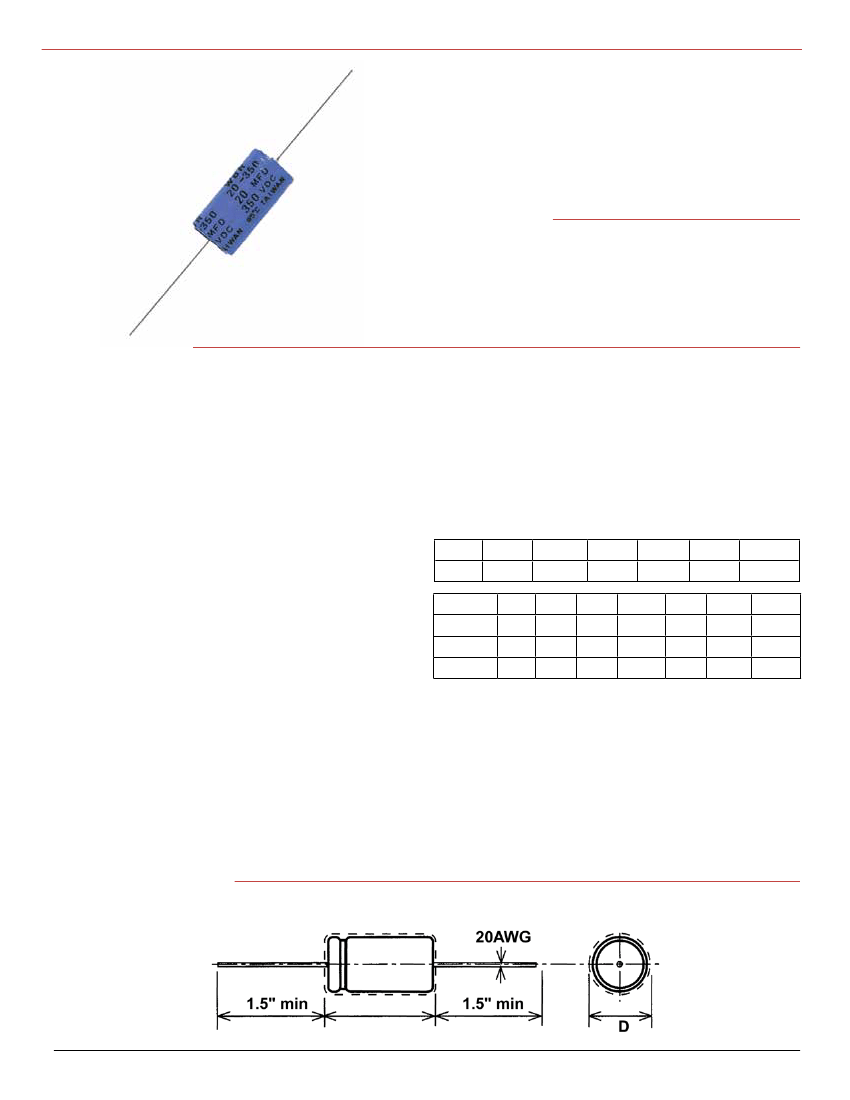

Type WBR
85 ºC, Industrial Grade, Axial Leaded, Aluminum
85 ºC, Industrial Grade
Type WBR capacitors are the preferred choice for
many varied industrial applications because they have
high capacitance and extended life characteristics. The
rugged construction delivers the high vibration resis-
tance required in industrial applications
Highlights
•
•
•
•
High capacitance
Extended life
Rugged construction
High vibration resistance
Specifications
1.0 to 5,000 µF
16 to 450 Vdc
16 to 50 Vdc -10 + 150%, 75 to 350 Vdc
–10 + 100%, 450 Vdc –10 + 50%
Operating Temperature Range:
–40 ºC +85ºC
Leakage Current:
16-75 Vdc ≤ 0.01CV + 10 µA
150-450 Vdc ≤ 0.03CV + 20 µA
Ripple Current Multipliers:
Ambient Temperature
45 ºC
1.50
Frequency
0-60 Vdc
61-200 Vdc
201-450 Vdc
55 ºC
1.46
60 Hz
0.85
0.83
0.80
65 ºC
1.32
75 ºC
1.17
85 ºC
1.00
1000 Hz
1.15
1.20
1.30
95 ºC
0.79
10 kHz 50 kHz
1.15
1.20
1.30
1.15
1.20
1.30
105 ºC
0.50
100 kHz
1.15
1.20
1.30
Capacitance Range:
Voltage Range:
Capacitance Tolerance:
120 Hz 400 Hz
1.00
1.00
1.00
1.10
1.15
1.15
Load Life:
Outline Drawing
2,000 h @ +85 ºC
∆ Capacitance ±20%
∆ ESR 150% of limit
∆ DCL 100% of limit
Shelf Life:
500 h @ 85 ºC
∆ Capacitance ±20%
∆ ESR 150% of limit
∆ DCL 100% of limit
Vibration:
10 to 55 Hz; 0.06” and 10 g max, 2 h in each plane
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type WBR
85 ºC, Industrial Grade, Axial Leaded, Aluminum
Part Numbering System
WBR
Type
WBR
500
Capacitance
500
= 500 µF
—
16
Voltage
16
= 16 Vdc
A
Lead
A
= 1.5" 20 AWG
E
Epoxy Endseal
E
= Epoxy
Blank
= No epoxy
Max Case
Size
DxL
(Inches)
0.34
0.34
0.40
0.40
0.47
0.52
0.65
0.65
0.28
0.28
0.34
0.34
0.40
0.40
0.47
0.65
0.40
0.40
0.47
0.52
0.54
0.65
0.74
0.28
0.28
0.28
0.28
0.34
0.40
0.40
0.40
0.40
0.52
0.65
0.65
0.47
0.52
0.65
0.76
0.88
1.00
1.32
1.57
1.83
1.83
1.83
0.57
0.57
0.76
0.76
1.00
1.32
1.57
1.83
0.88
1.00
1.32
1.67
1.67
1.83
1.69
0.57
0.57
0.57
0.57
0.76
0.88
1.00
1.00
1.32
1.57
1.83
1.83
1.32
1.57
1.83
Ripple
Catalog
Max ESR @ 85 ºC
Cap
Part Number
120 Hz
120 Hz
(µF)
(Ω)
(A)
150 Vdc ( 175 Vdc Surge )
4
WBR4-150A
78.00
0.018
5
WBR5-150A
62.00
0.020
8
WBR8-150A
39.00
0.030
10 WBR10-150A
31.00
0.034
16 WBR16-150A
19.50
0.045
20 WBR20-150A
15.50
0.050
30 WBR30-150A
10.50
0.085
40 WBR40-150A
7.80
0.096
50 WBR50-150A
6.20
0.105
60 WBR60-150A
5.20
0.130
80 WBR80-150A
3.90
0.155
100 WBR100-150A
3.10
0.190
150 WBR150-150A
2.05
0.230
180 Vdc ( 250 Vdc Surge )
125 WBR125-180A
2.30
0.300
250 Vdc ( 300 Vdc Surge )
4
WBR4-250A
64.00
0.035
8
WBR8-250A
32.00
0.056
12 WBR12-250A
21.50
0.062
16 WBR16-250A
16.00
0.065
20 WBR20-250A
12.50
0.075
30 WBR30-250A
8.40
0.105
40 WBR40-250A
6.30
0.125
50 WBR50-250A
5.00
0.140
60 WBR60-250A
4.20
0.180
80 WBR80-250A
3.10
0.200
350 Vdc ( 400 Vdc Surge )
4
WBR4-350A
51.00
0.036
8
WBR8-350A
26.00
0.050
20 WBR20-350A
10.00
0.090
40 WBR40-350A
5.10
0.135
450 Vdc ( 525 Vdc Surge )
1
WBR1-450A
205.00
0.023
2
WBR2-450A
102.00
0.030
4
WBR4-450A
51.00
0.038
5
WBR5-450A
40.00
0.042
8
WBR8-450A
26.00
0.053
10 WBR10-450A
20.00
0.058
12 WBR12-450A
17.00
0.062
16 WBR16-450A
12.50
0.084
20 WBR20-450A
10.00
0.105
30 WBR30-450A
6.70
0.130
Max Case
Size
DxL
(Inches)
0.34
0.34
0.40
0.40
0.40
0.40
0.40
0.47
0.47
0.65
0.65
0.65
0.74
0.74
0.40
0.40
0.40
0.47
0.47
0.52
0.52
0.65
0.65
0.74
0.40
0.47
0.52
0.65
0.40
0.40
0.47
0.47
0.47
0.52
0.65
0.65
0.65
0.74
0.88
0.88
0.88
0.88
1.00
1.32
1.57
1.32
1.57
1.57
1.83
1.83
1.69
1.69
1.00
1.32
1.32
1.57
1.57
1.57
1.83
1.83
1.83
1.69
1.00
1.32
1.57
1.83
1.00
1.00
1.57
1.57
1.57
1.57
1.83
1.83
1.83
1.69
Ratings
Cap
(µF)
100
250
500
1000
2000
3000
4000
5000
10
25
50
100
250
500
1000
2000
100
150
300
500
1000
2000
3000
1
2
5
10
25
50
100
150
250
500
1000
1500
150
275
500
Ripple
Catalog
Max ESR @ 85 ºC
Part Number
120 Hz
120 Hz
(Ω)
(A)
16 Vdc ( 20 Vdc Surge )
WBR100-16A
5.30
0.057
WBR250-16A
2.10
0.118
WBR500-16A
1.10
0.270
WBR1000-16A
0.53
0.420
WBR2000-16A
0.27
0.660
WBR3000-16A
0.18
0.820
WBR4000-16A
0.13
1.000
WBR5000-16A
0.11
1.200
25 Vdc ( 30 Vdc Surge )
WBR10-25A
48.00
0.018
WBR25-25A
19.00
0.031
WBR50-25A
9.50
0.044
WBR100-25A
4.80
0.074
WBR250-25A
1.80
0.155
WBR500-25A
0.95
0.280
WBR1000-25A
0.48
0.450
WBR2000-25A
0.23
0.720
35 Vdc ( 40 Vdc Surge )
WBR100-35A
4.40
0.086
WBR150-35A
2.95
0.114
WBR300-35A
1.45
0.195
WBR500-35A
0.87
0.285
WBR1000-35A
0.44
0.450
WBR2000-35A
0.22
0.910
WBR3000-35A
0.15
1.150
50 Vdc ( 65 Vdc Surge )
WBR1-50A
390.00
0.010
WBR2-50A
195.00
0.012
WBR5-50A
77.00
0.014
WBR10-50A
39.00
0.020
WBR25-50A
15.50
0.035
WBR50-50A
7.70
0.060
WBR100-50A
3.90
0.140
WBR150-50A
2.50
0.160
WBR250-50A
1.50
0.220
WBR500-50A
0.77
0.340
WBR1000-50A
0.39
0.530
WBR1500-50A
0.25
0.740
75 Vdc ( 95 Vdc Surge )
WBR150-75A
2.50
0.180
WBR275-75A
1.30
0.280
WBR500-75A
0.72
0.400
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Phone: (508)996-8561
•
Fax: (508)996-3830
•
www.cde.com
