RoHS Compliant
Pb - Lead Free
Ltr
Revisions
Date
Appr
Electrical Specifications:
Frequency Range
1.000 to 155.520
±100
±50
±30
±20
±5
Standard
Extended
-10 to +70
-40 to +85
-55 to +125
MHz
Temperature Stability
PPM Max
Aging per Year
Operating Temperature Range
Storage Temperature Range
Supply Voltage
1.000 to 32.000 MHz
32.100 to 50.000 MHz
50.100 to 67.000 MHz
67.100 to 80.000 MHz
80.100 to 155.520 MHz
Logic High (Voh)
Logic Low (Vol)
Standard
Tight
Lol/Loh
1.000 to 32.000 MHz
32.100 to 50.000 MHz
50.100 to 67.000 MHz
67.100 to 80.000 MHz
80.100 to 155.520 MHz
Standby Current
Enable-Disable Function
Output Disable Time
Output Enable Time
Start Up Time
ºC
Input Current
1.8 ± 5% 2.5 ± 5% 2.8 ± 5% 3.3 ± 10%
Vdd
7
10
12
15
15
12
20
20
mA Max
-
-
40
25
-
-
40
25
-
-
-
90% (80% at 1.8)
10% (20% at 1.8)
40 to 60
45 to 55
2
5
3.5
-
-
-
4
15
5
5
-
-
-
5
5
5
5
-
10
Tri-State
150
10
10
7
7
7
7
7
uA Max
-
ns Max
ms Max
ms Max
4
2
40
Vdd Min
Vdd Max
%
mA Min
pF Max
Output Voltage
Output Symmetry (Duty Cycle)
Output Current
Output Load
Rise and Fall Time
ns Max
300
10
Temperature stability is Inclusive of all conditions:
Calibration Tolerance at +25°C, frequency stability over the operating temperature range, supply voltage,
supply voltage change, output load changes, shock, vilbration, and 1st year aging at +25°C.
Specification Title:
Clock Oscillator
Low Profile
3.2 x 5.0 millimeter Surface Mount
General Product Specification
11-3 Chien-Kuo Rd T.E.P.Z. 4027 Taiwan, ROC
All dimensions are millimeters.
CAD:
TCR
EG
Review:
JL
Appr:
Page:
1/4
Date:
April 30, 2006
Part Number:
S5 Series
www.aker-usa.com

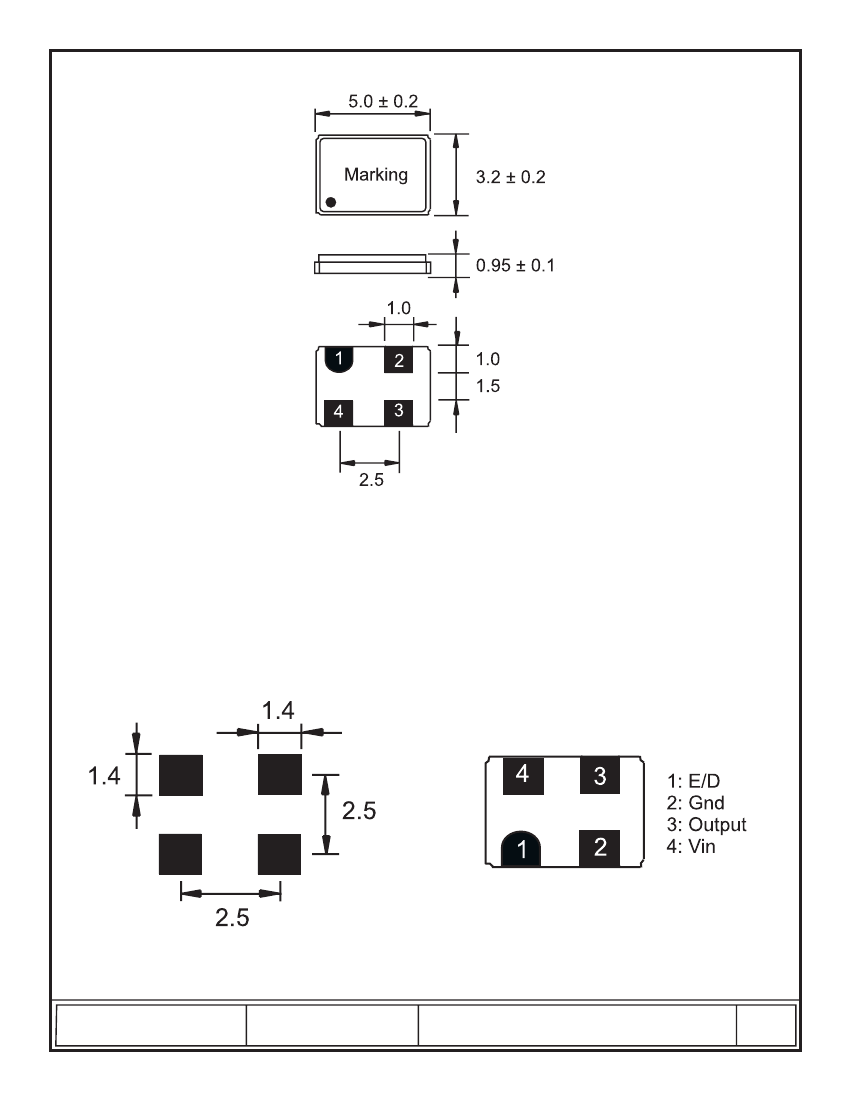

Mechanical Outline:
Package is Seam Sealed Ceramic-Metal.
Dimensions are millimeters.
PCB Solder Pad Layout:
Pad Connection:
Top View
Page:
2/4
Date:
April 30, 2006
P/N:
S5 Series
www.aker-usa.com

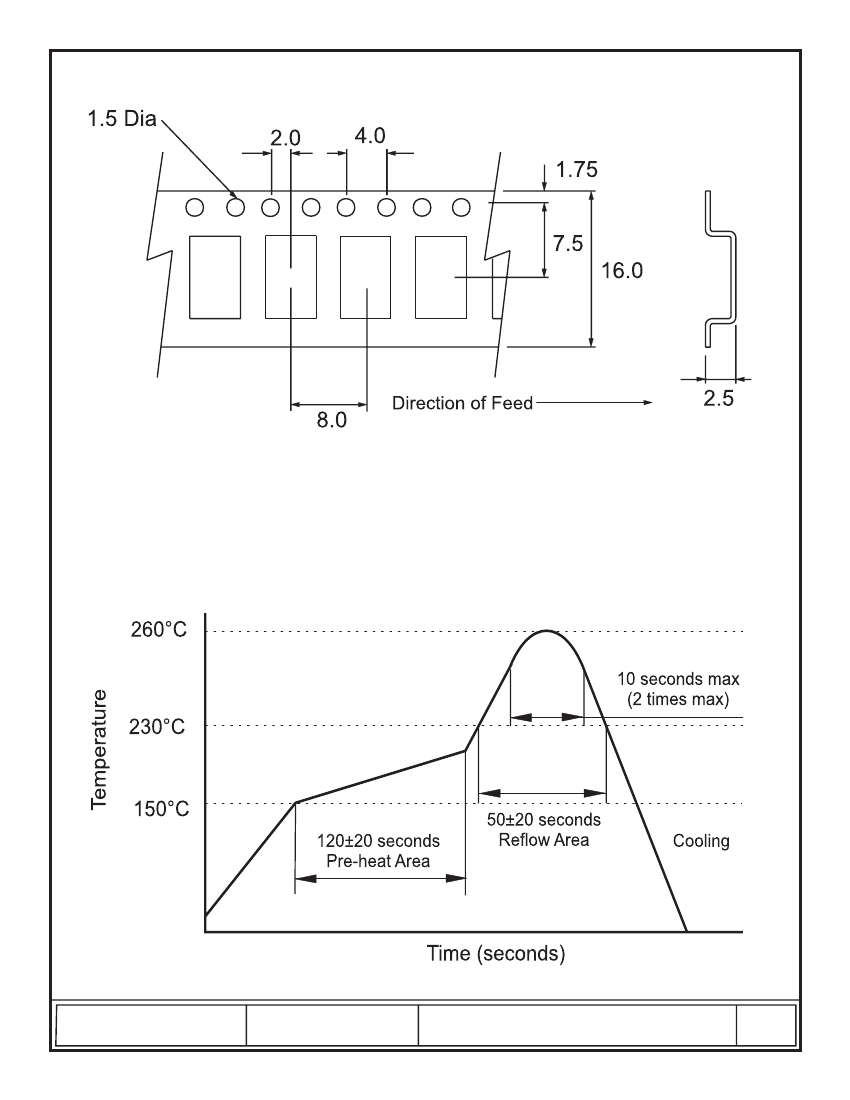

Carrier Tape Dimensions:
Dimensions are millimeters.
Solder Reflow Characteristics:
Page:
3/4
Date:
April 30, 2006
P/N:
S5 Series
www.aker-usa.com
How to build a Part Number:
Series
Package
S
5
33
28
25
18
10
05
03
02
See Notes
T
Parameter
3.2 x 5.0 mm
+3.3 Vdd ± 5%
+2.8 Vdd ± 5%
+2.5 Vdd ± 5%
+1.8 Vdd ± 5%
±100 PPM
±50 PPM
±30 PPM
±20 PPM
±10%
±5%
Supply Voltage
Temperature Stability
Duty Cycle
-
Frequency 1.000 to 155.520
MHz
-
See Notes
-10 to +70 ºC
Temperature Range
X
-40 to +85 ºC
-
Packaging
R
Tape and Reel
Part Number Example:
S53310-155.520-X-R
S5: 3.2 x 5.0 mm SMD Package
33: +3.3 Vdd Supply Voltage
10: ±100 PPM Temperature Stability
155.520 MHz Nominal Frequency
X: -40 to + 85° C Extended Temperature Range
R: Tape and Reel Packaging
Notes:
1- Standard Duty Cycle and Temperature Range do not need to be included in
Part Number description.
2- Product is shipped in Tape and Reel configuration. Each reel contains
1000 pieces.
3- Quantities less than 1000 are shipped bulk in ESD pouches.
4- Specification subject to change without notice.
Page:
4/4
Date:
April 30, 2006
P/N:
S5 Series
www.aker-usa.com
