DTS20F23-24320PB

Description
5 CONTACT(S), ALUMINUM ALLOY, MALE, MIL SERIES CONNECTOR, CRIMP, RECEPTACLE
CategoryThe connector    The connector
File Size602KB,2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

DTS20F23-24320PB Overview

5 CONTACT(S), ALUMINUM ALLOY, MALE, MIL SERIES CONNECTOR, CRIMP, RECEPTACLE

DTS20F23-24320PB Parametric

Parameter NameAttribute value
MakerTE Connectivity
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresSTANDARD: MIL-C-38999, COMPATIBLE CONTACT: M39029
Back shell typeSOLID
Body/casing typeRECEPTACLE
Connector typeMIL SERIES CONNECTOR
Contact point genderMALE
Coupling typeTHREADED
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
MIL complianceYES
Manufacturer's serial numberDTS
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsYES
Installation typeCABLE AND PANEL
OptionsGENERAL PURPOSE
Shell surfaceNICKEL PLATED
Shell materialALUMINUM ALLOY
Housing size23
Termination typeCRIMP
Total number of contacts5
Base Number Matches1

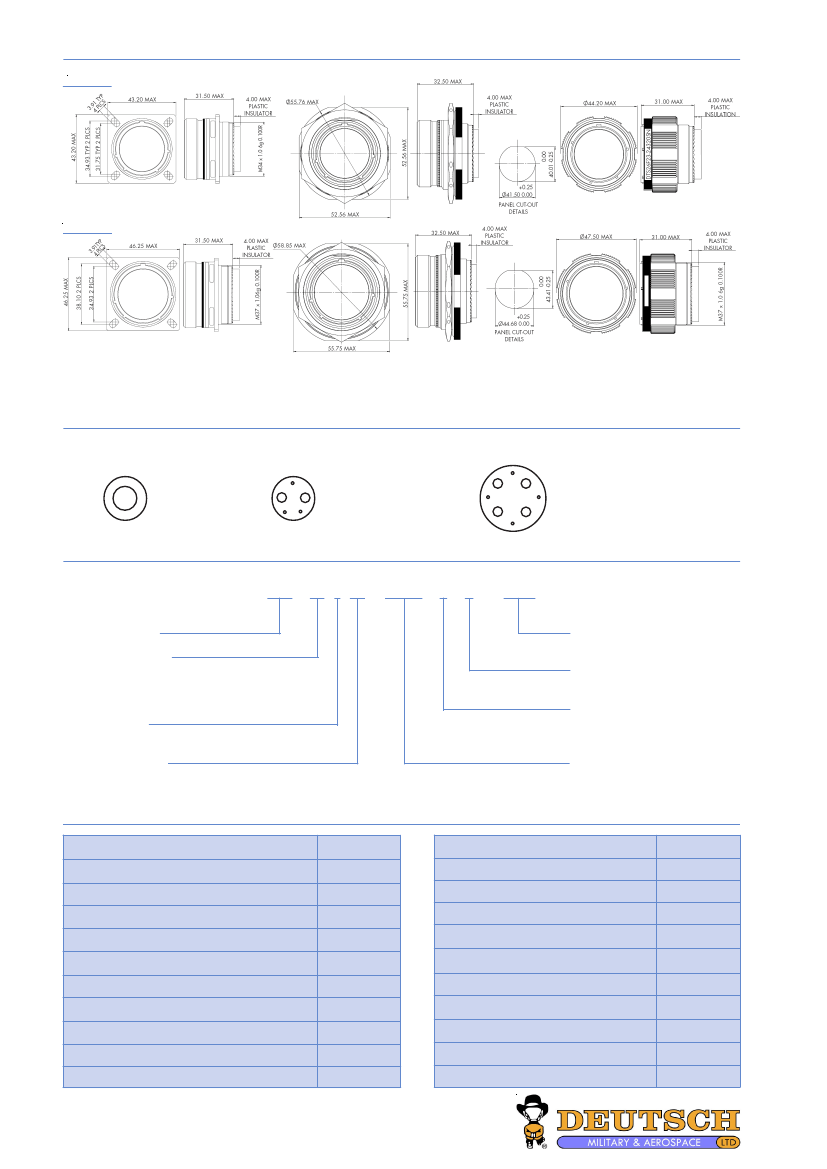

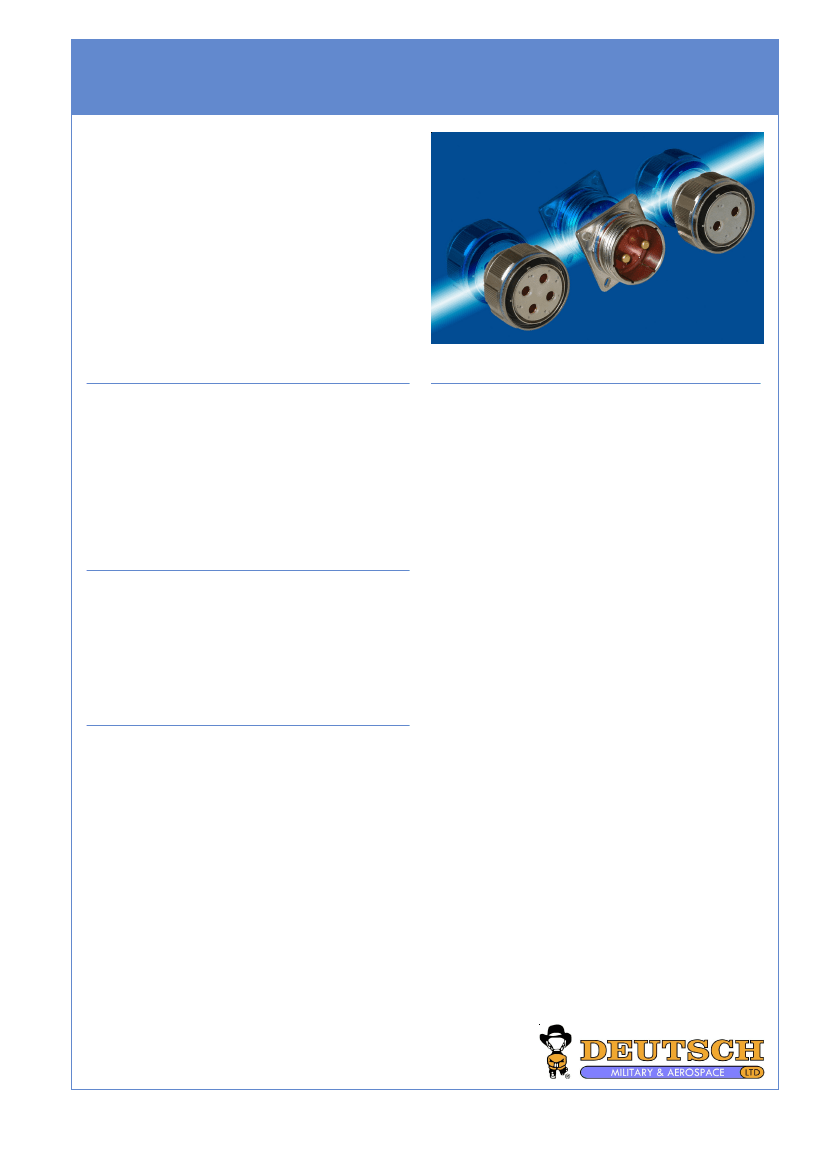

High Current Circular Connectors (DTS-HC)
The Deutsch DTS-HC series connector is
ideally suited for power control systems
for military vehicles using a 16mm
2
or
25mm
2
cable. With both high electrical
power and signal contacts within the
same body. The power contacts are rated
to 150 amps and are suitable for power
ring main supplies.
A single contact connector is an available
option for 300 Amp applications.
FEATURES
Dual contact design
High current contacts
100% scoop proof design
Grounding fingers
Elastomer interface
RFI fingers at mating interface
Removable rear crimp contacts
Dedicated back fitting and grommet
GENERAL SPECIFICATION
Material:
Shell/coupling ring:
Plating:
Contacts:
Material:
Current Rating:
High Strength Aluminium Alloy
Nickel (RoSH compliant) (standard)
Zinc Cobalt (optional)
Gold plated Copper Alloy
Size 4 service rating 150 Amp
Size 20 service rating in accordance
with MIL-C-38999
Crimp
70mm
2
cable
16mm
2
& 25mm
2
cable
CENELEC Specification HD516
20-04 AWG cable
Dubius Tool D51
31040
31041
Thermoplastic
Fluorinated Silicone
-65°C to +175°C
It is highly recommended for the
correct installation that the dedicated
back fitting and rear grommet is used
with this connector
Plug & receptacle caps are available
No electrical or mechanical defects
after 500 cycles
As per Mil-DTL-38999
As per Mil-DTL-38999
BENEFITS
Space saving with integral power and signal wires
Provides superior contact retention under severe vibration
Standard Mil-C-39029 contacts as used in Mil-DTL-38999
connectors
Threaded coupling with self locking mechanism for anti-vibration
Enhanced cable support and sealing
Type:
Cable Size:
Size 00:
Size 4:
Size 20:
Crimp Tool:
Dieset:
16mm
2
cable
25mm
2
cable
Insulators:
Interface Seal:
Temperature:
Backshell:
QUALITY APPROVALS
Civil Aviation Authority A8-1
BS EN ISO 9001
Military Spec Approvals 38999
BS9000 and CECC
Underwriters Laboratories
With 30 years experience in designing and
manufacturing at its own facilities, Deutsch Ltd
can provide interconnection solutions for the
most demanding of environments
Castleham Industrial Estate
4 Stanier Road, St Leonard-On-Sea
East Sussex TN38 9RF England
Telephone +44 (0) 1424 852721
Fax
+44 (0) 1424 857142
Email
milaero@deutsch.co.uk
www.deutschltd.com
Protective Caps:
Durability:
Vibration:
Thermal Shock:
