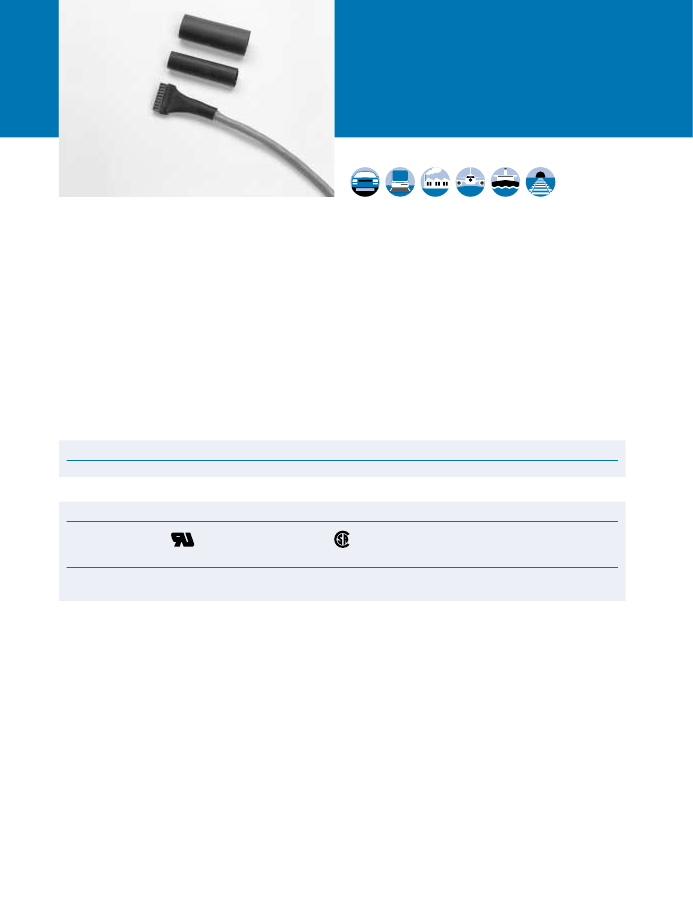

DWP-125
Flexible, high-shrink-ratio, adhesive-lined,
polyolefin tubing
Applications
Environmentally seals and protects a wide variety
of electrical applications, including wire splices,
breakouts, and connector-to-cable transitions.
Ideal for applications where UL recognized/CSA
certified adhesive-lined tubing is required.
Features and benefits
3:1 shrink ratio allows for insulation and sealing
of irregular shapes.
Medium wall provides increased mechanical
protection while maintaining flexibility
when installed.
Adhesive bonds to a wide variety of plastics,
rubber, and metals, including polyethylene,
neoprene, and steel.
Operating temperature range
-40°C to 110°C
Installation
Minimum shrink temperature:
80°C
Minimum full recovery temperature: 125°C
Available in:
Americas
Europe
Asia Pacific
Specifications/approvals
®
Series
DWP-125
UL
E35586
600 V, 125°C
CSA
LR31929
600 V, 125°C
Raychem
DWP-125 SCD
3-14 Tubing
Fax-on-demand
US only
(800) 260-9099
Outside US
(650) 257-2301
Fax ID
2050
2051
Description
Data sheet
SCD
Visit our website at www.tycoelectronics.com
Product dimensions (mm/in)
Inside diameter
Minimum
expanded
Size
as supplied
1/8
3/16
1/4
3/8
1/2
3/4
1
3.2
(0.125)
4.8
(0.187)
6.4
(0.250)
9.5
(0.375)
12.7
(0.500)
19.1
(0.750)
25.4
(1.000)
Maximum
recovered
after heating
1.0
(0.040)
1.5
(0.060)
2.0
(0.080)
3.0
(0.120)
4.0
(0.157)
6.0
(0.230)
8.0
(0.320)
Recovered wall thickness*
Nominal
Nominal
total wall
adhesive wall
after heating
after heating
1.02
(0.040)
1.40
(0.055)
1.45
(0.057)
1.65
(0.065)
1.78
(0.070)
2.03
(0.080)
2.50
(0.100)
0.25
(0.010)
0.51
(0.020)
0.56
(0.022)
0.68
(0.027)
0.76
(0.030)
0.76
(0.030)
0.76
(0.030)
*Wall thickness will be less if tubing recovery is restricted during shrinkage.
Ordering information
Color
Size selection
Standard packaging
Ordering description
Standard
Nonstandard
Black (-0)
White (-9), red (-2), blue (-6), yellow (-4), green (-5). Other colors available upon request.
Always order the largest size that will shrink snugly over the component to be covered.
Special order sizes are available upon request.
In 1.2-meter (4-foot) lengths.
Specify product name, size and color (for example, DWP-125 1/4-0).
Users should independently evaluate the suitability of the product for their application.
Before ordering check with factory for most current data.
Tubing 3-15
