DS2252-128-16 datasheet, PDF - EEWORLD Datasheet

DS2252-128-16: DescriptionMicrocontroller, 8-Bit, 8051 CPU, 16MHz, CMOS,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size410KB，14 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric View All

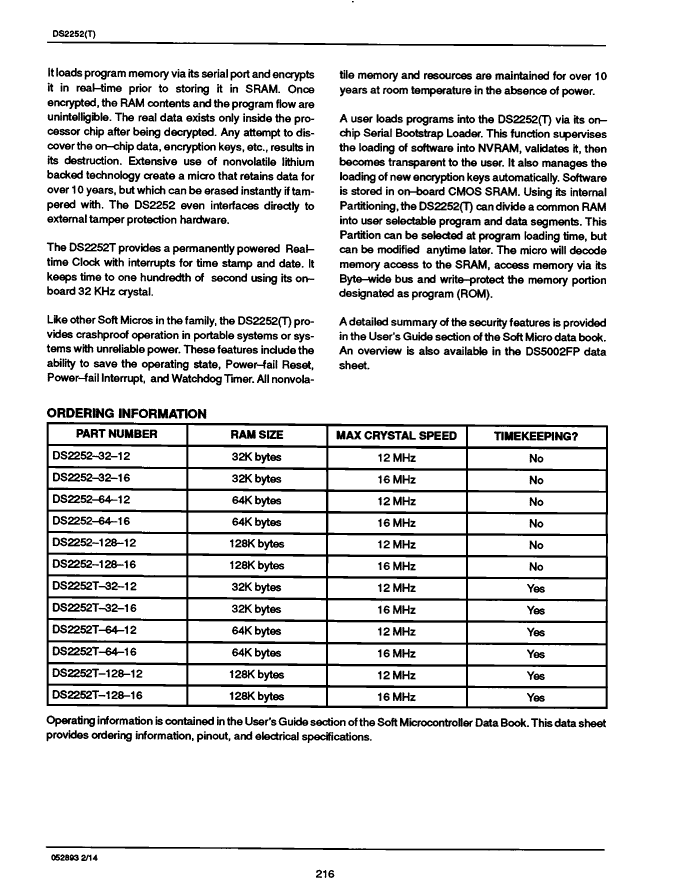

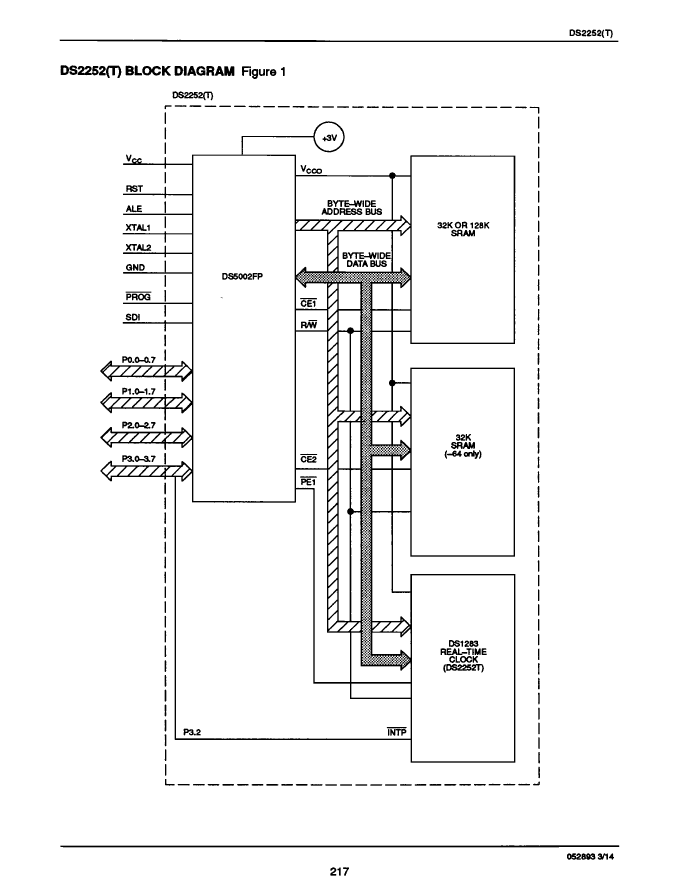

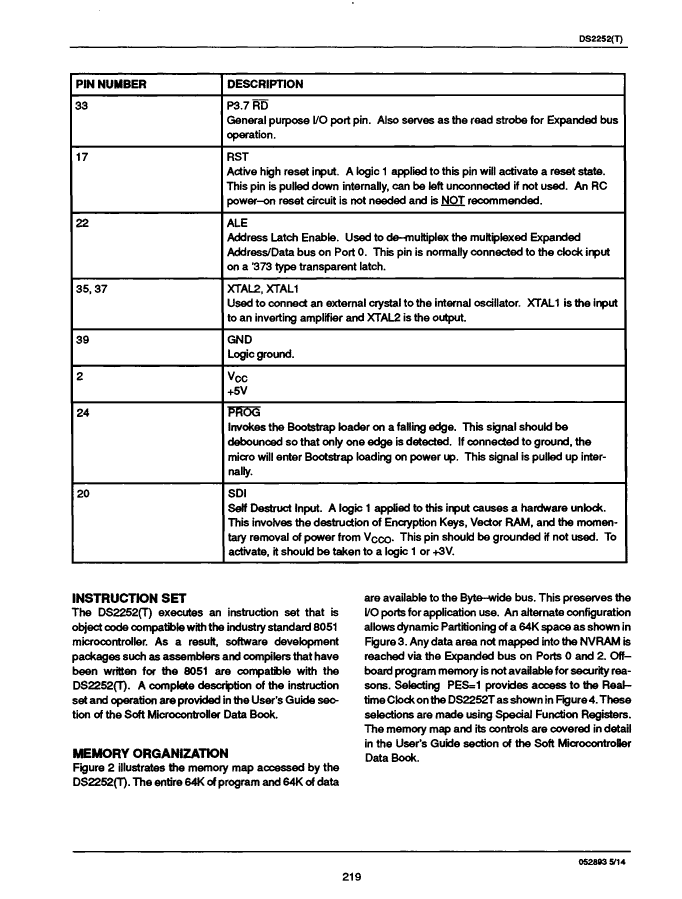

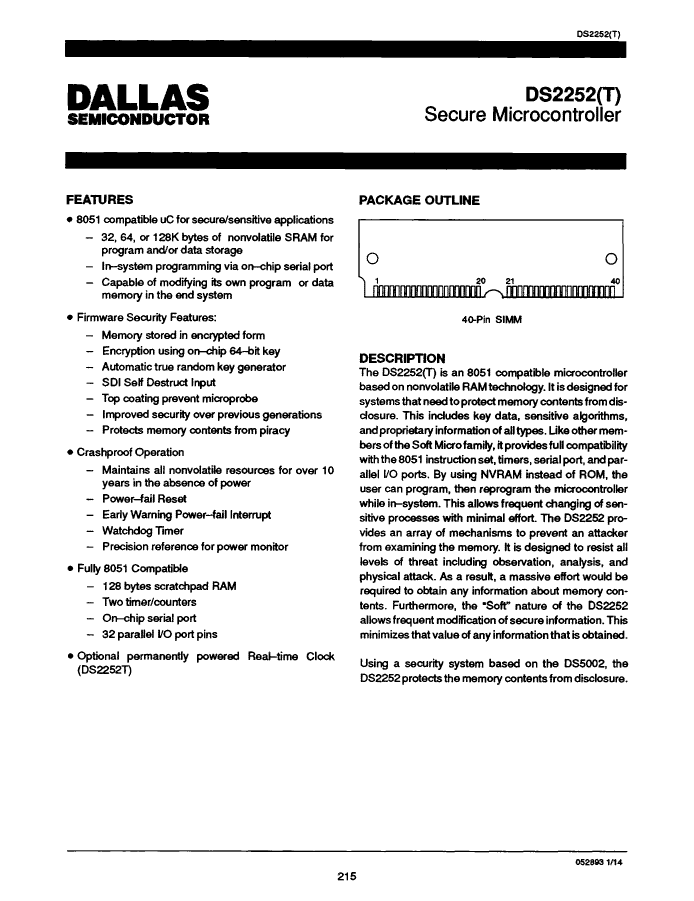

DS2252-128-16 Overview

Microcontroller, 8-Bit, 8051 CPU, 16MHz, CMOS,

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	SIMM, SSIM40,.2

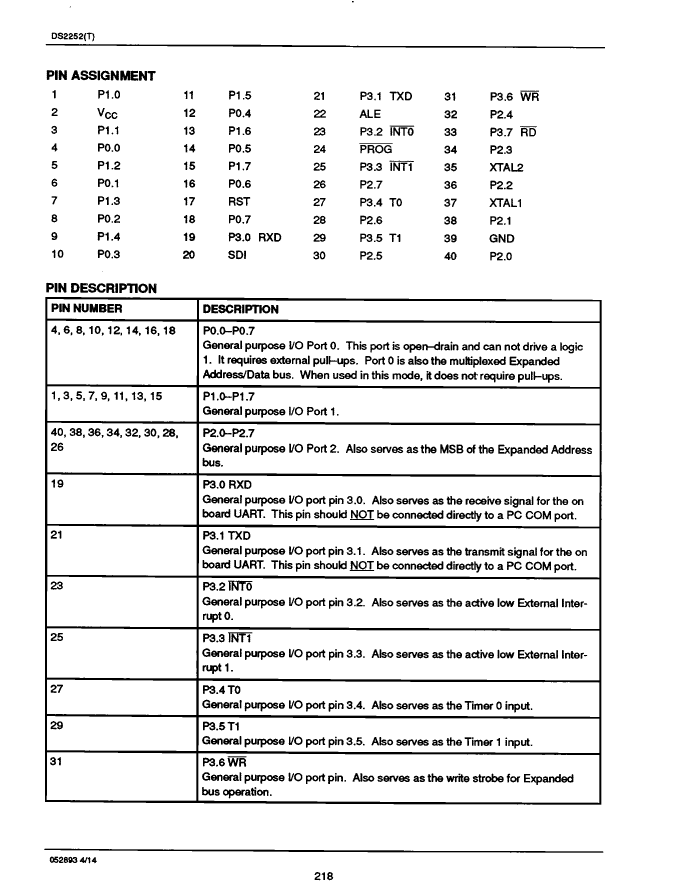

Contacts	40
Reach Compliance Code	_compli
Has ADC	NO
Other features	16/8 BIT MULTIPLEXED EXPANDED ADDRESS/DATA BUS; 10 YEAR DATA RETENTION
Address bus width	16
bit size	8
CPU series	8051
maximum clock frequency	16 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-30 code	R-XSMA-N40
JESD-609 code	e0
length	67.31 mm
Number of I/O lines	32
Number of terminals	40
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	UNSPECIFIED
encapsulated code	SIMM
Encapsulate equivalent code	SSIM40,.2
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	131072
rom(word)	0
speed	16 MHz
Maximum slew rate	45 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
width	5.56 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1
