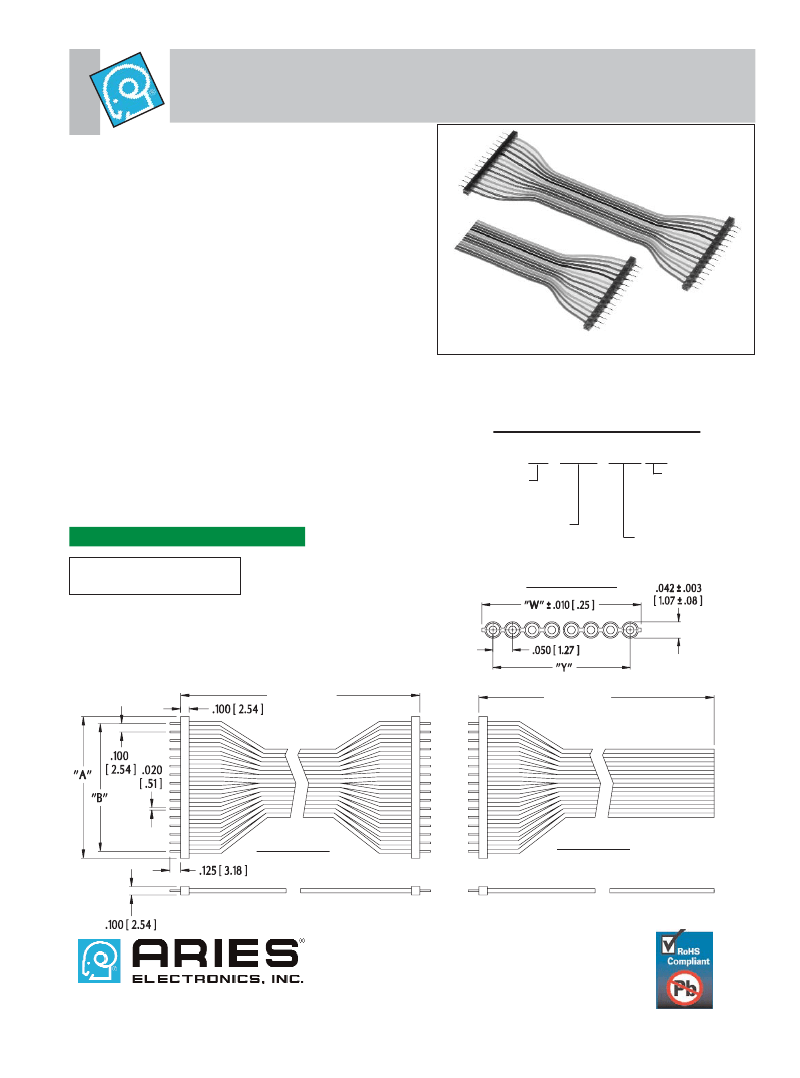

Series 150/151
Deci-Center Jumpers
TM
FEATURES:
• Aries offers a wide array of jumper configurations and
wiring possibilities for all your programming needs.
• Pitch bars help maintain .100 [2.54] conductor spacing.
• 10-color cable allows for easy identification and tracing.
• Consult factory for jumper lengths under the specified
minimum length.
SPECIFICATIONS:
• Pitch bar is black UL 94 V-0 Glass-filled 4/6 Nylon.
• Cable insulation is UL Style 2697 Polyvinyl Chloride
(PVC).
• Cable laminate is clear PVC, self-extinguishing.
• Conductors are 28 AWG, 7/36 strand, Tinned Copper per
ASTM B 33.
• Cable current rating=1 Amp @ 10°C [50°F] above
ambient.
• Cable voltage rating=300 Volts.
• Cable temperature rating-176°F [80°C].
• Cable capacitance=13.0 pf/ft. [42.7pf/meter] nominal
@1 MHz.
• Crosstalk: 10’ sample, 5 ns rise time with 2 lines driven.
Near end= 4.7%; Far end=4.3% nominal.
• Insulation resistsance=10
10
Ohms (10 ft. [3 meters] min.).
MOUNTING CONSIDERATIONS:
•Suggested PCB hole size=.033 ± .002 [.86 ± .05].
Note: Aries specializes in custom design and production. In addition to the
standard products shown on this page, special materials, platings, sizes, and
configurations can be furnished, depending on quantities. Aries reserves the
right to change product specifications without notice.
ORDERING INFORMATION
XX-XXX-XXXXX
No. of conductors
(up to 24)
Length “L” in inches:
Series 150=3.000 [76.20] min.
Series 151=6.000 [152.40] min.
Optional suffix:
ST=stripped and
Tinned
ends (Series 150)
Jumper series:
150=single-ended
151=double ended
A
LL DIMENSIONS
:
INCHES
[
MILLIMETERS
]
All tolerances ± .005 [.13]
unless otherwise specified
“A”=(NO. OF CONDUCTORS X .100) + .060 [1.52]
“B”=(NO. OF CONDUCTORS-1) X .100 [2.54]
“W”=(NO. OF CONDUCTORS X .050 [1.27]) + .005 [.08]
“Y”=(NO. OF CONDUCTORS-1) X .050 [1.27]
“L”
± .125
CABLE DETAIL
“L”
± .125
SERIES 151
SERIES 150
http://www.arieselec.com • info@arieselec.com
Bristol, PA USA
TEL: (215) 781-9956
FAX: (215) 781-9845
abc
11010
REV. E
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
