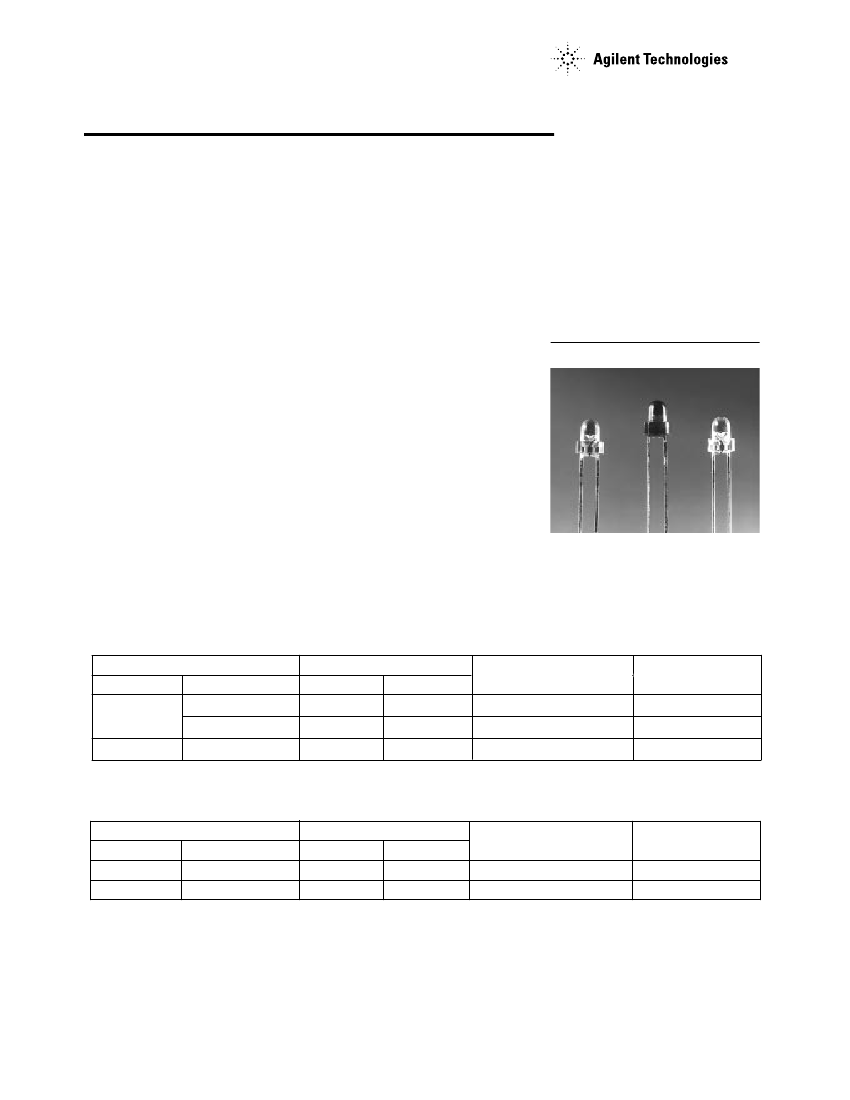

T-1 (3 mm) Auto Insertable
LED Lamps
Technical Data
HLMP-N305
HLMP-N405
HLMP-NG0x
HLMP-NL06
Features
• T-1 (3 mm) Auto Insertable
Package
• AlInGaP
SunPower
Intensity
• High Light Output
• Tinted Diffused and Tinted
Non-diffused Lens Options
• Wide Viewing Angle
• Variety of Colors
• Available with Straight
or Formed Lead Tape and
Reel Options
Description
This family of 3 mm LED Lamps is
capable of withstanding automatic
insertion and wave soldering
processes.
Designed with a thick epoxy flange
and soft leadframe material, it is
ideal for clinch and cut operations.
Applications
• General Purpose
• High Volume Manufacturing
Device Selection Guides
High Brightness Lamps
Color
Part Number
Red
HLMP-NG05
HLMP-NG07
Amber
HLMP-NL06
Package
Tinted
Diffused
µ
µ
µ
Luminous Intensity,
Min. Iv @ 20 mA
90.2
90.2
96.2
Viewing Angle,
2θ
1
/
2
45
60
60
High Efficiency Lamps
Color
Part Number
GaP Yellow
GaP Orange
HLMP-N305
HLMP-N405
Package
Tinted
Diffused
X
X
Luminous Intensity,
Min. Iv @ 10 mA
14.7
13.8
Viewing Angle,
2θ
1
/
2
45
45
Note:
1. 2θ
1
/
2
is the off axis angle where the luminous intensity is
1
/
2
the on axis intensity.
2
Package Dimensions
SEATING PLANE
5.9 ± 0.5
(0.23 ± 0.02)
3.5 ± 0.3
(0.14 ± 0.01)
0.65 (0.03) MAX.
23.0
(0.91)
1.0 ± 0.5
(0.04 ± 0.02)
CATHODE MARKS
0.4 ± 0.2
(0.02 ± 0.01)
2.5 ± 0.3
(0.10 ± 0.01)
4.4 ± 0.3
3.1 ± 0.2
(0.17 ± 0.01) (0.12 ± 0.01)
0.4 ± 0.2
(0.01 ± 0.01)
2.0 (0.08) REF.
0.45 ± 0.10
(0.02 ± 0.007)
+ 0.1
0
+ 0.00
(0.2 - 0.00 )
0.4
3.4 ± 0.2
(0.13 ± 0.01)
NOTES:
1. ALL DIMENSIONS ARE IN MILLIMETERS (INCHES).
2. LEADS ARE MILD STEEL. SOLDER COATED.
3. EPOXY MENISCUS OF 0.8 mm (0.03 in.) MAXIMUM
MAY EXTEND TO THE LEADS.
Part Numbering System
HLMP - N x xx
#
xxx
Mechanical Option
002: Tape & Reel, Straight Leads
Viewing Angle Options
01: 45 Degree
05: 45 Degree
06, 07: 60 Degree
Color Options
3: GaP Yellow
4: GaP Orange
G: AlInGaP Red
L: AlInGaP Amber
3
Absolute Maximum Ratings at T
A
= 25 ºC
Parameter
DC Forward Current
[1]
Reverse Voltage
(Ir = 100
µA)
Junction Temperature,
T
jmax
Storage Temperature
Range
Operating Temperature
Range
Lead Soldering
Temperature
[1.6 mm (0.063 in.)
from seating plane]
Orange
30
Yellow
20
5
110
-40 to +85
-20 to +85
-40 to +85
A1InGaP
Amber & Red
30
[2,3]
Units
mA
V
°C
°C
°C
A) DIP/DRAG Soldering: 260
°C
for 5 seconds
B) Wave Solder Temperature: 245
°C
for 3 seconds
Notes:
1. See Figure 4 for maximum current derating vs. ambient temperature.
2. Suggested minimum DC current: 10 mA
3. Maximum Peak Pulsed Forward Current: 50 mA, 30 mA average.
4
Electrical Characteristics at T
A
= 25 ºC
Forward
Voltage
Vf (Volts)
Part Number
HLMP-N30x
HLMP-N40x
HLMP-NLO6
[1]
HLMP-NG0x
[1]
Typ.
2.00
1.90
2.02
1.90
Max. If (mA)
2.6
10
2.6
10
2.4
20
2.4
20
Capacitance
C (pF)
Vf = 0,
f = 1 MHz
Typ.
15
4
40
40
Thermal
Resistance Rθ
J-PIN
(
°
C/W)
290
290
240
240
Speed of Response
τ
s
(ns)
Time Constant
e
-t
/τ
s
Typ.
90
280
20
20
Note:
1. Please contact your Agilent Sales Representative about operating currents below 10 mA.
Optical Characteristics at T
A
= 25 ºC
Luminous Intensity
Part Number
HLMP-NG05
HLMP-NG07
HLMP-NL06
HLMP-N305
HLMP-N405
Min.
90.2
90.2
96.2
14.7
13.8
If (mA)
20
20
20
10
10
Typ. Dominant
Typ. Peak
Wavelength
Wavelength (nm)
(nm)
635
626
635
626
592
590
583
585
600
602
Typ. Spectral
Half Width
17
17
17
36
37
Luminous
Efficacy
Width
(lm/W)
150
150
480
500
380
Notes:
1. The luminous intensity, lv, is measured at the mechanical axis of the lamp package. The actual peak of the spatial radiation pattern
may not be aligned with this axis.
2. The dominant wavelength,
λd,
is derived from the CIE Chromaticity Diagram and represents the color of the device.
3. The radiant intensity, le, in watts per steradian, may be found from the equation le = lv/η
v
, where lv is the luminous intensity in
candelas and
η
v
is the luminous efficacy in lumens/watt.
5

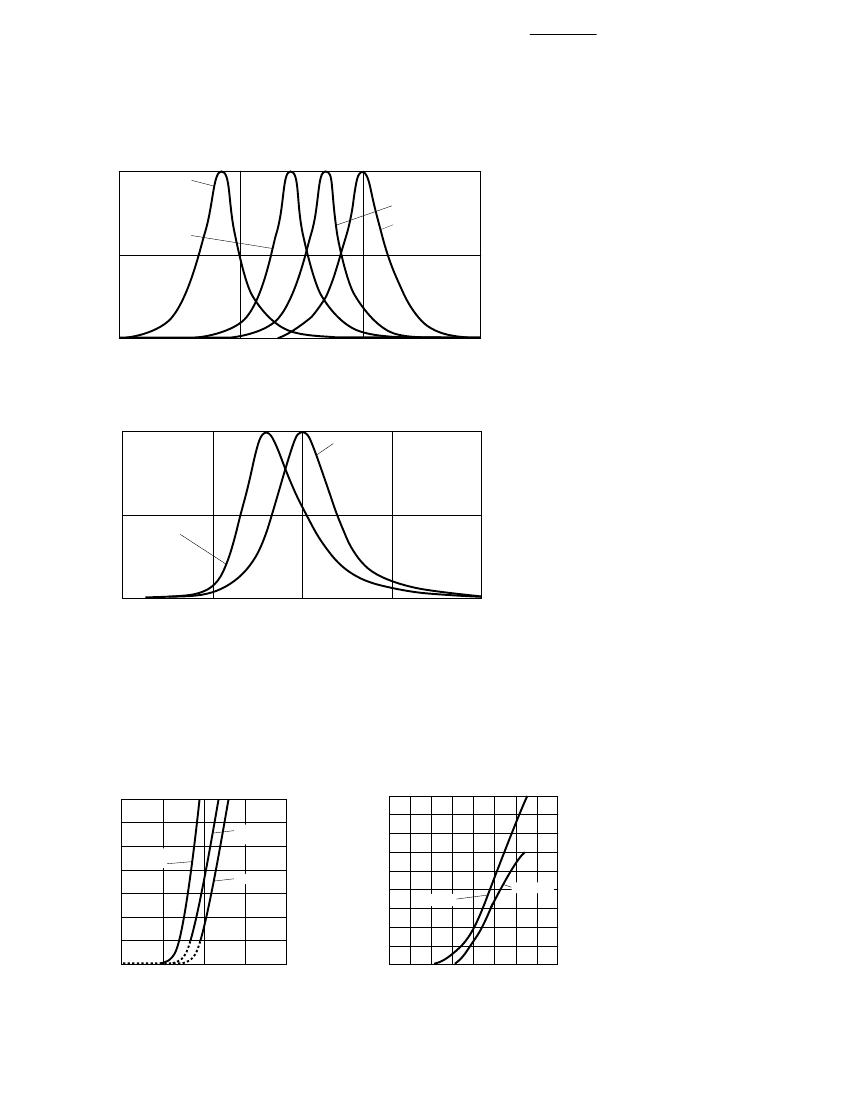

HIGH BRIGHTNESS LAMPS
1.0
AMBER
AlInGaP RED
DH AlGaAs RED
RED-ORANGE
RELATIVE INTENSITY
0.5
0
550
600
WAVELENGTH – nm
650
700
HIGH EFFICIENCY LAMPS
1.0
ORANGE
RELATIVE INTENSITY
0.5
YELLOW
0
500
550
600
WAVELENGTH – nm
650
700
Figure 1. Relative Intensity vs. Peak Wavelength.
HIGH BRIGHTNESS LAMPS
70
HIGH EFFICIENCY LAMPS
90
I
F
– FORWARD CURRENT – mA
I
F
– FORWARD CURRENT – mA
60
50
40
30
20
10
0
1.0
1.5
2.0
DH AsAlGaAs
RED
80
70
60
50
40
30
20
10
0
0
0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0
V
F
– FORWARD VOLTAGE – V
ORANGE
YELLOW
AlInGaP
RED
AMBER
2.5
3.0
V
F
– FORWARD VOLTAGE – V
Figure 2. Forward Current vs. Forward Voltage.
