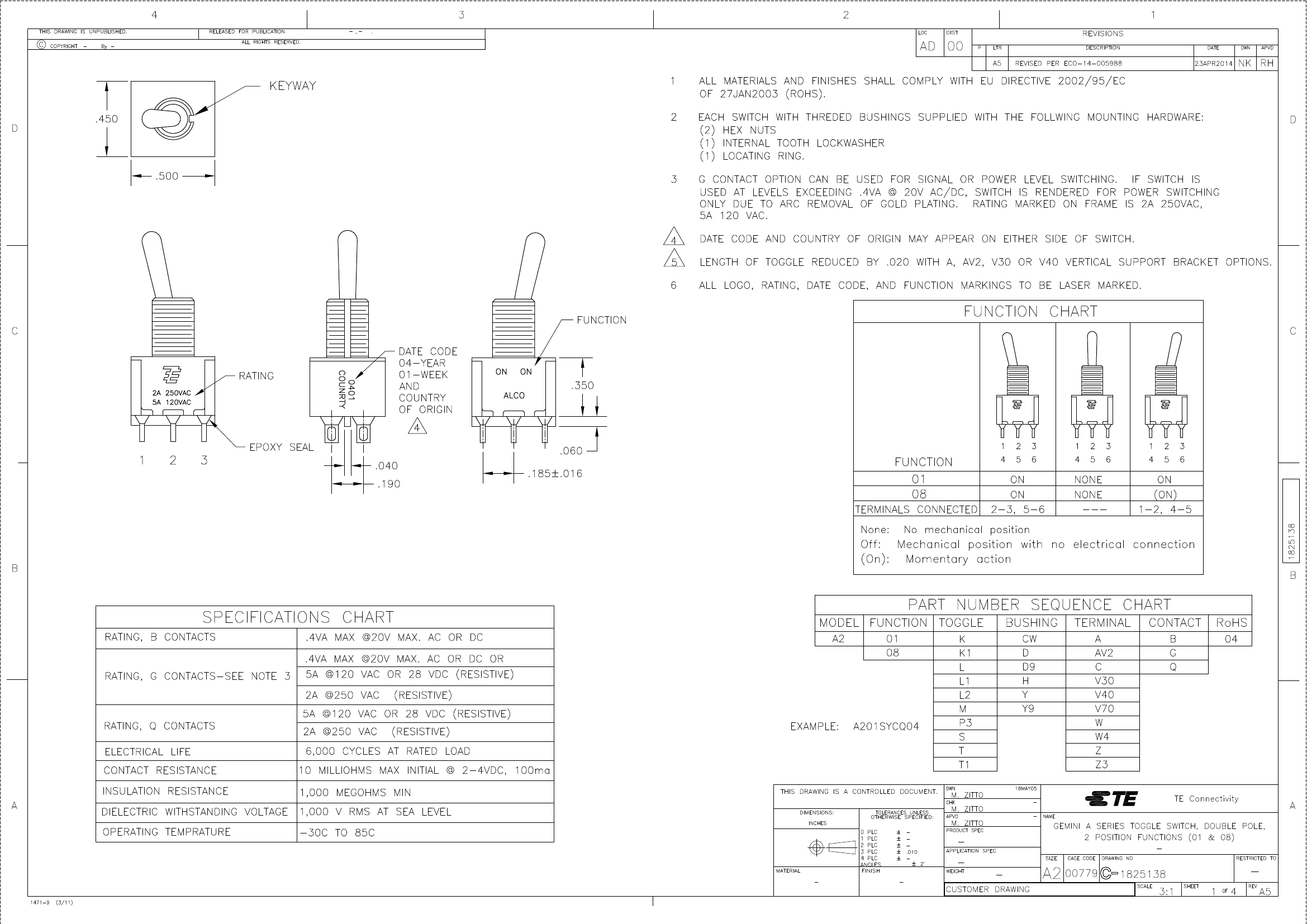

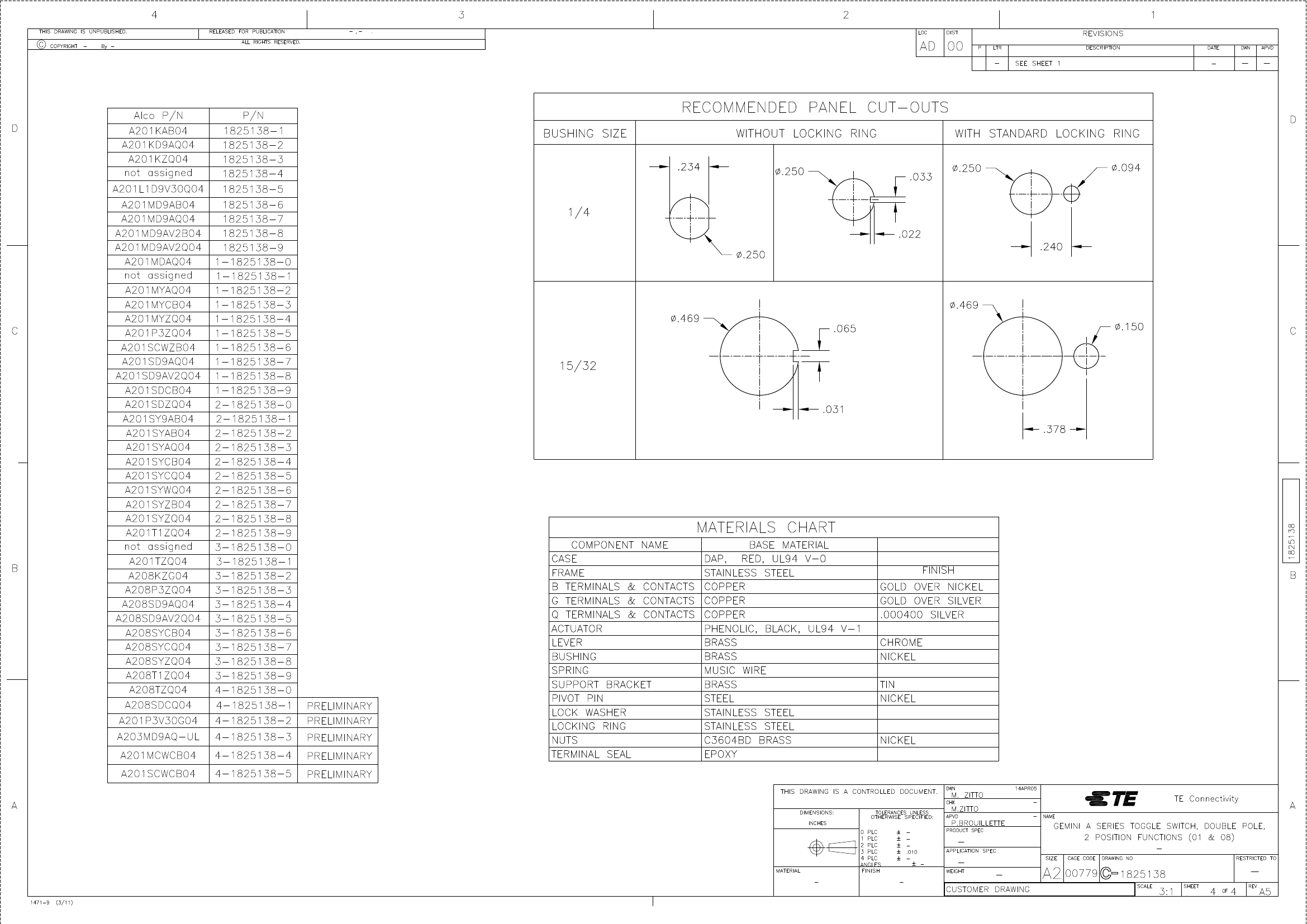

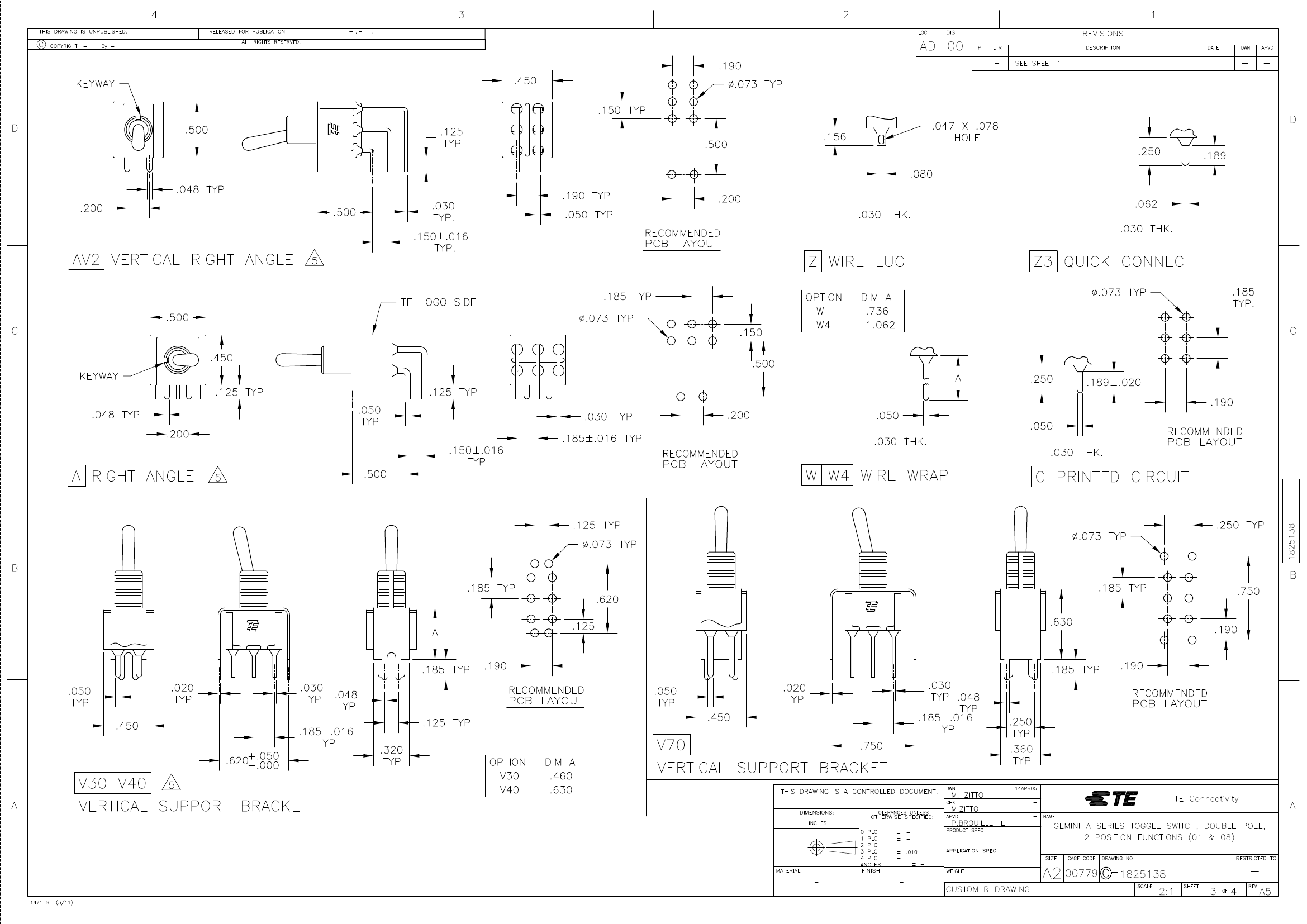

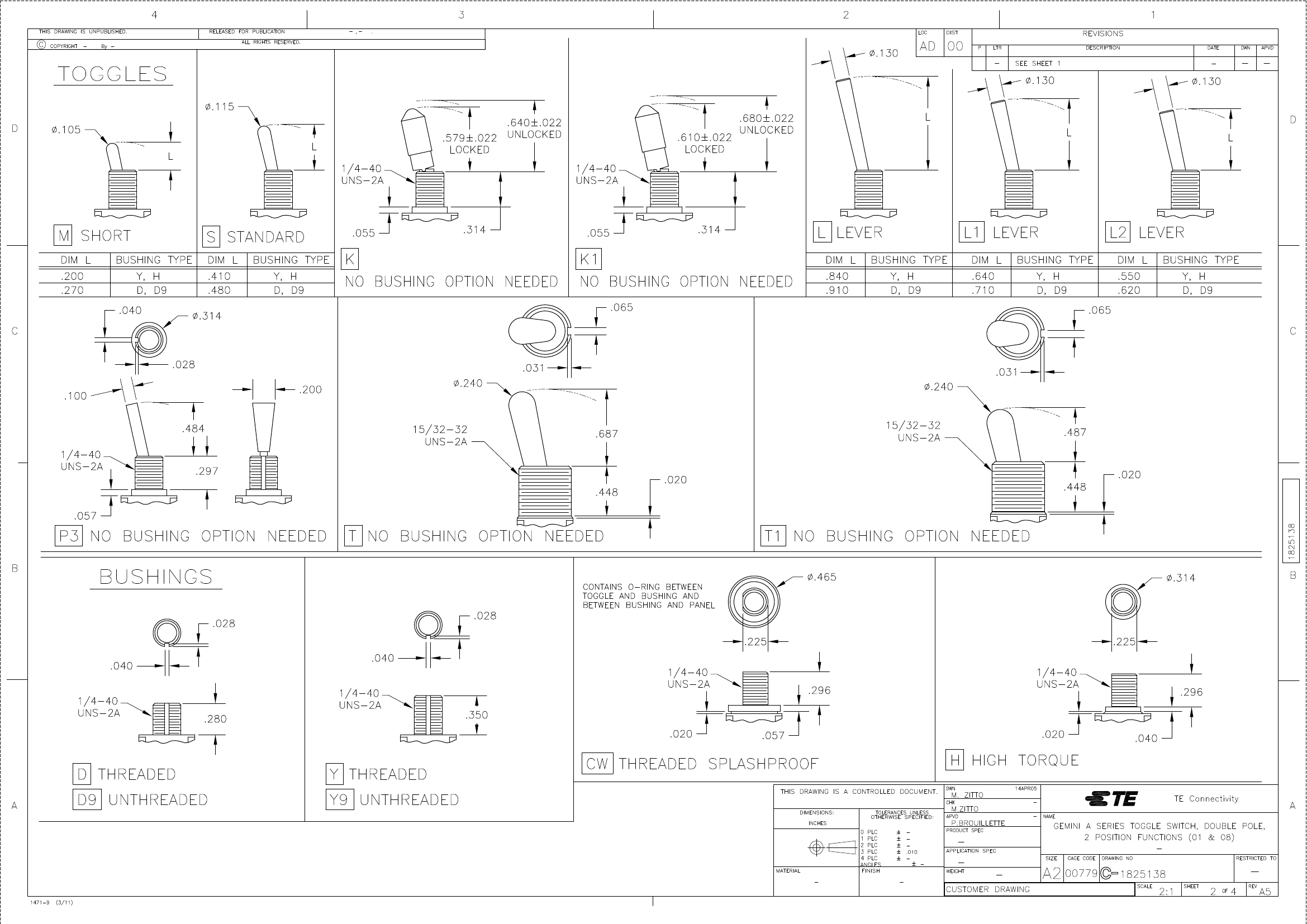

TOGGLE SWITCH, DPDT, LATCHED AND MOMENTARY, 5A, 28VDC, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT
| Parameter Name | Attribute value |
| Brand Name | Alcoswitch |
| Is it Rohs certified? | conform to |
| Maker | TE Connectivity |
| package instruction | ROHS COMPLIANT |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Actuator type | STANDARD TYPE |
| body width | 12.7 mm |
| body height | 11.43 mm |
| Body length or diameter | 12.7 mm |
| Contact (AC) maximum rated R load | 5A@120VAC |
| Maximum contact current (AC) | 5 A |
| Maximum contact current (DC) | 5 A |
| Contact (DC) maximum rated R load | 5A@28VDC |
| Maximum contact voltage (AC) | 120 V |
| Maximum contact voltage (DC) | 28 V |
| Electrical life | 40000 Cycle(s) |
| JESD-609 code | e4 |
| Manufacturer's serial number | 1825138 |
| Installation features | THROUGH HOLE-RIGHT ANGLE |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -30 °C |
| seal | EPOXY TERMINAL SEALED |
| surface mount | NO |
| Switch action | LATCHED AND MOMENTARY |
| switch function | DPDT |
| Switch type | TOGGLE SWITCH |
| Terminal surface | Silver (Ag) |
| Termination type | SOLDER |
| Base Number Matches | 1 |
| 3-1825138-4 | 1-1825138-9 | 1-1825138-3 | 1-1825138-0 | 1-1825138-2 | 1825138-2 | 3-1825138-2 | 3-1825138-9 | 4-1825138-0 | |
|---|---|---|---|---|---|---|---|---|---|
| Description | TOGGLE SWITCH, DPDT, LATCHED AND MOMENTARY, 5A, 28VDC, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT | TOGGLE SWITCH, DPDT, LATCHED, 0.02A, 20VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT | TOGGLE SWITCH, DPDT, LATCHED, 0.02A, 20VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT | TOGGLE SWITCH, DPDT, LATCHED, 5A, 28VDC, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT | TOGGLE SWITCH, DPDT, LATCHED, 5A, 28VDC, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT | TOGGLE SWITCH, DPDT, LATCHED, 5A, 28VDC, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT | TOGGLE SWITCH, DPDT, LATCHED AND MOMENTARY, 5A, 28VDC, PANEL MOUNT-THREADED, ROHS COMPLIANT | TOGGLE SWITCH, DPDT, LATCHED AND MOMENTARY, 5A, 28VDC, PANEL MOUNT-THREADED, ROHS COMPLIANT | TOGGLE SWITCH, DPDT, LATCHED AND MOMENTARY, 5A, 28VDC, PANEL MOUNT-THREADED, ROHS COMPLIANT |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to | conform to | conform to | conform to | conform to |
| package instruction | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT |
| Reach Compliance Code | unknown | not_compliant | unknown | unknown | unknown | compliant | compliant | unknown | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| body width | 12.7 mm | 11.43 mm | 11.43 mm | 12.7 mm | 12.7 mm | 12.7 mm | 11.43 mm | 11.43 mm | 11.43 mm |
| body height | 11.43 mm | 10.41 mm | 10.41 mm | 11.43 mm | 11.43 mm | 11.43 mm | 10.41 mm | 10.41 mm | 10.41 mm |
| Body length or diameter | 12.7 mm | 12.7 mm | 12.7 mm | 12.7 mm | 12.7 mm | 12.7 mm | 12.7 mm | 12.7 mm | 12.7 mm |
| Contact (AC) maximum rated R load | 5A@120VAC | .02A@20VAC | .02A@20VAC | 5A@120VAC | 5A@120VAC | 5A@120VAC | 5A@120VAC | 5A@120VAC | 5A@120VAC |
| Maximum contact current (AC) | 5 A | 0.02 A | 0.02 A | 5 A | 5 A | 5 A | 5 A | 5 A | 5 A |
| Maximum contact current (DC) | 5 A | 0.02 A | 0.02 A | 5 A | 5 A | 5 A | 5 A | 5 A | 5 A |
| Contact (DC) maximum rated R load | 5A@28VDC | .02A@20VDC | .02A@20VDC | 5A@28VDC | 5A@28VDC | 5A@28VDC | 5A@28VDC | 5A@28VDC | 5A@28VDC |
| Maximum contact voltage (AC) | 120 V | 20 V | 20 V | 120 V | 120 V | 120 V | 120 V | 120 V | 120 V |
| Maximum contact voltage (DC) | 28 V | 20 V | 20 V | 28 V | 28 V | 28 V | 28 V | 28 V | 28 V |
| Electrical life | 40000 Cycle(s) | 40000 Cycle(s) | 40000 Cycle(s) | 40000 Cycle(s) | 40000 Cycle(s) | 40000 Cycle(s) | 40000 Cycle(s) | 40000 Cycle(s) | 40000 Cycle(s) |
| Installation features | THROUGH HOLE-RIGHT ANGLE | THROUGH HOLE-STRAIGHT | THROUGH HOLE-STRAIGHT | THROUGH HOLE-RIGHT ANGLE | THROUGH HOLE-RIGHT ANGLE | THROUGH HOLE-RIGHT ANGLE | PANEL MOUNT-THREADED | PANEL MOUNT-THREADED | PANEL MOUNT-THREADED |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -30 °C | -30 °C | -30 °C | -30 °C | -30 °C | -30 °C | -30 °C | -30 °C | -30 °C |
| seal | EPOXY TERMINAL SEALED | EPOXY TERMINAL SEALED | EPOXY TERMINAL SEALED | EPOXY TERMINAL SEALED | EPOXY TERMINAL SEALED | EPOXY TERMINAL SEALED | EPOXY TERMINAL SEALED | EPOXY TERMINAL SEALED | EPOXY TERMINAL SEALED |
| surface mount | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Switch action | LATCHED AND MOMENTARY | LATCHED | LATCHED | LATCHED | LATCHED | LATCHED | LATCHED AND MOMENTARY | LATCHED AND MOMENTARY | LATCHED AND MOMENTARY |
| switch function | DPDT | DPDT | DPDT | DPDT | DPDT | DPDT | DPDT | DPDT | DPDT |
| Switch type | TOGGLE SWITCH | TOGGLE SWITCH | TOGGLE SWITCH | TOGGLE SWITCH | TOGGLE SWITCH | TOGGLE SWITCH | TOGGLE SWITCH | TOGGLE SWITCH | TOGGLE SWITCH |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | WIRE | WIRE | WIRE |
| Brand Name | Alcoswitch | Alcoswitch | - | - | - | Alcoswitch | Alcoswitch | Alcoswitch | Alcoswitch |
| Actuator type | STANDARD TYPE | STANDARD TYPE | SHORT TYPE | SHORT TYPE | SHORT TYPE | - | - | - | - |
| JESD-609 code | e4 | - | e4 | e4 | e4 | - | - | e4 | - |
| Terminal surface | Silver (Ag) | - | Gold (Au) | Silver (Ag) | Silver (Ag) | - | - | Silver (Ag) | - |
| Base Number Matches | 1 | 1 | - | - | - | 1 | 1 | - | 1 |
