140 RTM
www.vishay.com
Vishay BCcomponents
Aluminum Capacitors
Radial, High Temperature Miniature

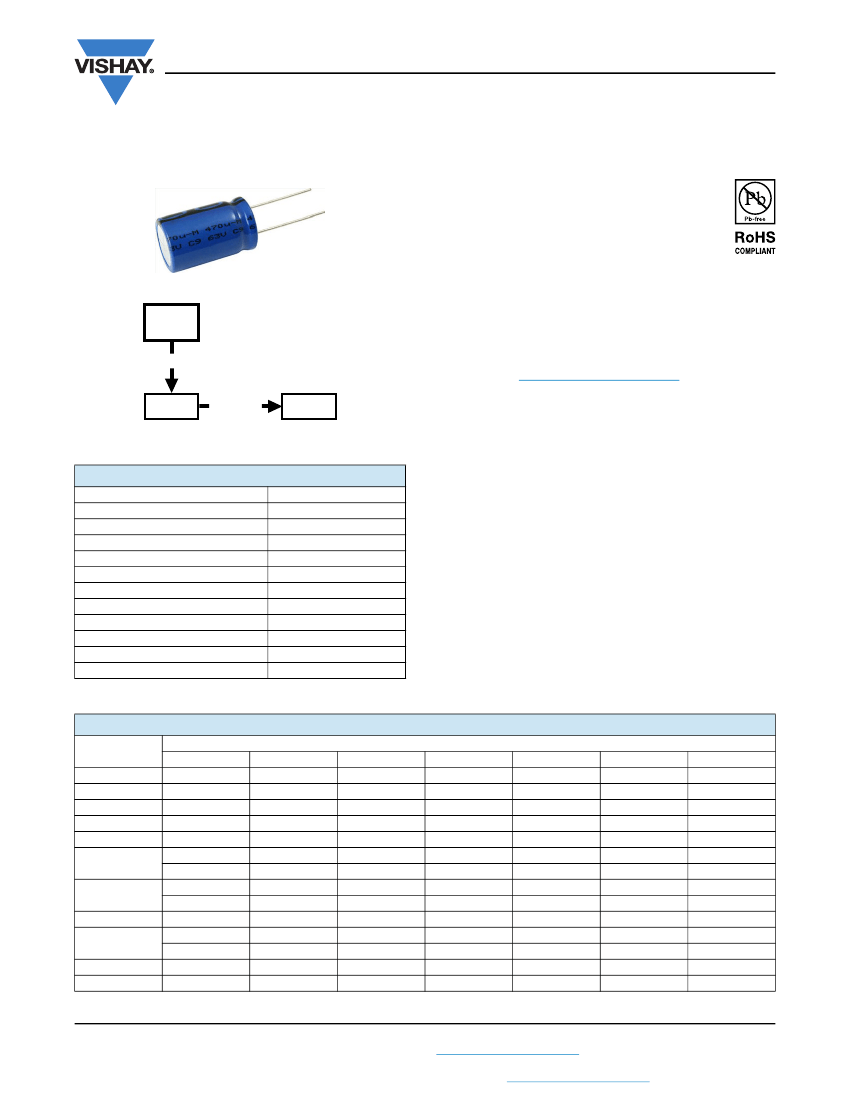

FEATURES
Very long useful life: 2500 h to 4000 h at 125 °C
High stability, high reliability
AEC-Q200 qualified
Extended temperature range up to 125 °C
High ripple current capability
Polarized aluminum electrolytic capacitors, non-solid
electrolyte
• Radial leads, cylindrical aluminum case with pressure
relief, insulated with a blue sleeve
• Charge and discharge proof
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
longer life
lower Z
150 RMI
•
•
•
•
•
•
140 RTM
125 °C
105 °C
148 RUS
APPLICATIONS
• EDP, telecommunication, industrial, automotive and
military
• Smoothing, filtering, buffering in SMPS
• High ambient temperature environments
Fig. 1
QUICK REFERENCE DATA
DESCRIPTION
Nominal case sizes (Ø D x L in mm)
Rated capacitance range, C
R
Tolerance on C
R
Rated voltage range, U
R
Category temperature range
Endurance test at 125 °C
Useful life at 125 °C
Useful life at 40 °C, 1.6 x I
R
applied
Shelf life at 0 V, 125 °C
Based on sectional specification
Climatic category IEC 60068
VALUE
10 x 12 to 18 x 31
22 μF to 4700 μF
± 20 %
6.3 V to 63 V
- 55 °C to + 125 °C
2000 h
2500 h to 4000 h
300 000 h
500 h
IEC 60384-4/EN 130300
55/125/56
MARKING
The capacitors are marked (where possible) with the
following information:
• Rated capacitance value (in μF)
• Tolerance on rated capacitance, code letter in accordance
with IEC 60062 (M for ± 20 %)
• Rated voltage (in V)
• Date code, in accordance with IEC 60062
• Code indicating factory of origin
• Name of manufacturer
• Upper category temperature (125 °C)
• Negative terminal identification
• Series number (140)
SELECTION CHART FOR C
R
, U
R
, AND RELEVANT NOMINAL CASE SIZES
(Ø D x L in mm)
C
R
(μF)
22
47
100
220
330
470
1000
1200
2200
3300
4700
6.3
-
-
-
-
-
-
-
-
-
10 x 16
10 x 20
-
-
-
10
-
-
-
-
10 x 12
10 x 16
-
10 x 20
-
-
12.5 x 25
16 x 20
16 x 25
16 x 31
16
-
-
-
10 x 12
10 x 16
10 x 16
-
12.5 x 20
-
-
16 x 25
-
16 x 31
18 x 31
U
R
(V)
25
-
-
-
10 x 16
10 x 20
10 x 20
-
12.5 x 25
16 x 20
-
16 x 31
-
18 x 31
-
35
-
-
10 x 12
10 x 16
-
12.5 x 20
-
16 x 25
-
-
18 x 31
-
-
-
50
-
10 x 12
10 x 16
12.5 x 20
12.5 x 20
12.5 x 25
16 x 20
16 x 31
-
-
-
-
-
-
63
10 x 12
10 x 12
10 x 20
16 x 20
16 x 20
16 x 25
-
18 x 31
-
-
-
-
-
-
Revision: 15-Nov-12
Document Number: 28322
1
For technical questions, contact:
aluminumcaps1@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
140 RTM
www.vishay.com
DIMENSIONS
in millimeters
AND AVAILABLE FORMS
ØD
ØD
Vishay BCcomponents
L
+
-
F
15
min
5
min
4
+1
0
+
-
Ød
F
Od
Fig. 2 -
Form CA:
Long leads
Fig. 3 -
Form CB:
Cut leads
Fig. 4 -
Form TFA:
Taped in box (ammopack)
Table 1
DIMENSIONS
in millimeters,
MASS, AND PACKAGING QUANTITIES
NOMINAL
CASE SIZE
ØDxL
10 x 12
10 x 16
10 x 20
12.5 x 20
12.5 x 25
16 x 20
16 x 25
16 x 31
18 x 31
CASE
CODE
14
15
16
17
18
19a
19
20
1831
Ød
0.6
0.6
0.6
0.6
0.6
0.8
0.8
0.8
0.8
Ø D
max.
10.5
10.5
10.5
13.0
13.0
16.5
16.5
16.5
18.5
L
max.
13.5
17.5
22.0
22.0
27.0
22.0
27.0
33.5
33.5
F
5.0 ± 0.5
5.0 ± 0.5
5.0 ± 0.5
5.0 ± 0.5
5.0 ± 0.5
7.5 ± 0.5
7.5 ± 0.5
7.5 ± 0.5
7.5 ± 0.5
MASS
(g)
1.6
1.9
2.2
4.0
5.0
6.0
8.0
9.0
12.5
PACKAGING QUANTITIES
FORM
CA
1000
500
500
500
250
250
250
100
100
FORM
CB
500
500
500
500
250
250
250
100
100
FORM
TFA
800
800
800
500
500
250
250
250
-
Note
• For detailed tape dimensions please see
www.vishay.com/doc?28360
Revision: 15-Nov-12
Document Number: 28322
2
For technical questions, contact:
aluminumcaps1@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
140 RTM
www.vishay.com
Vishay BCcomponents
ORDERING EXAMPLE
Electrolytic capacitor 140 series
220 μF/25 V; ± 20 %
Nominal case size: Ø 10 mm x 16 mm; form TFA
Ordering code: MAL214036221E3
Former 12NC: 2222 140 36221
ELECTRICAL DATA
SYMBOL
C
R
I
R
I
L1
tan
Z
DESCRIPTION
Rated capacitance at 100 Hz, tolerance ± 20 %
Rated RMS ripple current at 100 kHz, 125 °C
Max. leakage current after 1 min at U
R
Max. dissipation factor at 100 Hz
Max. impedance at 100 kHz
Note
• Unless otherwise specified, all electrical values in Table 2 apply
at T
amb
= 20 °C, P = 86 kPa to 106 kPa, RH = 45 % to 75 %
ELECTRICAL DATA AND ORDERING INFORMATION
U
R
(V)
6.3
C
R
100 Hz
(μF)
1200
2200
330
470
1000
2200
2200
3300
4700
220
330
470
1000
2200
3300
4700
220
330
470
1000
1000
2200
3300
100
220
470
1000
2200
47
100
220
330
470
470
1000
22
47
100
220
330
470
1000
NOMINAL
CASE SIZE
ØDxL
(mm)
10 x 16
10 x 20
10 x 12
10 x 16
10 x 20
12.5 x 25
16 x 20
16 x 25
16 x 31
10 x 12
10 x 16
10 x 16
12.5 x 20
16 x 25
16 x 31
18 x 31
10 x 16
10 x 20
10 x 20
12.5 x 25
16 x 20
16 x 31
18 x 31
10 x 12
10 x 16
12.5 x 20
16 x 25
18 x 31
10 x 12
10 x 16
12.5 x 20
12.5 x 20
12.5 x 25
16 x 20
16 x 31
10 x 12
10 x 12
10 x 20
16 x 20
16 x 20
16 x 25
18 x 31
I
R
100 kHz
125 °C
(mA)
760
850
480
760
850
1400
1400
1900
2200
480
760
760
1200
1900
2200
2200
750
850
850
1400
1400
2200
2200
480
760
1200
1500
2200
300
380
580
870
1100
1100
1700
380
380
650
1100
1100
1500
1800
I
L1
1 min
(μA)
79
142
36
50
103
223
223
333
473
38
56
78
163
355
531
755
58
86
121
253
253
553
828
38
80
168
353
773
27
53
113
168
238
238
503
17
33
66
142
211
299
633
tan
100 Hz
0.28
0.28
0.20
0.20
0.20
0.24
0.24
0.24
0.24
0.16
0.16
0.16
0.16
0.18
0.18
0.18
0.14
0.14
0.14
0.14
0.14
0.16
0.16
0.12
0.12
0.12
0.12
0.14
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
Z
100 kHz
+ 20 °C
()
0.150
0.120
0.200
0.150
0.120
0.050
0.050
0.034
0.030
0.200
0.150
0.150
0.073
0.034
0.030
0.030
0.150
0.120
0.120
0.050
0.050
0.030
0.030
0.200
0.150
0.073
0.034
0.030
0.300
0.200
0.120
0.120
0.085
0.085
0.045
0.300
0.300
0.160
0.085
0.085
0.055
0.040
Z
100 kHz
- 40 °C
()
1.10
0.85
1.40
1.10
0.85
0.40
0.40
0.25
0.20
1.40
1.10
1.10
0.50
0.25
0.20
0.20
1.10
0.85
0.85
0.40
0.40
0.20
0.20
1.40
1.10
0.50
0.25
0.20
2.00
1.40
0.85
0.85
0.60
0.60
0.30
2.00
2.00
1.10
0.60
0.60
0.40
0.28
ORDERING CODE
MAL2140 .....
BULK PACKAGING
TAPED
FORM CA
FORM CB
FORM TFA
53122E3
63122E3
33122E3
53222E3
63222E3
33222E3
54331E3
64331E3
34331E3
54471E3
64471E3
34471E3
54102E3
64102E3
34102E3
94225E3
94226E3
94223E3
54222E3
64222E3
34222E3
54332E3
64332E3
34332E3
54472E3
64472E3
34472E3
55221E3
65221E3
35221E3
55331E3
65331E3
35331E3
55471E3
65471E3
35471E3
55102E3
65102E3
35102E3
55222E3
65222E3
35222E3
55332E3
65332E3
35332E3
55472E3
65472E3
-
56221E3
66221E3
36221E3
56331E3
66331E3
36331E3
56471E3
66471E3
36471E3
96105E3
96106E3
96103E3
56102E3
66102E3
36102E3
56222E3
66222E3
36222E3
56332E3
66332E3
-
50101E3
60101E3
30101E3
50221E3
60221E3
30221E3
50471E3
60471E3
30471E3
50102E3
60102E3
30102E3
50222E3
60222E3
-
51479E3
61479E3
31479E3
51101E3
61101E3
31101E3
51221E3
61221E3
31221E3
51331E3
61331E3
31331E3
91475E3
91476E3
91473E3
51471E3
61471E3
31471E3
51102E3
61102E3
31102E3
58229E3
68229E3
38229E3
58479E3
68479E3
38479E3
58101E3
68101E3
38101E3
58221E3
68221E3
38221E3
58331E3
68331E3
38331E3
58471E3
68471E3
38471E3
58102E3
68102E3
-
10
16
25
35
50
63
Revision: 15-Nov-12
Document Number: 28322
3
For technical questions, contact:
aluminumcaps1@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
140 RTM
www.vishay.com
Vishay BCcomponents
CONDITIONS
VALUE
U
s
1.15 x U
R
U
rev
1 V
After 1 min at U
R
After 5 min at U
R
Case Ø D = 10 mm
Case Ø D
12.5 mm
Calculated from tan
max.
and C
R
(see Table 2)
I
L1
0.01 C
R
x U
R
+ 3 μA
I
L5
0.002 C
R
x U
R
+ 3 μA
Typ. 16 nH
Typ. 18 nH
ESR = tan
/2 f
C
R
ADDITIONAL ELECTRICAL DATA
PARAMETER
Voltage
Surge voltage
Reverse voltage
Current
Leakage current
Inductance
Equivalent series inductance (ESL)
Resistance
Equivalent series resistance (ESR)
CAPACITANCE (C)
1.2
C
C
0
1
1.1
2
0.8
2
1.0
0.6
2
0.9
1
0.8
- 60
- 40
- 20
0
20
40
60
80
100
120
140
T
amb
(°C)
Curve 1: U
R
< 50 V
Curve 2: U
R
≥
50 V
0.4
Curve 1: U
R
< 50 V
Curve 2: U
R
≥
50 V
1
1.2
C
C
0
1.0
1
2
0.2
10
10
2
10
3
10
4
f (Hz)
T
amb
(°C)
10
5
C
0
= Typical capacitance at 20 °C, 100 Hz
C
0
= Typical capacitance at 20 °C, 100 Hz
Fig. 5 - Typical multiplier of capacitance
as a function of ambient temperature
Fig. 6 - Typical multiplier of capacitance
as a function of frequency

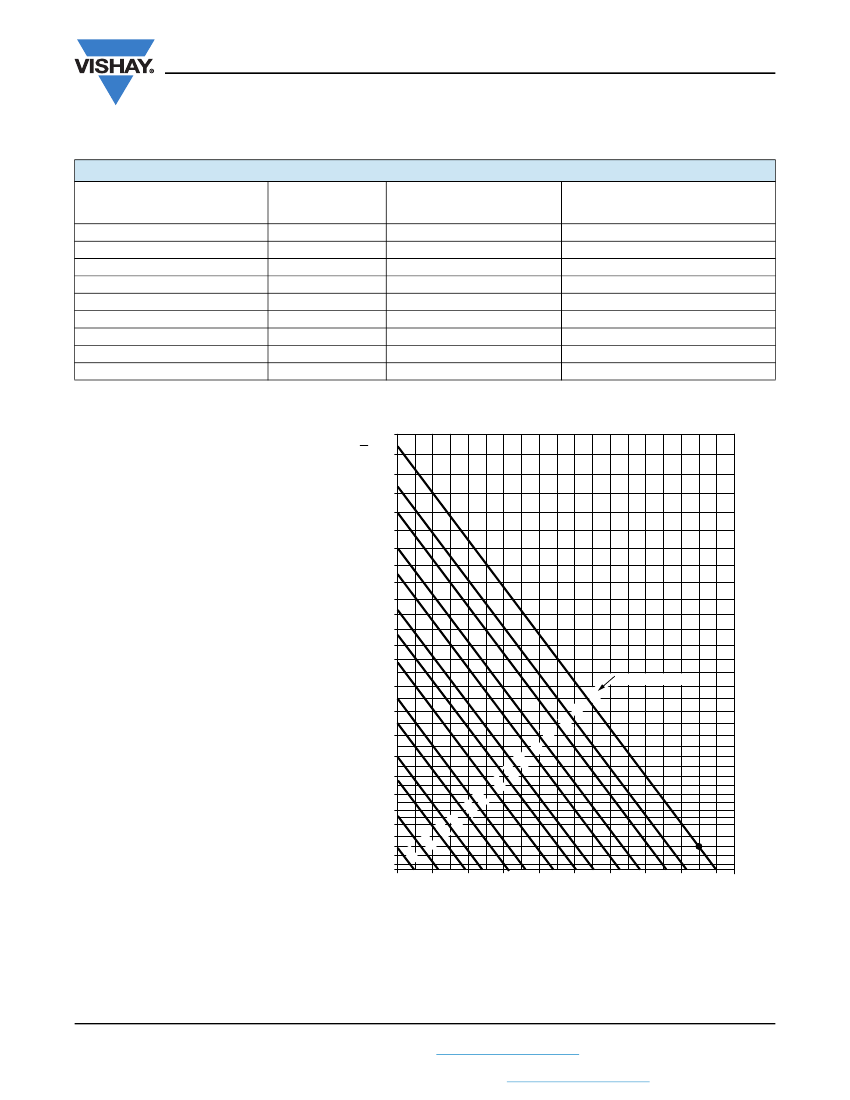

EQUIVALENT SERIES RESISTANCE (ESR)
ESR
ESR
0
10
1
2
Curve 1: U
R
< 50 V
Curve 2: U
R
≥
50 V
2.0
ESR
ESR
0
1.6
2
1
Curve 1: U
R
< 50 V
Curve 2: U
R
≥
50 V
1.2
0.8
1
2
1
0.4
2
0
- 60
- 40
- 20
0
20
40
60
80
100
120
140
10
10
2
10
3
10
4
f (Hz)
T
amb
(°C)
10
5
T
amb
(°C)
1
ESR
0
= Typical capacitance at 20 °C, 100 Hz
ESR
0
= Typical ESR at 20 °C, 100 Hz
Fig. 7 - Typical multiplier of ESR
as a function of ambient temperature
Fig. 8 - Typical multiplier of ESR as a function of frequency
Revision: 15-Nov-12
Document Number: 28322
4
For technical questions, contact:
aluminumcaps1@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
140 RTM
www.vishay.com
RIPPLE CURRENT AND USEFUL LIFE
Table 2
Vishay BCcomponents
ENDURANCE AND USEFUL LIFE AS A FUNCTION OF CASE SIZE
NOMINAL CASE SIZE
ØDxL
(mm)
10 x 12
10 x 16
10 x 20
12.5 x 20
12.5 x 25
16 x 20
16 x 25
16 x 31
18 x 31
CASE CODE
14
15
16
17
18
19a
19
20
1831
ENDURANCE TEST
AT 125 ºC
(h)
2000
2000
2000
2000
2000
2000
2000
2000
2000
USEFUL LIFE AT 125 ºC
(h)
2500
3000
3000
3000
3000
3000
4000
4000
4000
MBC242
I
A
4.3
I
R
4.2
4.1
4.0
3.9
3.8
3.7
3.6
3.5
3.4
3.3
3.2
3.1
3.0
2.8
0
1.
Lifetime multiplier
2.6
2.4
2.2
2.0
1.8
1.6
60
0
10
20
30
12
0
6.
0
8.
0
3.
0
4.
5
1.
0
2.
I
A
= Actual ripple current at 100 kHz
I
R
= Rated ripple current at 100 kHz, 125 °C
(1)
Useful life at 125 ºC and I
R
applied:
see
Table 3
1.4
1.2
1.0
0.8
0.5
0.0
(1)
0
20
40
Fig. 9 - Multiplier of useful life as a function of ambient temperature
and ripple current load
0
40
50
60
70
80
90
100
110
120
130
T
amb
(°C)
Revision: 15-Nov-12
Document Number: 28322
5
For technical questions, contact:
aluminumcaps1@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
京公网安备 11010802033920号
EEWORLD
