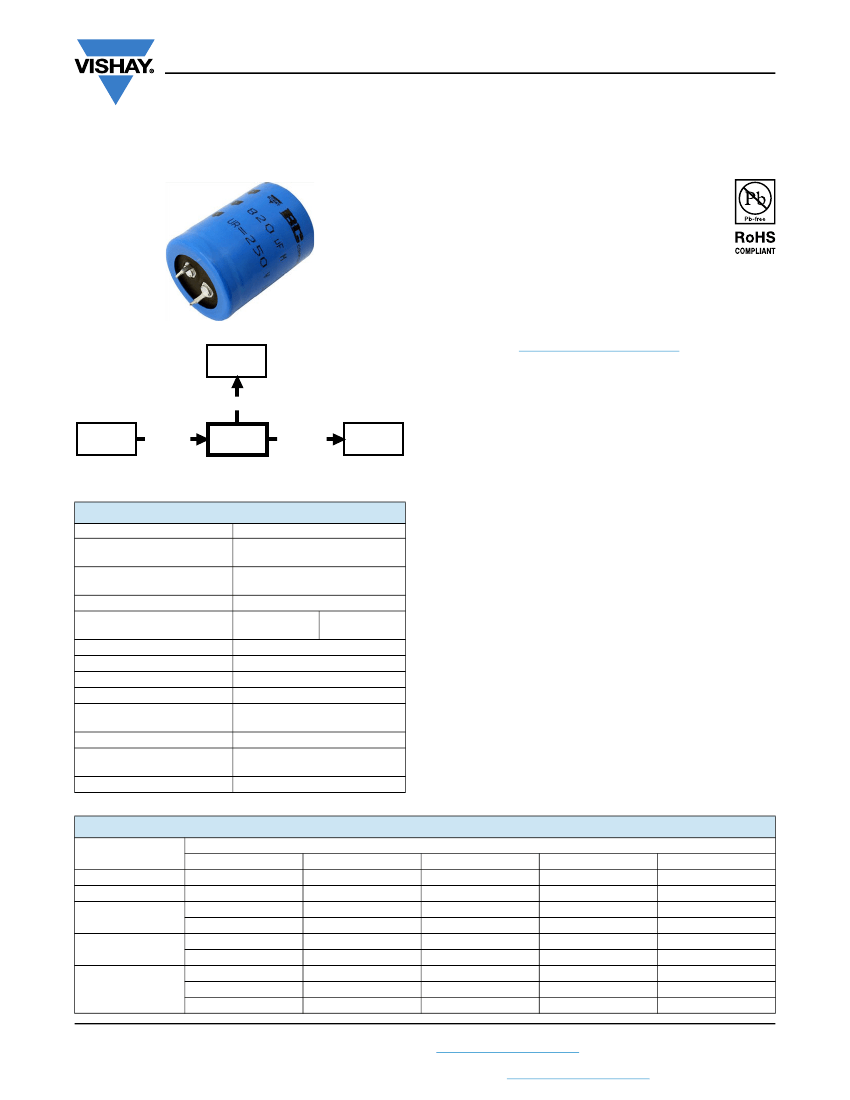

157 PUM-SI
www.vishay.com
Vishay BCcomponents
Aluminum Capacitors
Power Ultra Miniature Snap-In
FEATURES
• Up to 500 V
• Useful life: 5000 h at 85 °C
• Polarized aluminum electrolytic capacitors,
non-solid electrolyte
• Large types, very small dimensions, cylindrical aluminum
case, insulated with a blue sleeve
• Keyed polarity version available
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
159
PUL-SI
APPLICATIONS
• General purpose, industrial and audio/video systems
• Smoothing and filtering
longer life
higher ripple
198
PHR-SI
105
°C
057
PSM-SI
smaller
dimensions
157
PUM-SI
• Standard and switched mode power supplies
• Energy storage in pulse systems
Fig. 1
MARKING
The capacitors are marked (where possible) with the
following information:
VALUE
22 x 25 to 35 x 60
56 μF to 2200 μF
QUICK REFERENCE DATA
DESCRIPTION
Nominal case sizes
(Ø D x L in mm)
Rated capacitance range
(E6/E12 series), C
R
Tolerance on C
R
Rated voltage range, U
R
Category temperature range
Endurance test at 85 °C
Load life at 85 °C
Useful life at 85 °C
Useful life at 40 °C,
1.4 x I
R
applied
Shelf life at 0 V, 85 °C
Based on sectional
specification
Climatic category IEC 60038
• Rated capacitance (in μF)
• Tolerance on rated capacitance, code letter in accordance
with IEC 60062 (M for ± 20 %)
• Rated voltage (in V)
• Date code (YYMM or in 2 digits according to IEC 60062)
• Name of manufacturer
• Code for factory of origin
• “-” sign to identify the negative terminal, visible from the
top and side of the capacitor
• Code number, last 8 digits 157 xxxxx
• Climatic category in accordance with IEC 60068
± 20 %
400 V, 450 V,
200 V, 250 V
500 V
-25 °C to +85 °C
3000 h
3000 h
5000 h
90 000 h
1000 h
IEC 60384-4/EN130300
25 / 085 / 56
SELECTION CHART FOR C
R
, U
R
, AND RELEVANT NOMINAL CASE SIZES
(Ø D x L in mm)
C
R
(μF)
47
56
68
82
200
-
-
-
-
-
-
-
-
-
250
-
-
-
-
-
-
-
-
-
U
R
(V)
400
-
-
22 x 25
-
22 x 25
-
22 x 30
-
-
450
-
22 x 25
22 x 30
-
22 x 30
25 x 25
22 x 35
25 x 30
-
500
22 x 25
-
22 x 30
25 x 25
-
-
22 x 35
25 x 30
30 x 25
100
Revision: 07-Apr-15
Document Number: 28338
1
For technical questions, contact:
aluminumcaps2@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
157 PUM-SI
www.vishay.com
Vishay BCcomponents
U
R
(V)
400
22 x 30
-
-
22 x 35
25 x 30
-
22 x 40
25 x 35
-
25 x 40
30 x 30
35 x 25
25 x 45
30 x 35
35 x 30
30 x 40
35 x 30
30 x 45
35 x 35
30 x 50
35 x 40
35 x 45
-
-
35 x 50
-
-
35 x 60
-
-
-
-
-
-
-
-
-
-
SELECTION CHART FOR C
R
, U
R
, AND RELEVANT NOMINAL CASE SIZES
(Ø D x L in mm)
C
R
(μF)
120
200
-
-
-
-
150
-
-
-
180
-
-
-
220
-
-
22 x 25
270
-
-
330
390
470
22 x 30
-
22 x 30
-
22 x 35
25 x 30
22 x 40
560
25 x 35
30 x 25
25 x 40
680
30 x 30
35 x 25
25 x 45
820
30 x 35
35 x 30
1000
1200
1500
1800
2200
30 x 40
35 x 30
30 x 45
35 x 35
30 x 50
35 x 40
35 x 45
35 x 50
250
-
-
-
-
-
-
-
-
-
22 x 30
-
-
22 x 30
25 x 25
-
22 x 35
25 x 30
22 x 40
30 x 25
25 x 35
30 x 30
25 x 40
30 x 30
35 x 25
25 x 45
30 x 35
35 x 30
30 x 40
35 x 35
-
30 x 45
35 x 40
35 x 45
-
35 x 50
-
-
-
450
22 x 40
25 x 30
30 x 25
25 x 35
25 x 40
30 x 30
25 x 40
30 x 35
35 x 25
25 x 50
30 x 40
35 x 30
30 x 45
35 x 35
-
30 x 50
35 x 40
35 x 45
-
35 x 50
-
-
-
-
35 x 60
-
-
-
-
-
-
-
-
-
-
-
-
-
500
22 x 40
25 x 35
-
25 x 40
30 x 30
-
25 x 45
30 x 35
-
30 x 40
35 x 30
-
30 x 45
35 x 35
-
30 x 50
35 x 40
35 x 45
-
35 x 50
-
35 x 60
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Revision: 07-Apr-15
Document Number: 28338
2
For technical questions, contact:
aluminumcaps2@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
157 PUM-SI
www.vishay.com

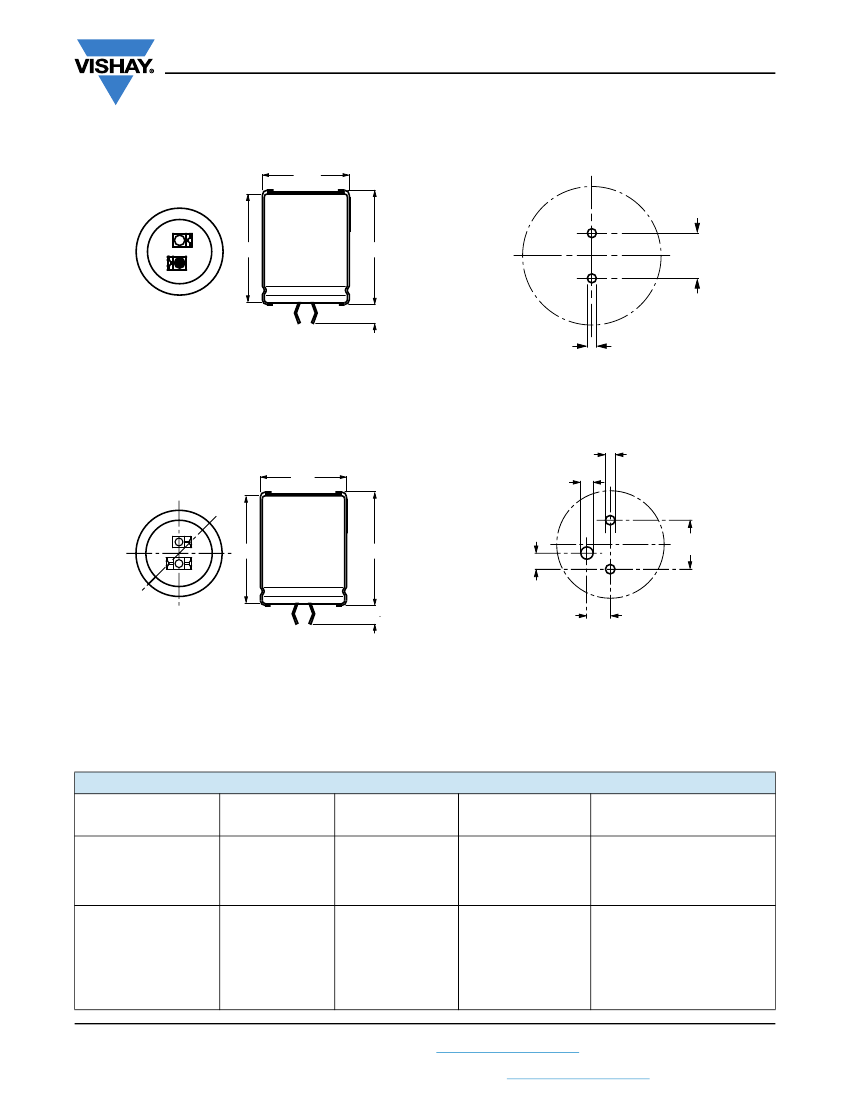

DIMENSIONS
in millimeters
AND AVAILABLE FORMS
TWO TERMINAL SNAP-IN
ØD
Vishay BCcomponents
+ Terminal
- Terminal
L
L + 2 max.
10
± 0.1
Bottom view
0
5.8
+ 1
mm
-
The minus terminal can be marked with a black dot or
with an imprinted “-”
sign.
Ø 2 ± 0.1 (2 x)
Fig. 2 - Two terminal snap-in
Fig. 3 - Mounting hole diagram
THREE TERMINAL SNAP-IN
Ø 2 ± 0.1 (2 x)
Ø 2.5 ± 0.1
ØD
+ Terminal
- Terminal
Minus pole
marking
Bottom view
L
L + 2 max.
3.3 ± 0.1
10 ± 0.1
4 ± 0.5
4.75 ± 0.1
The 10 mm
spacing
of the 2 pin
snap-in
is used as the base
layout and a third hole is added.
The third hole is closer to the negative primary hole
so
that
polarization is always maintained, together with added
mechanical
stability.
The negative terminal has
TWO
pins which are
BOTH
electrically connected.
Fig. 4 - Three terminal snap-in
Fig. 5 - Mounting hole diagram
Table 1
DIMENSIONS
in millimeters,
MASS AND PACKAGING QUANTITIES
NOMINAL
CASE SIZE
ØDxL
22 x 25
22 x 30
22 x 35
22 x 40
25 x 25
25 x 30
25 x 35
25 x 40
25 x 45
25 x 50
Revision: 07-Apr-15
Ø D
max.
23
23
23
23
26
26
26
26
26
26
L
max.
27
32
37
42
27
32
37
42
47
52
MASS
(g)
≈
12
≈
16
≈
20
≈
23
≈
20
≈
22
≈
24
≈
27
≈
32
≈
38
PACKAGING QUANTITIES
(units per box)
100
100
100
100
100
100
100
100
100
100
Document Number: 28338
3
For technical questions, contact:
aluminumcaps2@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
157 PUM-SI
www.vishay.com
DIMENSIONS
in millimeters,
MASS AND PACKAGING QUANTITIES
NOMINAL
CASE SIZE
ØDxL
30 x 25
30 x 30
30 x 35
30 x 40
30 x 45
30 x 50
35 x 25
35 x 30
35 x 35
35 x 40
35 x 45
35 x 50
35 x 60
Ø D
max.
31
31
31
31
31
31
36
36
36
36
36
36
36
L
max.
27
32
37
42
47
52
27
32
37
42
47
52
62
MASS
(g)
≈
25
≈
30
≈
35
≈
40
≈
45
≈
50
≈
33
≈
40
≈
48
≈
55
≈
63
≈
72
≈
82
PACKAGING QUANTITIES
(units per box)
100
100
100
100
100
100
50
50
50
50
50
50
50
Vishay BCcomponents
ELECTRICAL DATA
SYMBOL
C
R
I
R
I
L5
ESR
Z
DESCRIPTION
Rated capacitance at 100 Hz/120 Hz
Rated RMS ripple current at 120 Hz, 85 °C
Max. leakage current after 5 min at U
R
Typ./max. equivalent series resistance at 100
Typ./max. impedance at 10 kHz
Hz
(1)
ORDERING EXAMPLE
Electrolytic capacitor 157 series
1000 μF/200 V; ± 20 %
Nominal case size: Ø 30 x 40 mm
2-terminal snap-in:
Ordering code: MAL2 157 52102 E3
Former 12NC: 2222 157 52102
3-terminal snap-in:
Ordering code: MAL2 157 72102 E3
Former 12NC: 2222 157 72102
Notes
(1)
ESR at 120 Hz is approximately 0.95 x ESR 100 Hz
• Unless otherwise specified, all electrical values in Table 2 apply
at T
amb
= 20 °C, P = 86 kPa to 106 kPa, RH = 45 % to 75 %
Revision: 07-Apr-15
Document Number: 28338
4
For technical questions, contact:
aluminumcaps2@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
157 PUM-SI
www.vishay.com
Table 2
Vishay BCcomponents
ELECTRICAL DATA AND ORDERING INFORMATION
U
R
(V)
C
R
100 Hz
(μF)
270
330
390
470
470
560
560
560
680
680
200
680
820
820
820
1000
1000
1200
1200
1500
1500
1800
2200
220
270
270
330
330
390
390
470
470
560
250
560
560
680
680
680
820
820
1000
1000
1200
1500
NOMINAL
CASE SIZE
ØDxL
(mm)
22 x 25
22 x 30
22 x 30
22 x 35
25 x 30
22 x 40
25 x 35
30 x 25
25 x 40
30 x 30
35 x 25
25 x 45
30 x 35
35 x 30
30 x 40
35 x 30
30 x 45
35 x 35
30 x 50
35 x 40
35 x 45
35 x 50
22 x 30
22 x 30
25 x 25
22 x 35
25 x 30
22 x 40
30 x 25
25 x 35
30 x 30
25 x 40
30 x 30
35 x 25
25 x 45
30 x 35
35 x 30
30 x 40
35 x 35
30 x 45
35 x 40
35 x 45
35 x 50
I
R
120 Hz
85 °C
(A)
1.15
1.36
1.46
1.68
1.67
1.91
1.91
1.89
2.18
2.04
2.06
2.46
2.35
2.29
2.66
2.33
2.98
2.69
3.31
3.04
3.36
3.68
1.23
1.32
1.23
1.53
1.56
1.74
1.58
1.87
1.89
2.12
1.97
1.80
2.29
2.28
2.20
2.57
2.54
2.88
2.86
3.17
3.49
I
L5
5 min
(mA)
0.54
0.66
0.78
0.94
0.94
1.12
1.12
1.12
1.36
1.36
1.36
1.64
1.64
1.64
2.00
2.00
2.40
2.40
3.00
3.00
3.60
4.40
0.55
0.67
0.67
0.82
0.82
0.97
0.97
1.17
1.17
1.40
1.40
1.40
1.70
1.70
1.70
2.05
2.05
2.50
2.50
3.00
3.75
TYP. ESR
100 Hz
(1)
(mΩ)
550
430
390
350
350
255
255
255
210
210
210
170
170
170
140
140
120
120
110
110
100
90
600
490
490
400
400
330
330
280
280
240
240
240
200
200
200
160
160
140
140
120
90
MAX. ESR
100 Hz
(1)
(mΩ)
880
720
650
580
580
425
425
425
350
350
350
290
290
290
235
235
200
200
180
180
160
150
1080
880
880
720
720
610
610
505
505
425
425
425
350
350
350
290
290
235
235
200
160
TYP. Z
10 kHz
(mΩ)
420
300
295
240
240
235
235
235
205
205
205
145
145
145
135
135
110
110
95
95
80
65
420
335
335
255
255
250
250
190
190
185
185
185
155
155
155
125
125
105
105
95
85
MAX. Z
10 kHz
(mΩ)
700
500
490
400
400
390
390
390
340
340
340
240
240
240
225
225
190
190
155
155
130
105
700
560
560
430
430
425
425
320
320
310
310
310
260
260
260
210
210
180
180
160
140
ORDERING CODE
MAL2157.......
2-TERM.
52271E3
52331E3
52391E3
32471E3
52471E3
42561E3
32561E3
52561E3
42681E3
52681E3
62681E3
62821E3
32821E3
52821E3
52102E3
62102E3
32122E3
62122E3
42152E3
52152E3
42182E3
52222E3
53221E3
43271E3
53271E3
33331E3
53331E3
43391E3
53391E3
33471E3
53471E3
43561E3
53561E3
63561E3
63681E3
33681E3
53681E3
53821E3
63821E3
33102E3
53102E3
43122E3
53152E3
3-TERM.
72271E3
72331E3
72391E3
12471E3
72471E3
22561E3
12561E3
72561E3
22681E3
72681E3
82681E3
82821E3
12821E3
72821E3
72102E3
82102E3
12122E3
82122E3
22152E3
72152E3
22182E3
72222E3
73221E3
23271E3
73271E3
13331E3
73331E3
23391E3
73391E3
13471E3
73471E3
23561E3
73561E3
83561E3
83681E3
13681E3
73681E3
73821E3
83821E3
13102E3
73102E3
23122E3
73152E3
Revision: 07-Apr-15
Document Number: 28338
5
For technical questions, contact:
aluminumcaps2@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
京公网安备 11010802033920号
EEWORLD
