30LV Series
www.vishay.com
Vishay Cera-Mite
AC Line Rated Disc Capacitors
Class X1, 400 V
AC
/Class Y2, 300 V
AC
FEATURES
• Complying with IEC 60384-14 3
rd
edition
• High reliability
• Complete range of capacitance values
• Radial leads
• Singlelayer AC Disc safety capacitors
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
APPLICATIONS
• X1/Y2 according to IEC 60384-14.3
• Across-the-line
QUICK REFERENCE DATA
DESCRIPTION
Ceramic Class
Ceramic Dielectric
Voltage (V
AC
)
Min. Capacitance (pF)
Max. Capacitance (pF)
Mounting
1
C0G,
C0G,
U2J, P3K, U2J, P3K,
R3L, S3L R3L, S3L
300
10
68
Radial
400
X7R,
Y5U
300
100
15 000
VALUE
2
X7R,
Y5U
400
• Line by-pass
• Antenna coupling
DESIGN
The capacitors consist of a ceramic disc of which both sides
are silver-plated. Connection leads are made of tinned
copper having a diameter of 0.032" (0.81 mm) or 0.025"
(0.64 mm). The capacitors may be supplied with radial
kinked or straight leads having a lead spacing of 0.375"
(9.5 mm) or 0.250" (6.4 mm). The standard tolerance is
± 20 %. Coating is made of flame retardant epoxy resin in
accordance with “UL 94 V-0.”
INSULATION RESISTANCE
Min. 1000
F
CAPACITANCE RANGE
10 pF to 0.015 μF
TOLERANCE ON CAPACITANCE
± 10 %; ± 20 %
RATED VOLTAGE
IEC 60384-14.3:
• X1:
• Y2:
400 V
AC
, 50 Hz
300 V
AC
, 50 Hz
DISSIPATION FACTOR
2.0 % max. at 1 kHz; 1 V
CERAMIC DIELECTRIC
C0G, U2J, P3K, R3L (Class 1)
X7R, Y5U (Class 2)
DIELECTRIC STRENGTH BETWEEN LEADS
Component test:
2500 V
AC
, 50 Hz, 2 s
As repeated test admissible only once with:
2250 V
AC
, 50 Hz, 2 s
Random sampling test (destructive test):
2500 V
AC
, 50 Hz, 60 s
CLIMATIC CATEGORY ACC. TO EN 60068-1
25/125/21
OPERATING TEMPERATURE RANGE
-30 °C to +125 °C
DIELECTRIC STRENGTH OF BODY INSULATION
2300 V
AC
, 50 Hz, 60 s (destructive test)
Revision: 02-Jun-14
Document Number: 23103
1
For technical questions, contact:
ceramitesupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
30LV Series
www.vishay.com
Vishay Cera-Mite
DIMENSIONS
in inches (millimeters)
1.250 min.
(32)
D
max.
Tinned Copper Leads
LS
Ø
0.125
max. (3.2)
T
max.
ORDERING INFORMATION, CERAMIC X1/Y2 CAPACITORS 30LV
C
(pF)
C0G
10
U2J
15
P3K
22
R3L
33
47
S3L
68
X7R
100
150
220
330
470
560
680
1000
1500
Y5U
680
1000
1500
2000
2200
2700
2800
3000
3200
3300
3900
4000
Revision: 02-Jun-14
± 20
0.330 (8.4)
0.330 (8.4)
0.330 (8.4)
0.400 (10.2)
0.400 (10.2)
0.430 (10.9)
0.430 (10.9)
0.460 (11.7)
0.430 (10.9)
0.460 (11.7)
0.490 (12.4)
0.530 (13.5)
0.210 (5.3)
0.215 (5.5)
0.195 (5.0)
0.210 (5.3)
0.200 (5.1)
0.200 (5.1)
0.200 (5.1)
0.200 (5.1)
0.200 (5.1)
0.195 (5.0)
0.200 (5.1)
0.210 (5.3)
22
0.025 (0.64)
0.250 (6.4)
30LVT68-R
30LVD10-R
30LVD15-R
30LVD20-R
30LVD22-R
30LVD27-R
30LVD28-R
30LVD30-R
30LVD32-R
30LVD33-R
30LVD39-R
30LVD40-R
± 10
0.330 (8.4)
0.330 (8.4)
0.330 (8.4)
0.330 (8.4)
0.330 (8.4)
0.330 (8.4)
0.330 (8.4)
0.365 (9.3)
0.460 (11.7)
0.200 (5.1)
0.180 (4.6)
0.190 (4.8)
0.210 (5.3)
0.180 (4.6)
0.190 (4.8)
0.180 (4.6)
0.185 (4.7)
0.180 (4.6)
22
0.025 (0.64)
0.250 (6.4)
30LVT10-R
30LVT15-R
30LVT22-R
30LVT33-R
30LVT47-R
30LVT56-R
30LVTT68-R
30LVTD10-R
30LVTD15-R
± 10
0.330 (8.4)
0.175 (4.4)
22
0.025 (0.64)
0.250 (6.4)
30LVQ68-R
± 10
± 10
0.330 (8.4)
0.330 (8.4)
0.190 (4.8)
0.170 (4.3)
22
22
0.025 (0.64)
0.025 (0.64)
0.250 (6.4)
0.250 (6.4)
30LVQ33-R
30LVQ47-R
± 10
0.330 (8.4)
0.185 (4.7)
22
0.025 (0.64)
0.250 (6.4)
30LVQ22-R
± 10
0.330 (8.4)
0.200 (5.1)
22
0.025 (0.64)
0.250 (6.4)
30LVQ15-R
± 10
0.330 (8.4)
0.190 (4.8)
22
0.025 (0.64)
0.250 (6.4)
30LVQ10-R
TOL.
(%)
D
max.
DIAMETER
INCH (mm)
T
max.
THICKNESS
INCH (mm)
WIRE SIZE
AWG
INCH (mm)
LS
LEAD SPACE
INCH (mm)
ORDERING
CODE
Document Number: 23103
2
For technical questions, contact:
ceramitesupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
30LV Series
www.vishay.com
Vishay Cera-Mite
D
max.
DIAMETER
INCH (mm)
T
max.
THICKNESS
INCH (mm)
WIRE SIZE
AWG
INCH (mm)
LS
LEAD SPACE
INCH (mm)
ORDERING INFORMATION, CERAMIC X1/Y2 CAPACITORS 30LV
C
(pF)
Y5U
4700
5000
5500
5600
6800
8000
9000
0.010 μF
0.015 μF
Notes
• Alternate lead spacings of 7.5 mm and 10 mm are available bulk or tape and reel on request.
• Minimum lead clearance according to IEC 60384-14: 0.118" (3 mm)
± 20
0.620 (15.7)
0.620 (15.7)
0.560 (14.2)
0.560 (14.2)
0.620 (15.7)
0.680 (17.3)
0.720 (18.3)
0.790 (20.1)
0.900 (22.9)
0.230 (5.8)
0.225 (5.7)
0.195 (5.0)
0.205 (5.2)
0.215 (5.5)
0.205 (5.2)
0.210 (5.3)
0.225 (5.7)
0.210 (5.3)
20
0.032 (0.81)
0.375 (9.5)
30LVD47-R
30LVD50-R
30LVD55-R
30LVD56-R
30LVD68-R
30LVD80-R
30LVD90-R
30LVS10-R
30LVS15-R
TOL.
(%)
ORDERING
CODE
TAPE AND REEL OPTIONS
Part number codes and specifications for tape and reel packaging are found in the general information document - find web-link
below.
OPTIONAL 3-LEADED STYLE
An optional 3-leaded construction is available. It consists of a single capacitor with the two outside leads attached to one
electrode, and the center lead attached to the electrode. Used in feed-thru or line-to-ground applications, it allows a short
ground lead for enhanced high frequency performance.
a
D
max.
4 mm max.
1.250" min. (32)
b
T
G
LS
G
c
a
b
Revision: 02-Jun-14
Document Number: 23103
3
For technical questions, contact:
ceramitesupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
30LV Series
www.vishay.com

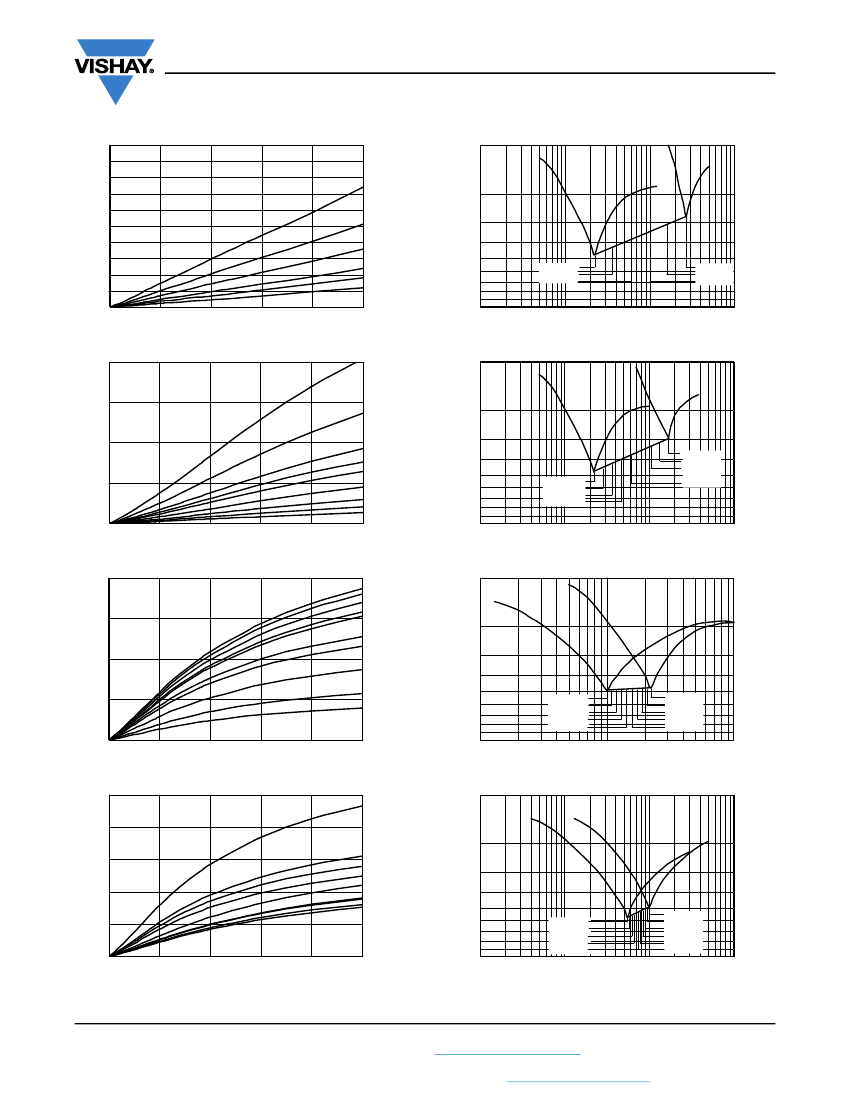

LEAKAGE CURRENT VS. VOLTAGE
(Typical)
100
Vishay Cera-Mite
INSERTION LOSS VS. FREQUENCY
(Typical)
10
Leakage Current (µA) RMS
90
Insertion Loss (dB)
80
70
60
50
40
30LVQ68-R
20
30
40
50
30LVQ68-R
30LVQ47-R
30LVQ33-R
30LVQ10-R
30LVQ15-R
30LVQ22-R
30LVQ47-R
30LVQ33-R
30
30LVQ22-R
20
10
0
0
500
1000
1500
2000
30LVQ15-R
30LVQ10-R
100
2500
1
10
100
1000
AC Voltage (V) RMS
2
30LVT15-R
Frequency (MHz)
10
Leakage Current (mA) RMS
1.5
30LVTD10-R
Insertion Loss (dB)
20
1
30
40
50
30LVTD15-R
30LVTD10-R
30LVTT68-R
30LVT56-R
30LVT10-R
30LVT15-R
30LVT22-R
30LVT33-R
30LVT47-R
30LVTT68-R
30LVT56-R
30LVT47-R
0.5
30LVT33-R
30LVT22-R
30LVT15-R
30LVT10-R
0
0
500
1000
1500
2000
2500
100
0.1
1
10
100
AC Voltage (V) RMS
2
10
30LVD33-R
30LVD32-R
30LVD30-R
30LVD28-R
30LVD27-R
30LVD22-R
30LVD20-R
Frequency (MHz)
Leakage Current (mA) RMS
1.5
Insertion Loss (dB)
20
1
30LVD15-R
30
40
50
30LVD33-R
30LVD32-R
30LVD30-R
30LVD28-R
30LVD27-R
30LVT68-R
30LVD10-R
30LVD15-R
30LVD20-R
30LVD22-R
0.5
30LVD10-R
30LVT68-R
0
0
500
1000
1500
2000
2500
100
0.1
1
10
AC Voltage (V) RMS
10
30LVDS15-R
Frequency (MHz)
10
Leakage Current (mA) RMS
Insertion Loss (dB)
8
30LVS10-R
20
6
30LVD90-R
30LVD80-R
30LVD68-R
30LVT56-R
30LVD55-R
30LVD50-R
30LVD47-R
30
40
50
30LVS15-R
30LVS10-R
30LVD90-R
30LVD80-R
30LVD68-R
30LVD39-R
30LVD40-R
30LVD47-R
30LVD50-R
30LVD55-R
30LVD56-R
4
2
0
0
500
1000
1500
2000
2500
100
0.01
0.1
1
10
AC Voltage (V) RMS
Frequency (MHz)
Revision: 02-Jun-14
Document Number: 23103
4
For technical questions, contact:
ceramitesupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
30LV Series
www.vishay.com
Vishay Cera-Mite

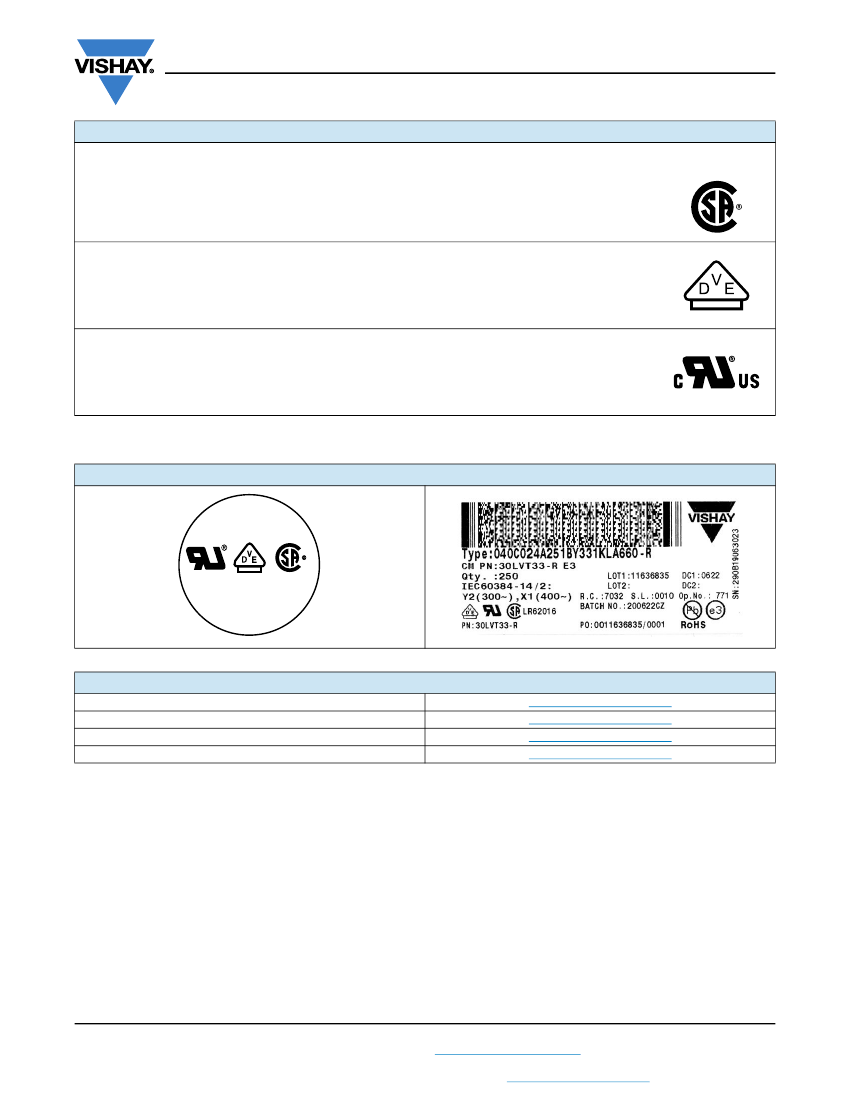

APPROVALS
IEC 60384-14.3 - Safety tests
This approval together with CB test certificate substitutes all national approvals.
CB Certificate
Y2-capacitor: CB test certificate:
X1-capacitor: CB test certificate:
VDE
Y2-capacitor: VDE marks approval:
Y2-capacitor: VDE marks approval:
X1-capacitor: VDE marks approval:
DIN EN 60384-14 VDE 0565-1-1:2006-04 - Safety tests
Underwriters Laboratories Inc.
Y2-capacitor: UL test certificate:
X1-capacitor: UL test certificate:
UL 60384-14, CSA E60384-1:03, CSA E60384-14:09
Fixed capacitors for electromagnetic interference suppression and connection to the supply mains.
Note
(1)
LS
7.5 mm: 300 V ; 5.0 mm
LS < 7.5 mm: 250 V
AC
AC
E99264
E99264
10 pF to 15 nF
10 pF to 15 nF
300 V
AC
400 V
AC
40003992
40003992
40003992
10 pF to 15 nF
10 pF to 15 nF
10 pF to 15 nF
300 V
AC (1)
250 V
AC (1)
400 V
AC
CA/14037/CSA
CA/14037/CSA
10 pF to 15 nF
10 pF to 15 nF
300 V
AC
400 V
AC
MARKING
Sample
100K
30LV
125 °C
Y2 300 ~
X1 400 ~
CM
RELATED DOCUMENTS
General Information
CB Test Certificate
VDE Marks Approval
UL Test Certificate
www.vishay.com/doc?23140
www.vishay.com/doc?22228
www.vishay.com/doc?22229
www.vishay.com/doc?22230
Revision: 02-Jun-14
Document Number: 23103
5
For technical questions, contact:
ceramitesupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
