244-63000-15 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 244-63000-15

244-63000-15: DescriptionBoard Connector, 95 Contact(s), 5 Row(s), Female, Right Angle, 0.079 inch Pitch, Press Fit Terminal, Locking,; CategoryThe connector The connector; File Size57KB，1 Pages; Manufacturerept Connectors; Websitehttps://www.ept.de; Environmental Compliance

Download Datasheet Parametric View All

244-63000-15 Overview

Board Connector, 95 Contact(s), 5 Row(s), Female, Right Angle, 0.079 inch Pitch, Press Fit Terminal, Locking,

244-63000-15 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
body width	0.447 inch
subject depth	0.807 inch
body length	1.496 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Durability	250 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.7506 N
Insulation resistance	10000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	6
Number of rows loaded	5
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	95
Evacuation force-minimum value	.15012 N
Base Number Matches	1

Preview

Download Datasheet

View All

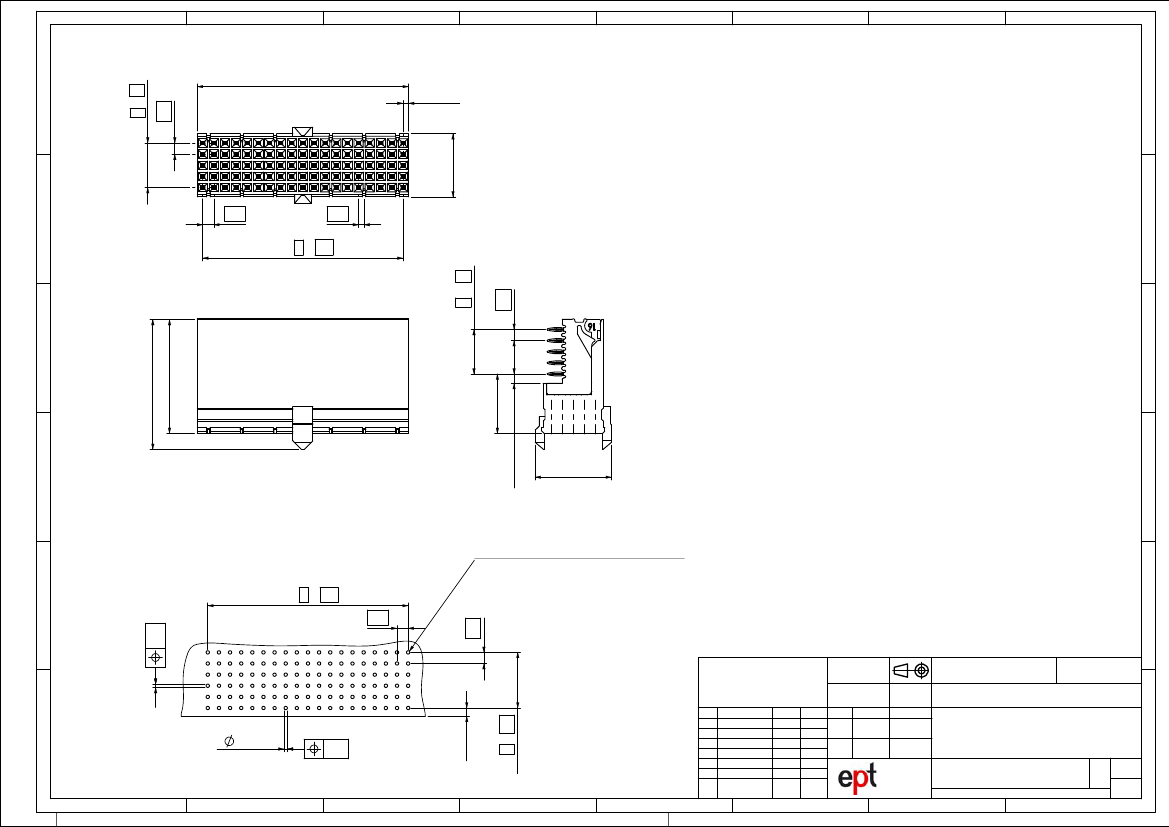

4x2=8

38 max.

1 max.

18 x 2 = 36

11,35

4x 2 = 8

23,35

- 0,2

20,5

±0,1

ept

+0,1

244-63000-15

0511

10,7

±0,1

Zuwiederhandlungen verpflichten zu Schadensersatz. Alle Rechte für den Fall der Patent-, Gebrauchsmuster- oder Geschmacksmustereintragung vorbehalten.

1,65 min.

a b c d e

13,7

±0,05

Leiterplatten-Lochbild

pcb-layout

alle Löcher

all holes

18 x 2 = 36

Optional Reihe für Schirmblech

unteres Schirmblech auf geraden Positionen

oberes Schirmblech auf ungeraden Positionen

optional row for shielding

lower shield on even position

upper shield on odd position

Mechanische Lebensdauer / performance level:

class 2, according to IEC 61076-4-101

(Au over PdNi over Ni)

Technische Änderungen vorbehalten / all data subject amendment without notice

Werkstoff / Material:

Allgemeintoleranz /

General tolerances

Tolerierungsgrundsatz /

Fundamental tolerancing principle

0,1

Maßstab / Scale: 2:1

Verwendungsbereich / Range of application

DIN ISO 8015

Name / Name

Kundenzchng./ customer drawing

5 x 2 = 10

Datum / Date

Erst./Drawn

Gepr./Insp.

1,5

02.08.2011

S. Kowatsch

hm2.0 Federleiste / female connector

Bauform / type AB19

ohne Schirmblech / without shield

Zeichnungsnummer / Drawing number

Art / Art

Blatt / Sheet

Benennung / Description

0,6

±0,05

0,1

alle Löcher

all holes

Version/

Version

drawing modified

Änderung / Revision

02.08.2011 S. Kowat

Datum / Date Name / Name

ept GmbH

www.ept.de

244-63000-15

Proj. 36

1/1

Status / Status
