PS003A-501-2UPN8X-H1141 datasheet, PDF

Datasheet> All Categories > The sensor> Sensor/transducer> PS003A-501-2UPN8X-H1141

PS003A-501-2UPN8X-H1141: DescriptionPeizoresistive Sensor,; CategoryThe sensor Sensor/transducer; File Size251KB，4 Pages; ManufacturerTURCK Inc.; Websitehttps://www.turck.us/

Download Datasheet Parametric View All

PS003A-501-2UPN8X-H1141 Overview

Peizoresistive Sensor,

PS003A-501-2UPN8X-H1141 Parametric

Parameter Name	Attribute value
Maker	TURCK Inc.
Reach Compliance Code	unknown
Other features	IP67, IP69K; REVERSE POLARITY PROTECTION; SHORT CIRCUIT PROTECTION
body height	115.8 mm
Body length or diameter	34 mm
shell	STAINLESS STEEL
Number of digits	16
Maximum working current	50 mA
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
Output interface type	3-WIRE INTERFACE
Output type	PNP/NPN
Package Shape/Form	CYLINDRICAL
port type	1/4G
Maximum pressure range	36.26 Psi
Minimum pressure range
Pressure sensing mode	RELATIVE
Response time	3000 µs
Sensor/Transducer Type	PRESSURE SENSOR,PIEZORESISTIVE
Maximum supply voltage	30 V
Minimum supply voltage	18 V
Termination type	CONNECTOR
Base Number Matches	1

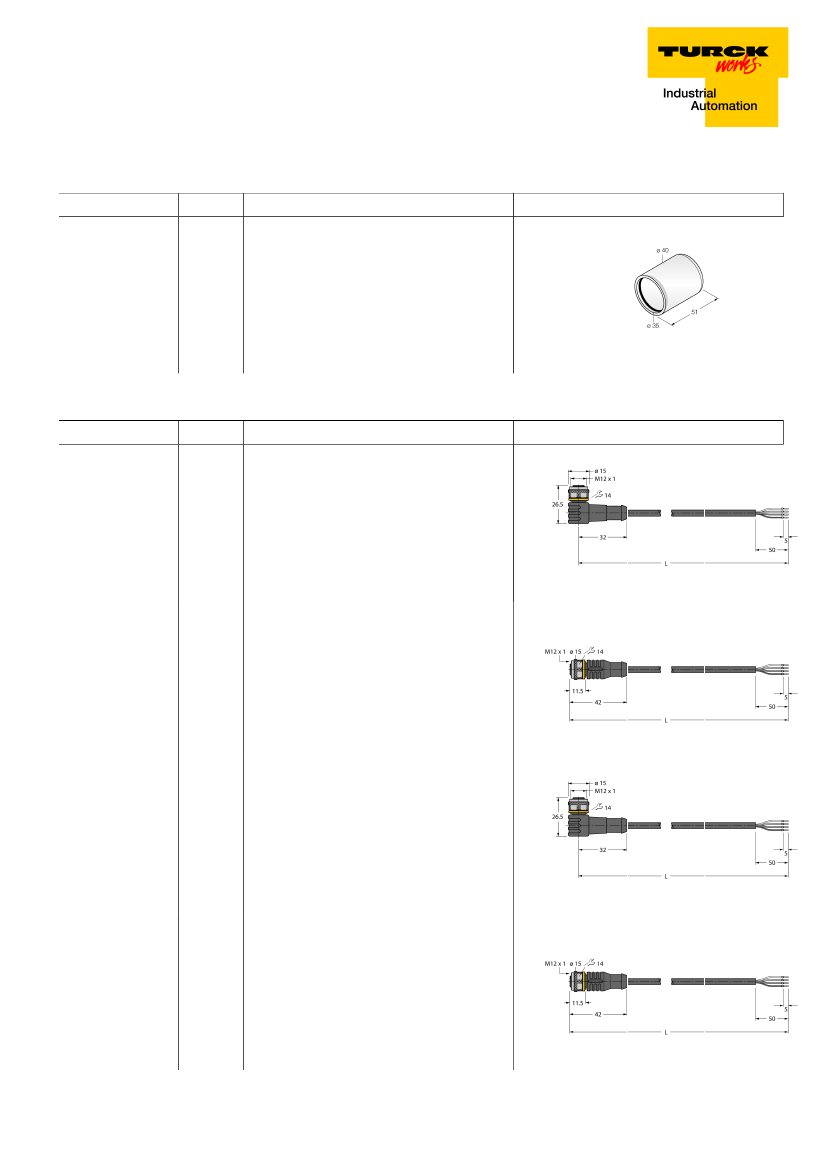

Preview

Download Datasheet

View All

Pressure transmitter (rotatable)

2 PNP/NPN transistor switching outputs

PS003A-501-2UPN8X- H1141

■

Housing is rotatable after plugging the

process connection

■

Reading of adjusted values without tool

■

Recessed pushbutton and keylock for

secure programming

■

Permanent indication of pressure (bar,

psi, kPa, MPa, misc)

■

Peak pressure memory

■

Pressure range 0…2.5 bar abs.

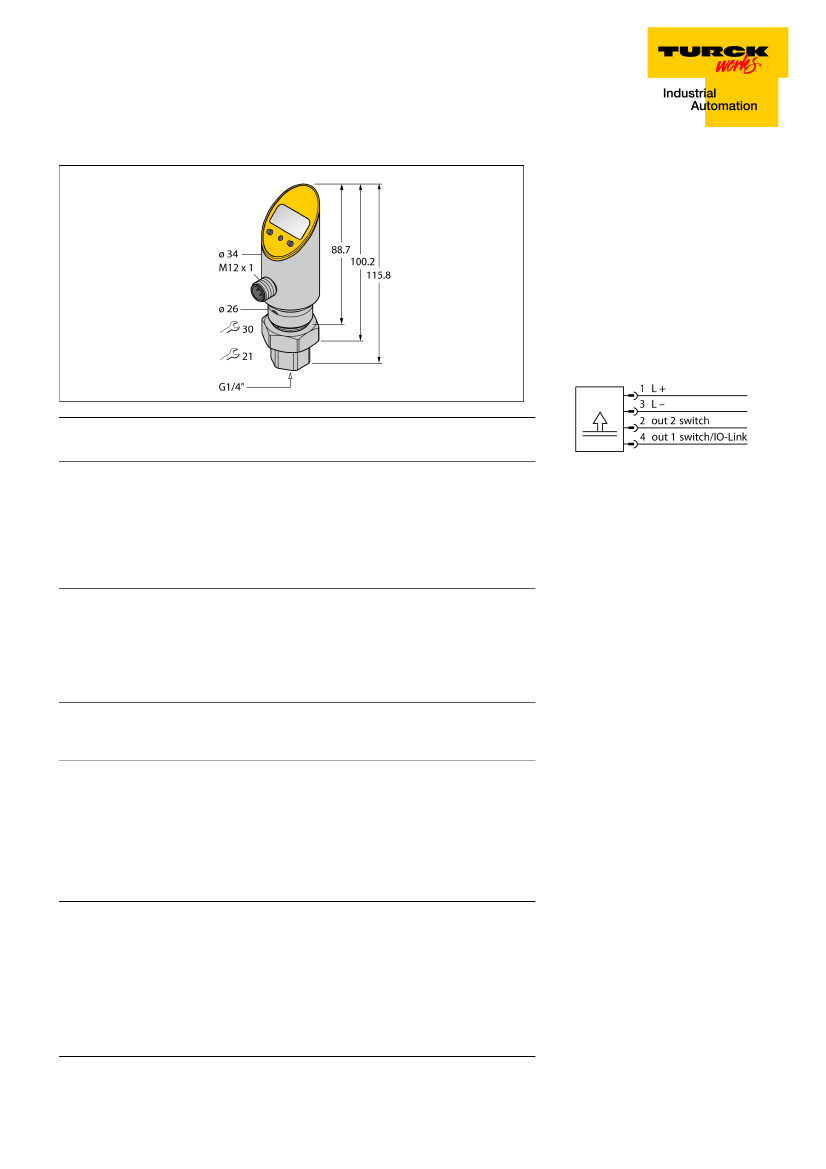

Wiring Diagram

Type designation

Ident-No.

Pressure range

Relative pressure

Absolute pressure

PS003A-501-2UPN8X- H1141

6832637

Admissible overpressure

Burst pressure

Response time

Power supply

Operating voltage

Current consumption

Voltage drop at I

Protective measure

Short-circuit/reverse polarity protection

Protection type and class

Outputs

Output 1

Output 2

Switching output

Output function

Accuracy switching output

Rated operational current

Switching frequency

Switching point distance

Switch point:

Release point(s)

Switching cycles

IO-Link

IO-Link Specification

Programming

Transmission physics

Transmission rate

Process data width

Measured value information

Switchpoint information

Frame type

Genauigkeit

Temperature behaviour

Medium temperature

Temperature coefficient zero point Tk0

Temperature coefficient span T

1/4

0…3 bar rel.

0…2.5 bar abs.

0…36.26psi abs.

0…0.25MPa abs.

7 bar

< 3 ms

Functional principle

The pressure sensors of the PS series oper-

ate with piezo-resistive ceramic measuring

cells. The ceramic diaphragm is unbalanced

in proportion to the pressure applied. Depend-

ing on the sensor type, the voltage produced

is made available either as switching or ana-

log output signal. Non-rotatable and rotatable

sensors, numerous thread types, front-flush or

dead-zone free diaphragms and an accuracy

of 0.5% of full scale guarantee highest flexibili-

ty and safe process interfacing.

18…30 VDC

50 mA

SELV; PELV according to EN 50178

yes / yes

IP67/IP69K / III

Switching output or IO-Link mode

switching output

NO/NC, PNP/NPN

± 0.5 % v. E. BSL

0.2 A

180 Hz

0.5 %

(min + 0.005 x range) up to 100% f.s.

min up to (SP - 0.005 x range)

100 mil.

Edition • 2018-05-22T16:17:00+02:00

Specified acc. to version 1.0

FDT / DTM

corresponds to 3-wire physics (PHY2)

COM 2 / 38.4 kbps

16 bit

14 bit

2 bit

2.2

± 0.5 % of final value BSL

-40…+85 °C

± 0.15 % of full scale/10 K

TURCK Inc.

3000 Campus Drive Minneapolis, MN 55441-2656

Phone: 763-553-7300

Application Support: 1-800-544-7769

Fax 763-553-0708

www.turck.com
