5-5353188-1 datasheet, PDF - EEWORLD Datasheet

5-5353188-1: DescriptionHEADER CONNECTOR,PCB MNT,PLUG,30 CONTACTS,PIN,0.024 PITCH,SURFACE MOUNT TERMINAL,LOCKING; CategoryThe connector The connector; File Size429KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

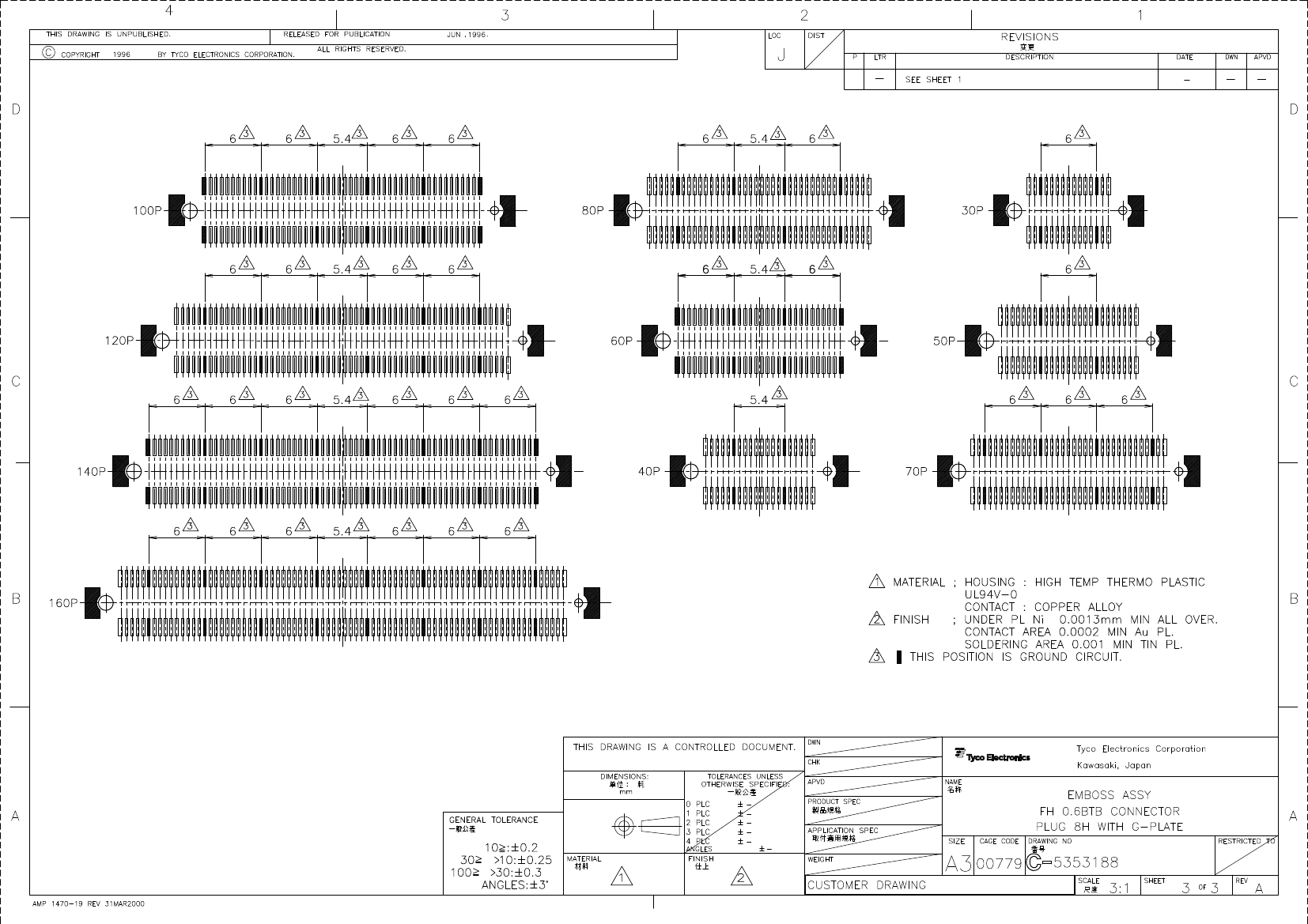

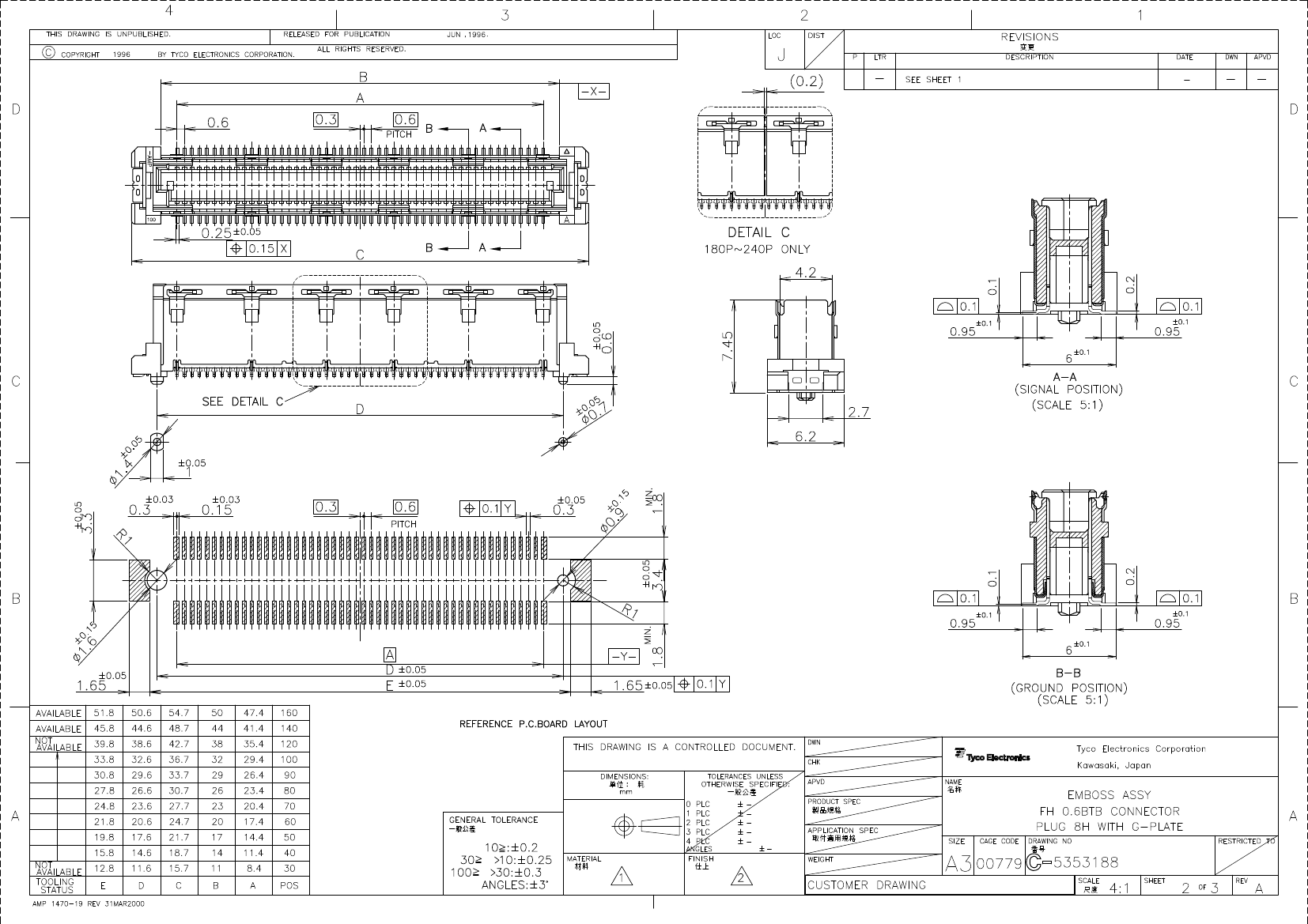

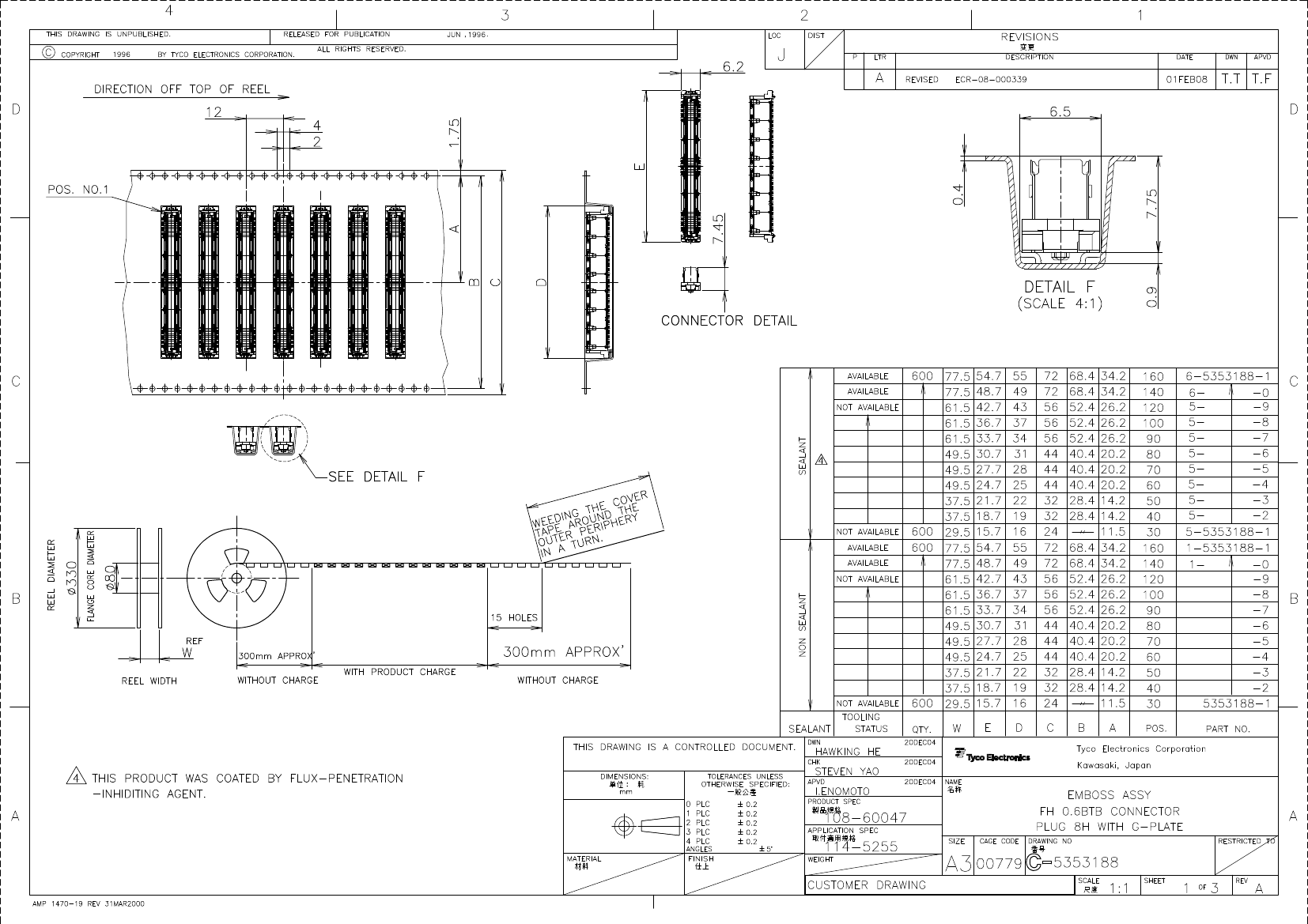

5-5353188-1 Overview

HEADER CONNECTOR,PCB MNT,PLUG,30 CONTACTS,PIN,0.024 PITCH,SURFACE MOUNT TERMINAL,LOCKING

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
Board mount options	PEG
body width	0.244 inch
subject depth	0.293 inch
body length	0.618 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Dielectric withstand voltage	200VAC V
Durability	50 Cycles
maximum insertion force	.8896 N
Insulation resistance	100000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	5353188
Plug contact pitch	0.024 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.207 mm
Plating thickness	8u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.6096 mm
Termination type	SURFACE MOUNT
Total number of contacts	30
Evacuation force-minimum value	.0973 N
Base Number Matches	1
