PI74FCT163500ATV datasheet, PDF

Datasheet> All Categories > logic> logic> PI74FCT163500ATV

PI74FCT163500ATV: DescriptionRegistered Bus Transceiver, FCT Series, 1-Func, 18-Bit, True Output, CMOS, PDSO56, 0.300 INCH, PLASTIC, SSOP-56; Categorylogic logic; File Size191KB，5 Pages; ManufacturerPericom Semiconductor Corporation (Diodes Incorporated); Websitehttps://www.diodes.com/

Download Datasheet Parametric Compare View All

PI74FCT163500ATV Overview

Registered Bus Transceiver, FCT Series, 1-Func, 18-Bit, True Output, CMOS, PDSO56, 0.300 INCH, PLASTIC, SSOP-56

PI74FCT163500ATV Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)
Parts packaging code	SSOP
package instruction	0.300 INCH, PLASTIC, SSOP-56
Contacts	56
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION; INPUTS CAN BE DRIVEN BY 3.3V OR 5V COMPONENTS
Control type	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL
series	FCT
JESD-30 code	R-PDSO-G56
JESD-609 code	e0
length	18.415 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
MaximumI(ol)	0.024 A
Number of digits	18
Number of functions	1
Number of ports	2
Number of terminals	56
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SSOP56,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	225
power supply	3.3 V
Prop。Delay @ Nom-Sup	5.1 ns
propagation delay (tpd)	5.6 ns
Certification status	Not Qualified
Maximum seat height	2.74 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
translate	N/A
Trigger type	NEGATIVE EDGE
width	7.5 mm
Base Number Matches	1

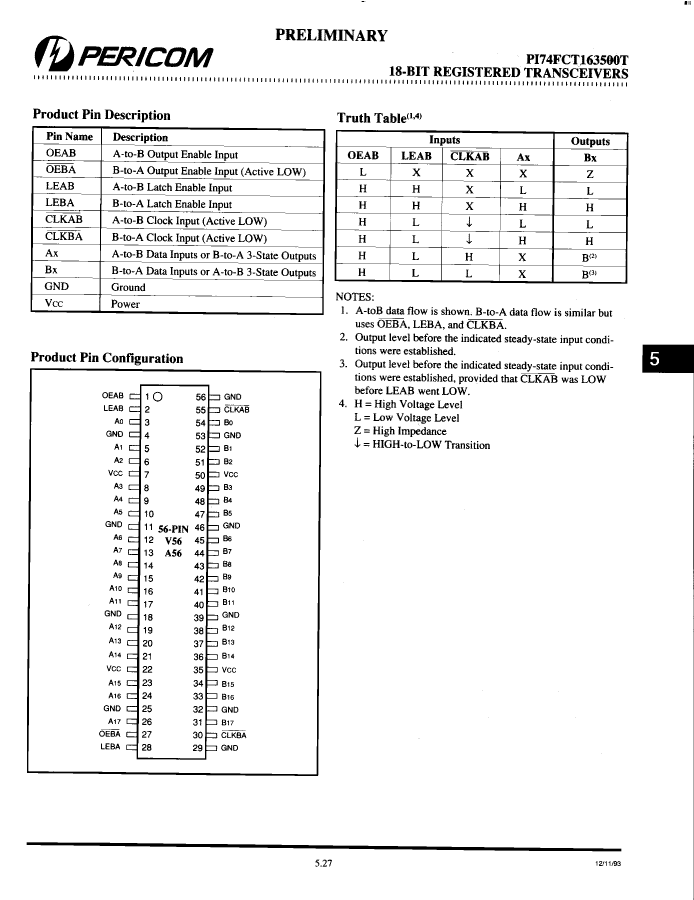

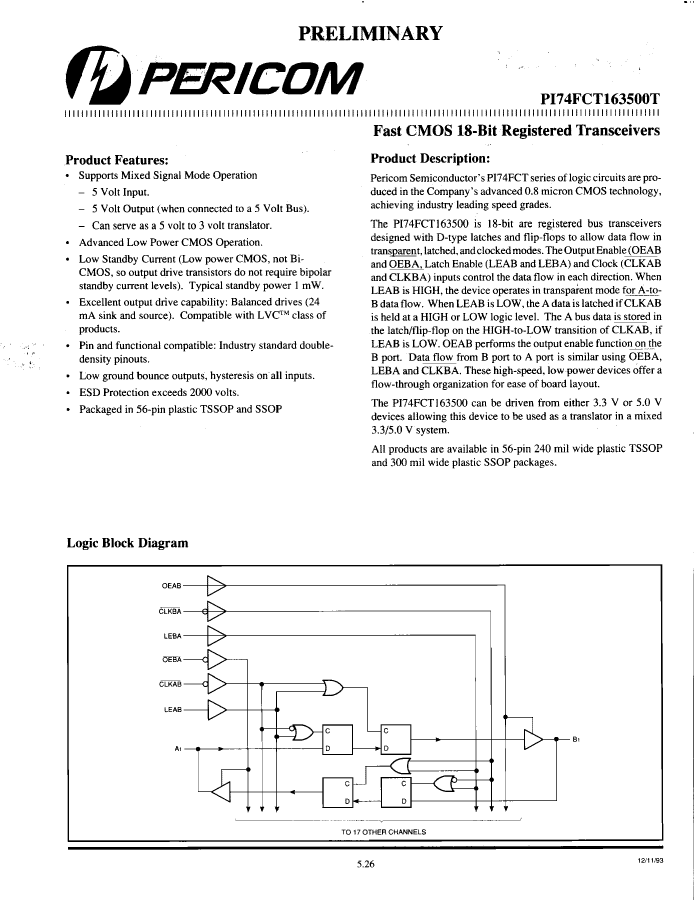

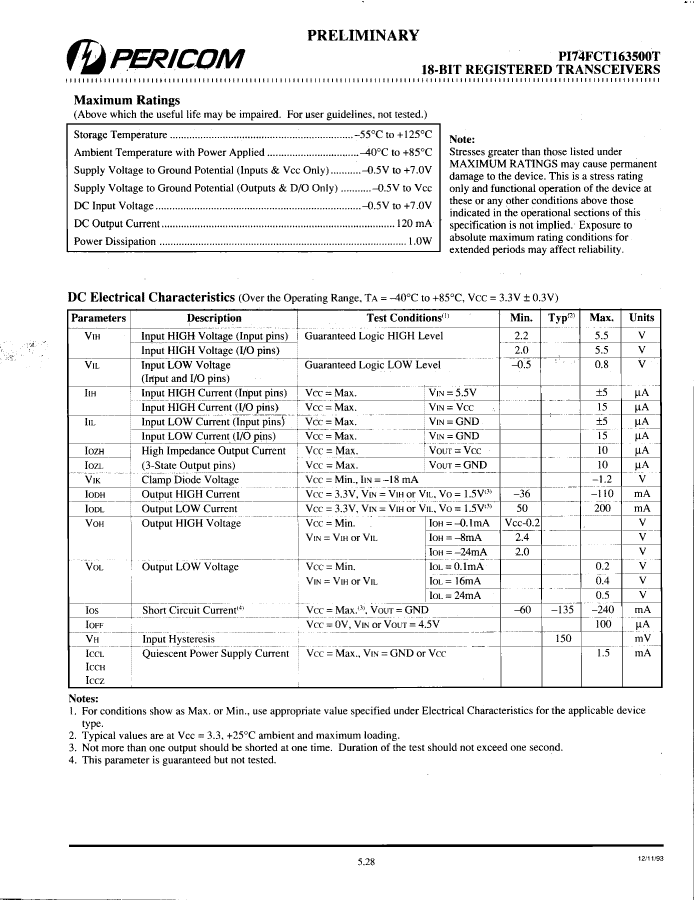

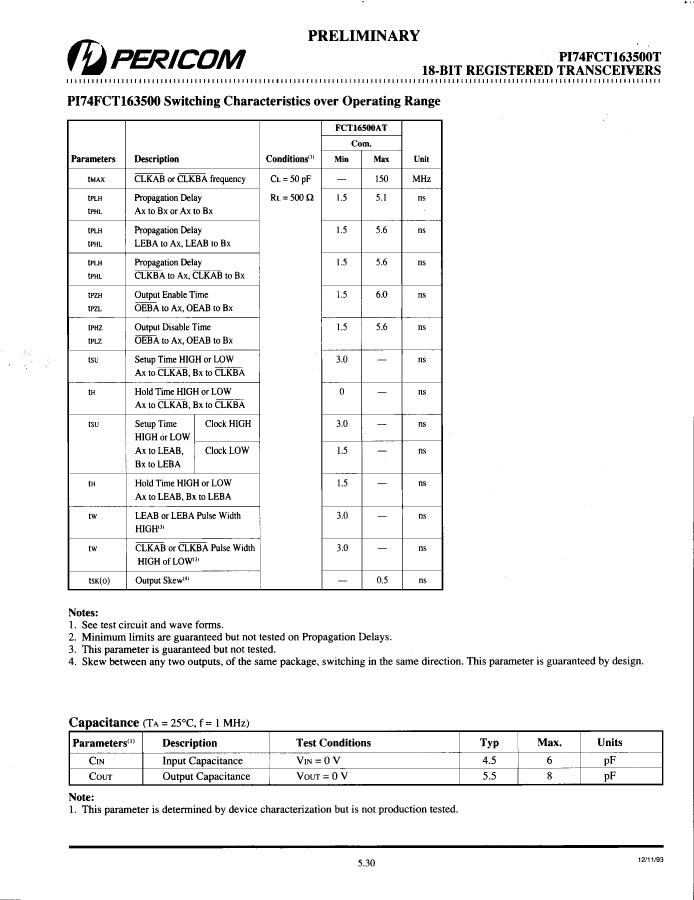

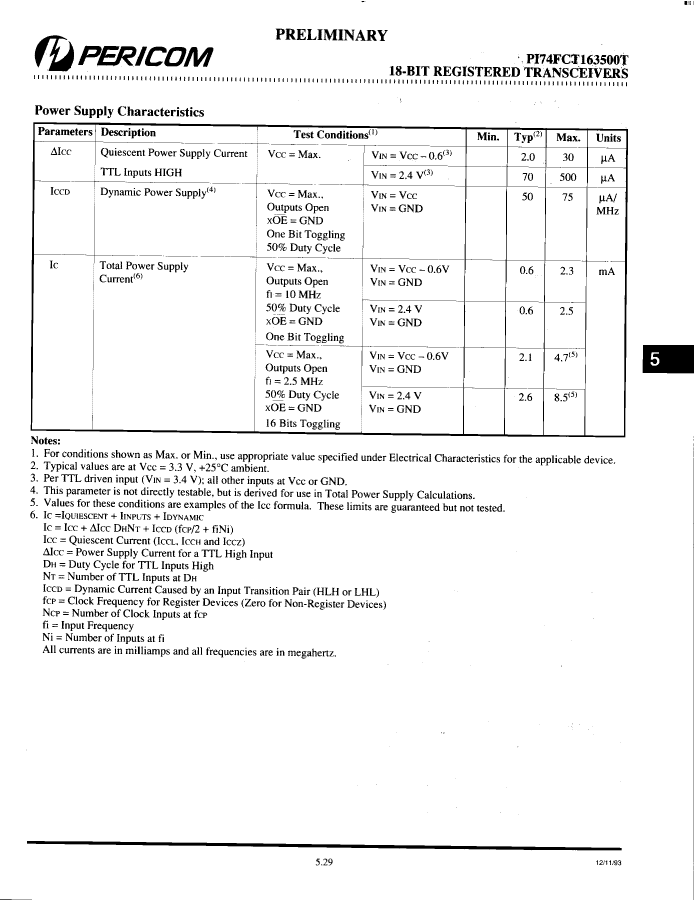

Preview

Download Datasheet

View All

PI74FCT163500ATV Related Products

	PI74FCT163500ATV	PI74FCT163500ATA
Description	Registered Bus Transceiver, FCT Series, 1-Func, 18-Bit, True Output, CMOS, PDSO56, 0.300 INCH, PLASTIC, SSOP-56	Registered Bus Transceiver, FCT Series, 1-Func, 18-Bit, True Output, CMOS, PDSO56, 0.240 INCH, PLASTIC, TSSOP-56
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)
Parts packaging code	SSOP	TSSOP
package instruction	0.300 INCH, PLASTIC, SSOP-56	0.240 INCH, PLASTIC, TSSOP-56
Contacts	56	56
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Other features	INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION; INPUTS CAN BE DRIVEN BY 3.3V OR 5V COMPONENTS	INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION; INPUTS CAN BE DRIVEN BY 3.3V OR 5V COMPONENTS
Control type	INDEPENDENT CONTROL	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL
series	FCT	FCT
JESD-30 code	R-PDSO-G56	R-PDSO-G56
JESD-609 code	e0	e0
length	18.415 mm	14.145 mm
Load capacitance (CL)	50 pF	50 pF
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER
MaximumI(ol)	0.024 A	0.024 A
Number of digits	18	18
Number of functions	1	1
Number of ports	2	2
Number of terminals	56	56
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE
Output polarity	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	TSSOP
Encapsulate equivalent code	SSOP56,.4	TSSOP56,.3,20
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	225	240
power supply	3.3 V	3.3 V
Prop。Delay @ Nom-Sup	5.1 ns	5.1 ns
propagation delay (tpd)	5.6 ns	5.6 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	2.74 mm	1.1 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.5 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	30	30
translate	N/A	N/A
Trigger type	NEGATIVE EDGE	NEGATIVE EDGE
width	7.5 mm	6.1 mm
Base Number Matches	1	1
