54F191/B2AJC

Description
IC,COUNTER,UP/DOWN,4-BIT BINARY,F-TTL,LLCC,20PIN,CERAMIC
Categorylogic    logic
File Size290KB,6 Pages
ManufacturerNXP
Websitehttps://www.nxp.com
Download Datasheet Parametric View All

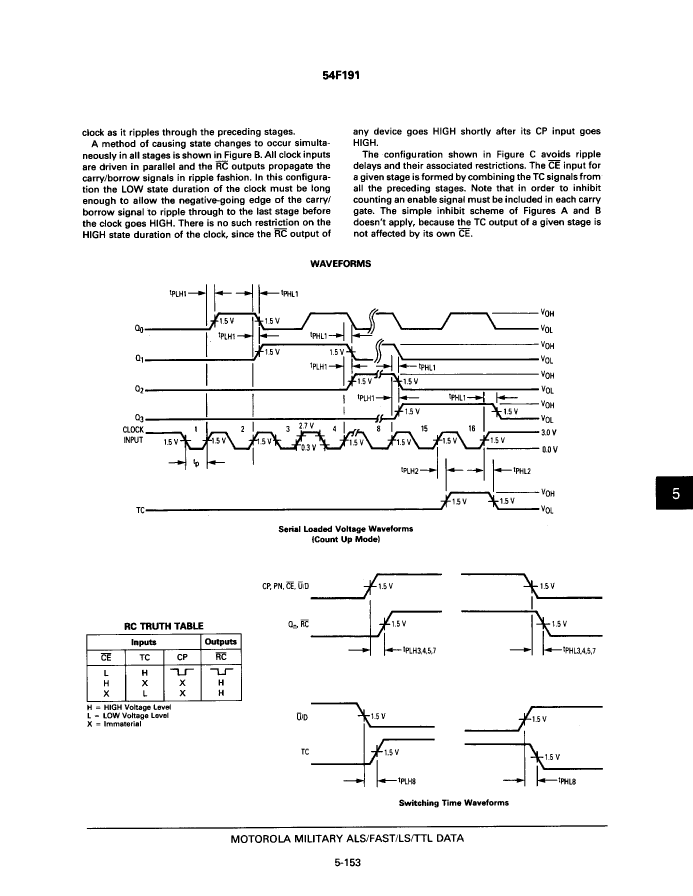

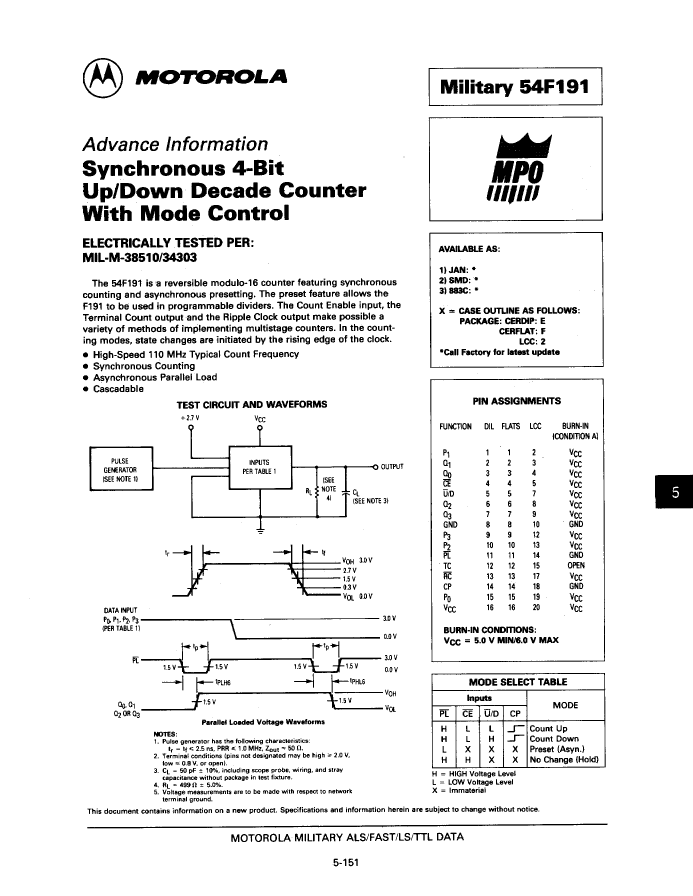

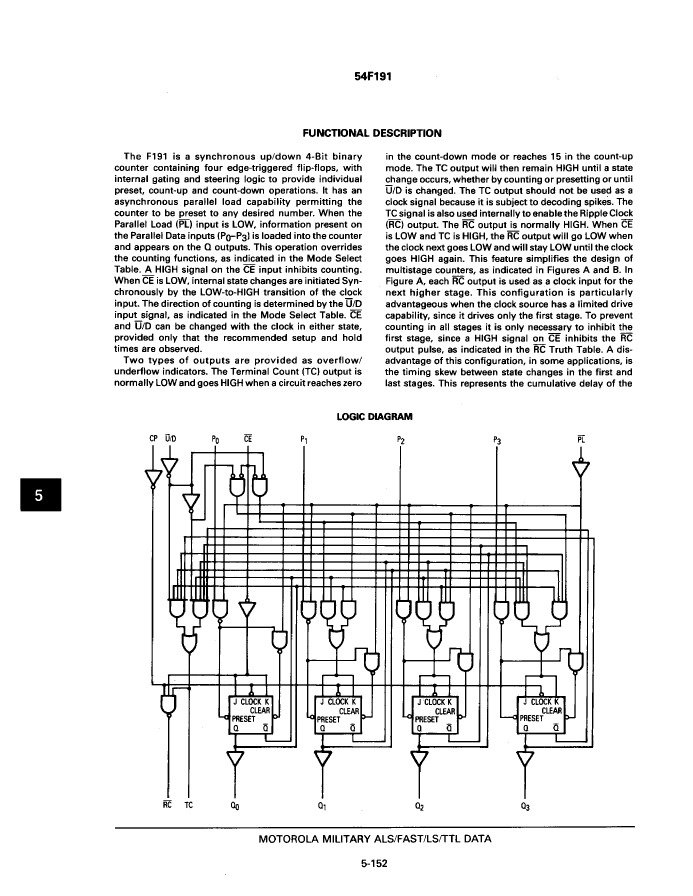

54F191/B2AJC Overview

IC,COUNTER,UP/DOWN,4-BIT BINARY,F-TTL,LLCC,20PIN,CERAMIC

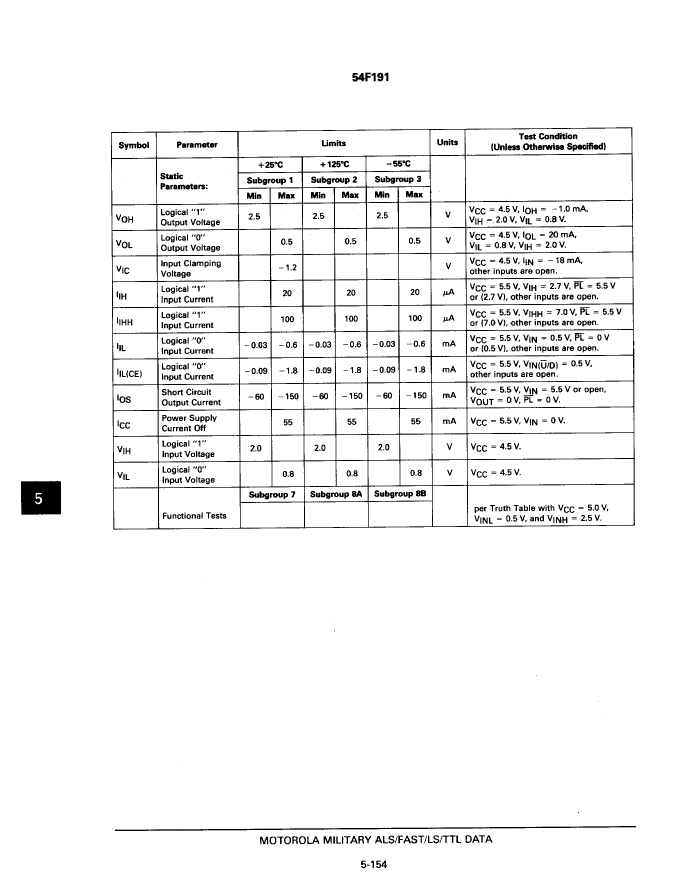

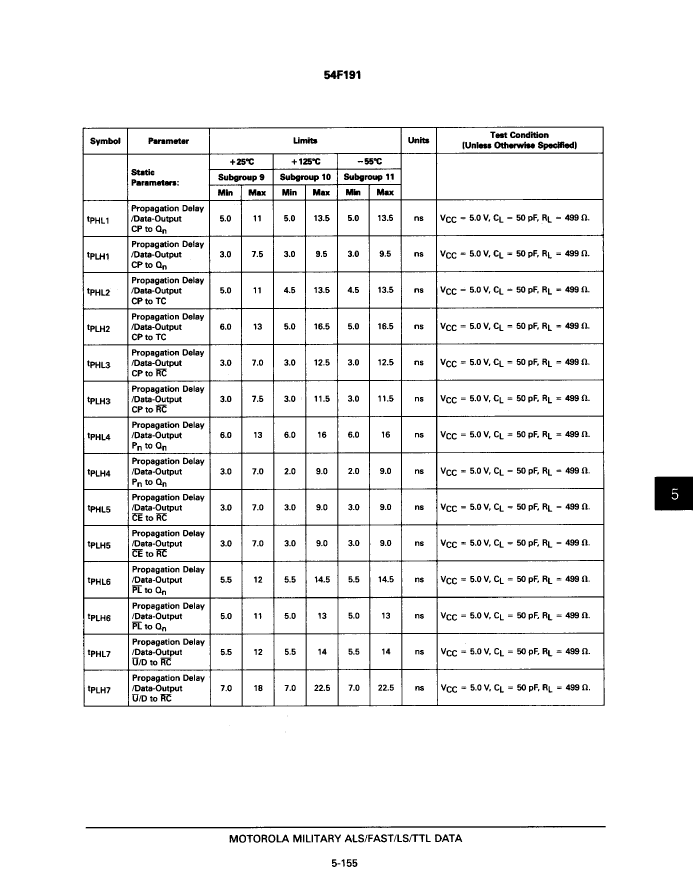

54F191/B2AJC Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerNXP
package instructionQCCN, LCC20,.35SQ
Reach Compliance Codeunknown
Counting directionBIDIRECTIONAL
JESD-30 codeS-XQCC-N20
JESD-609 codee0
Load/preset inputYES
Logic integrated circuit typeBINARY COUNTER
Maximum Frequency@Nom-Sup100000000 Hz
MaximumI(ol)0.02 A
Operating modeSYNCHRONOUS
Number of functions1
Number of terminals20
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC
encapsulated codeQCCN
Encapsulate equivalent codeLCC20,.35SQ
Package shapeSQUARE
Package formCHIP CARRIER
power supply5 V
Maximum supply current (ICC)55 mA
Certification statusNot Qualified
Filter level38535Q/M;38534H;883B
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyTTL
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formNO LEAD
Terminal pitch1.27 mm
Terminal locationQUAD
Base Number Matches1
