8210-0-15-01-04-27-04-0 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> terminals> 8210-0-15-01-04-27-04-0

Preview

8210-0-15-01-04-27-04-0: DescriptionPCB Terminal; CategoryThe connector terminals; File Size145KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric Compare View All

8210-0-15-01-04-27-04-0 Overview

PCB Terminal

8210-0-15-01-04-27-04-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	8210-0
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

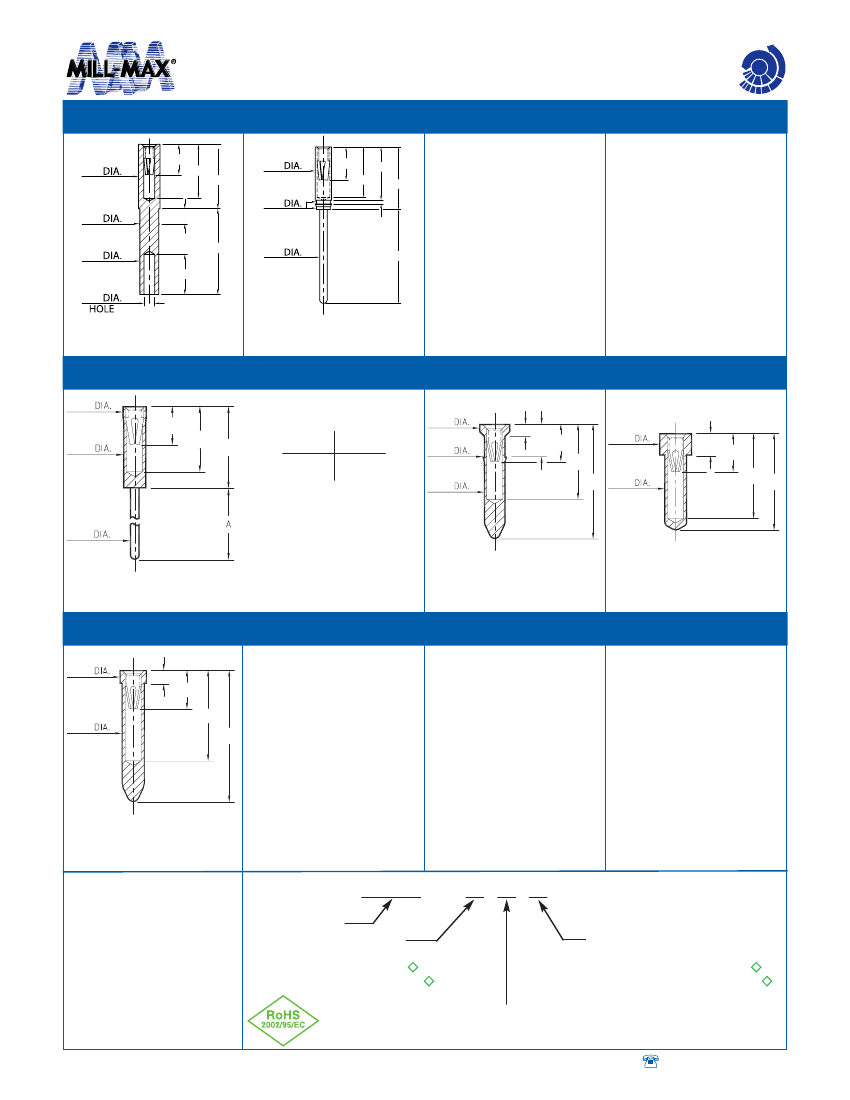

PIN RECEPTACLES

for 0,20 - 0,33 diameter pins

and 0,30 - 0,43 diameter pins

P

R

E

CI

M

ON

S

I

CHI

A

PINS

NE

D

4195

1,01

1,45

2,54

3,05

8210

0,66

0,56

1,35

2,16

2,03

2,54

0,15

4,06

1,9

0,3

3,8

0,93

0,89

0,71

0,5

4195-0-19-XX-04-XX-10-0

Wire termination and

press-fit in 0,91 hole (#64 drill)

8210-0-15-XX-04-XX-04-0

Press-fit in 0,61/0,68 stepped hole

0464

0,94

1,52

0,89

2,54

3,18

Basic Part

Number

Length

A

9225

1,4

0,56

1,07

0,97

1,5 1,78

3,9

5,7

0529

1,4

0,97

1,78

3,56 4,06

0464-0

0464-1

3,18

6,35

0,97

0,36

0464-X-15-XX-10-XX-04-0

Solder mount in 0,41 min.

mounting hole

9225-0-15-XX-10-XX-10-0

Press-fit in 1,0 mounting hole

0529-0-15-XX-10-XX-10-0

1,02 min. mounting hole

8947

1,14

0,56

1,65

3,94

5,72

0,97

8947-0-15-XX-10-XX-10-0

Solder mount in 1,02 min.

mounting hole

SPECIFICATIONS

SHELL MATERIAL:

Brass Alloy 360, 1/2 Hard

CONTACT MATERIAL:

Beryllium Copper Alloy 172, HT

PART MANUFACTURED IN

INCHES, METRIC FOR REF ONLY

TOLERANCES ON:

LENGTHS:

± 0,13

DIAMETERS: ± 0,05

ANGLES:

± 2°

ORDER CODE: XXXX - X - XX - XX - XX - XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

01

5,08µm TIN/LEAD OVER NICKEL

80

5,08µm TIN OVER NICKEL



15

0,25µm GOLD OVER NICKEL



SPECIFY CONTACT FINISH:

02

2,54

µm

TIN/LEAD OVER NICKEL

84

2,54µm TIN OVER NICKEL



27

0,76µm GOLD OVER NICKEL



SELECT CONTACT

#04 or #10

CONTACT (DATA ON PAGE 205)

w w w. m i l l - m a x . c o m

125



516-922-6000

8210-0-15-01-04-27-04-0 Related Products
