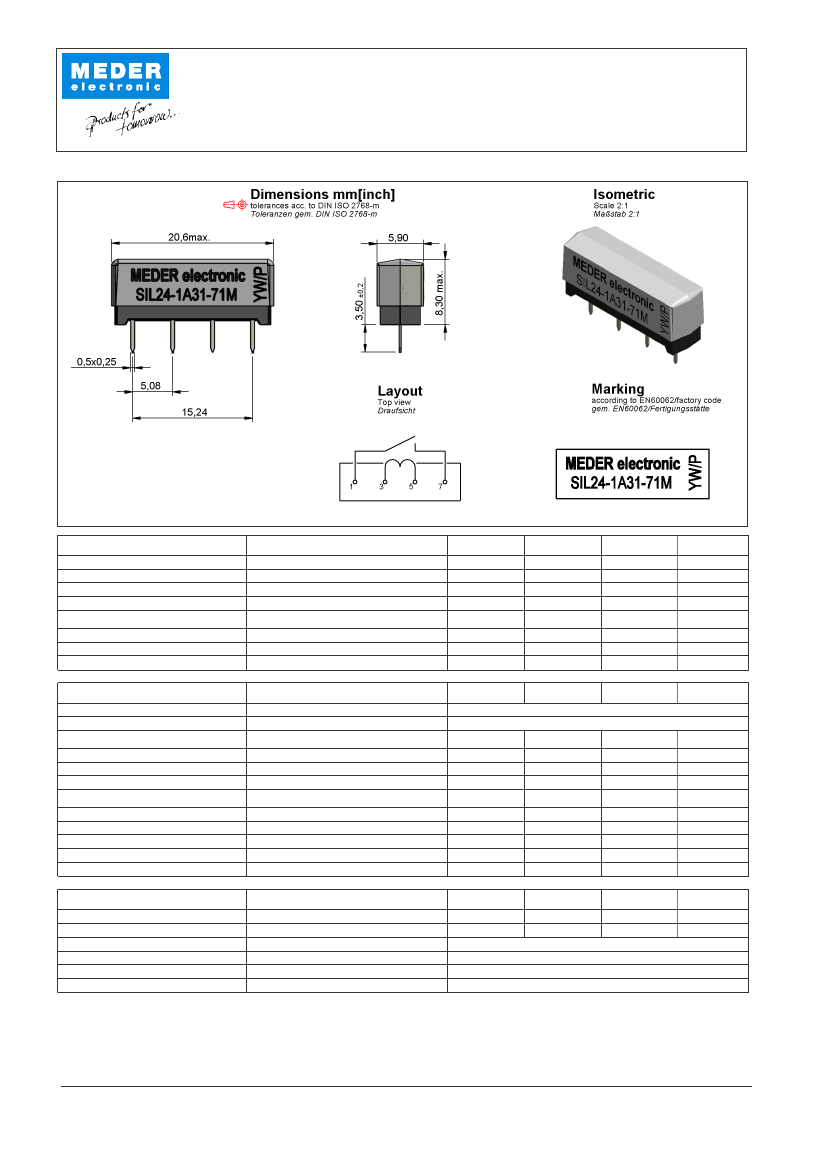

3324131271: DescriptionDry Reed Relay, SPST, Momentary, 0.012A (Coil), 24VDC (Coil), 288mW (Coil), 2A (Contact), 500VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount; CategoryMechanical and electronic products relay; File Size133KB，2 Pages; ManufacturerStandex

Download Datasheet Parametric View All

3324131271 Overview

Dry Reed Relay, SPST, Momentary, 0.012A (Coil), 24VDC (Coil), 288mW (Coil), 2A (Contact), 500VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount

3324131271 Parametric

Parameter Name	Attribute value
Maker	Standex
Reach Compliance Code	unknown
ECCN code	EAR99
body width	5.8 mm
body height	8 mm
Body length or diameter	20.5 mm
Maximum coil current (DC)	0.012 A
Coil operating voltage (DC)	19.8 V
Coil power	288 mW
Coil release voltage (DC)	3.6 V
Coil resistance	2200 Ω
Maximum coil voltage (DC)	24 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	2A@500VAC
Maximum contact current (AC)	2 A
Maximum contact current (DC)	2 A
Contact (DC) maximum rated R load	2A@500VDC
Maximum contact voltage (AC)	500 V
Maximum contact voltage (DC)	500 V
Contact/Output Power Type	AC/DC
JESD-609 code	e3
Manufacturer's serial number	3324131271
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	1.2 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
method of packing	BULK
physical size	20.5mm x 5.8mm x 8mm
Guideline	UL
Relay action	MOMENTARY
Relay function	SPST
Relay type	DRY REED RELAY
release time	1 ms
seal	WATER PROOF
surface mount	NO
Terminal surface	TIN
Termination type	SOLDER
Base Number Matches	1
