M83536/12-009L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> M83536/12-009L

M83536/12-009L: DescriptionPower/Signal Relay, 2 Form C, DPDT, Latched, 0.07A (Coil), 28VDC (Coil), 1960mW (Coil), 10A (Contact), 28VDC (Contact), DC Input, Random, AC/DC Output, Panel Mount,; CategoryMechanical and electronic products relay; File Size166KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric View All

M83536/12-009L Overview

Power/Signal Relay, 2 Form C, DPDT, Latched, 0.07A (Coil), 28VDC (Coil), 1960mW (Coil), 10A (Contact), 28VDC (Contact), DC Input, Random, AC/DC Output, Panel Mount,

M83536/12-009L Parametric

Parameter Name	Attribute value
Objectid	8003541430
Reach Compliance Code	compliant
ECCN code	EAR99
body width	13.34 mm
body height	25.65 mm
Body length or diameter	26.04 mm
Maximum coil current (DC)	0.07 A
Coil power	1960 mW
Coil release voltage (DC)	14.5 V
Coil resistance	400 Ω
Maximum coil voltage (DC)	28 V
Nominal coil voltage	28 V
Coil/Input Power Type	DC
Contact (AC) maximum rated load I	8A@115VAC
Contact (AC) maximum rated load M	4A@115VAC
Contact (AC) maximum rated R load	10A@115VAC
Maximum contact current (AC)	10 A
Maximum contact current (DC)	10 A
Contact (DC) maximum rated R load	10A@28VDC
Maximum contact voltage (AC)	115 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	1250 Vrms
Dielectric strength between breaking contacts	1250 Vrms
Electrical life	100000 Cycle(s)
Input switching control type	Random
Insulation resistance	100000000 Ω
Installation features	PANEL MOUNT
Number of terminals	10
operating hours	11 ms
Maximum operating temperature	125 °C
Minimum operating temperature	-70 °C
physical size	26.04mm x 13.34mm x 25.65mm
Guideline	MIL-PRF-83536/12
Relay action	LATCHED
Relay style	2 FORM C
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	10 ms
seal	HERMETICALLY SEALED
surface mount	NO
Terminal length	0.0078 inch
Termination type	SOLDER HOOK
weight	39 g

Preview

Download Datasheet

View All

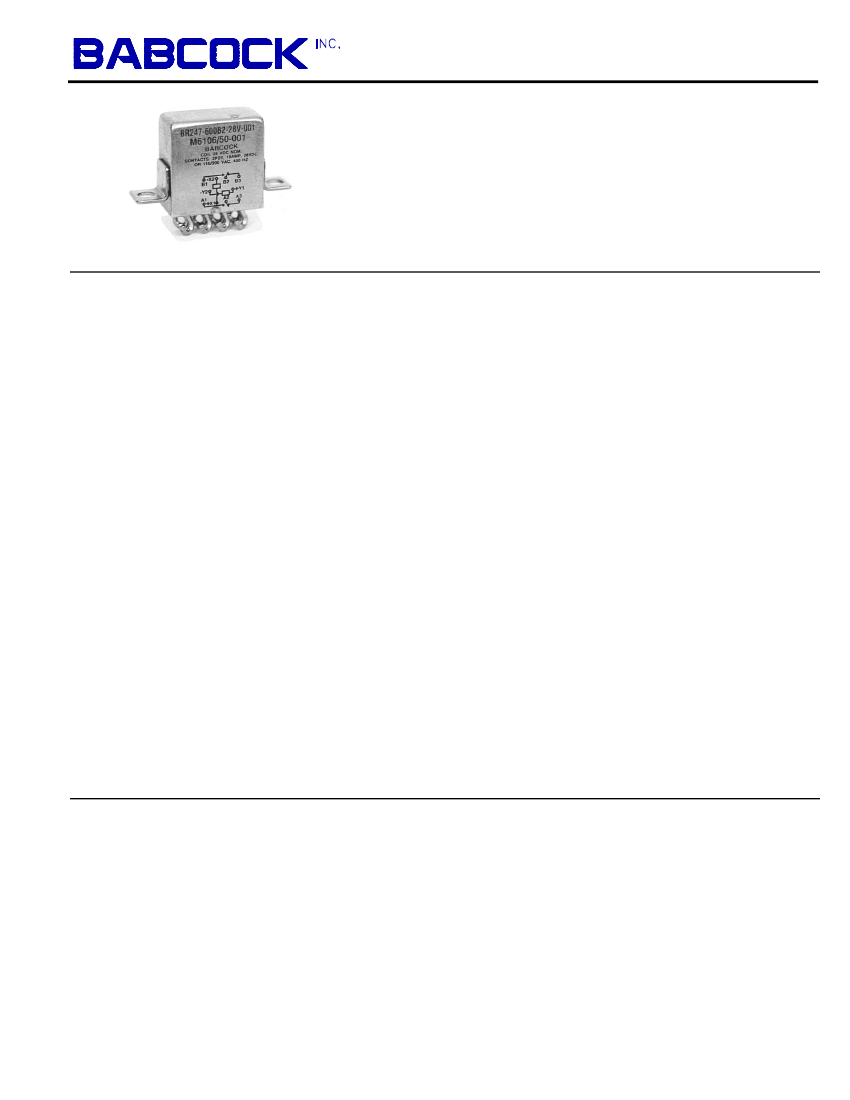

BR247

Miniature

10 Amps • 2PDT

Magnetic Latching

To MIL-PRF-83536

SPECIFICATIONS

GENERAL

Contact Arrangement

.............................. 2PDT (2 Form C)

Magnetic Latching

Weight............................................................1.4

oz approx.

Designed to meet the requirements of MIL-PRF-83536

PERFORMANCE

Contact Rating

(Note 1):

Resistive...................................... 10 Amps @ 28 VDC or

115/208V 400 Hz

Inductive........................................ 8 Amps @ 28 VDC or

115/208V 400 Hz

2.5 Amps @ 115/208V 60 Hz

Motor............................................. 4 Amps @ 28 VDC or

115/208V 400 Hz

2 Amps @ 115/208V 60 Hz

Lamp ............................................. 2 Amps @ 28 VDC or

115/208V 400 Hz

1.5 Amps @ 115/208V 60 Hz

Life

....................... 100,000 operations minimum @ rated

resistive load, 125

Latch/Reset Time:

DC Coil

AC Coil

10 ms max 20 ms max

Excluding bounce time at nominal coil voltage

Contact Bounce Time..........................................

1 ms max

@ rated contact load, 28 VDC

Contact Voltage Drop:

Before Life ............................... 100 mv max @ 10 Amps

and 6 VDC

After Life .................................. 125 mv max @ 10 Amps

and 6 VDC

ENVIRONMENTAL

Temperature Range..................................

-70

C to +125

Vibration

(Note 2).................................0.12" DA 10 - 70 Hz

30 G's 70 - 3,000 Hz

Shock (Operating)(Note

2) .............................200 G's 6 ms

ELECTRICAL CHARACTERISTICS

Duty Cycle

......................................................... Continuous

Insulation Resistance

..................................100 megohms

@ 500V 25

Dielectric Strength:

Sea Level:

Contact to Case ..................................... 1,250 VRMS

Contact to Coil ....................................... 1,250 VRMS

Coil to Case ........................................... 1,000 VRMS

Across Open Contacts ........................... 1,250 VRMS

80,000 Feet:

All Points................................................... 350 VRMS

Latch/Reset Power

....................................500 mw approx.

MIL-PRF-83536/12 QUALIFIED to ER level L

Notes:

For other ratings consult the factory.

For applications requiring higher shock and

vibration, consult the factory.

AC coil line frequency 50 to 400 Hz.

14930 E. Alondra Blvd., La Mirada, CA 90638-5752 (714) 994-6500 FAX (714) 994-3013

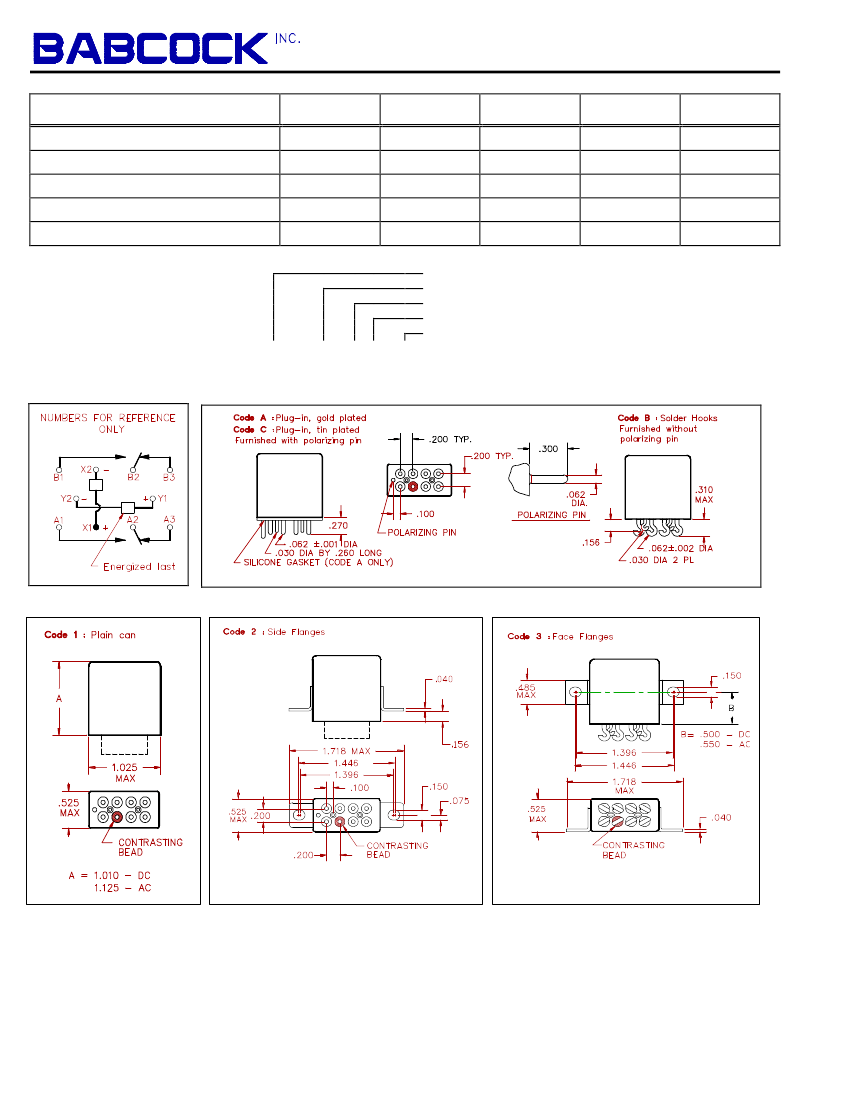

W:2000, Rev. 7
