PD-2.495 rev. A 09/99
89CNQ.. Series
SCHOTTKY RECTIFIER
80 Amp
Major Ratings and Characteristics
Characteristics
I
F(AV)
Rectangular
waveform
V
RRM
I
FSM
@ tp = 5 µs sine
V
F
T
J
@ 40 Apk, T
J
= 125 °C
(per leg)
range
- 55 to 175
°C
Description/Features
Units
A
V
A
V
The 89CNQ center tap Schottky rectifier module has been
optimized for very low forward voltage drop, with moderate
leakage. The proprietary barrier technology allows for reliable
operation up to 175°C junction temperature. Typical
applications are in switching power supplies, converters, free
wheeling diodes, and reverse battery protection.
175 °C T
J
operation
Center tap module
High purity, high temperature epoxy encapsulation for
enhanced mechanical strength and moisture resistance
Low forward voltage drop
High frequency operation
Guard ring for enhanced ruggedness and long term
reliability
Low profile, small footprint, high current package
89CNQ...
80
135 to 150
5000
0.69

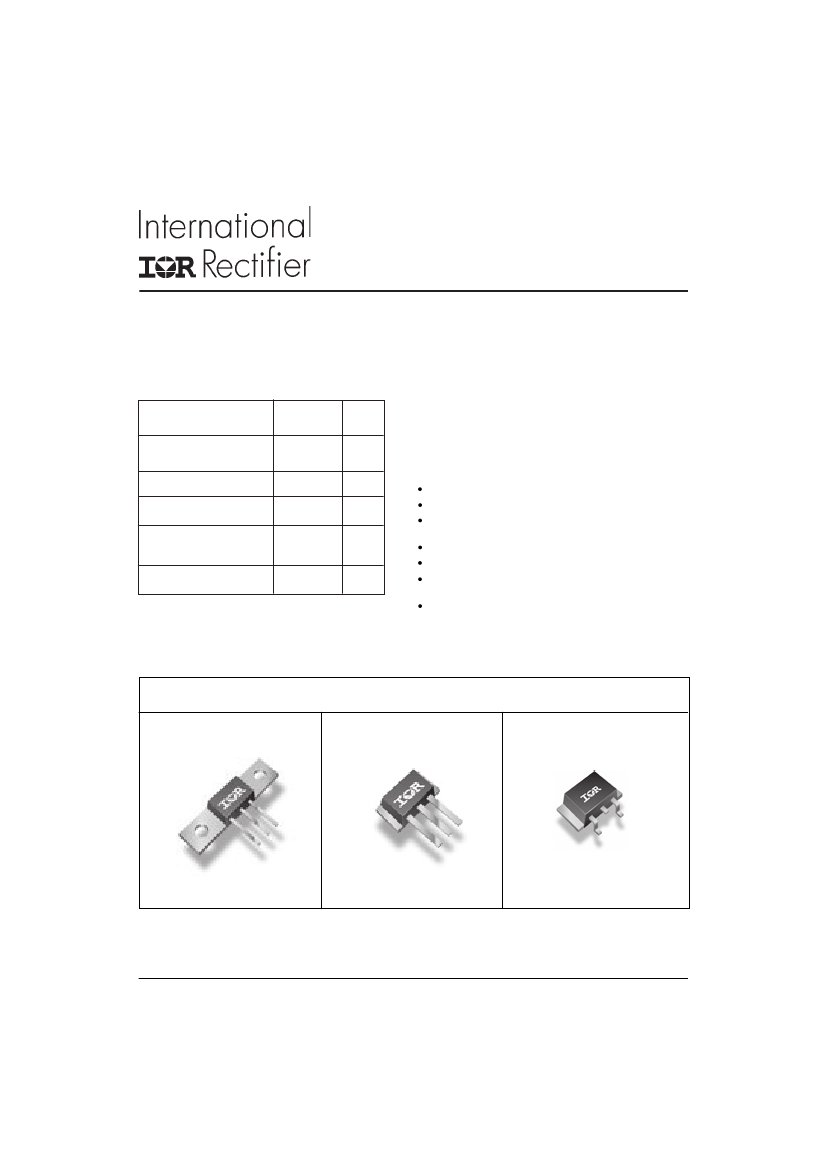

Case Styles
89CNQ...
89CNQ...SM
89CNQ...SL
D61-8
D61-8-SM
D61-8-SL
www.irf.com
1
89CNQ... Series
PD-2.495 rev. A 09/99
Voltage Ratings
Part number
V
R
Max. DC Reverse Voltage (V)
135
150
V
RWM
Max. Working Peak Reverse Voltage (V)
89CNQ135
89CNQ150
Absolute Maximum Ratings
Parameters
I
F(AV)
Max. Av.Forward Current (PerLeg)
See Fig. 5
I
FSM
E
AS
I
AR
(Per Device )
Max. Peak One Cycle Non-Repetitive
Surge Current (Per Leg) See Fig. 7
Non-Repetitive Avalanche Energy
(Per Leg)
Repetitive Avalanche Current
(Per Leg)
89CNQ Units
40
80
5000
590
290
1.0
mJ
A
A
A
(Rated V
R
)
Conditions
50% duty cycle @ T
C
= 130°C, rectangular wave form
Following any rated
load condition and with
10ms Sine or 6ms Rect. pulse rated Vr applied
5µs Sine or 3µs Rect. pulse
T
J
= 25 °C, I
AS
= 1 Amps, L = 18 mH
Current decaying linearly to zero in 1 µsec
Frequency limited by T
J
max. V
A
= 1.5 x V
R
typical
Electrical Specifications
Parameters
V
FM
Max. Forward Voltage Drop
(Per Leg)
See Fig. 1
(1)
89CNQ Units
0.99
1.14
0.69
0.78
1.5
21
866
5.5
10,000
V
V
V
V
mA
mA
pF
nH
V/ µs
@ 40A
@ 80A
@ 40A
@ 80A
Conditions
T
J
= 25 °C
T
J
= 125 °C
V
R
= rated V
R
I
RM
C
T
L
S
Typical Reverse Leakage Current
(Per Leg)
See Fig. 2
(1)
Max. Junction Capacitance (Per Leg)
Typical Series Inductance (Per Leg)
T
J
= 25 °C
T
J
= 125 °C
V
R
= 5V
DC
, (test signal range 100Khz to 1Mhz) 25°C
Measured lead to lead 5mm from package body
dv/dt Max. Voltage Rate of Change
(Rated V
R
)
(1) Pulse Width < 300µs, Duty Cycle <2%
Thermal-Mechanical Specifications
Parameters
T
J
T
stg
Max. Junction Temperature Range
Max. Storage Temperature Range
89CNQ Units
-55 to 175
-55 to 175
0.85
0.42
0.30
°C
°C
Conditions
R
thJC
Max. Thermal Resistance Junction
to Case (Per Leg)
R
thJC
Max. Thermal Resistance Junction
to Case (Per Package)
R
thCS
Typical Thermal Resistance, Case
to Heatsink
(D61-8 Only)
wt
T
Approximate Weight
Mounting Torque
(D61-8 Only)
Min.
Max.
°C/W DCoperation
°C/W DC operation
°C/W Mounting surface , smooth and greased
7.8 (0.28) g (oz.)
40 (35)
58 (50)
Kg-cm
(Ibf-in)
2
www.irf.com
89CNQ... Series
PD-2.495 rev. A 09/99
1000
1000
T = 175°C
Reverse Current - I
R
(mA)
100
10
1
0.1
0.01
0.001
0
30
60
90
120
150
Reverse Voltage - V
R
(V)
J
150°C
125°C
100°C
75°C
50°C
25°C
(A)
Instantaneous Forward Current - I
F
100
T = 175°C
J
J
J

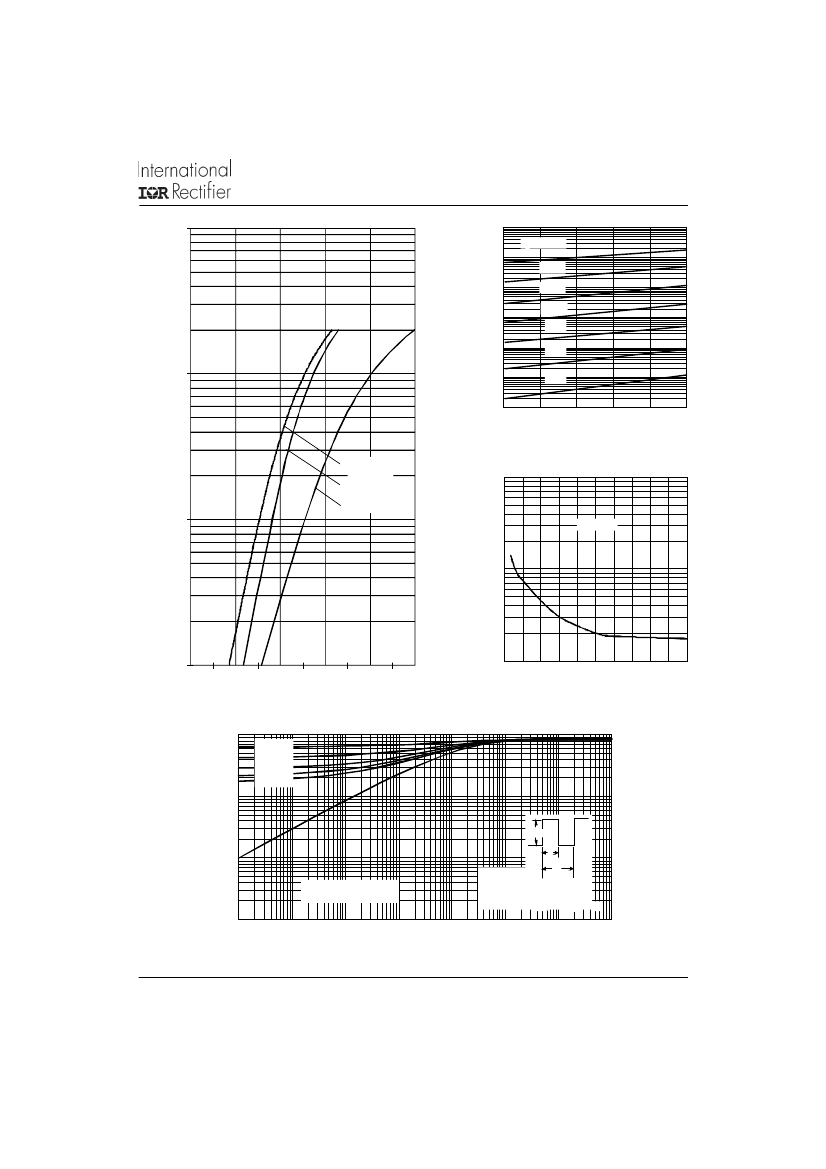

Fig. 2 - Typical Values Of Reverse Current
Vs. Reverse Voltage (Per Leg)
10000
(pF)
T
T = 125°C
T = 25°C
10
Junction Capacitance - C
T = 25°C
J
1000
1
0
0.3
0.6
0.9
1.2
1.5
Forward Voltage Drop - V
FM
(V)
100
0
30
60
90
120
150
Reverse Voltage - V
R
(V)
Fig. 1 - Max. Forward Voltage Drop Characteristics
(PerLeg)
1
Thermal Impedance Z
thJC
(°C/W)
D
D
D
D
D
0.1
=
=
=
=
=
0.75
0.50
0.33
0.25
0.20
Fig. 3 - Typical Junction Capacitance
Vs. Reverse Voltage (Per Leg)
P
DM
0.01
Notes:
Single Pulse
(Thermal Resistance)
0.001
0.00001
t1
t2
1. Duty factor D = t 1/ t 2
2. Peak T
J
= P
DM
x Z
thJC
+ T
C
0.1
1
10
100
0.0001
0.001
0.01
t 1 , Rectangular Pulse Duration (Seconds)
Fig. 4 - Max. Thermal Impedance Z
thJC
Characteristics (Per Leg)
www.irf.com
3
89CNQ... Series
PD-2.495 rev. A 09/99
180
Allowable Case Temperature - (°C)
170
160
150
140
130
120
110
100
90
80
0
10
20
30
40
50
60
Average Forward Current - I
F(AV)
(A)
see note (2)
40
DC
Average Power Loss - (Watts)
30
D = 0.20
D = 0.25
D = 0.33
D = 0.50
D = 0.75
RMS Limit
DC
20
Square wave (D = 0.50)
Rated V
R
applied
10
0
0
10
20
30
40
50
60
Average Forward Current - I
F(AV)
(A)
Fig. 5 - Max. Allowable Case Temperature
Vs. Average Forward Current (Per Leg)
10000
FSM
Fig. 6 - Forward Power Loss Characteristics
(PerLeg)
Non-Repetitive Surge Current - I
(A)
1000
At Any Rated Load Condition
And With Rated V
Applied
RRM
Following Surge
100
10
100
1000
10000
Square Wave Pulse Duration - t p (microsec)
Fig. 7 - Max. Non-Repetitive Surge Current (Per Leg)
L
HIGH-SPEED
SWITCH
FREE-WHEEL
DIODE
40HFL40S02
Vd = 25 Volt
DUT
IRFP460
Rg = 25 ohm
+
CURRENT
MONITOR
Fig. 8 - Unclamped Inductive Test Circuit
(2)
Formula used: T
C
= T
J
- (Pd + Pd
REV
) x R
thJC
;
Pd = Forward Power Loss = I
F(AV)
x V
FM
@ (I
F(AV)
/
D) (see Fig. 6);
Pd
REV
= Inverse Power Loss = V
R1
x I
R
(1 - D); I
R
@ V
R1
= Rated V
R
4
www.irf.com
89CNQ... Series
PD-2.495 rev. A 09/99

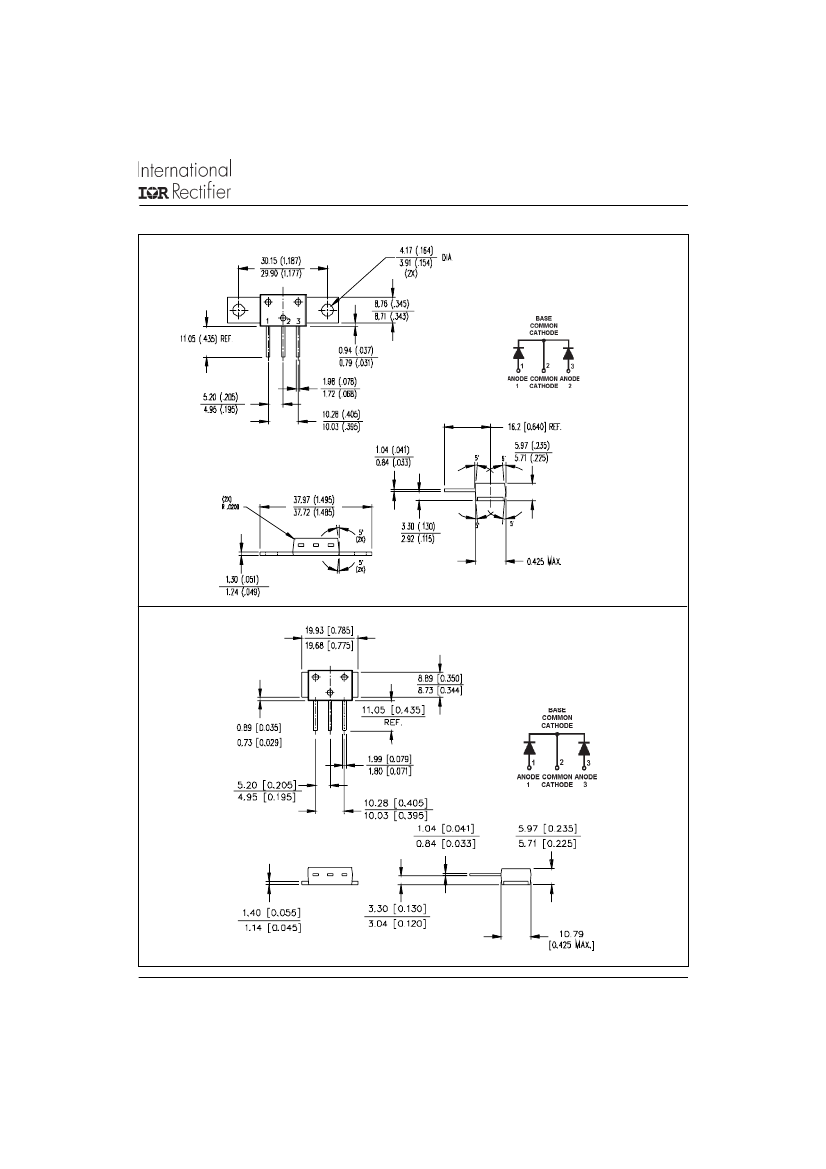

Outline Table
Outline D61-8
Dimensions are in millimeters and (inches)
Outline D61-8-SM
Dimensions are in millimeters and (inches)
www.irf.com
