SFN22602BEGNHFW datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> SFN22602BEGNHFW

SFN22602BEGNHFW: DescriptionFixed Resistor, Thin Film, 0.25W, 226000ohm, 100V, 0.1% +/-Tol, -25,25ppm/Cel, 0202,; CategoryPassive components The resistor; File Size101KB，3 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

SFN22602BEGNHFW Overview

Fixed Resistor, Thin Film, 0.25W, 226000ohm, 100V, 0.1% +/-Tol, -25,25ppm/Cel, 0202,

SFN22602BEGNHFW Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	992099769
Reach Compliance Code	unknown
Country Of Origin	USA
ECCN code	EAR99
YTEOL	8.2
structure	Chip
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	0.254 mm
Package length	0.51 mm
Package form	SMT
Package width	0.51 mm
method of packing	Waffle Pack
Rated power dissipation(P)	0.25 W
resistance	226000 Ω
Resistor type	FIXED RESISTOR
series	SFN
size code	0202
technology	THIN FILM
Temperature Coefficient	-25,25 ppm/°C
Tolerance	0.1%
Operating Voltage	100 V

Preview

Download Datasheet

View All

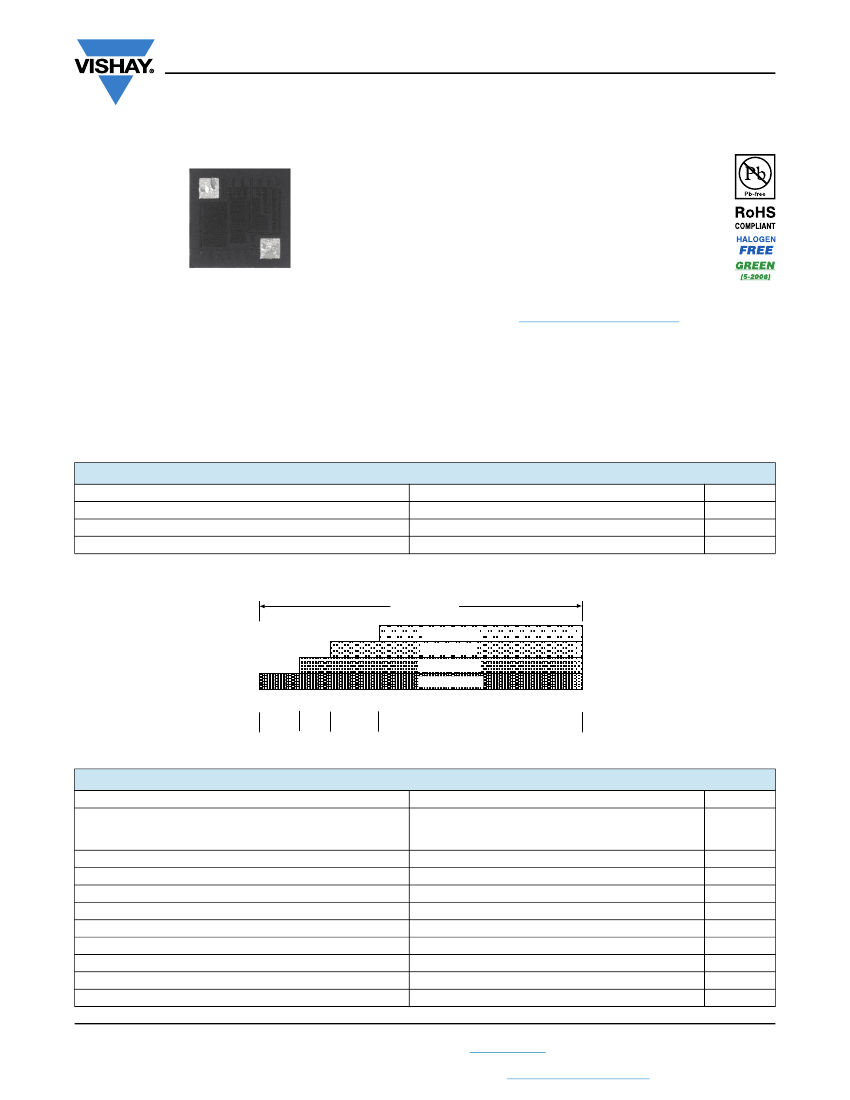

SFN

www.vishay.com

Vishay Electro-Films

NiCr Thin Film, Top-Contact Resistor

FEATURES

•

Wire bondable

Chip size: 0.020" square

Case: 0202

Resistance range: 20

to 510 kΩ

Resistor material: Nichrome

Oxidized silicon substrate

125 mW power

Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

Product may not be to scale

The SFN series resistor chips offer a combination of

nichrome stability, good power rating and small size.

The SFNs are manufactured using Vishay Electro-Films (EFI)

sophisticated thin film equipment and manufacturing

technology. The SFNs are 100 % electrically tested and

visually inspected to MIL-STD-883, method 2032, class H or

class K.

APPLICATIONS

Vishay EFI SFN resistor chips are widely used in hybrid

packages where space is limited. Designed with capacity to

handle substantial power loads, they also have the benefit of

nichrome stability.

Recommended for hermetic environments where die is not

exposed to moisture.

TEMPERATURE COEFFICIENT OF RESISTANCE, VALUES, AND TOLERANCES

PARAMETER

Total Resistance Range

Standard Tolerances

TCR

VALUE

20 to 510K

± 0.1

± 10, ± 25, ± 50, ± 100, ± 250

UNIT

ppm/°C

Tightest Standard Tolerance Available

0.1 %

± 10 ppm/°C

± 25 ppm/°C

± 50 ppm/°C

± 100 ppm/°C

100

1 kΩ

510 kΩ

STANDARD ELECTRICAL SPECIFICATIONS

PARAMETER

Noise, MIL-STD-202, Method 308

100

to 250 kΩ

< 100

or > 251 kΩ

Stability, 1000 h, +125 °C, 50 mW

Operating Temperature Range

Thermal Shock, MIL-STD-202, Method 107, Test Condition F

High Temperature Exposure, +150 °C, 100 h

Dielectric Voltage Breakdown

Insulation Resistance

Operating Voltage

DC Power Rating at +70 °C (Derated to Zero at +175 °C)

5 x Rated Power Short-Time Overload, +25 °C, 5 s

Revision: 25-Mar-2021

VALUE

-35 typ.

-20 typ.

± 0.25 max.

ΔR/R

-55 to +125

± 0.25 max.

ΔR/R

± 0.5 max.

ΔR/R

200

min.

100 max.

0.125

± 0.25 max.

ΔR/R

UNIT

°C

Document Number: 61025

For technical questions, contact:

efi@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

Legal Disclaimer Notice

www.vishay.com

Vishay

Disclaimer

ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of

typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding

statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a

particular product with the properties described in the product specification is suitable for use in a particular application.

Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over

time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk.

Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for

such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document

or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Revision: 01-Jan-2021

Document Number: 91000

Recommended Resources

Overvoltage protection circuit

MP3 FM radio circuit

The direction of current in the coil of a brushed motor and the direction of rotation of the rotor under force at a certain moment

Dedicated fast charger circuit for walkie-talkies

Delay circuit for long-term open circuit

Disinfection cabinet electronic control circuit

Upgrading bootloader failed, check the short-circuit interfaces and study again: Continuing from the previous post, KW41Z's Best Partner - [NXP Kinetis MCU] - Electronic Engineering World Forum [url]https://bbs.eeworld.com.cn/thread-529560-1-1.html[/url] According to Freescale's u...; suoma NXP MCU

Can I add components to the vxsim simulation environment? How to configure vxworks: How to include INCLUDE_POSIX_SCHED when using POSIX functions in vxsim simulation environment? If the project (downloadable) is not selected, can the project not select component configuration? Is the...; taoym101 Real-time operating system RTOS

How to understand "everything is a file"? Answer from the perspective of the application layer and the driver layer.: Dear experts, how do you understand "everything is a file"? Please answer from the perspective of the application layer and the driver layer....; zhengjiewen Linux and Android

[Design Tools] This document introduces the FPGA operation steps for a certain function using ISE10.1: The document introduces the steps of using ISE10.1 to perform FPGA operations for a certain function, including the steps of creating a new document, synthesis, functional simulation, compilation and ...; GONGHCU FPGA/CPLD

The LPC2138 P1 port connected to the 1602 LCD simulation in Pretous cannot display! !: I am building a virtual simulation platform in Proteus. When using LM1602, the sent data cannot be displayed normally. I have successfully used the same code in the P0 port of LPC2106. Because there a...; chengchuanqing Embedded System

After the layer is locked, Blt returns DDERR_SURFACEBUSY. Who returns it?: Is there any lock when executing Blt? If yes, where is it added? There is no lock in HalBlt. When the layer is locked, the Blt operation directly returns DDERR_SURFACEBUSY without entering HalBlt oper...; friday505 Embedded System
