* RoHS = Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment
"RoHS compliant" means that the product or part does not contain any of the following substances in excess of the following maximum concentration values
in any homogeneous material, unless the substance is in an application that is exempt under RoHS: (a) 0.1% (by weight) for lead, mercury, hexavalent
chromium, polybrominated biphenyls or polybrominated diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by 3M in writing,
this information represents 3M's knowledge and belief based upon information provided by third party suppliers to 3M.
3
Interconnect Solutions
http://www.3M.com/interconnects/
O
Insulation Resistance:
10
3
MΩ min at 250 VDC
Withstanding Voltage:
200 VAC for 1 minute
Temperature Rating:
-55°C to +85°C
Process Rating:
260°C (per J-STD-020C)
IN
U
0.3 A
E
D
10
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
20
11
TS-1153-02
Sheet 1 of 4

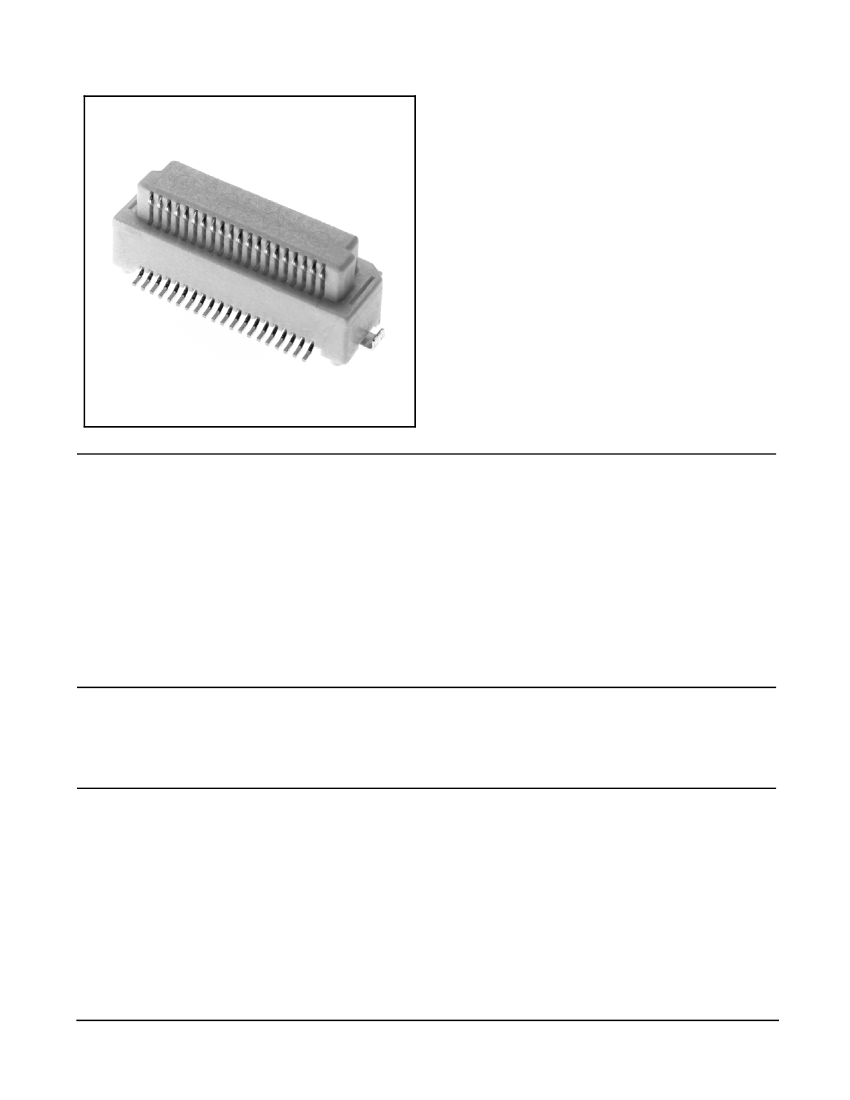

3M
™

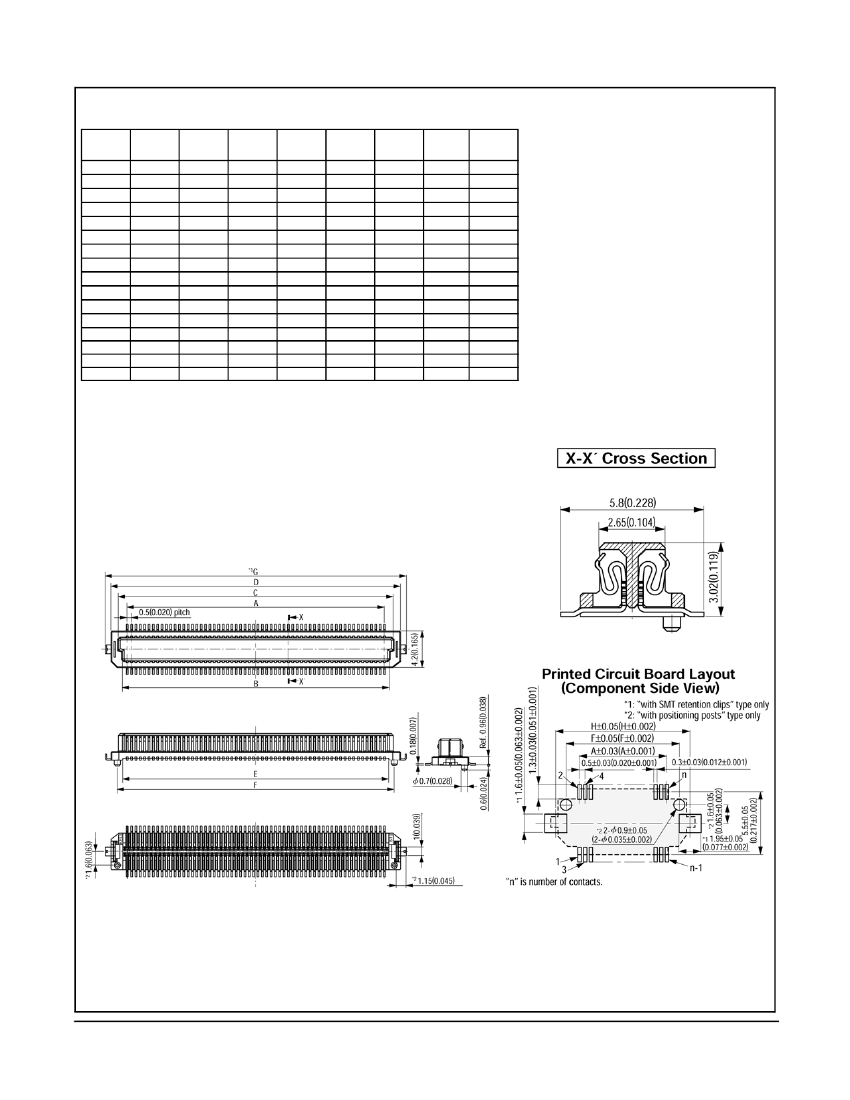

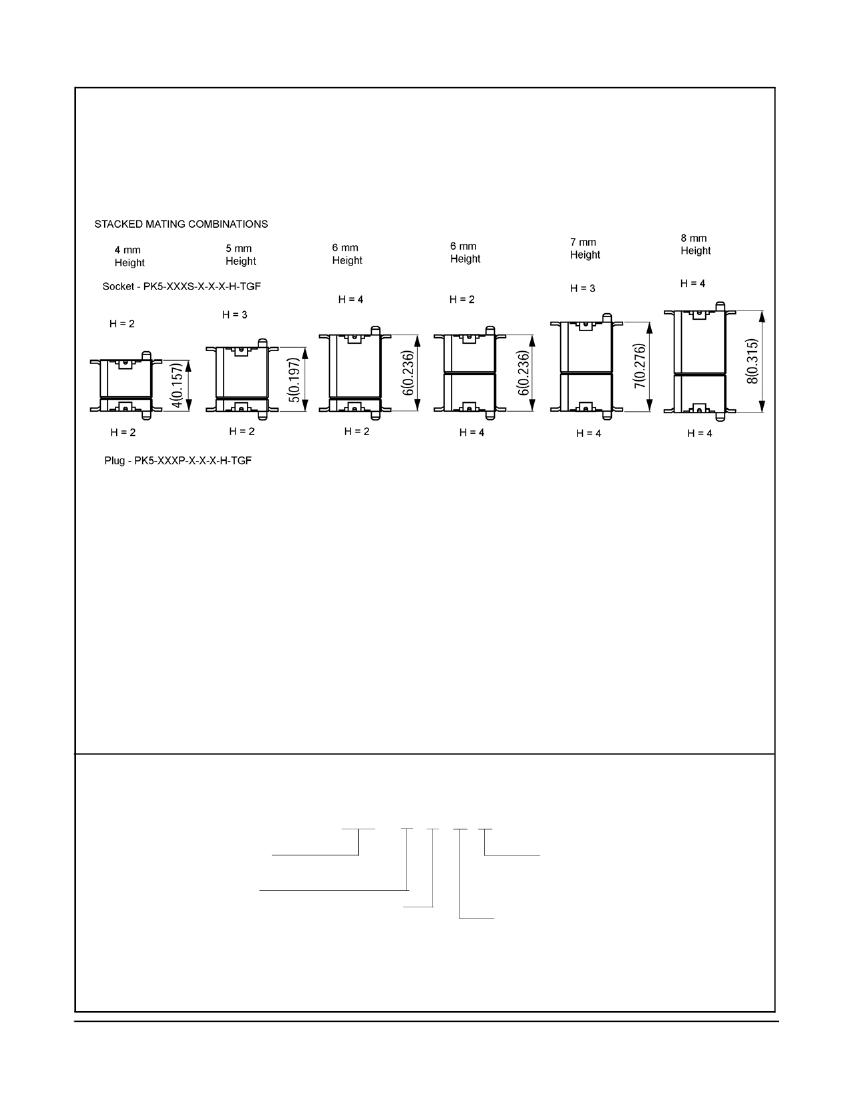

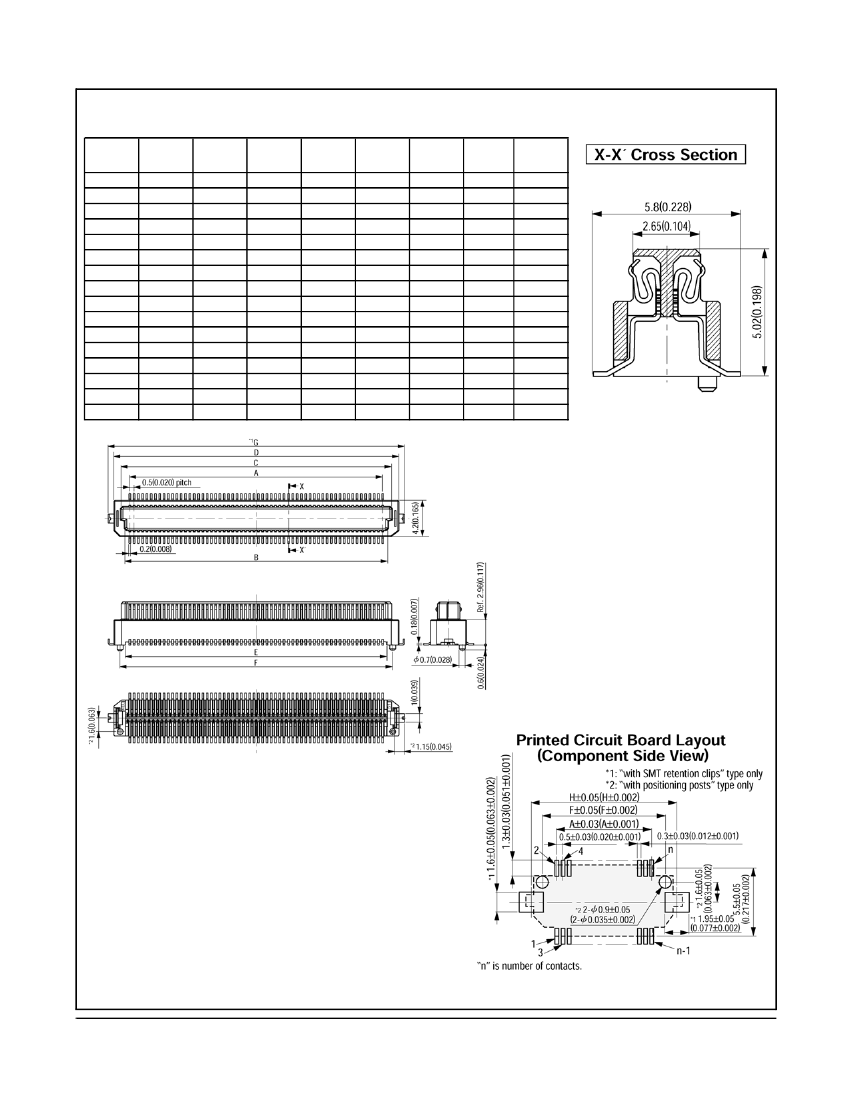

Pak 5 Plug
0.5 mm Straight SMT Plug
Plug for 4, 5, 6 mm stacked height.
Product Table / Dimensions
Contact
Quantity
40
50
60
80
100
120
140
160
A
9.50
[0.374]
12.00
[0.472]
14.50
[0.571]
19.50
[0.768]
24.50
[0.965]
29.50
[1.161]
34.50
[1.358]
39.50
[1.555]
B
10.62
[0.418]
13.12
[0.517]
15.62
[0.615]
20.62
[0.812]
25.62
[1.009]
30.62
[1.206]
35.62
[1.402]
40.62
[1.599]
C
11.52
[0.454]
14.02
[0.552]
16.52
[0.650]
21.52
[0.847]
26.52
[1.044]
31.52
[1.241]
36.52
[1.438]
41.52
[1.635]
D
13.22
[0.520]
15.72
[0.619]
18.22
[0.717]
23.22
[0.914]
28.22
[1.111]
33.22
[1.308]
38.22
[1.505]
43.22
[1.702]
E
10.50
[0.413]
13.00
[0.512]
15.50
[0.610]
20.50
[0.807]
25.50
[1.004]
30.50
[1.201]
35.50
[1.398]
40.50
[1.594]
F
11.76
[0.463]
14.26
[0.561]
16.76
[0.660]
21.76
[0.857]
26.76
[1.054]
31.76
[1.250]
36.76
[1.447]
41.76
[1.644]
G
14.54
[0.572]
17.04
[0.671]
19.54
[0.769]
24.54
[0.966]
29.54
[1.163]
34.54
[1.360]
39.54
[1.557]
44.54
[1.754]
H
13.59
[0.535]
16.09
[0.633]
18.59
[0.732]
23.59
[0.929]
28.59
[1.126]
33.59
[1.322]
38.59
[1.519]
43.59
[1.716]
PK5 Series
D
IS
C
O
N
T
IN
U
E
D
10
TS-1153-02
Sheet 2 of 4
3
Interconnect Solutions
http://www.3M.com/interconnects/
/2
0/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
20
11
3M
™
Pak 5 Plug
0.5 mm Straight SMT Plug
Plug for 6, 7, 8 mm stacked height.
Product Table / Dimensions
Contact
Quantity
40
50
60
80
100
120
140
160
A
9.50
[0.374]
12.00
[0.472]
14.50
[0.571]
19.50
[0.768]
24.50
[0.965]
29.50
[1.161]
34.50
[1.358]
39.50
[1.555]
B
10.62
[0.418]
13.12
[0.517]
15.62
[0.615]
20.62
[0.812]
25.62
[1.009]
30.62
[1.206]
35.62
[1.402]
40.62
[1.599]
C
11.52
[0.454]
14.02
[0.552]
16.52
[0.650]
21.52
[0.847]
26.52
[1.044]
31.52
[1.241]
36.52
[1.438]
41.52
[1.635]
D
13.22
[0.520]
15.72
[0.619]
18.22
[0.717]
23.22
[0.914]
28.22
[1.111]
33.22
[1.308]
38.22
[1.505]
43.22
[1.702]
E
10.50
[0.413]
13.00
[0.512]
15.50
[0.610]
20.50
[0.807]
25.50
[1.004]
30.50
[1.201]
35.50
[1.398]
40.50
[1.594]
F
11.76
[0.463]
14.26
[0.561]
16.76
[0.660]
21.76
[0.857]
26.76
[1.054]
31.76
[1.250]
36.76
[1.447]
41.76
[1.644]
G
14.54
[0.572]
17.04
[0.671]
19.54
[0.769]
24.54
[0.966]
29.54
[1.163]
34.54
[1.360]
39.54
[1.557]
44.54
[1.754]
H
13.59
[0.535]
16.09
[0.633]
18.59
[0.732]
23.59
[0.929]
28.59
[1.126]
33.59
[1.322]
38.59
[1.519]
43.59
[1.716]
PK5 Series
D
IS
C
O
N
T
IN
U
E
D
10
TS-1153-02
Sheet 3 of 4
3
Interconnect Solutions
http://www.3M.com/interconnects/
/2
0/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
20
11
3M
™
Pak 5 Plug
0.5 mm Straight SMT Plug
PK5 Series
Ordering Information
C
O
N
IS
T
IN
U
PK5 - XXXP - X - X - X - X - GGF
2 = Mating Height of 4, 5, 6 mm
4 = Mating Height of 6, 7, 8 mm
Contact Quantity
See Table
D
C = With Retention Clips
(Tape and Reel only)
Omit = Without Clips
L = With Location Posts
Omit = Without Posts
E
T = Tape and Reel
Omit = In Tube
D
10
TS-1153-02
Sheet 4 of 4
3
Interconnect Solutions
http://www.3M.com/interconnects/
/2
0/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
20
11
Important Notice
