ASPI-0403S-470-M datasheet, PDF

Datasheet> All Categories > Passive components> inductor> ASPI-0403S-470-M

ASPI-0403S-470-M: DescriptionGeneral Purpose Inductor, 47uH, 20%, 1 Element, SMD, 2618, ROHS COMPLIANT; CategoryPassive components inductor; File Size225KB，1 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASPI-0403S-470-M Overview

General Purpose Inductor, 47uH, 20%, 1 Element, SMD, 2618, ROHS COMPLIANT

ASPI-0403S-470-M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
package instruction	2618
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	2618
structure	Shielded
DC Resistance	0.23 Ω
Nominal inductance(L)	47 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	ASPI-0403S
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package height	3.05 mm
Package length	6.6 mm
Package form	SMT
Package width	4.57 mm
Maximum rated current	0.5 A
self resonant frequency	20 MHz
series	ASPI0403S
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

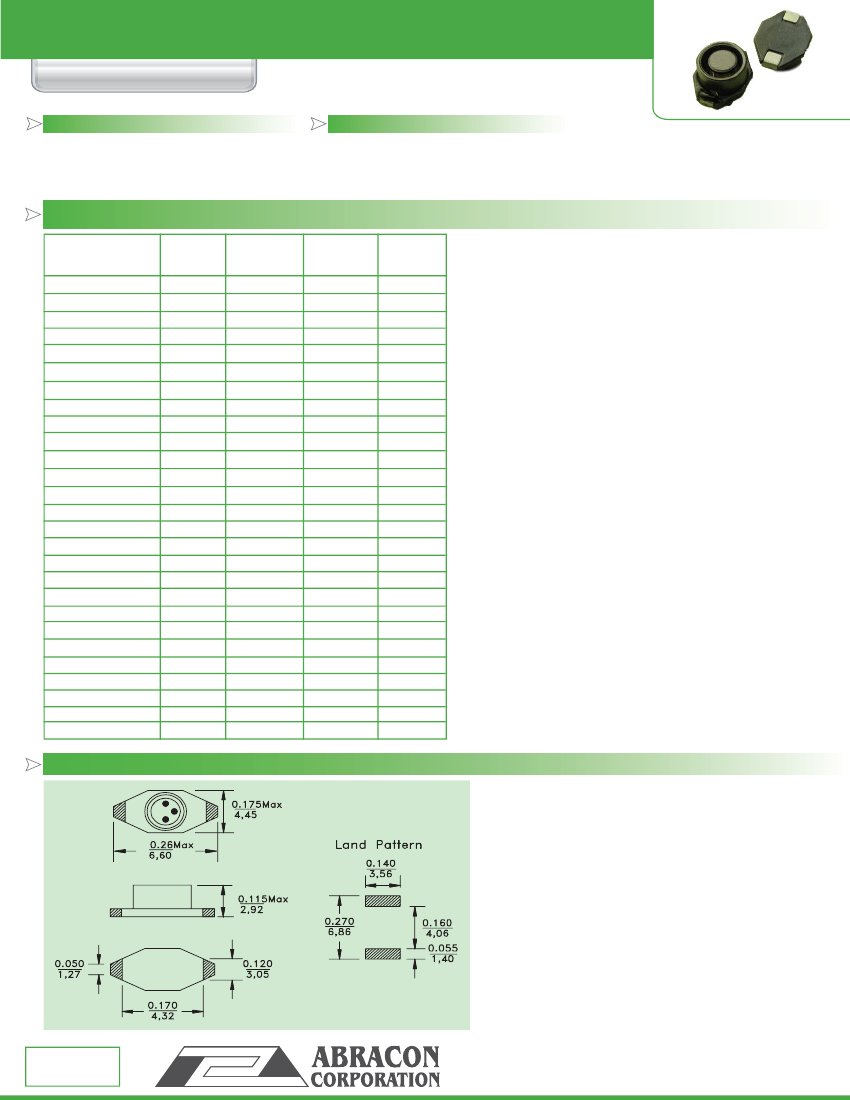

SURFACE MOUNT SHIELDED POWER INDUCTORS

ASPI-0403S SERIES

FEATURES:

• Very small foot print

• Flat-top for pick &place

APPLICATIONS:

• DC/DC converter

• PDA's flash Memory

• Step-up, Step-down converters

RoHS

Compliant

| | | | | | | | | | | | | | |

ELECTRICAL SPECIFICATIONS:

PART NO

ASPI-0403S-

1R0M

1R5M

2R2M

3R3M

4R7M

5R6M

6R8M

1 00 M

150M

220M

330M

470M

680M

101M

151M

221M

331M

471M

681M

102M

152M

222M

332M

472M

682M

822M

103M

Lp±20%

(

1.0

1.5

2.2

3.3

4.7

5.6

6.8

100

150

220

330

470

6 80

1000

1500

2200

3300

4700

6800

8200

10000

DCR

(

Ω)

Max

0.040

0.045

0.050

0.055

0.060

0.063

0.065

0.075

0.090

0.11

0.19

0.23

0.29

0.48

0.59

0.77

1.40

1.80

2.20

3.40

4.20

8.50

11.0

13.9

25.0

27.0

32.8

RMS

(A) Max

3.0

2.8

1.8

1.6

1.4

1. 3

1.2

1. 0

0.8

0.7

0.6

0.5

0.4

0.3

0.26

0.22

0.20

0.19

0.18

0.15

0.12

0.10

0.08

0.06

0.04

0.03

0.02

SRF

MHz Typ

250

125

120

105

0.9

0.8

OUTLINE DRAWING:

TECHNICAL INFORMATION:

•

Operating temperature:

-40°C to +85°C

•

Test Conditions:

100KHz, 0.1V

RMS

•

Marking:

EIA color code or value

•

Lp tolerance:

M = ±20%

•

T 30°C

temperature rise max at

RMS

•

Insulation core to winding:

10M

min

•

Add:

-T

for Tape and Reel, 2000 pcs per reel

Note:

All specifications subject to change

without notice.

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Revised: 06.27.07

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
