5962-8959818QZA datasheet, PDF

Datasheet> All Categories > storage> storage> 5962-8959818QZA

5962-8959818QZA: DescriptionStandard SRAM, 128KX8, 45ns, CMOS, 0.400 INCH, DFP-32; Categorystorage storage; File Size730KB，15 Pages; Manufacturere2v technologies

Download Datasheet Parametric Compare View All

5962-8959818QZA Overview

Standard SRAM, 128KX8, 45ns, CMOS, 0.400 INCH, DFP-32

5962-8959818QZA Parametric

Parameter Name	Attribute value
Parts packaging code	DFP
package instruction	DFP,
Contacts	32
Reach Compliance Code	unknow
ECCN code	3A001.A.2.C
Maximum access time	45 ns
JESD-30 code	R-XDFP-F32
JESD-609 code	e0
length	20.825 mm
memory density	1048576 bi
Memory IC Type	STANDARD SRAM
memory width	8
Number of functions	1
Number of terminals	32
word count	131072 words
character code	128000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	128KX8
Package body material	UNSPECIFIED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class Q
Maximum seat height	2.72 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
width	10.415 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Features

•

Operating Voltage: 5V

•

Access Time: 30, 45 ns

•

Very Low Power Consumption

– Active: 250 mW (Typ)

– Standby: 1 µW (Typ)

– Data Retention: 0.5 µW (Typ)

Wide Temperature Range: -55°C to +125°C

400 Mils Width Packages: FP32 and SB32

TTL Compatible Inputs and Outputs

Asynchronous

Single 5V Supply

Equal Cycle and Access Time

Gated Inputs:

– No Pull-up/down

– Resistors Are Required

QML Q and V with SMD 5962-89598

•

Rad. Tolerant

128K x 8

Very Low Power

5V CMOS SRAM

M65608E

Description

The M65608E is a very low power CMOS static RAM organized as 131072 x 8 bits.

Atmel brings the solution to applications where fast computing is as mandatory as low

consumption, such as aerospace electronics, portable instruments, or embarked

systems.

Utilizing an array of six transistors (6T) memory cells, the M65608E combines an

extremely low standby supply current (Typical value = 0.2 µA) with a fast access time

at 30 ns over the full military temperature range. The high stability of the 6T cell pro-

vides excellent protection against soft errors due to noise.

The M65608E is processed according to the methods of the latest revision of the MIL

STD 883 (class B or S), ESA SCC 9000 or QML.

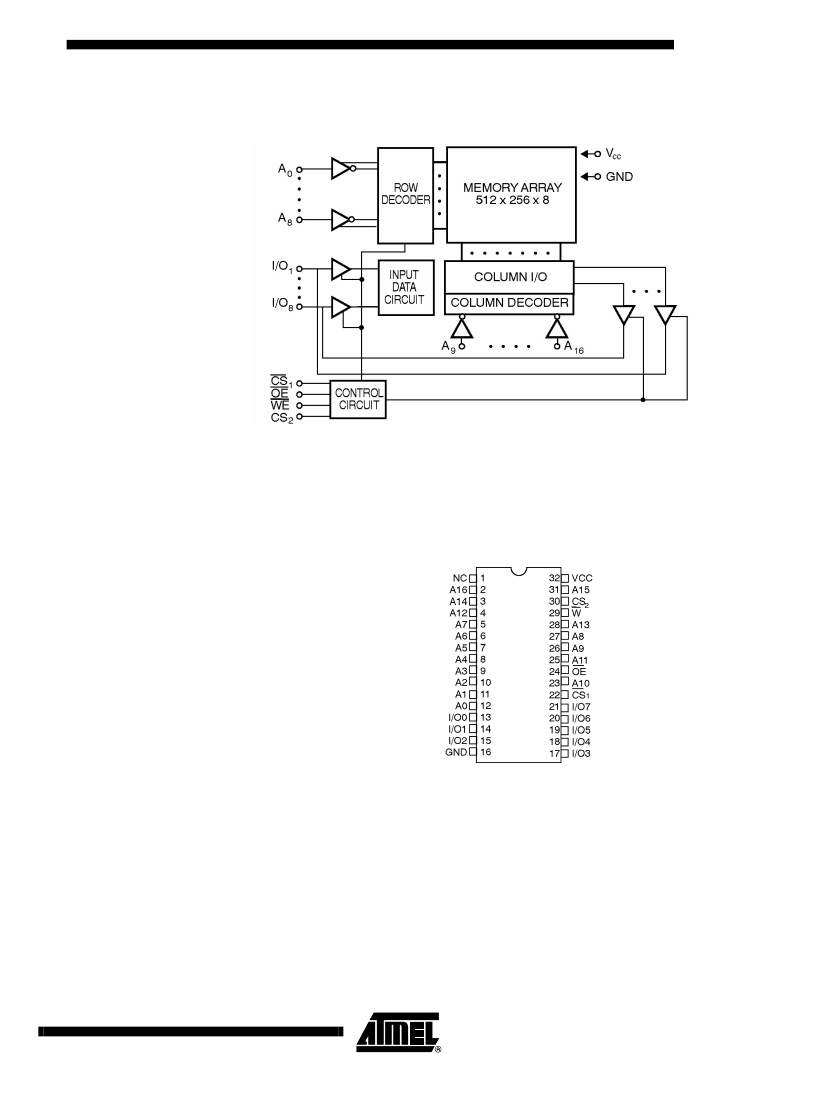

Rev. 4151H–AERO–06/03

5962-8959818QZA Related Products

	5962-8959818QZA	5962-8959818VZA
Description	Standard SRAM, 128KX8, 45ns, CMOS, 0.400 INCH, DFP-32	Standard SRAM, 128KX8, 45ns, CMOS, CDIP32, 0.400 INCH, SIDE BRAZED, DIP-32
Parts packaging code	DFP	DIP
package instruction	DFP,	DIP,
Contacts	32	32
Reach Compliance Code	unknow	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C
Maximum access time	45 ns	45 ns
JESD-30 code	R-XDFP-F32	R-CDIP-T32
JESD-609 code	e0	e0
length	20.825 mm	40.64 mm
memory density	1048576 bi	1048576 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM
memory width	8	8
Number of functions	1	1
Number of terminals	32	32
word count	131072 words	131072 words
character code	128000	128000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
organize	128KX8	128KX8
Package body material	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified
Filter level	MIL-PRF-38535 Class Q	MIL-PRF-38535 Class V
Maximum seat height	2.72 mm	4.32 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal surface	TIN LEAD	TIN LEAD
Terminal form	FLAT	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL
width	10.415 mm	10.16 mm
Base Number Matches	1	1
