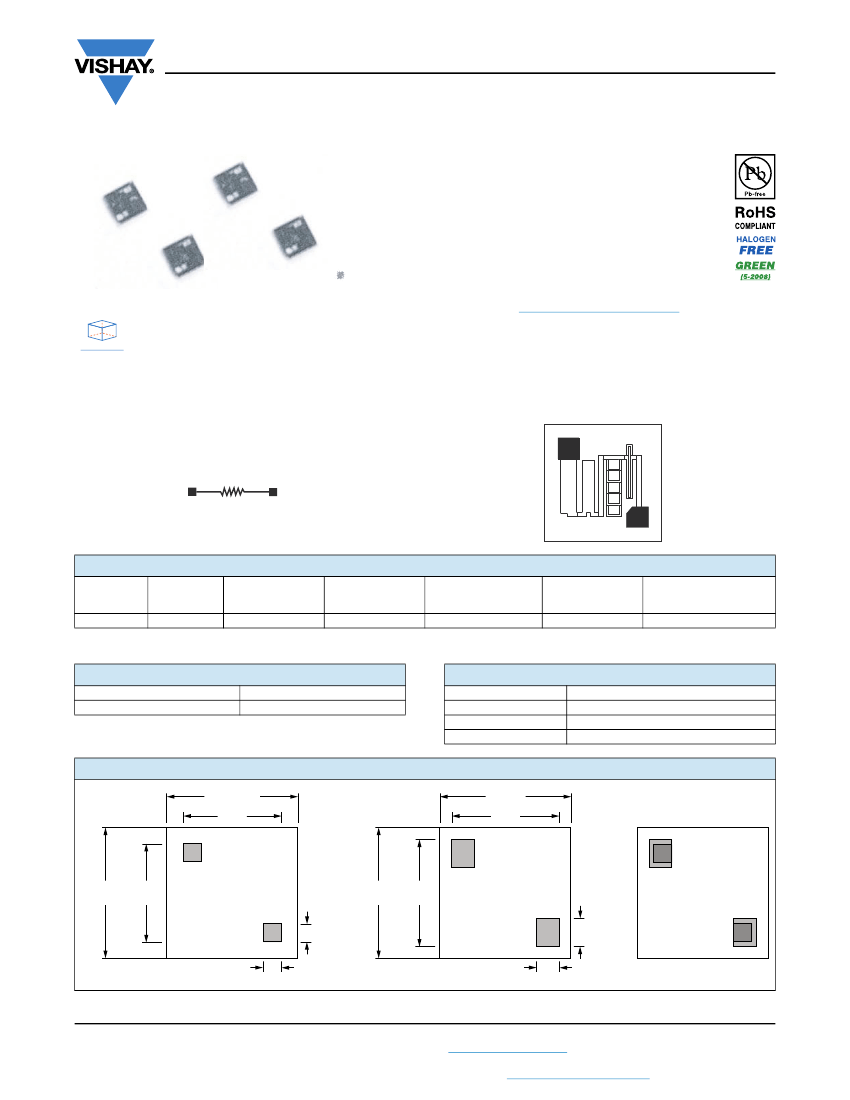

TA22
www.vishay.com
Vishay Sfernice
Single Value Wirebondable Thin Film Chip Resistors
FEATURES
• Small size 20 mil square
• Resistance range 10
to 1 M
• Resistor material: self-passivating tantalum
nitride
• Silicon substrate for good power dissipation
Actual Size
• Wirebondable
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
LINKS TO ADDITIONAL RESOURCES
D
D
3
3
3D Models
Thin film resistors are often an excellent solution for analog design problems where space is limited and high packing density
is required. Due to their Tantalum Nitride resistive layer these resistors are stable 0.07 % (2000 h, rated power at +70 °C) and
moisture resistant.
SCHEMATIC AND PATTERN
R
STANDARD ELECTRICAL SPECIFICATIONS
MODEL
TA22
Note
(1)
On request
SIZE
0202
RESISTANCE
RANGE
10 to 1M
RATED POWER
P
70 °C
W
0.05
LIMITING ELEMENT
VOLTAGE
V
100
TOLERANCE
±%
0.5, 1.0, 2.0
TEMPERATURE
COEFFICIENT
± ppm/°C
50
(1)
, 100
CLIMATIC SPECIFICATIONS
Operating temperature range
Storage temperature range
-55 °C to +155 °C
-55 °C to +155 °C
MECHANICAL SPECIFICATIONS
Resistive element
Passivation
Substrate material
Bonding pads
Tantalum nitride
Tantalum pentoxide (autopassivation)
Standard silicon
Aluminum
DIMENSIONS
in millimeters (mils)
0.58 ± 0.05
(23 ± 2)
0.43
(17.2)
0.58 ± 0.05
(23 ± 2)
0.47
(18.8)
0.58 ± 0.05 0.43
(23 ± 2) (17.2)
Type A (Current)
0.58 ± 0.05 0.47
(23 ± 2) (18.8)
0.08 min.
(3.2 min.)
Type B (New)
0.125 min.
(5 min.)
0.10 min.
(4 min.)
0.08 min.
(3.2 min.)
Note
• Customer can get one or the other part, but positions of pads are similar
Revision: 20-May-2020
Document Number: 60062
1
For technical questions, contact:
sferthinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
TA22
www.vishay.com
Vishay Sfernice
DIMENSIONS
in millimeters (mils)
0.4 max.
(15.75 max.)
TECHNICAL SPECIFICATIONS
TEST
MATERIAL
Power dissipation
Stability
Voltage coefficient
Noise
Thermal EMF
Shelf life stability
SPECIFICATIONS
TANTALUM NITRIDE
100 mW at 25 °C, 50 mW at +70 °C, 25 mW at +125 °C
± 0.07 % typical, ± 0.1 maximum
< 0.1 ppm/V
< -35 dB typical
< 0.01 μV/°C
100 ppm
CONDITIONS
2000 h at +70 °C at Pn
MIL-STD-202 method 308
1 year at +25 °C
DERATING
Axis Title
120
100
2nd line
Rated Power (%)
80
60
40
20
0
0
25
50
75
100
125
150
175
Ambient Temperature (°C)
10
100
1000
1st line
2nd line
10000
GLOBAL PART NUMBER INFORMATION
New Global Part Numbering: TA22-100KD0016 (preferred part number format)
T
A
2
2
-
VALUE
1
0
0
K
D
0
0
1
OPTION
Leave blank
if no option
6
GLOBAL MODEL
TOLERANCE
D
= ± 0.5 %
F
= ± 1.0 %
G
= ± 2.0 %
Decimal
R, K, or M
Historical Part Number Example: TA22 10K 0.5 % R0016 (will continue to be accepted)
TA22
HISTORICAL MODEL
10K
VALUE
0.5 %
TOLERANCE
R0016
OPTION
Revision: 20-May-2020
Document Number: 60062
2
For technical questions, contact:
sferthinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
