3-368213-1 Overview

3-368213-1

3-368213-1 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerTE Connectivity
Reach Compliance Codeunknown
ECCN codeEAR99
Connector typeCOMBINATION LINE CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact materialNOT SPECIFIED
Manufacturer's serial number368213
Base Number Matches1
This browser does not have Java enabled.
TE Connectivity
 My Cart |
 My Part Lists | Sign In/Register
English
(Change)
Have a Question?
Chat with a Product
Information Specialist
What can we help you find?
Products
Industries
Resources
About TE
My Account
Innovation
Support Center
Home > Products > Terminals & Splices > Product Feature Selector > Product Details

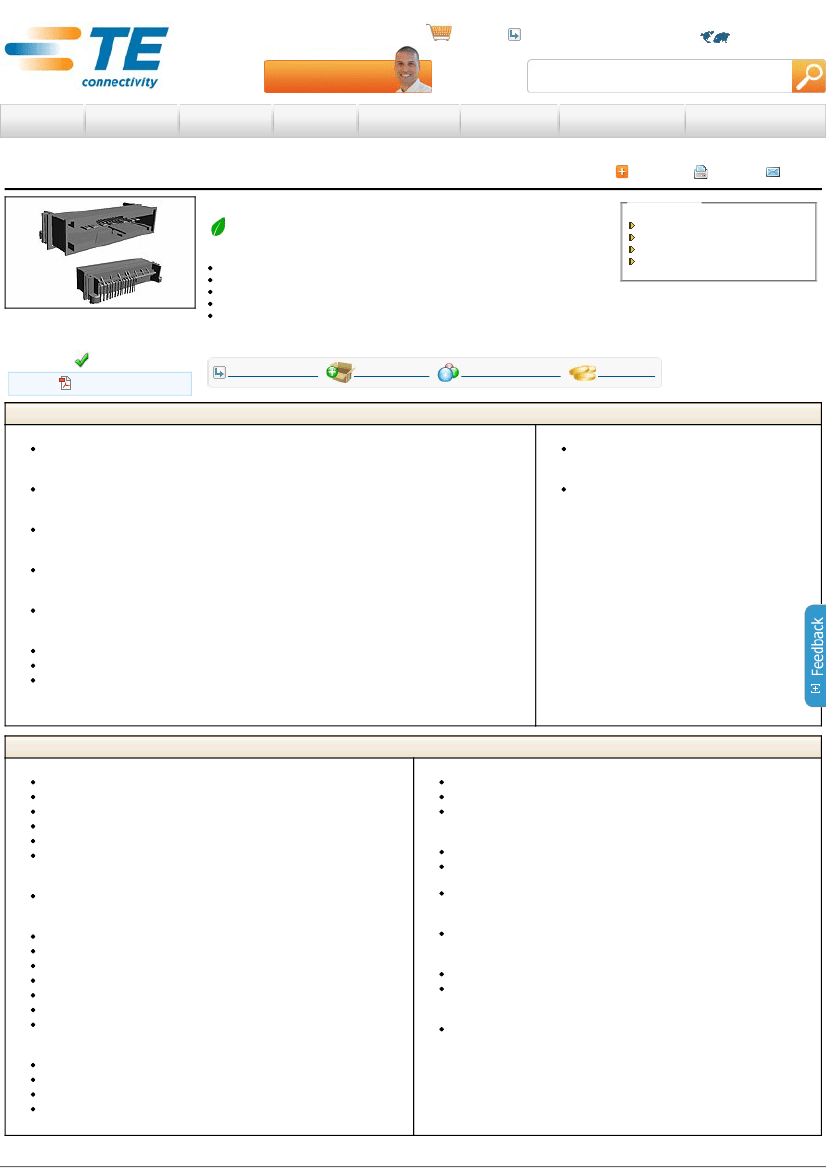

3­368213­1 Product Details
Micro­Power & Power Quadlok System

Always EU RoHS/ELV Compliant
 (
Statement of Compliance
)
Product Highlights:
Applies To Printed Circuit Board
Connector
Connector Assembly
Connector Style = Header
50 Positions
View all Features
 Share
 Print
 Email
Quick Links
Pricing & Availability
Search for Tooling
Product Feature Selector
Contact Us About This Product
3­368213­1

TE Internal Number: 3­368213­1
 Active
Add to My Part List
Request Sample
Find Similar Products
Buy Product
View 3D PDF
Documentation & Additional Information
Product Drawings:
AIR BAG 50P HEADER ASS'Y (PDF, English)
Catalog Pages/Data Sheets:
None Available
Product Specifications:
None Available
Application Specifications:
None Available
Instruction Sheets:
None Available
CAD Files: (CAD Format & Compression Information)
2D Drawing (DXF, Version Y)
3D Model (IGES, Version Y)
3D Model (STEP, Version Y)
Additional Information:
Product Line Information
Related Products:
Tooling
List all Documents
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
Product Type = Connector
Connector Type = Connector Assembly
Sealed = No
Mounting Holes = Without
Mount Angle = Right Angle
Keyed = Yes
Termination Features:
Termination Method to PC Board = Through Hole ­ Solder
Contact Features:
Contact Type = Tab
Contact Style = MQS
Tab Contacts = With
Tab Contact Size = 0.64
2.5mm Pin Diameter Contacts = Without
Contact Finish = Gold
Contact Base Material = Phosphor Bronze
Housing Features:
Connector Style = Header
Centerline, Matrix (mm [in]) = 2.54 x 2.54 [.100 x .100]
Header Color = Light Blue
Housing Material = PBT ­ GF
Configuration Features:
Number of Positions = 50
Fiber Optic Contacts = Without
Staggered Centerline = Without
Industry Standards:
RoHS/ELV Compliance = RoHS compliant, ELV compliant
Lead Free Solder Processes = Wave solder capable to 240°C, Wave
solder capable to 260°C, Wave solder capable to 265°C
RoHS/ELV Compliance History = Always was RoHS compliant
Identification Marking:
Key ID = D­M
Conditions for Usage:
Applies To = Printed Circuit Board
Mates with Centerline = 2.54 x 2.54 [.100 x .100]
Other:
Brand = TE Connectivity
