8503001YA: DescriptionIC 1-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, DIP14, DIP-14, Voltage Reference; CategoryPower/power management The power supply circuit; File Size164KB，6 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

8503001YA Overview

IC 1-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, DIP14, DIP-14, Voltage Reference

8503001YA Parametric

Parameter Name	Attribute value
Brand Name	Analog Devices
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	ADI
Parts packaging code	DIP
package instruction	DIP-14
Contacts	14
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 code	R-XDIP-T14
JESD-609 code	e0
length	20.065 mm
Humidity sensitivity level	1
Number of functions	1
Output times	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Nominal output voltage	10 V
Package body material	UNSPECIFIED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	225
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	16.5 V
Minimum supply voltage (Vsup)	13.5 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	HYBRID
Maximum voltage temperature coefficient	9 ppm/°C
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Fine-tuning/adjustable output	YES
Maximum voltage tolerance	0.08%
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Analog Devices: AD2702:Product Page

Search:

Home

References

Voltage References

Parametric Search

Replacement Parts Search

View Cart

My Account

Print this Page

Email this Page

Resources

References

Voltage References

All Product Categories

Design Center

Buy Online

AD2702

- ± 10 Volt Precision Reference Series

Data Sheets

Rev B

, 08/1999 (pdf, 2066K)

Email PDF

(Data Sheet Help)

Application Notes

Evaluation Boards

Price, Packaging,

and Availability

Custom Product

Worksheet

Product Description

The AD2700 family of precision 10 volt references offer the user excellent accuracy and stability at a moderate price by

combining the recognized advantages of thin film technology and active laser...More

Signal Chains

Interactive Signal

Chains

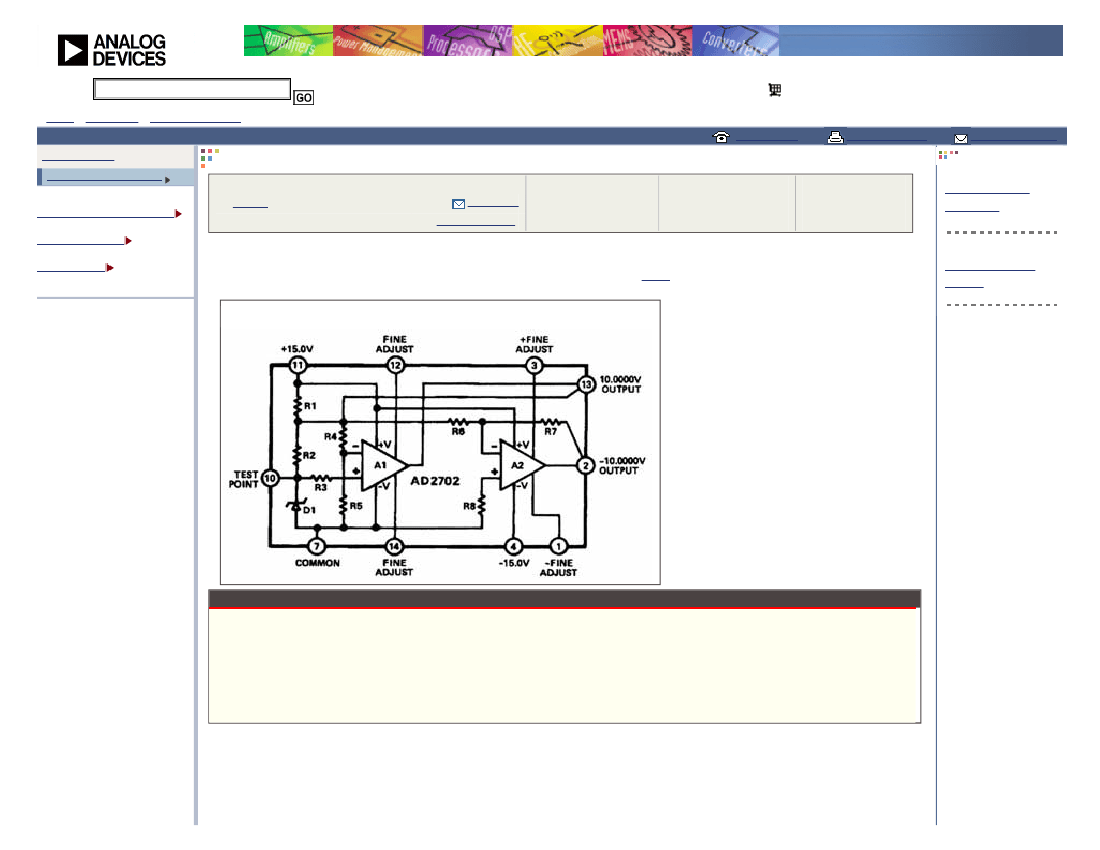

Functional Block Diagram

Features

Very High Accuracy: 10,000 Volts ±2.5mV

(L and U)

Low Temperature Coefficient: 3ppm/°C

Performance Guaranteed -55°C to +125°C

10mA Output Current Capability

Low Noise

Short Circuit Protected

Available as /883B

http://www.analog.com/en/prod/0%2C2877%2CAD2702%2C00.html (1 of 6)1/16/2005 3:41:21 PM

8503001YA Related Products

	8503001YA	8503006YC	8503003YC	8503005YC	8503005YA	8503004YC	8503001YC	8503002YC
Description	IC 1-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, DIP14, DIP-14, Voltage Reference	IC 1-OUTPUT THREE TERM VOLTAGE REFERENCE, -10 V, DIP14, DIP-14, Voltage Reference	IC 1-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, DIP14, DIP-14, Voltage Reference	IC 1-OUTPUT THREE TERM VOLTAGE REFERENCE, -10 V, DIP14, DIP-14, Voltage Reference	IC 1-OUTPUT THREE TERM VOLTAGE REFERENCE, -10 V, DIP14, DIP-14, Voltage Reference	IC 1-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, DIP14, DIP-14, Voltage Reference	IC 1-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, DIP14, DIP-14, Voltage Reference	IC 1-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, DIP14, DIP-14, Voltage Reference
Maker	ADI	ADI	ADI	ADI	ADI	ADI	ADI	ADI
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	DIP-14	DIP-14	DIP, DIP14,.3	DIP, DIP14,.3	DIP-14	DIP, DIP14,.3	DIP, DIP14,.3	DIP-14
Contacts	14	14	14	14	14	14	14	14
Reach Compliance Code	unknown	compliant	unknown	unknown	unknown	unknown	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 code	R-XDIP-T14	R-XDIP-T14	R-XDIP-T14	R-XDIP-T14	R-XDIP-T14	R-XDIP-T14	R-XDIP-T14	R-XDIP-T14
length	20.065 mm	20.065 mm	20.065 mm	20.065 mm	20.065 mm	20.065 mm	20.065 mm	20.065 mm
Number of functions	1	1	1	1	1	1	1	1
Output times	1	1	1	1	1	1	1	1
Number of terminals	14	14	14	14	14	14	14	14
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Nominal output voltage	10 V	-10 V	10 V	-10 V	-10 V	10 V	10 V	10 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm
Maximum supply voltage (Vsup)	16.5 V	16.5 V	16.5 V	16.5 V	16.5 V	16.5 V	16.5 V	16.5 V
Minimum supply voltage (Vsup)	13.5 V	13.5 V	13.5 V	13.5 V	13.5 V	13.5 V	13.5 V	13.5 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Maximum voltage temperature coefficient	9 ppm/°C	9 ppm/°C	9 ppm/°C	9 ppm/°C	9 ppm/°C	9 ppm/°C	9 ppm/°C	9 ppm/°C
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Fine-tuning/adjustable output	YES	YES	YES	YES	YES	YES	YES	YES
Maximum voltage tolerance	0.08%	0.055%	0.1%	0.1%	0.1%	0.055%	0.08%	0.055%
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm
Base Number Matches	1	1	1	1	1	1	1	1
