5111F7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 5111F7

5111F7: DescriptionSingle Color LED, Yellow, Diffused,; CategoryLED optoelectronic/LED photoelectric; File Size228KB，1 Pages; ManufacturerCML Innovative Technologies; Environmental Compliance

Download Datasheet Parametric Compare View All

5111F7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5111F7	-	-	View	Buy Now

5111F7 Overview

Single Color LED, Yellow, Diffused,

5111F7 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
color	YELLOW
color@wavelength	Yellow
Configuration	SINGLE
Maximum forward current	0.03 A
Maximum forward voltage	3 V
Lens type	DIFFUSED
Nominal luminous intensity	6.3 mcd
Installation features	PANEL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-20 °C
Optoelectronic device types	SINGLE COLOR LED
total height	4.826 mm
method of packing	BULK
peak wavelength	585 nm
Maximum reverse voltage	5 V
shape	ROUND
surface mount	NO
Terminal pitch	2.54 mm
perspective	55 deg
Base Number Matches	1

Preview

Download Datasheet

View All

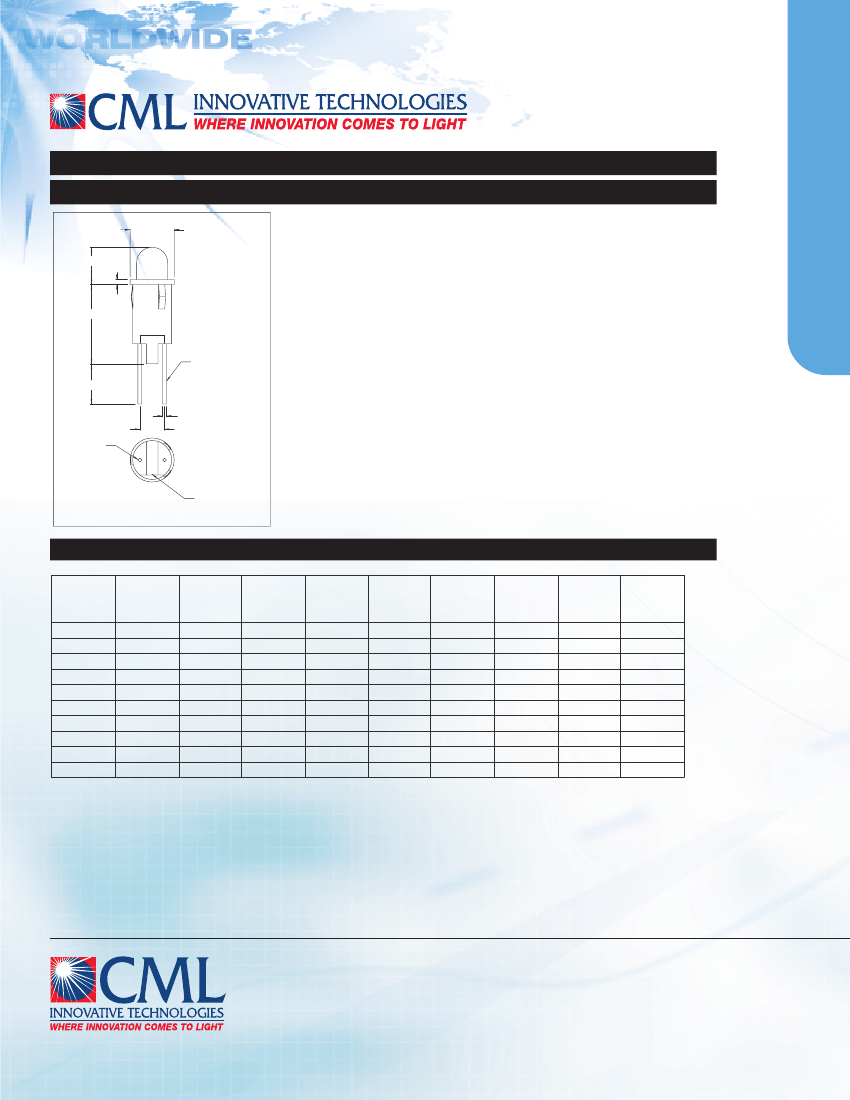

5111F Series Panel Mounted LED Indicator Light

D E S C R I PT I O N AN D F EAT U R E S

1.124

.190 MAX.

.030

Features

•Super Brite T-1 LED

•20mcd-diffused lens allows wide angle viewing.

•Low current -only 2 mA.

•Built -in chip resistor operates directly

off 5 volt supply, no external resistor needed.

Mounting: Will snap-fit into Ø.155/.158 hole

in panels .031/.062 thick*

Terminals: .020 sq.

WIR E

WR AP P AB LE

LE ADS

.320

Housing: Black Nylon

*W e recommend using an installation tool to press

against flange of housing rather than LED.

.200 MIN.

.020 S Q.T Y P .

.100

ANODE (+)

All dimensions

in inches.

F LAT OR IE NT E D

T O P LUS S IG N

AS S HOWN

ELECTRO-OPTICAL CHARACTERISTICS

Ty p.

Intensity

(mcd)

6.3

2.5

2.1

1.8

8.0

Part

Number

5111 F 1

5111 F 3

5111 F 5

5111 F 7

51 1 1 F1LC

51 1 1 F5LC

51 1 1 F7LC

5111 F1 - 5 V

5111 F3 - 5 V

5111 F5 - 5 V

Color

Red

Amber

Green

Yellow

Red

Green

Yellow

Red

Amber

Green

Rated

Current

(mA)

Continuous

Forward

Peak Forward

Forward

Vol tag Typ. Voltage Max.

Current @1 ms-

Current Max.

(V)

300pps (A)

(mA)

1.0

2.0

3.0

2.2

2.1

1.8

1.9

3.0

2.2

2.7

7.5

.09

1.0

.007

Reverse

Break-down Peak

Voltage Min. Wavelength

(nm)

(V)

650

603

562

585

635

565

583

635

583

565

America:

CML Innovative Technologies,Inc.

147 Central Avenue

Hackensack, NJ 07601 -USA

Tel:1-201-489 -8989

Fax:1-201-489 -6911

e-mail:americas@cml-it.com

Europe:

CML Technologies GmbH &Co.KG

Robert-Bunsen-Str.1

67098 Bad Dürkheim -GERMANY

Tel:+49 (0)6322 9567-0

Fax:+49 (0)6322 9567-88

e-mail:europe@cml-it.com

Asia:

CML Innovative Technologies,Inc.

61 Aida Street

Singapore 459975

Tel:(65)9630 -5003

e-mail:asia@cml-it.com

CML-IT reserves the right to make specification revisions that enhance the design and/or performance of the product

5111F Series Panel Mounted LED Indicator Light

5111F7 Related Products

	5111F7	5111F1-5V	5111F1LC	5111F5-5V	5111F7LC	5111F5LC	5111F3-5V
Description	Single Color LED, Yellow, Diffused,	Single Color LED, Red, Diffused, ROHS COMPLIANT PACKAGE-2	Single Color LED, Red, Diffused,	Single Color LED, Green, Diffused, ROHS COMPLIANT PACKAGE-2	Single Color LED, Yellow, Diffused,	Single Color LED, Green, Diffused,	Single Color LED, Amber, Diffused,
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown	unknown
color	YELLOW	RED	RED	GREEN	YELLOW	GREEN	AMBER
color@wavelength	Yellow	Orange-Red	Red	Green	Yellow	Green	Yellow
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.03 A	0.015 A	0.007 A	0.015 A	0.007 A	0.007 A	0.015 A
Maximum forward voltage	3 V	7.5 V	2.2 V	7.5 V	2.7 V	2.2 V	7.5 V
Lens type	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED
Nominal luminous intensity	6.3 mcd	8.0 mcd	2.5 mcd	8.0 mcd	1.8 mcd	2.1 mcd	8.0 mcd
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Number of functions	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	4.826 mm	4.826 mm	4.826 mm	4.826 mm	4.826 mm	4.826 mm	4.826 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK
peak wavelength	585 nm	635 nm	635 nm	565 nm	583 nm	565 nm	583 nm
Maximum reverse voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Base Number Matches	1	1	1	1	1	1	1
perspective	55 deg	60 deg	50 deg	60 deg	-	50 deg	60 deg
