TAJR684K016S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> TAJR684K016S

TAJR684K016S: DescriptionTantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 0.68uF, Surface Mount, 0805, CHIP, LEAD FREE; CategoryPassive components capacitor; File Size88KB，5 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

TAJR684K016S Overview

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 0.68uF, Surface Mount, 0805, CHIP, LEAD FREE

TAJR684K016S Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	2007010465
package instruction	, 0805
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.68 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
JESD-609 code	e3
leakage current	0.0005 mA
Manufacturer's serial number	TAJ
Installation features	SURFACE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, 13 INCH
polarity	POLARIZED
positive tolerance	10%
Rated (DC) voltage (URdc)	16 V
size code	0805
surface mount	YES
Delta tangent	0.04
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	J BEND

Preview

Download Datasheet

View All

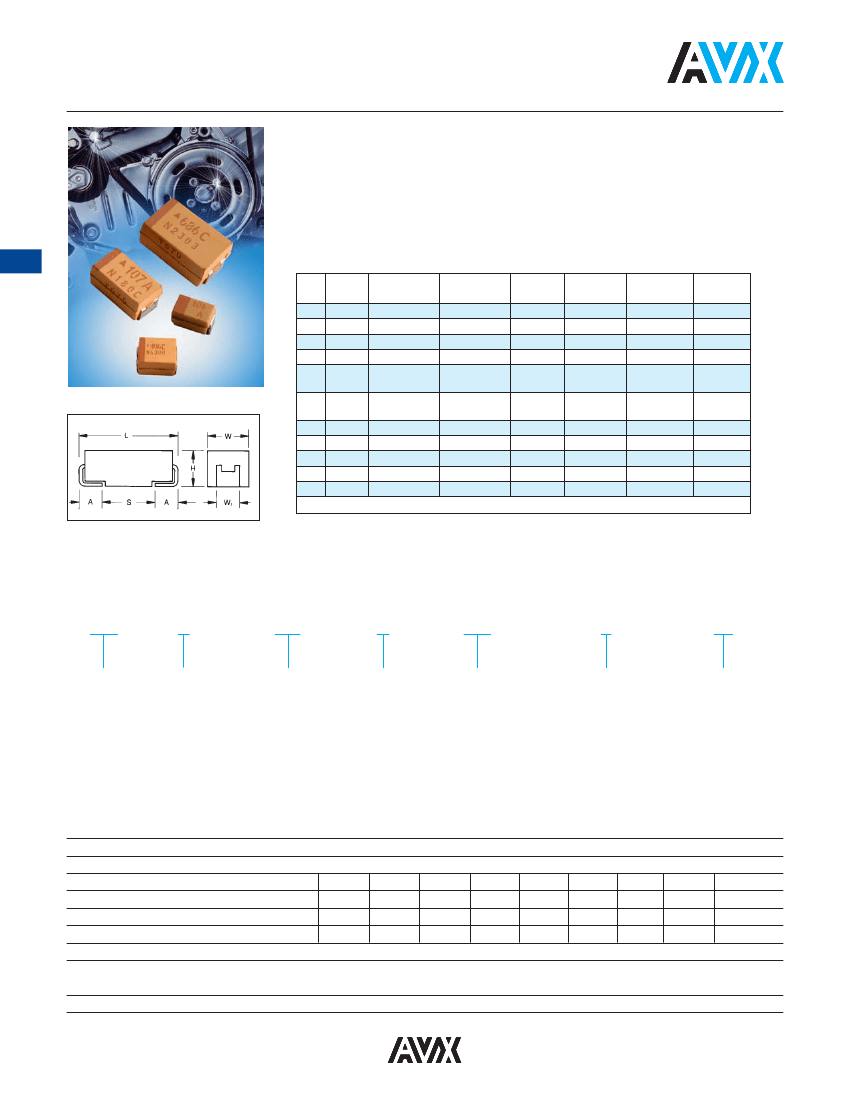

TAJ Series

Low Profile

TAJ low profile solid tantalum chip

capacitors are designed for boards with

limited height. The capacitors are avail-

able in maximum height of 1.0, 1.2, 1.5

and 2.0mm.

The S&T footprints are identical to the

A&B case size parts and the W&Y foot-

prints to C&D case size parts.

CASE DIMENSIONS:

millimeters (inches)

Code

EIA

Code

6032-20

3216-16

3528-15

3216-10

2012-15

2012-12

3216-12

3528-12

6032-15

7343-20

7343-15

L±0.20 (0.008)

6.00 (0.236)

3.20 (0.126)

3.50 (0.138)

3.20 (0.126)

2.05 (0.081)

3.20 (0.126)

3.50 (0.138)

6.00 (0.236)

7.30 (0.287)

W+0.20 (0.008)

-0.10 (0.004)

3.20 (0.126)

1.60 (0.063)

2.80 (0.110)

1.60 (0.063)

1.35 (0.053)

1.30 (0.051)

1.60 (0.063)

2.80 (0.110)

3.20 (0.126)

4.30 (0.169)

H Max.

±0.20

(0.008)

A+0.30 (0.012)

-0.20 (0.008)

1.30 (0.051)

0.80 (0.031)

S Min.

2.90 (0.114)

1.10 (0.043)

1.40 (0.055)

0.40 (0.016)

0.85 (0.033)

1.10 (0.043)

1.40 (0.055)

2.90 (0.114)

4.40 (0.173)

2.00 (0.079) 2.20 (0.087)

1.60 (0.063) 1.20 (0.047)

1.50 (0.059) 2.20 (0.087)

1.00 (0.039) 1.20 (0.047)

1.0 ±0.1

1.50 (0.059)

0.50 (0.020)

(0.039±0.004)

1.20 (0.047)

1.0 ±0.1

0.50 (0.020)

(0.039±0.004)

0.80 (0.031)

1.30 (0.051)

1.20 (0.047) 1.20 (0.047)

1.20 (0.047) 2.20 (0.087)

1.50 (0.059) 2.20 (0.087)

2.00 (0.079) 2.40 (0.094)

1.50 (0.059) 2.40 (0.094)

dimension applies to the termination width for A dimensional area only.

For part marking see page 122

HOW TO ORDER

TAJ

107

010

Type

Case Size

See table

above

Capacitance Code

pF code: 1st two

digits represent

significant figures

3rd digit represents

multiplier (number of

zeros to follow)

Tolerance

K=±10%

M=±20%

Rated DC Voltage

002=2.5Vdc

004=4Vdc

006=6.3Vdc

010=10Vdc

016=16Vdc

020=20Vdc

025=25Vdc

035=35Vdc

050=50Vdc

Packaging

R = 7" T/R

(Lead Free since

production date 1/1/04)

S = 13" T/R

(Lead Free since

production date 1/1/04)

Additional

characters may be

added for special

requirements

A = Gold Plating

7" Reel

B = Gold Plating

13" Reel

TECHNICAL SPECIFICATIONS

Technical Data:

Capacitance Range:

Capacitance Tolerance:

Rated Voltage (V

)

Category Voltage (V

)

Surge Voltage (V

)

Surge Voltage (V

)

Temperature Range:

Reliability:

All technical data relate to an ambient temperature of +25°C

0.1 µF to 1000 µF

±10%; ±20%

2.5

6.3

1.7

2.7

3.3

5.2

2.2

3.4

-55°C to +125°C

1% per 1000 hours at 85°C, V

with 0.1Ω/V series impedance,

60% confidence level

Meets requirements of AEC-Q200

+85°C:

+125°C:

+85°C:

+125°C:

Recommended Resources

Two-wire remote control temperature sensor with sensor ground

Electronic potential circuit composed of digital circuits

Crystal diode single-phase bridge resistive load rectifier circuit

The sum of two inputs minus the sum of other two inputs circuit

555 kitchen ventilation fan automatic switch circuit

Computer motherboard circuit diagram 810 2_28

lm3s811 uart: I used the board's virtual serial port to test communication and it was normal. However, when I connected MAX3232 to UART0 and UART1 to communicate with the computer, the UART0 data received by the se...; xupz123 Microcontroller MCU

Urgent! Please answer the question about STM32 CAN communication: I recently made a stm32 board, and the can is not working. Please help me.The situation is like this. The peripheral circuit of the can chip SN65HVD230 works normally. I use an experimental board (I h...; xujualiang stm32/stm8

ADC Research of msp430F5438A: Since the ADC module is needed in the project, it is necessary to study the ADC module. This is the description of ADC on the first page of the msp430F5428A datasheet: 12-Bit Analog-to-Digital Convert...; fish001 Microcontroller MCU

I am preparing to learn embedded system, please give me some suggestions, thank you: I have worked on OI before, and have a certain understanding of algorithms and data structures. I am familiar with C and x86ASM. Later, I became interested in hacking skills, Linux, and network, and l...; chenjinmei Embedded System

Power Design Tip 39: Synchronous Rectification Brings More Than Just High Efficiency: [flash]http://player.youku.com/player.php/sid/XMzY1NzQ4Mjcy/v.swf[/flash]Have you ever been asked to design a power supply with good load transient response at light loads? If so, and you allow the po...; 德州仪器 Analog electronics

Is there anyone who can guess what this chip is? I asked 5 websites and no one could figure it out.: [i=s]This post was last edited by bingworld on 2015-6-8 18:45[/i] I'm looking for an expert, I still don't understand what U1 is, the circuit diagram is in the attachment: Y1 is a transducer chip, the...; bingworld Analog electronics
