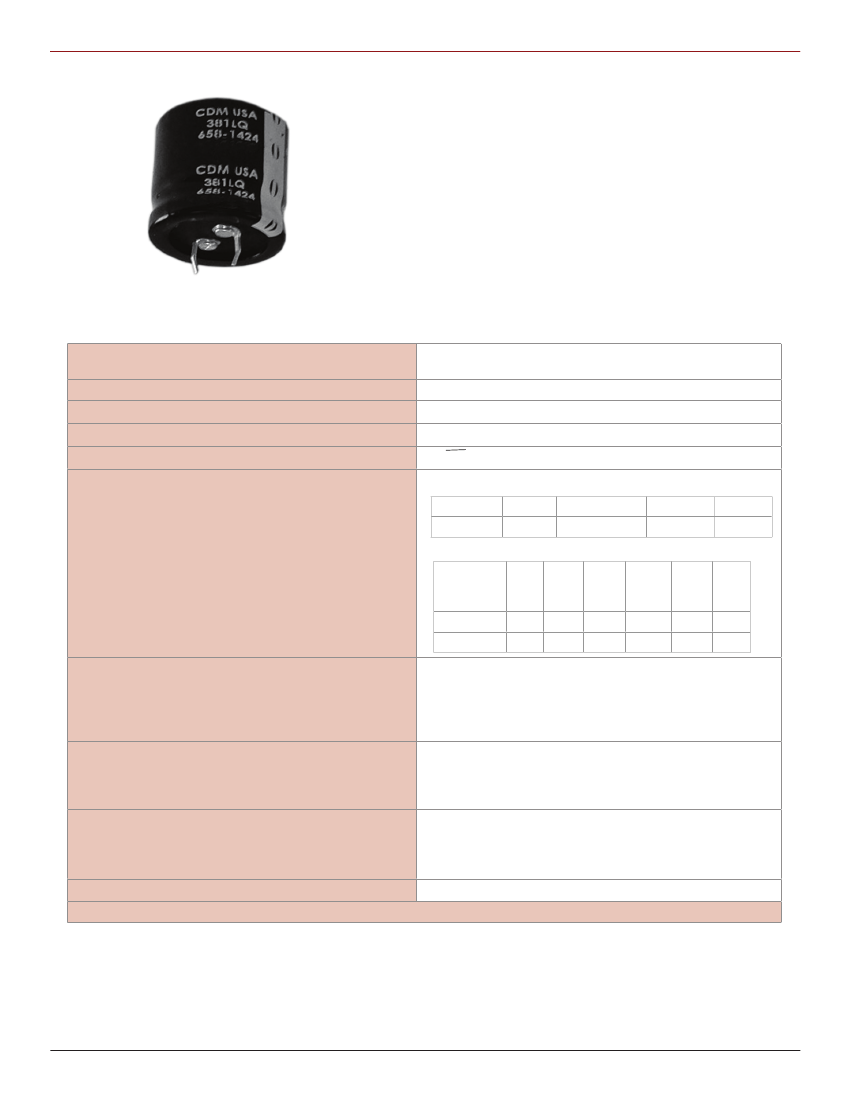

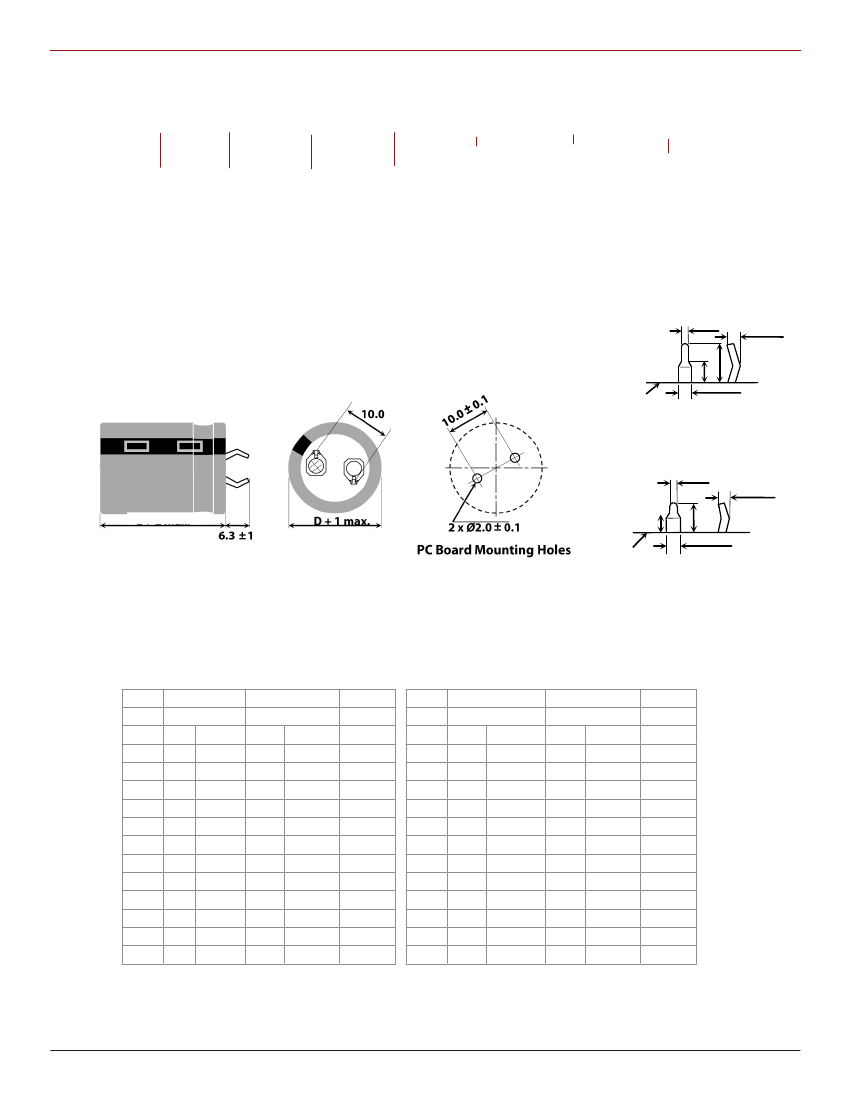

Type 381LQ 105 ºC Compact, High Ripple, Snap-In Aluminum

Higher Capacitance per Case Size

Type 381LQ is on average 23% smaller and more than 5 mm

shorter than Type 381LX. This is achieved with a new can

closure method that permits installing capacitor elements into

smaller cans. Approaching the robust capability of the 381L

the new 381LQ enables you to shrink equipment size and

retain the original performance.

Highlights

Specifications

Temperature Range

Rated Voltage Range

Capacitance Range

Capacitance Tolerance

Leakage Current

Ripple Current Multipliers

- More capacitance per case

- Compares to the 381L

–40 °C to + 105 °C ≤ 315 Vdc

–25 °C to + 105 °C ≥ 350 Vdc

10 Vdc to 450 Vdc

100 µF to 100,000 µF

± 20%

≤3 √CV µA, 4 mA max, 5 minutes

Ambient Temperature

45 ºC

2.35

Frequency

50 Hz 60 Hz 120 Hz 500 kHz 1 kHz kHz &

0.93

0.95

0.80

1.00

1.05

1.20

1.08

1.25

1.15

1.40

60 ºC

2.20

70 ºC

2.00

85 ºC

1.70

105 ºC

1.00

Voltage

10 - 100 WV

Low Temperature Characteristics

160 - 450 WV 0.75

Impedance ratio: Z

–20⁰C

∕ Z

+25⁰C

≤ 10 (10 Vdc)

≤ 8 (16–50 Vdc)

≤ 4 (63–100 Vdc)

≤ 3 (150–450 Vdc)

2000 h at full load at 105 °C

∆ Capacitance ±20%

ESR 200% of limit

DCL 100% of limit

1000 h at 105 °C

∆ Capacitance ±20%

ESR 200% of limit

DCL 100% of limit

10 to 55 Hz, 0.06” and 10 g max, 2 h each plane

RoHS Compliant

Endurance Life Test

Shelf Life Test

Vibration
