5962R9574101VEC datasheet, PDF

Datasheet> All Categories > logic> logic> 5962R9574101VEC

5962R9574101VEC: DescriptionHCT SERIES, 9-BIT ENCODER, CDIP16; Categorylogic logic; File Size243KB，7 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

5962R9574101VEC Overview

HCT SERIES, 9-BIT ENCODER, CDIP16

5962R9574101VEC Parametric

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
Parts packaging code	DIP
package instruction	METAL SEALED, CERAMIC, DIP-16
Contacts	16
Reach Compliance Code	unknown
Other features	9 TO 4 LINE PRIORITY ENCODER; RADIATION HARDENED
series	HCT
JESD-30 code	R-CDIP-T16
JESD-609 code	e4
length	19.05 mm
Logic integrated circuit type	ENCODER
Number of digits	9
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
propagation delay (tpd)	32 ns
Certification status	Not Qualified
Filter level	38535V;38534K;883S
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
total dose	100k Rad(Si) V
width	7.62 mm
Base Number Matches	1

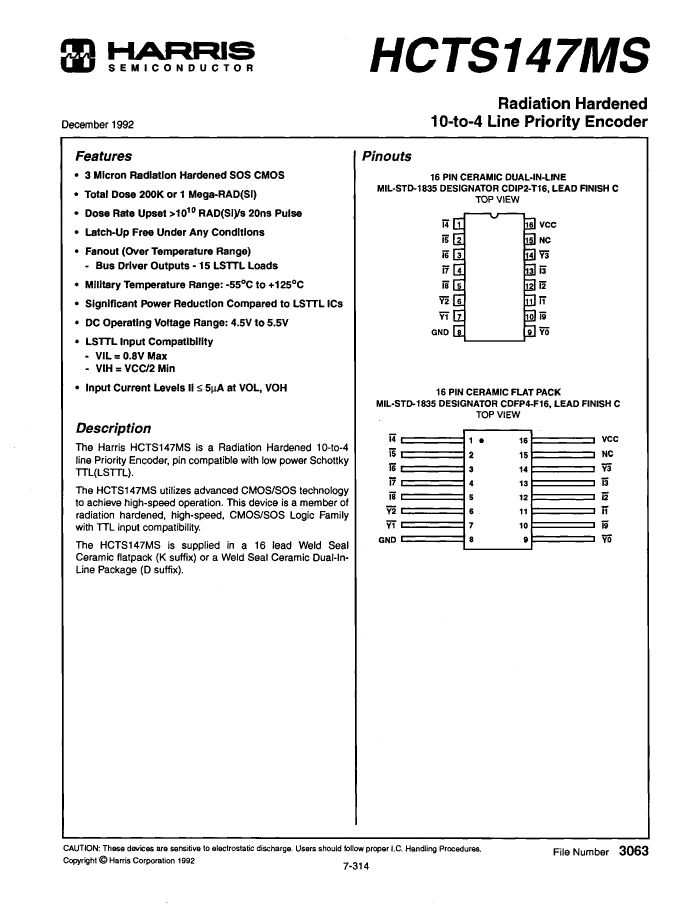

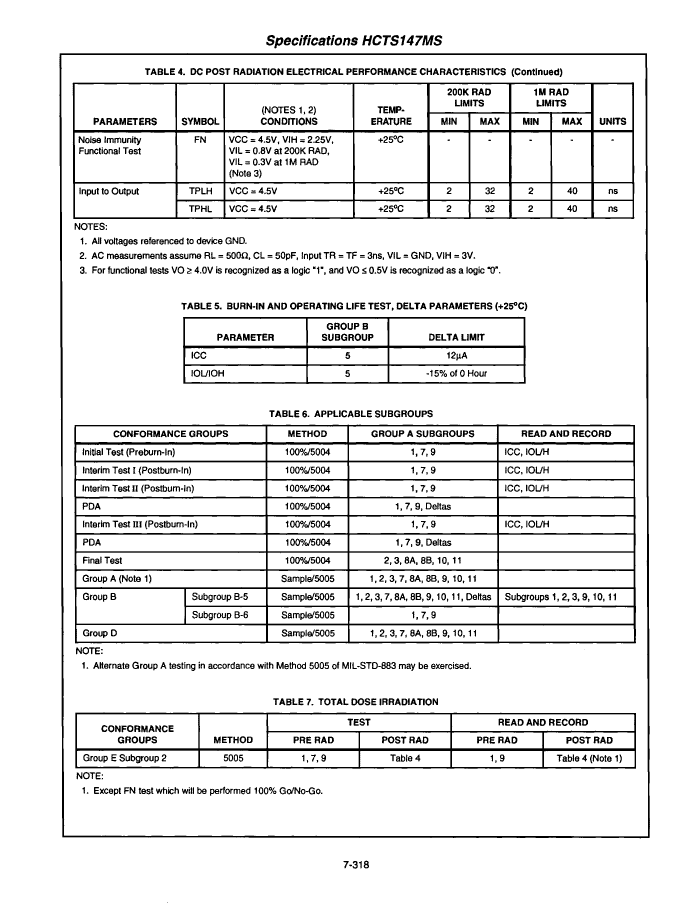

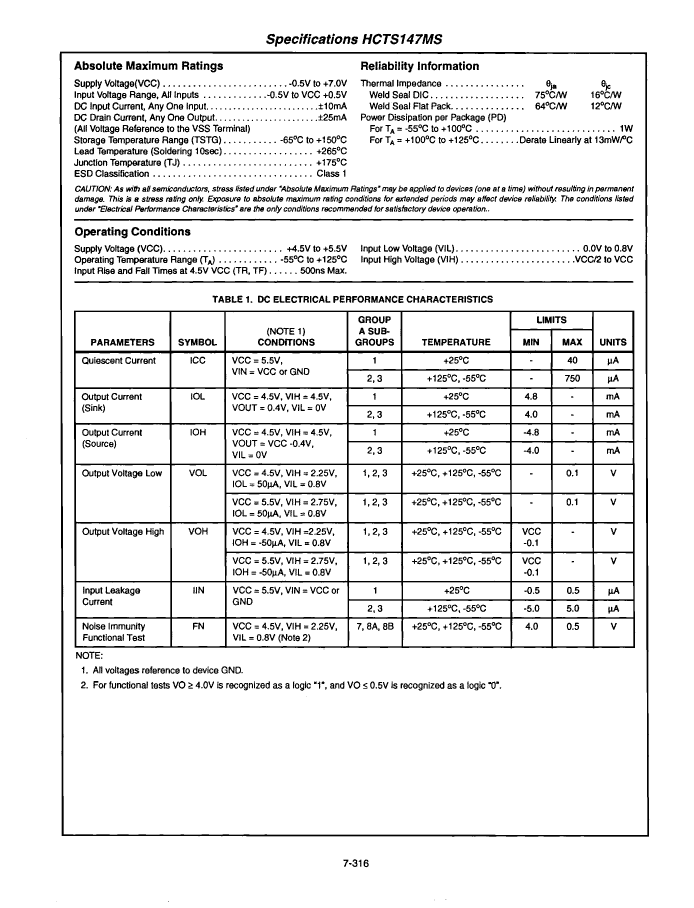

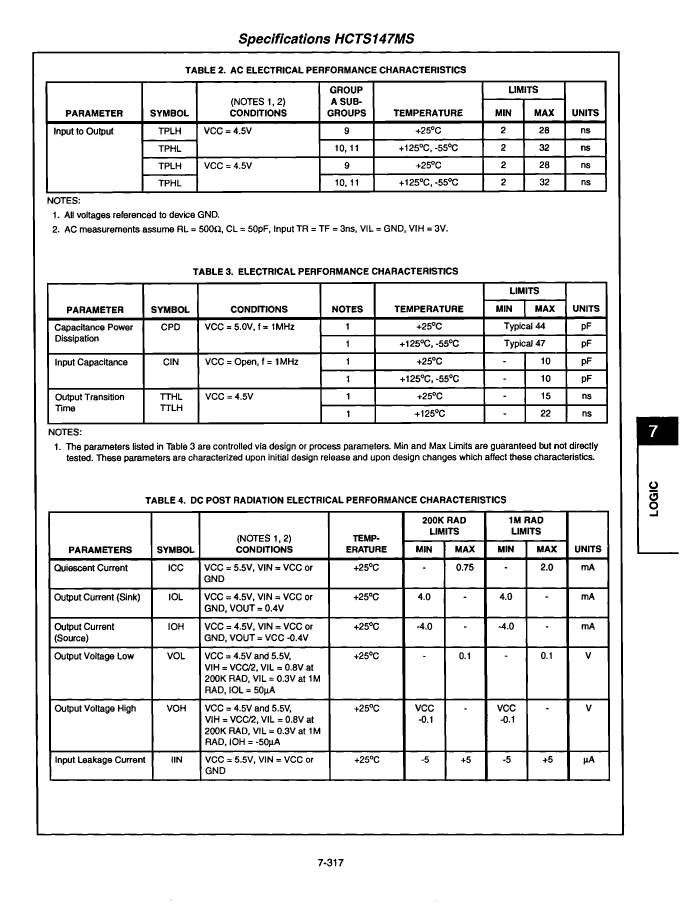

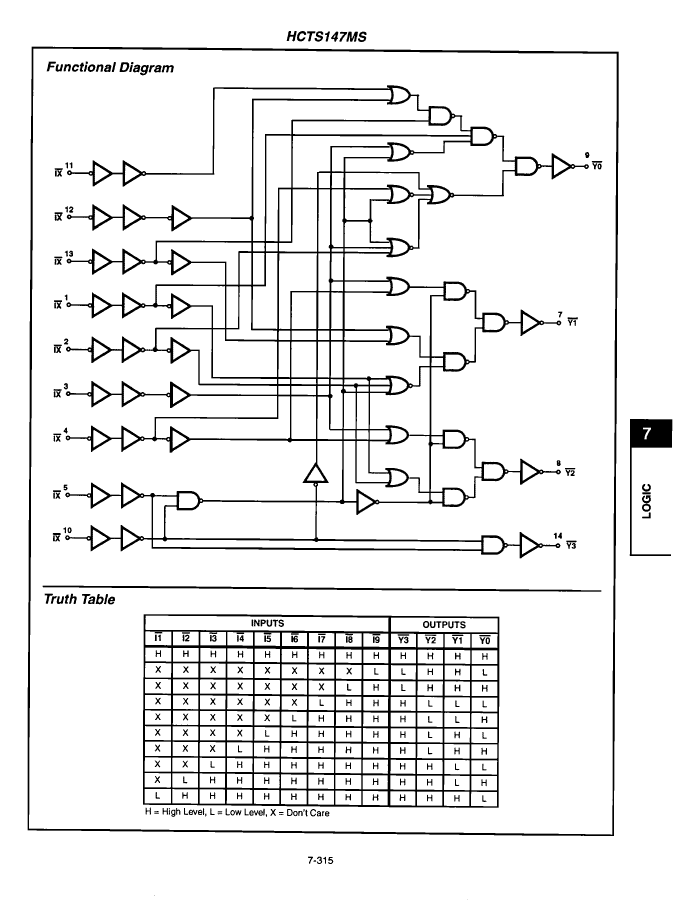

Preview

Download Datasheet

View All

5962R9574101VEC Related Products

	5962R9574101VEC	5962R9574101VXC	HCTS147DMSH	HCTS147KMSH
Description	HCT SERIES, 9-BIT ENCODER, CDIP16	HCT SERIES, 9-BIT ENCODER, CDFP16	HCT SERIES, 9-BIT ENCODER, CDIP16	HCT SERIES, 9-BIT ENCODER, CDFP16
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Reach Compliance Code	unknown	unknown	unknown	unknow
Other features	9 TO 4 LINE PRIORITY ENCODER; RADIATION HARDENED	9 TO 4 LINE PRIORITY ENCODER; RADIATION HARDENED	9 TO 4 LINE PRIORITY ENCODER; RADIATION HARDENED	9 TO 4 LINE PRIORITY ENCODER; RADIATION HARDENED
series	HCT	HCT	HCT	HCT
JESD-30 code	R-CDIP-T16	R-CDFP-F16	R-CDIP-T16	R-CDFP-F16
Logic integrated circuit type	ENCODER	ENCODER	ENCODER	ENCODER
Number of digits	9	9	9	9
Number of functions	1	1	1	1
Number of terminals	16	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK	IN-LINE	FLATPACK
propagation delay (tpd)	32 ns	32 ns	40 ns	40 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	FLAT	THROUGH-HOLE	FLAT
Terminal location	DUAL	DUAL	DUAL	DUAL
