5962-9220403M3A datasheet, PDF

5962-9220403M3A: DescriptionLCC-28, Tube; Categorylogic logic; File Size225KB，8 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric View All

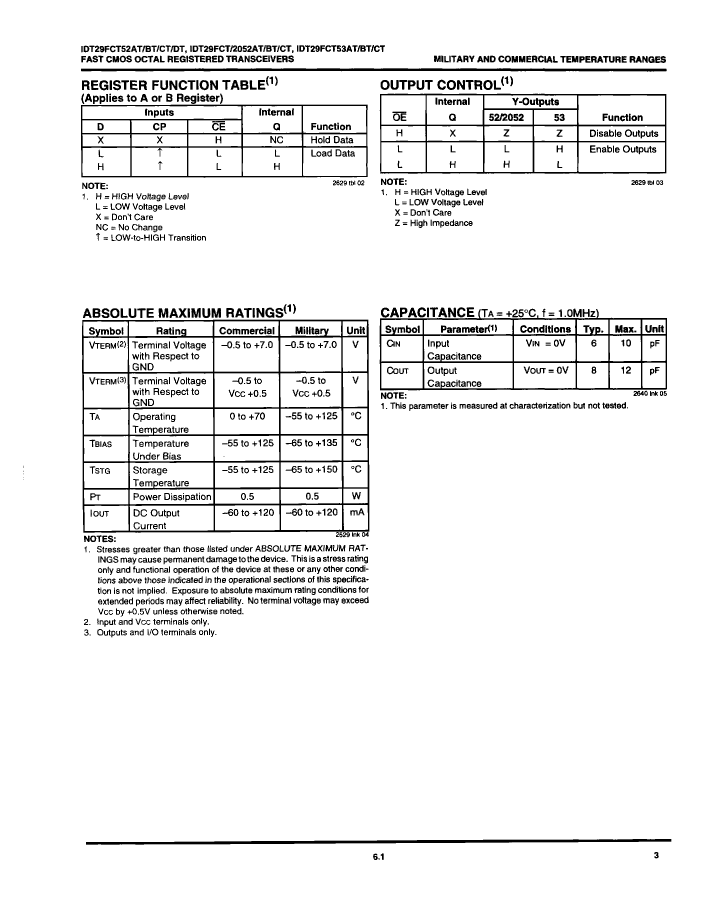

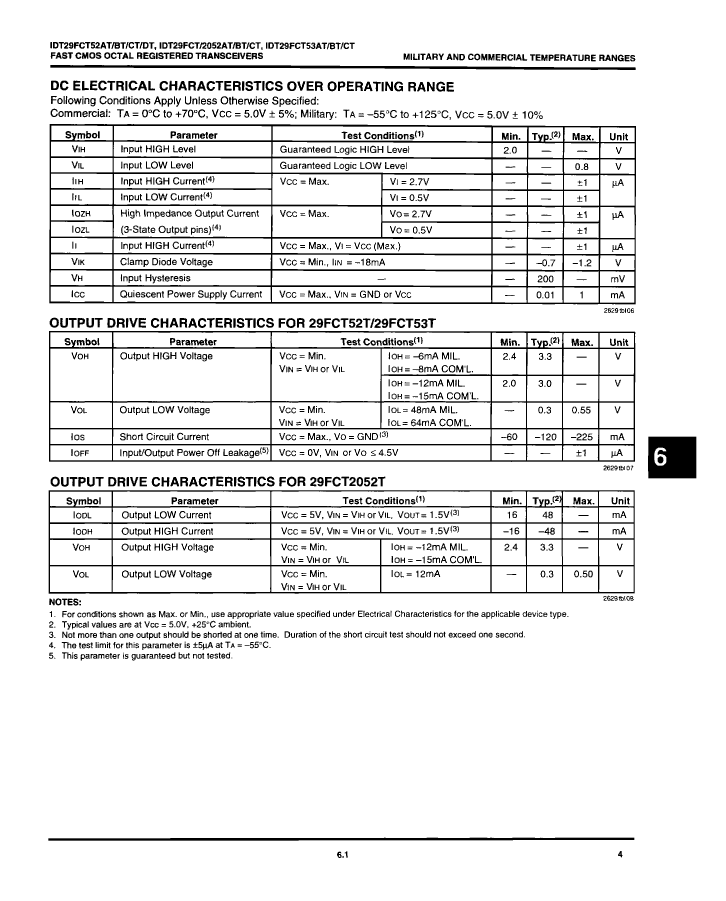

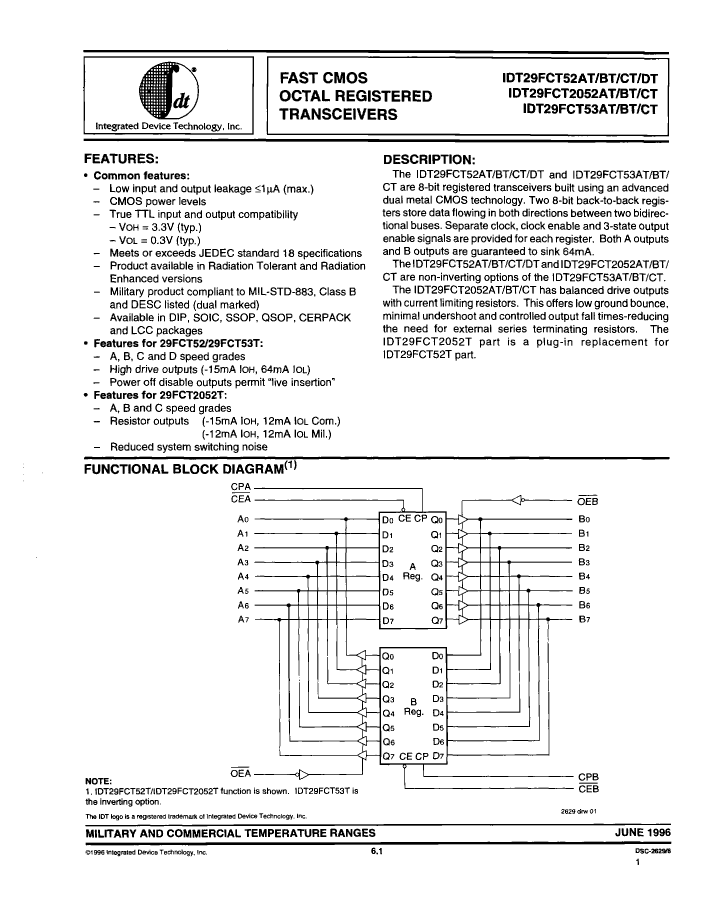

5962-9220403M3A Overview

LCC-28, Tube

Parameter Name	Attribute value
Brand Name	Integrated Device Technology
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	LCC
package instruction	LCC-28

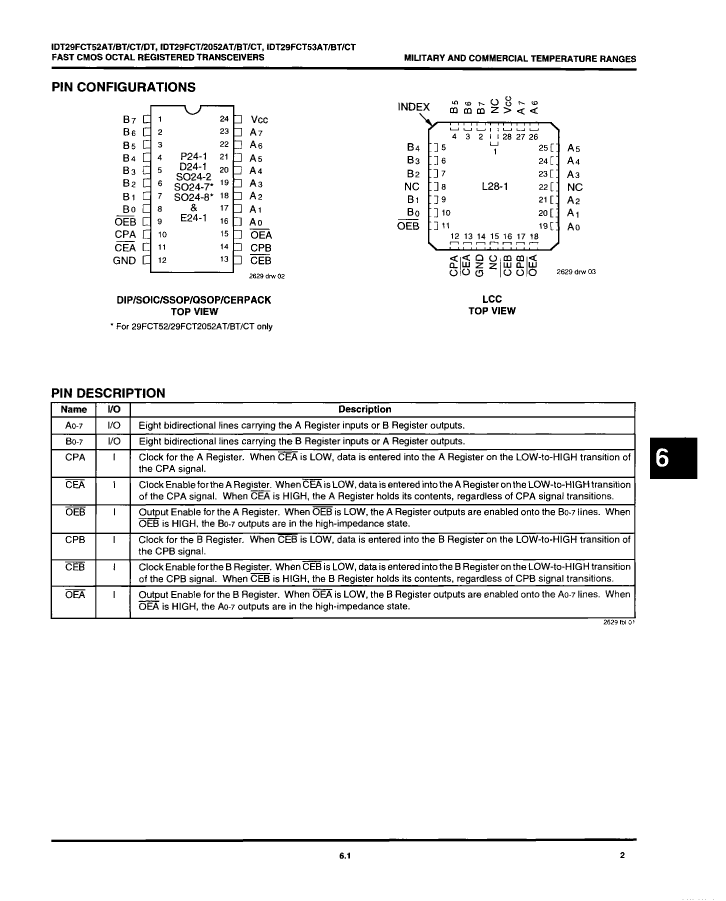

Contacts	28
Manufacturer packaging code	LC28
Reach Compliance Code	_compli
Other features	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION; WITH CLOCK ENABLE
series	FCT
JESD-30 code	S-CQCC-N28
JESD-609 code	e0
length	11.4554 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
Humidity sensitivity level	1
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
propagation delay (tpd)	7.3 ns
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	2.54 mm

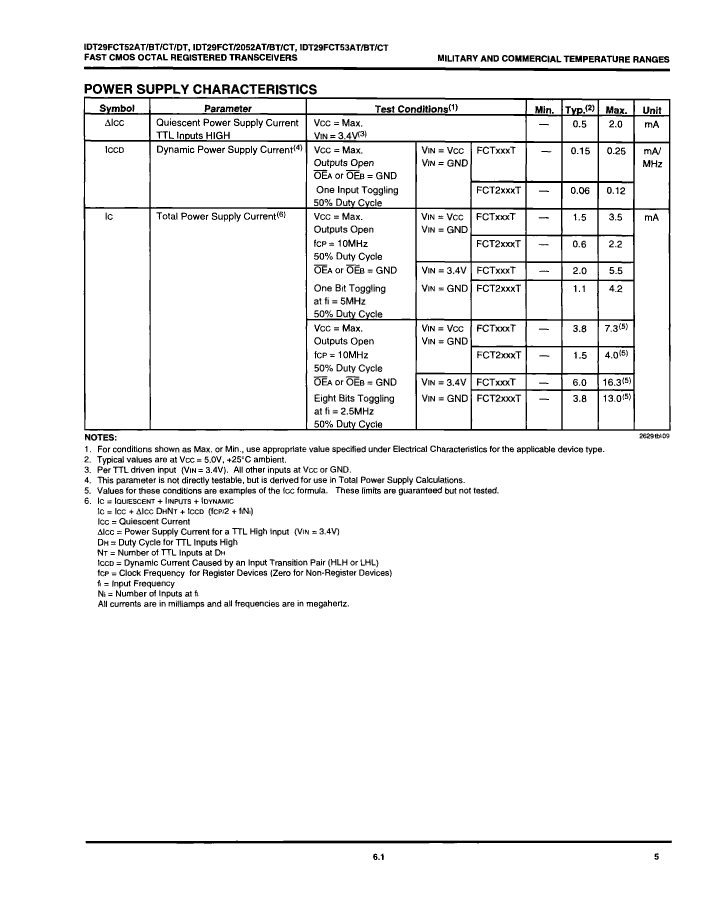

Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	11.4554 mm
Base Number Matches	1
