2-87160-6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2-87160-6

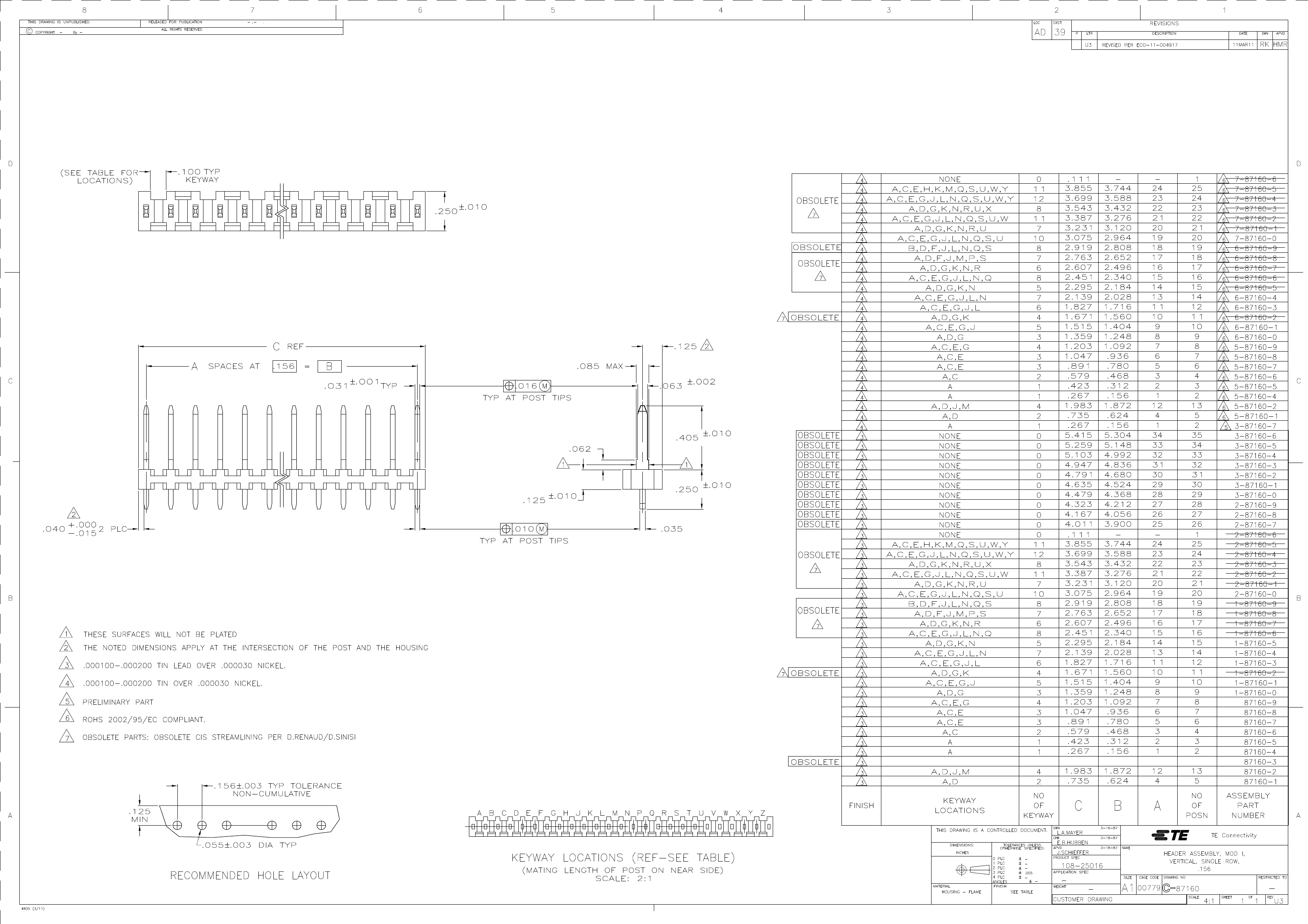

2-87160-6: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,1 CONTACTS,PIN,PC TAIL TERMINAL,BLACK; CategoryThe connector The connector; File Size187KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

2-87160-6 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-87160-6	-	-	View	Buy Now

2-87160-6 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,1 CONTACTS,PIN,PC TAIL TERMINAL,BLACK

2-87160-6 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
body width	0.25 inch
subject depth	0.125 inch
body length	0.111 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN-PB ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	12 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1200VAC V
Durability	75 Cycles
maximum insertion force	4.448 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
Manufacturer's serial number	87160
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	60 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
Plating thickness	100u inch
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.125 inch
Termination type	SOLDER
Total number of contacts	1
Evacuation force-minimum value	.278 N
Base Number Matches	1

Preview

Download Datasheet

View All

2-87160-6 Related Products

	2-87160-6	1-87160-6	1-87160-7	1-87160-8	1-87160-9	2-87160-2	2-87160-5	2-87160-4
Description	HEADER CONNECTOR,PCB MNT,RECEPT,1 CONTACTS,PIN,PC TAIL TERMINAL,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,16 CONTACTS,PIN,0.156 PITCH,PC TAIL TERMINAL,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,17 CONTACTS,PIN,0.156 PITCH,PC TAIL TERMINAL,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,18 CONTACTS,PIN,0.156 PITCH,PC TAIL TERMINAL,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,19 CONTACTS,PIN,0.156 PITCH,PC TAIL TERMINAL,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,22 CONTACTS,PIN,0.156 PITCH,PC TAIL TERMINAL,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,25 CONTACTS,PIN,0.156 PITCH,PC TAIL TERMINAL,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,24 CONTACTS,PIN,0.156 PITCH,PC TAIL TERMINAL,BLACK
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknow	unknow	unknow	unknow	unknown	compliant	unknown	compliant
body width	0.25 inch	0.25 inch	0.25 inch	0.25 inch	0.25 inch	0.25 inch	0.25 inch	0.25 inch
subject depth	0.125 inch	0.125 inch	0.125 inch	0.125 inch	0.125 inch	0.125 inch	0.125 inch	0.125 inch
body length	0.111 inch	2.451 inch	2.607 inch	2.763 inch	2.919 inch	3.387 inch	3.855 inch	3.699 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN-PB ON NI	SN-PB ON NI	SN-PB ON NI	SN-PB ON NI	SN-PB ON NI	SN-PB ON NI	SN-PB ON NI	SN-PB ON NI
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	12 mΩ	12 mΩ	12 mΩ	12 mΩ	12 mΩ	12 mΩ	12 mΩ	12 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1200VAC V	1200VAC V	1200VAC V	1200VAC V	1200VAC V	1200VAC V	1200VAC V	1200VAC V
Durability	75 Cycles	75 Cycles	75 Cycles	75 Cycles	75 Cycles	75 Cycles	75 Cycles	75 Cycles
maximum insertion force	4.448 N	4.448 N	4.448 N	4.448 N	4.448 N	4.448 N	4.448 N	4.448 N
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Manufacturer's serial number	87160	87160	87160	87160	87160	87160	87160	87160
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1	1	1
Maximum operating temperature	60 °C	60 °C	60 °C	60 °C	60 °C	60 °C	60 °C	60 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	100u inch	100u inch	100u inch	100u inch	100u inch	100u inch	100u inch	100u inch
Rated current (signal)	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.125 inch	0.125 inch	0.125 inch	0.125 inch	0.125 inch	0.125 inch	0.125 inch	0.125 inch
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	1	16	17	18	19	22	25	24
Evacuation force-minimum value	.278 N	.278 N	.278 N	.278 N	.278 N	.278 N	.278 N	.278 N
Base Number Matches	1	1	1	1	-	-	1	-
Other features	-	NUMBER OF KEYWAY=8	NUMBER OF KEYWAY=6	NUMBER OF KEYWAY=7	NUMBER OF KEYWAY=8	NUMBER OF KEYWAY=11	NUMBER OF KEYWAY=11	NUMBER OF KEYWAY=12
Plug contact pitch	-	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch
Terminal pitch	-	3.9624 mm	3.9624 mm	3.9624 mm	3.9624 mm	3.9624 mm	3.9624 mm	3.9624 mm
