BL-R5132L datasheet, PDF - EEWORLD Datasheet

BL-R5132L: DescriptionSingle Color LED, Bright Red, Diffused Red, 4.7mm, ROHS COMPLIANT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size245KB，2 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/; Environmental Compliance

Download Datasheet Parametric Compare View All

BL-R5132L Overview

Single Color LED, Bright Red, Diffused Red, 4.7mm, ROHS COMPLIANT PACKAGE-2

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	BRIGHT
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	unknown
Other features	HIGH RELIABILITY
color	BRIGHT RED
Configuration	SINGLE
Maximum forward current	0.015 A
Lens type	DIFFUSED RED
Nominal luminous intensity	0.6 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	4.6 mm
method of packing	BULK
peak wavelength	700 nm
shape	RECTANGULAR
size	4.7 mm
surface mount	NO
Terminal pitch	2.54 mm
perspective	125 deg
Base Number Matches	1

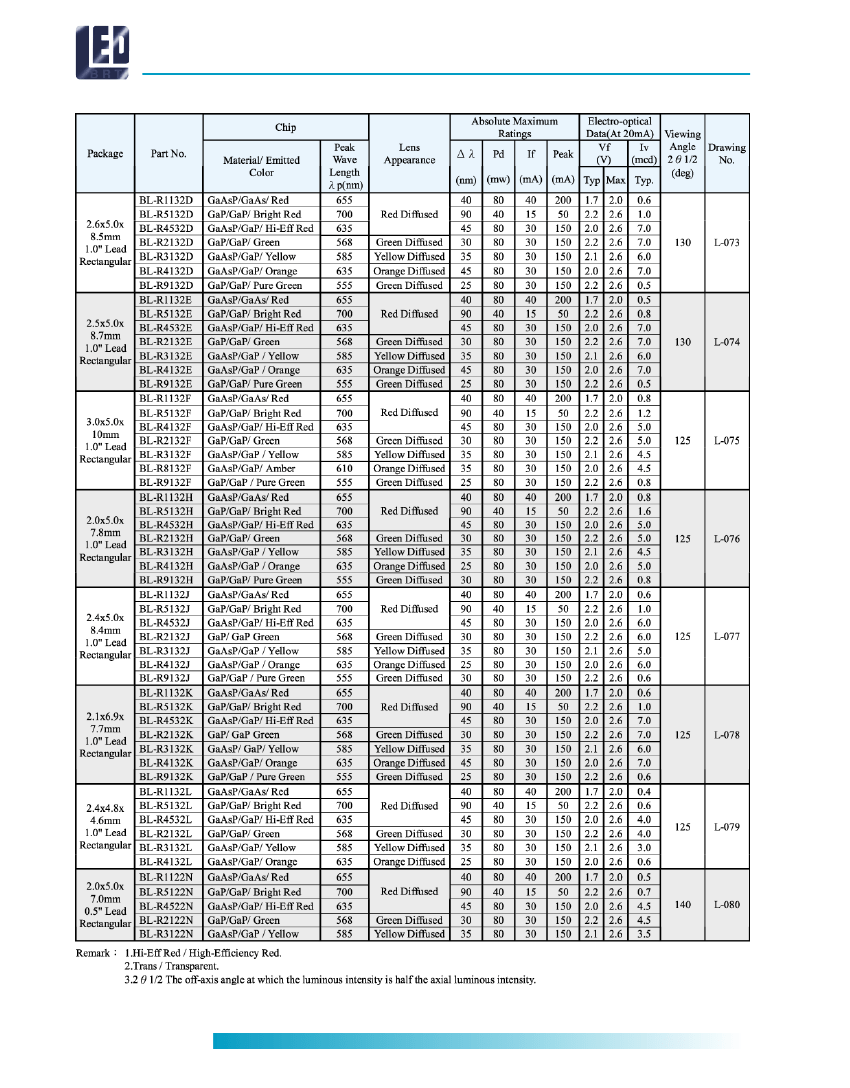

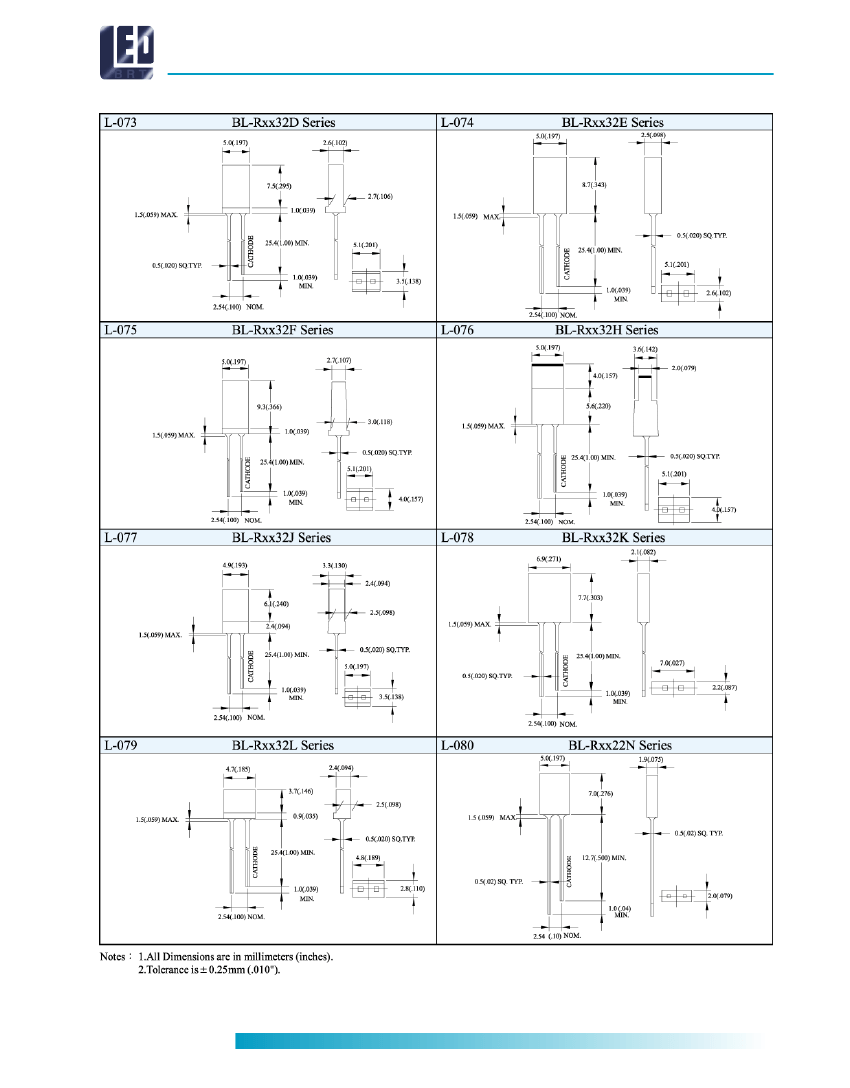

Standard LED Lamps

BL-R Series

Rectangular Types

AMERICAN BRIGHT

60

w w w. a m e r i c a n b r i g h t l e d . c o m

.

	BL-R5132L	BL-R3132F	BL-R4532D	BL-R4522N	BL-R9132K
Description	Single Color LED, Bright Red, Diffused Red, 4.7mm, ROHS COMPLIANT PACKAGE-2	Single Color LED, Yellow, Diffused, 5mm, L-075, 2 PIN	Single Color LED, High Efficiency Red, Diffused Red, 5mm, ROHS COMPLIANT PACKAGE-2	Single Color LED, High Efficiency Red, Diffused Red, 5mm, L-080, 2 PIN	Single Color LED, Pure Green, Diffused Green, 6.9mm, L-078, 2 PIN
Maker	BRIGHT	BRIGHT	BRIGHT	BRIGHT	BRIGHT
package instruction	ROHS COMPLIANT PACKAGE-2	L-075, 2 PIN	ROHS COMPLIANT PACKAGE-2	L-080, 2 PIN	L-078, 2 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
color	BRIGHT RED	YELLOW	HIGH EFFICIENCY RED	HIGH EFFICIENCY RED	PURE GREEN
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.015 A	0.03 A	0.03 A	0.03 A	0.03 A
Lens type	DIFFUSED RED	DIFFUSED	DIFFUSED RED	DIFFUSED RED	DIFFUSED GREEN
Nominal luminous intensity	0.6 mcd	4.5 mcd	7.0 mcd	4.5 mcd	0.6 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1
Number of terminals	2	2	2	2	2
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	4.6 mm	9.3 mm	7.5 mm	7 mm	7.7 mm
method of packing	BULK	BULK	BULK	BULK	BULK
peak wavelength	700 nm	585 nm	640 nm	635 nm	555 nm
shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
size	4.7 mm	5 mm	5 mm	5 mm	6.9 mm
surface mount	NO	NO	NO	NO	NO
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
perspective	125 deg	125 deg	130 deg	140 deg	125 deg
