125-0692-101 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 125-0692-101

Preview

125-0692-101: DescriptionRF SMPM Connector, 1 Contact(s), Female, Panel Mount, Solder Lug Terminal; CategoryThe connector The connector; File Size574KB，1 Pages; ManufacturerBel Fuse; Environmental Compliance

Download Datasheet Parametric View All

125-0692-101 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	125-0692-101	-	-	View	Buy Now

125-0692-101 Overview

RF SMPM Connector, 1 Contact(s), Female, Panel Mount, Solder Lug Terminal

125-0692-101 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	314336535
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	8 weeks
subject depth	0.276 inch
Cable type	SEMI-RIGID
Characteristic impedance	50 Ω
Connector type	RF SMPM CONNECTOR
Contact point gender	FEMALE
Contact resistance	6 mΩ
Contact style	COAX
Dielectric withstand voltage	450VAC V
Durability	100 Cycles
maximum insertion force	20.016 N
Insertion loss	0.12 dB
Insulation resistance	5000000000 Ω
insulator material	TEFLON
Manufacturer's serial number	125
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	PANEL
Number of ports	1
Maximum operating frequency	40 GHz
Maximum operating temperature	165 °C
Minimum operating temperature	-65 °C
reliability	COMMERCIAL
Shell material	BERYLLIUM COPPER
Termination type	SOLDER LUG
Total number of contacts	1
voltage standing wave ratio	1.25
Evacuation force-minimum value	28.912 N

Preview

Download Datasheet

View All

5

4

3

2

1

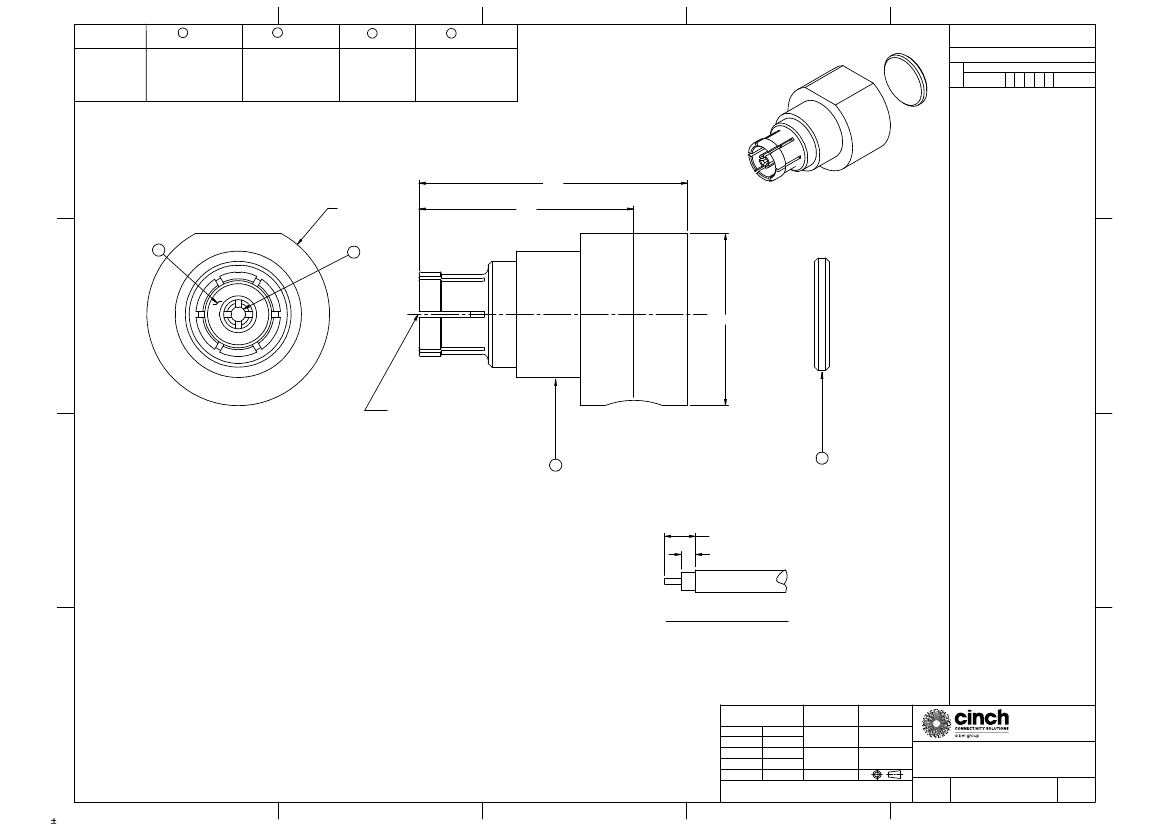

DRAWING NO.

PART NUMBER

125-0692-101

ITEM 1

BODY

BERYLLIUM COPPER

GOLD PL .00005 MIN

OVER NICKEL PL.00005

MIN OVER COPPER

PL.00005 MIN

ITEM 2

CONTACT

BERYLLIUM COPPER

GOLD PL .00005 MIN

OVER NICKEL PL.00005

MIN OVER COPPER

PL.00005 MIN

ITEM 3

INSULATOR

TEFLON

ITEM 4

END CAP

BRASS

GOLD PL .00001 MIN

OVER NICKEL PL.00005

MIN OVER COPPER

PL.00005 MIN

125-0692-101

REVISIONS

1

RELEASE

7-28-2013

R

S

R

S

L

M

ECO-13-0205

O

PY

10:1

D

.276

R .094

.221

3

2

ED

C

.177

C

O

SMPM FEMALE INTERFACE

PER MIL-STD-348B

.011~.013 PIN

ACCEPTS

LL

1

4

SPECIFICATION:

IMPEDANCE: 50 OHMS

FREQUENCY RANGE: 0-40GHz

VSWR: 1.10 MAX TO 10GHz, 1.25 MAX TO 20GHz

INSERTION LOSS: 0.12

F dB MAX (F IN GHz)

DIELECTRIC WITHSTANDING VOLTAGE: 325 VRMS MIN AT

SEA LEVEL

INSULATION RESISTANCE: 5000 MEGOHM MIN

CONTACT RESISTANCE:

CENTER CONTACT - INITIAL 6 MILLIOHM MA

X, AFTER

ENVIRONMENTAL NOT APPLICABLE

OUTER CONDUCTOR - INITIAL 2 MILLIOHM

MAX, AFTER

ENVIRONMENTAL NOT APPLICABLE

RF LEAKAGE: -80dB TYPICAL AT 3GHz

MECHANICAL:

ENGAGEMENT FORCE: FULL DETENT(FD) 4.5LBS TYPICAL;

DISENGAGEMENT FORCE: FD 6.5LBS TYPICAL; SB 1.5LB

CONTACT RETENTION: 1.5 LBS MIN AXIAL FORCE

DURABILITY: FD 100 CYCLES MIN; SB 500 CYCLES MIN

A

TR

B

.064

.030

O

N

10:1

CABLE STRIP DIMENSION

C

SMOOTH BORE(SB) 2.5LBS TYPICAL

S TYPICAL

THIS DRAWING TO BE INTERPRETED

PER ANSI Y 14.5M - 1994

N

ENVIRONMENTAL:

CUSTOMER COPY

B

ION I

EPT STEP 7B

TOLERANCE UNLESS

OTHERWISE SPECIFIED

DECIMALS

X.X

X.XX

X.XXX

ANGLES

INCH

±0.010

±0.005

±0.003

±0.5

DRAWN BY

R.SHEN

CHECKED BY

R.SHEN

APPROVED BY

L.MA

OPERATING TEMPERATUR: -65 TO 165°C

THERMAL SHOCK: MIL-STD-202, METHOD 107, CONDITION

MECHANICAL SHOCK: MIL-STD-202, METHOD 213, CONDIT

CORROSION: MIL-STD-202, METHOD 101

VIBRATION: MIL-STD-202, METHOD 204

MOISTURE RESISTANCE: MIL-STD-202, MEHTOD 106, EXC

DATE

1-27-2013

DATE

1-27-2013

DATE

1-28--2013

TITLE

U

Connectivity

Solutions

SMPM FEMALE

RIGHT ANGLE CABLED

.047 SEMI-RIGID

DRAWING NO.

SIZE

A

U/M

INCH

THIS DRAWING WAS PRODUCED BY COMPUTER,

DO NOT SCALE DRAWING OR UPDATE MANUALLY.

SHEET

1 OF 1

125-0692-101

1

C

5

4

3

2
