PART NUMBER
125-0701-221
PACKAGING
BULK PACK
5 PCS/BAG
TAPE AND REEL
1000 PCS PER FIG1
ITEM 1
BODY
BRASS
GOLD PL .00003 MIN
OVER NICKEL PL.00005
MIN OVER COPPER
PL.00005 MIN
ITEM 2
CONTACT
BERYLLIUM COPPER
GOLD PL .00005 MIN
OVER NICKEL PL.00005
MIN OVER COPPER
PL.00005 MIN
ITEM 3
INSULATOR
TORLON 4203
ITEM 4
PIN LOCATOR
TEFLON
数字签名人
lin.ma@cn.cinch.com
DN：cn=lin.ma@cn.cinch.com
日期：2018.03.28
10:11:32 +08'00'
REV
001
002
003
ECO
ECO-17-0028
ECO-17-0036
ECO-18-0001
DATE
2017/09/28
2017/12/20
2018/1/12
.316 (8.0)
125-0701-222
.630 (16.0)
FIG 1
2:1
REMOVE THE PIN LOCATOR
AFTER SOLDERING ON PC BOARD
10:1
4

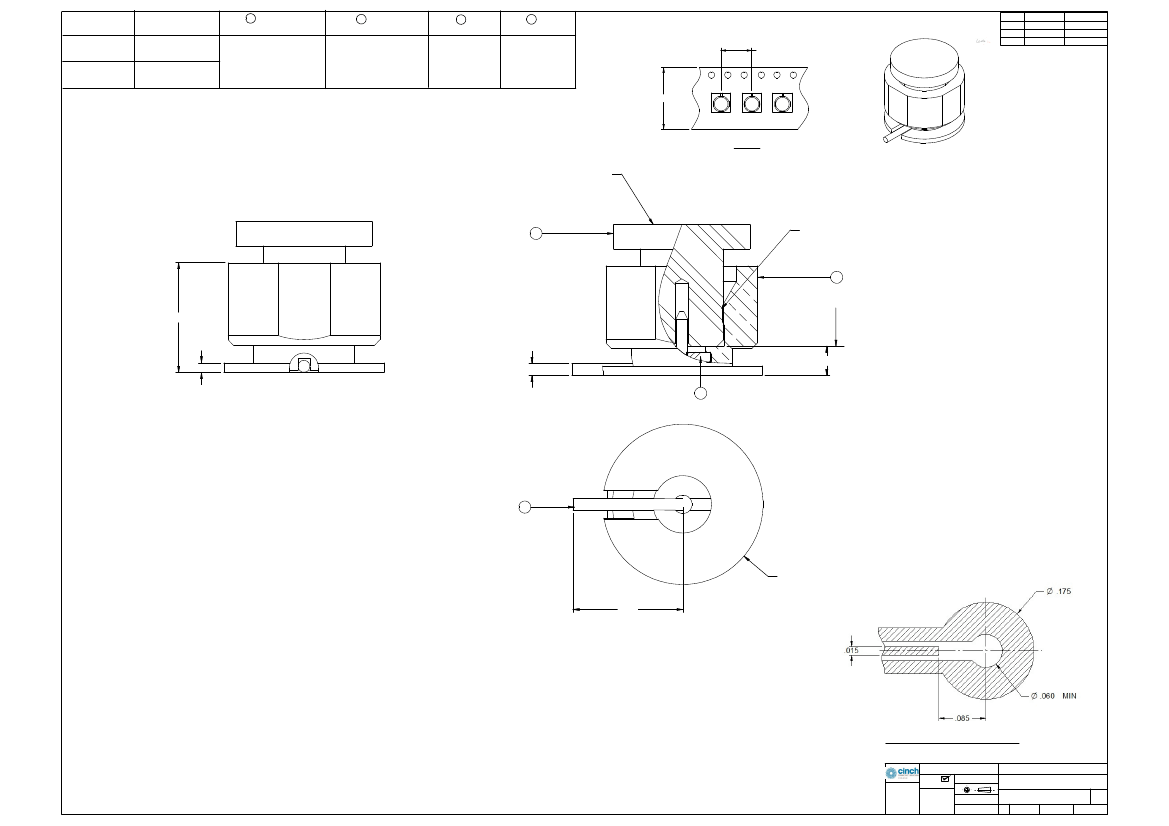

SMPM FULL DETENT INTERFACE
PER MIL-STD-348A
1
REFERENCE PLANE
.113
.010
O
.012
3
.030
2
SPECIFICATION:
ELECTRICAL:
IMPEDANCE: 50 OHMS
FREQUENCY RANGE: 0-20 GHz
VSWR:DEPENDANT ON APPLICATION
WORKING VOLTAGE: 325 VRMS MAX AT SEA LEVEL
DIELECTRIC WITHSTANDING VOLTAGE: 325 VRMS MIN AT SEA LEVEL
INSULATION RESISTANCE: 5000 MEGOHM MIN
CONTACT RESISTANCE:
CENTER CONTACT - INITIAL 6 MILLIOHM MAX, AFTER
ENVIRONMENTAL NOT APPLICABLE
OUTER CONDUCTOR - INITIAL 2 MILLIOHM MAX, AFTER
ENVIRONMENTAL NOT APPLICABLE
RF LEAKAGE: NOT APPLICABLE
MECHANICAL:
ENGAGEMENT FORCE: 4.5 LBS TYPICAL
DISENGAGEMENT FORCE: 6.5 LBS TYPICAL
DURABILITY: 100 CYCLES MIN
ENVIRONMENTAL:
OPERATING TEMPERATUR: -65 TO 165°C
THERMAL SHOCK: MIL-STD-202, METHOD 107, CONDITION B
MECHANICAL SHOCK: MIL-STD-202, METHOD 213, CONDITION I
CORROSION: MIL-STD-202, METHOD 101
VIBRATION: MIL-STD-202, METHOD 204
MOISTURE RESISTANCE: MIL-STD-202, MEHTOD 106, EXCEPT STEP 7B
O
.165
.113
RECOMMENDED PCB LAYOUT
Model No.
125-0701-221/230
Cage Code
3RD ANGLE PROJECTION
JOHNSON
Title:
RoHS2
This PROPRIETARY Document
is property of Cinch Connectivity
Solutions. It is confidential in
nature, non-transferable, and
issued with the clear
understanding that it is not
traced or copied without
permission and is returnable
upon demand.
2011/65/EU
UNLESS OTHERWISE SPECIFIED:
UNITS: INCH
SMPM MALE FULL DETENT
PCB SURFACE MOUNT .150 HEIGHT
Rev.
Drawing No.
Drawn by:
INTERPRET DRAWING IN
ACCORDANCE WITH ASME
Y14.5-2009.
.XX
u
.01
.XXX
u
.003
.XXXX
u
.0010
ANGLES
u
1
v
00'
R.SHEN
Date:
Size
125-0701-221/230
3
Sheet 1 of 1
5-15-2014
C
DO NOT SCALE
DRAWING
Workmanship Std:
/
